In modern industrial automation systems, the human-machine interface serves as an important bridge connecting operators and control systems, and its stability and ease of use directly affect production efficiency and safety. The UniOP series universal operation panel, designed and manufactured by SITEK S.p.A in Italy, is widely used in various industrial environments due to its diverse model selection, flexible communication interfaces, and robust industrial grade design. This article is compiled and written based on the official "UniOP Universal Operator Panel Installation Guide" (document code: MANUUNIOP22, version 1.08), aiming to provide engineers and technicians with a detailed, professional, and practical reference guide for installation and debugging.

Product Overview and Model Identification

The UniOP series of operation panels covers a variety of models from simple text display to high-resolution color touch screens, meeting the needs of different industrial scenarios. According to the differences in display technology and functionality, it can be mainly divided into the following categories:

Text panel: such as CP01F-02, CP02R-04, etc., using VFD or LCD display, suitable for simple data monitoring.

Graphic panel: such as BKDC-16, BKDL-16, etc., supporting 320x240 resolution graphic display, suitable for more complex interface design.

High end touch screen panels, such as ePAD30T and eTOP series, support TFT color display and resistive touch technology, with a resolution of up to 1024x768.

All models are equipped with real-time clocks, user replaceable lithium batteries (model CR2430), and multiple communication interfaces to ensure data retention even after power outages.

Technical specifications and environmental requirements

The UniOP panel fully considers the strictness of industrial environments in its design, and its technical parameters are as follows:

Working temperature: The standard model is 0 to+50 ℃, and some models (such as those with A6/A7 suffixes) can be extended to -20 to+60 ℃.

Storage temperature: -20 to+70 ℃.

Humidity range: 5% to 85% RH (non condensing).

Protection level: The front panel meets the IP65 standard and must strictly follow the installation instructions to ensure sealing.

Anti interference capability: Complies with the EN 61000-4 series standards and has good electromagnetic compatibility.

In addition, the built-in lithium battery on the panel is used to maintain clock and RAM data, with a lifespan of about one year, and needs to be replaced in a timely manner when low voltage prompts.

Installation environment and mechanical dimensions

To ensure long-term stable operation of the equipment, the installation environment must meet the following conditions:

Avoid direct sunlight: Prolonged exposure can accelerate the aging of the front panel film.

Stay away from corrosive substances: Before installation, the resistance of the front panel material to on-site chemicals should be confirmed.

Proper installation of sealing strips: Rectangular or strip-shaped sealing strips must be used according to the diagram to ensure IP65 protection level.

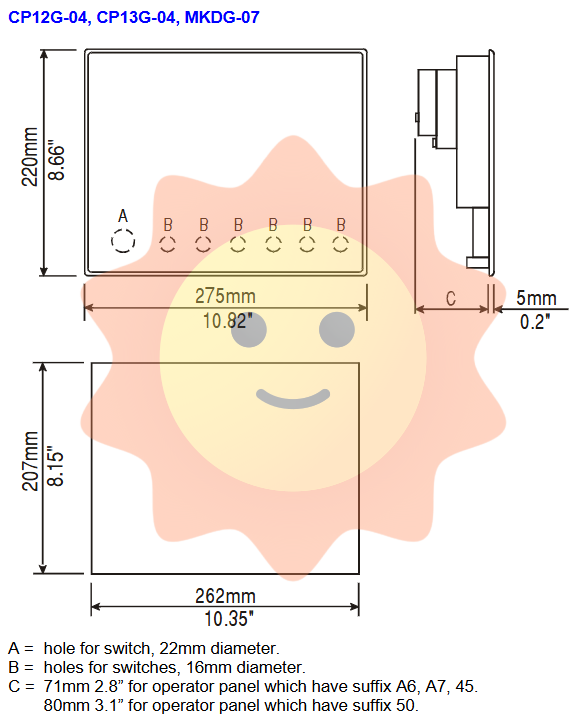

The installation dimensions of different models vary, and detailed mechanical diagrams are provided in the manual. Taking BKDC-16 as an example, its external dimensions are 216x168x82 mm, and the opening size needs to be accurately matched with an error controlled within ± 0.5 mm. Four fixed brackets are required during installation, fixed from the long edge near the corner until the frame contacts the surface of the panel.

Definition of Electrical Connections and Interfaces

The electrical connections of the UniOP panel include power supply, PLC interface, PC/printer interface, AUX expansion port, and external keyboard interface.

1. Power supply and grounding

All models support 24VDC power supply, with current consumption ranging from 250mA to 1300mA depending on the model. The power wiring must use a three core cable, and the grounding terminal must be firmly connected to the system grounding grid to ensure anti-interference capability. Some models, such as the ePAD series, have built-in overcurrent protection and do not require external fuses.

2. PLC interface

The PLC port is a D-sub 15 pin male connector, supporting multiple communication standards such as RS-232, RS-422, RS-485, and 20mA current loop. The specific signal allocation is as follows:

Pin 2: RXD

Pin 3: TXD

Pin 5: GND

Pin 6/7: CHA -/CHB-

Pin 8/9: TX+20mA/TX-20mA

Pin 14/15: CHA+/CHB+

The communication speed range is 300 to 38400 baud, depending on the PLC type. Special cables are required to ensure stable communication.

3. PC/printer interface

This interface is a D-sub 15 pin female head and supports RS-232 communication. Used to connect to a PC for project download (using CA2 or CA114 cables), or to connect to a serial printer in running mode. Some low-end models do not have this interface and require programming through a PLC port in conjunction with an adapter.

4. AUX expansion port

The AUX port is a 9-pin D-sub interface that supports the expansion of industrial fieldbus modules such as Profibus, DeviceNet, etc. When installing the module, it is necessary to first remove the back cover, insert the module and fix it, and finally paste the function label.

5. External keyboard interface

Some models, such as ECT-16 and ELT-16, support external ET-F/AT-F keyboards for easy operation in harsh environments.

Battery replacement and data retention

When the FAILT/FLT indicator light on the panel flashes or the system menu displays "Battery LOW", the lithium battery (CR2430) needs to be replaced. The operation steps are as follows:

Turn off the power;

Loosen the screws that secure the back cover;

Remove the battery holder and replace the battery with a new one;

Reassemble and power on to confirm that the battery status has returned to normal.

Attention: Replacing the battery may result in the loss of event records and recipe data stored in RAM. It is recommended to backup in advance.

Keyboard and touch screen operation instructions

The UniOP panel provides multiple operating modes, including physical buttons, touch screen, and external keyboard.

Directional keys and Enter key: used for menu navigation and data input.

System keys: such as CLEAR, ENTER, etc. Some functions can be activated by long pressing for 2 seconds.

Touch screen: Resistive technology, supporting finger or stylus operation. When data input is required, the system automatically pops up a numeric keypad.

Some models, such as ECT-16, do not have physical buttons and need to be triggered simultaneously on both sides of the touch screen to enter configuration mode.

Debugging and calibration after installation

1. Enter configuration mode

Standard method: After shutting down, press and hold any three keys (or the left and right sides of the touch screen) until the screen displays "Configuration Mode".

2. Touch screen calibration

If the touch is offset, calibration is required:

Standard mode: Long press the CLEAR key on the configuration interface, then click on the symbols in the four corners of the screen in sequence until complete.

Emergency mode: After turning on, click on the center of the screen at approximately 1-second intervals to enter the calibration program and follow the standard steps.

Safety regulations and precautions

No live operation: Power must be turned off before disassembling the back cover or plugging in modules.

Anti static measures: Operators must release static electricity before coming into contact with internal circuits.

Avoid using tools to operate the touch screen: to avoid damaging the surface film.

Emergency stop function: The panel must not be directly used to control unprotected actuators, and emergency stop must be achieved through safety circuits such as PLC.

Troubleshooting and Common Problems

Unable to enter configuration mode: attempt to urgently start the program or check if the power supply is stable.

Communication failure: Confirm if the cable type, communication parameter settings, and PLC port pin definitions are correct.

Battery alarm: Replace the battery in a timely manner to avoid data loss.

No display on the screen: Check the backlight power supply and brightness settings.
