Product Overview

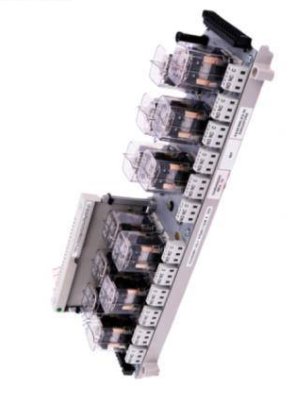

The Westinghouse 1C31238H01 is a fundamental switching module within the Ovation Distributed Control System (DCS). While many modern control signals are low-voltage digital pulses, industrial field devices often require the mechanical robustness of a relay contact. The 1C31238H01 bridges this gap, providing a reliable means for the controller to manage high-current and high-voltage loads without risking the sensitive electronic backplane.
As an integral part of the Westinghouse Ovation legacy, this module is built to meet the rigorous safety and uptime requirements of the global energy sector. Its design focuses on electrical separation, ensuring that field-side transients do not propagate back into the core DCS hardware.
Core Functional Features
The architecture of the 1C31238H01 is optimized for discrete control tasks where physical isolation and high-capacity switching are mandatory. Unlike solid-state outputs, the relay contacts in this module offer near-zero "on" resistance and infinite "off" resistance, making them ideal for mission-critical interlocks.
Key Technical Capabilities:
Galvanic Isolation: Provides a physical air gap between the system logic and the field load, effectively shielding the controller from surges and electromagnetic interference (EMI).
High Current Handling: Designed to switch inductive and resistive loads that exceed the capacity of standard electronic output modules.
Multiple Contact Configurations: Supports standard Form A or Form C contact arrangements to accommodate various fail-safe and interlocking control schemes.
Field Power Monitoring: Includes circuitry to monitor the presence of external wetting voltages, providing diagnostic feedback to the control room.
System Integration and Communication
The 1C31238H01 installs directly into the standard Ovation I/O base assembly. It communicates with the Ovation Controller via the high-speed I/O bus, ensuring that digital commands are translated into physical relay actions within milliseconds. This deterministic performance is essential for time-sensitive operations, such as sequential motor starting or steam turbine valve management.
Configuration is managed through the Ovation Developer Studio. Engineers can define the default state of each relay (normally open or normally closed) and set fail-safe parameters. In the event of a communication loss between the controller and the I/O branch, the 1C31238H01 can be programmed to hold its current state or transition to a predefined safe position, protecting the plant's mechanical assets.
Industrial Reliability and Durability
Reliability is the cornerstone of the Westinghouse 1C31238H01 design. The relays used in the module are industrial-grade components with high mechanical life ratings, ensuring thousands of cycles under full load. The module’s enclosure is designed to facilitate heat dissipation, preventing localized hotspots that could lead to premature component aging.
The 1C31238H01 is also rated for operation in harsh environments. It features protective coatings to resist humidity and chemical contaminants common in power plant turbine halls and chemical processing units. This resilience reduces the frequency of maintenance intervals and lowers the total cost of ownership for the utility provider.
Installation and Maintenance Guidelines
The physical installation of the 1C31238H01 is simplified by a keyed connector system that prevents incorrect module orientation. The module is hot-swappable, allowing maintenance personnel to replace a unit without shutting down the entire DCS rack—a critical feature for maintaining plant availability.
Diagnostics are provided via front-panel LED indicators. These lights provide instant visual confirmation of each relay's status (Active/Inactive) as well as the module’s overall health (Power and Communication status). This localized diagnostic capability significantly reduces the "Mean Time To Repair" (MTTR) by allowing technicians to identify a faulty relay channel at a glance during field inspections.
Conclusion
The Westinghouse 1C31238H01 remains a trusted solution for heavy industrial applications requiring precise and isolated switching. Its combination of rugged mechanical relays, sophisticated diagnostic feedback, and seamless Ovation integration makes it an indispensable component for any facility seeking to maintain peak operational control and safety. By delivering reliable discrete outputs, this module ensures that critical field actions are executed with the highest degree of certainty.
