Airlec RYP Precision Pressure Reducing Valve Selection and Maintenance

Complete guide for selection, installation, and maintenance of Airlec RYP series precision pressure reducing valves

In pneumatic systems, precision pressure reducing valves are key components that ensure stable and reliable working pressure for actuating components such as cylinders, pneumatic motors, valve positioners, etc. The RYP series precision pressure reducing valve launched by Schmalz or similar brands is widely used in automation assembly, packaging, robot grasping and other scenarios due to its diaphragm and pressure relief function, multiple interface sizes and output pressure range. However, when faced with issues such as shutdown replacement, selection errors, pressure fluctuations, or improper accessory matching, engineers often need a complete guide from parameters to practical operation.

This article is based on the original technical data of the RYP series, combined with practical engineering experience, to systematically sort out the technical specifications, flow characteristics, installation accessories, pressure gauge selection, and common troubleshooting methods of this series of pressure reducing valves, helping readers quickly complete equipment selection, old part replacement, and system optimization.

Overview and Technical Parameters of RYP Series Products

1.1 Product positioning

The RYP series is a precision pressure reducing valve with a diaphragm and a relieving feature. The so-called pressure relief function refers to the valve automatically opening the exhaust port to release excess pressure when the outlet pressure exceeds the set value due to downstream flow changes, thereby maintaining a constant output pressure. This feature is particularly important for applications that require precise pressure control, such as vacuum generators and precision grippers.

The valve locking device adopts rotary locking and supports padlock to prevent unauthorized personnel from making incorrect adjustments.

1.2 Overview of Technical Specifications

Parameter values

Temperature range -10 ° C~+50 ° C

Maximum input pressure 16 bar

Installation direction is arbitrary

Applicable medium: Compressed air (compliant with ISO 8573-1:2010), neutral gas

Body materials Grivory (PA66) and POM

Sealing material NBR

Internal parts made of galvanized steel, stainless steel, brass

1.3 Model coding rules

The RYP series models consist of the following parts:

RYP - Interface Specifications - Output Range - Pressure Gauge and Flow Options

Interface specifications: 14 (G1/4), 37 (G3/8), 38 (G3/8), 12 (G1/2). Among them, 37 and 38 are both G3/8 but correspond to different shell sizes Y1 and Y2, so it is important to distinguish them.

Output range: 01 (0.1~1 bar), 02 (0.1~2 bar), 04 (0.2~4 bar), 08 (0.5~8 bar), 10 (0.5~10 bar, standard), 16 (0.5~16 bar).

Pressure gauge and flow direction:

0: No pressure gauge, flow direction from left to right (standard)

1: No pressure gauge, flow direction from right to left

2: With pressure gauge, flow direction from left to right

3: With pressure gauge, flow direction from right to left

Selection example: RYP-14-10-2 represents G1/4 interface, with an output of 0.5-10 bar, equipped with a pressure gauge and flowing from left to right.

1.4 Flow rate and weight of each model

Model Interface Size Code Flow (Nl/min) Weight (kg)

RYP-14-xxx G1/4 Y1 2200 0.30

RYP-37-xxx G3/8 Y1 2200 0.29

RYP-38-xxx G3/8 Y2 5000 0.51

RYP-12-xxx G1/2 Y2 5000 0.49

Internal air consumption: All models have a flow rate of ≤ 2.6 L/min, indicating that the valve itself has low air consumption and is suitable for continuous operation.

Flow characteristics and pressure regulation capability

2.1 Interpretation of Traffic Curve

The original factory provided two sets of flow characteristic curves: one set corresponds to RYP-14 and RYP-37 (low flow), and the other set corresponds to RYP-38 and RYP-12 (high flow). When given an inlet pressure (such as 7 bar) and different outlet pressure settings (such as 2 bar, 4 bar, 6 bar), the corresponding flow rate can be obtained by looking up the curve.

Engineering meaning:

If the gas consumption of downstream equipment exceeds the rated flow rate of the valve at this pressure difference, the outlet pressure will significantly drop and cannot maintain the set value.

When selecting, the corresponding working point should be found on the flow curve based on the maximum gas consumption, ensuring a margin of 10-20%.

2.2 Hysterese delay

The hysteresis of a pressure regulator refers to the difference in output pressure between the boost and buck strokes at the same flow rate. The relatively small hysteresis curve of the RYP series indicates good repeatability in voltage regulation and is suitable for precision control. Excessive delay may lead to unstable cylinder movement or poor positioning repeatability.

Installation and accessory selection

3.1 Basic Installation Requirements

The RYP series can be installed in any direction, but it is recommended that the pressure gauge be facing upwards or horizontally for easy reading.

The input gas must be clean and dry. It is recommended to install a filter with a filtration accuracy of ≤ 5 μ m upstream (similar to a similar gas source processing unit).

Pipeline connection: Use thread sealant or PTFE tape to prevent debris from entering the valve body.

3.2 Wall mounted installation accessories

The original factory provides various installation accessories suitable for different scenarios:

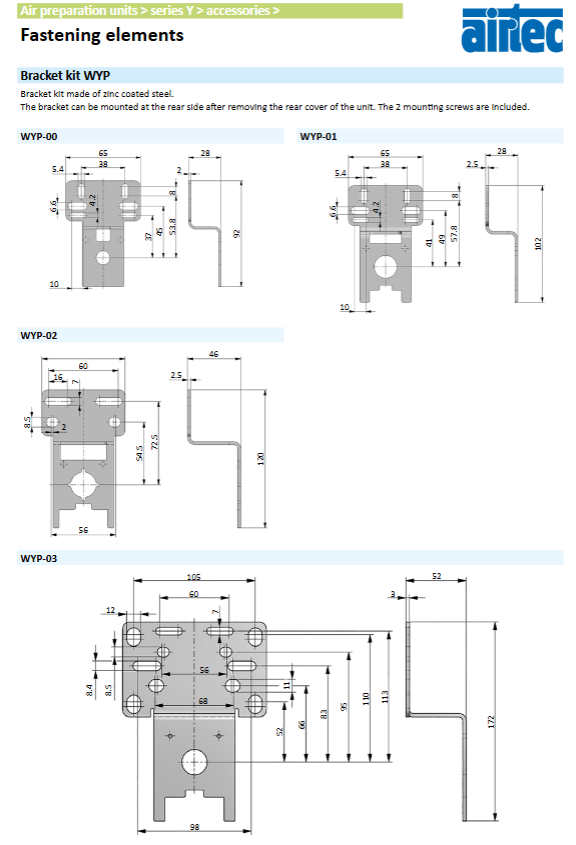

3.2.1 Bracket Kit WYP

Material: Galvanized steel

Installation method: Remove the valve back cover, fix the bracket on the back, and then lock it with two accompanying screws.

Applicable scenario: It is necessary to fix the pressure reducing valve on the back panel of the control cabinet or the side of the machine frame.

3.2.2 Installation bracket WYL

Material: Galvanized steel

Installation method: It needs to be used in conjunction with a separate installation nut (RMY).

Features: The bracket is L-shaped and can flexibly adjust the height of the valve protrusion, suitable for areas with limited space.

3.2.3 Installing Nut RMY

Material: Plastic

Function: Used to lock the valve body during WYL bracket or panel installation.

Attention: This nut is not included with the valve and needs to be ordered separately.

3.2.4 Connection kits KPY-K and KPY-W

KPY-K: Coupling kit, used to connect two RYP valves side by side or combine them with filters and oil mist generators to form a gas source processing unit.

KPY-W: Wall mounted coupling kit, used to secure the entire air source processing unit to a wall or device.

Selection tip: If you want to build a complete air source treatment triad (filter+pressure reducing valve+oil mist device), you should prioritize using the KPY-K connection kit and confirm that the interface sizes of each unit are consistent.

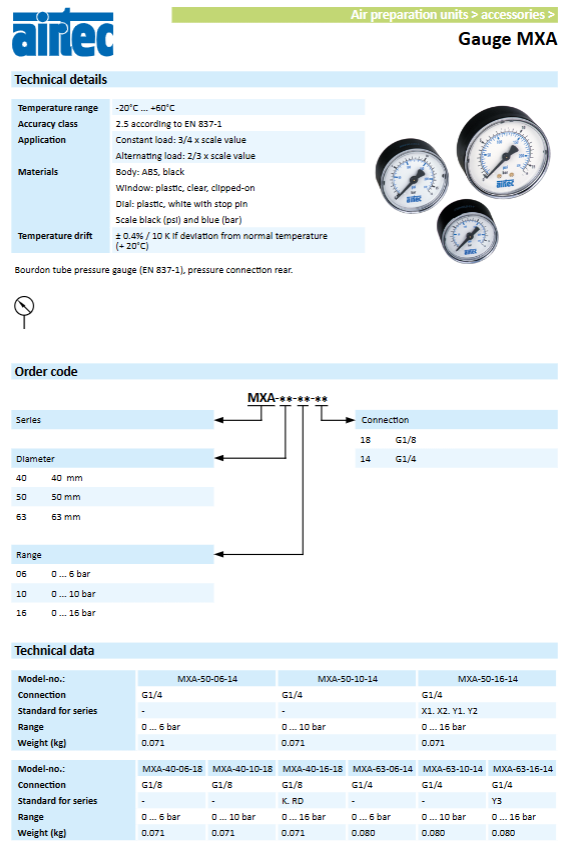

3.3 Selection of Pressure Gauge

The RYP series does not come standard with pressure gauges, and MXA series pressure gauges need to be ordered separately. Technical points:

Model Interface Range Applicable Series

MXA-50-06-14 G1/4 0~6 bar Y1, Y2

MXA-50-10-14 G1/4 0~10 bar Y1, Y2

MXA-50-16-14 G1/4 0~16 bar Y1, Y2

MXA-40-06-18 G1/8 0~6 bar K, RD series

MXA-63-10-14 G1/4 0~10 bar Y3 series

Principles for selecting pressure gauges:

For constant loads, the normal operating range of the pressure gauge should be within 3/4 of the range (e.g. a 10 bar range gauge is used for pressures below 7.5 bar).

For alternating loads, it should not exceed 2/3 of the range.

Temperature drift: For every 10K deviation from 20 ° C, the accuracy changes by ± 0.4%. If the on-site temperature exceeds 50 ° C, consideration should be given to replacing the high-temperature pressure gauge.

Typical troubleshooting and maintenance

4.1 Export pressure cannot be established or the pressure is too low

Possible causes and solutions

Check if the upstream air source is turned on and if the pipeline is blocked when there is no pressure at the inlet

The adjustment knob is not unlocked. Pull up the rotation lock and rotate it counterclockwise to increase the set value

Filter blockage: Remove the air inlet connector and clean the internal filter (if any)

Replace the valve body or repair kit if the internal diaphragm of the valve ruptures (contact the original factory)

4.2 The outlet pressure continues to rise beyond the set value

Possible causes and solutions

The valve seat is not tightly sealed (with foreign objects), and the pressure is repeatedly adjusted to the maximum and then returned to zero, using high-speed airflow to blow away impurities; If invalid, dismantle and inspect

Check if the exhaust holes at the bottom or side of the valve body are blocked by paint or dust, and clean them smoothly

Replace the pressure regulating spring due to spring fracture or fatigue (requires a specialized repair kit)

4.3 Large pressure fluctuations (pointer oscillation)

Possible causes and solutions

Upstream pressure fluctuations are severe. Add a gas storage tank or stabilizing valve in front of the pressure reducing valve

Frequent start stop of downstream equipment leads to drastic changes in flow rate. Choose valves with higher flow rates (such as Y2 series) or add buffer gas tanks

The valve size is too small and needs to be recalculated based on the maximum air consumption. RYP-38/12 is selected

If the pressure gauge is damaged, turn off the pressure. Remove the pressure gauge and check if the pointer returns to zero; Replace MXA series new products

4.4 External air leakage

Solution to Leakage Location

Re wrap the raw tape around the pipe thread connection and use a suitable thread sealant

Check whether the copper gasket or O-ring of the pressure gauge interface is tightly pressed, and replace it if necessary

Replace the valve stem sealing ring between the valve body and the regulating rod (requires professional tools)

The pressure relief port continues to leak air and the internal valve seat is damaged. Replace the valve core component

4.5 Adjustment knob stuck or rotates heavily

Possible causes and solutions

Disassemble and clean the deformed and jammed internal spring, apply an appropriate amount of lubricating grease (be careful not to contaminate the air circuit)

The locking device is not fully released, and the rotation lock is fully pulled up before adjustment

Foreign objects enter the regulating mechanism. Remove the upper cover and clean the screw and spring seat

Precautions for replacing discontinued old models

For pressure reducing valves that have been discontinued from a certain brand (such as Festo LRP, SMC AR series early models) and need to be replaced with RYP series, the following matching points should be noted:

Interface size and thread: Confirm whether the original valve interface is G1/4, G3/8, or G1/2. RYP provides G1/4 and G3/8 (two types of shells) G1/2。

Output pressure range: Whether the maximum output pressure of the original valve exceeds the corresponding range of RYP. For example, if the original valve requires a 12 bar output, RYP-16 (0.5-16 bar) is suitable.

Flow demand: Compare the flow curve in the original valve technical manual and choose RYP-14/37 (2200 L/min) or RYP-38/12 (5000 L/min). If the original system consumes up to 8000 L/min of air, it may be necessary to connect two RYPs in parallel or use a larger regulator valve.

Installation method: If the original valve is installed on a panel or bracket, check if the WYP and WYL accessories can match the existing hole spacing.

Pressure gauge interface: The original pressure gauge may be G1/8 or G1/4, and the MXA series offers multiple specifications that can be purchased separately for adaptation.

Replacement operation steps:

Turn off the gas source and release pressure.

Record the direction of the original valve inlet and outlet and the position of the pressure gauge.

Remove the original valve and clean the thread of the pipeline interface.

Install a new RYP valve and pay attention to the flow direction markings (valve body arrow direction).

If you need to change the flow direction (right in, left out), select the model suffix 1 or 3.

Install pressure gauge and apply sealant.

Slowly ventilate, adjust to the desired pressure, and lock the knob.

Preventive Maintenance Plan

To ensure the long-term stable operation of RYP pressure reducing valve, it is recommended to perform the following periodic maintenance:

Periodic maintenance content

Check for external leaks every month (soap water test); Observe whether the pressure gauge pointer is stable; Clean the dust on the surface of the valve body.

Remove the air intake filter and clean it quarterly; Test the pressure relief function: lower the outlet pressure and observe whether the downstream pressure decreases accordingly.

Verify the pressure gauge every six months (precision calibrator can be used); Check the smoothness of the adjustment screw rotation.

Replace the diaphragm and valve seat seals annually (depending on the frequency of use, if the annual action frequency is greater than 100000 times, it should be shortened to six months).

Spare parts suggestion: Keep a set of sealed repair kits (to be checked with the original factory) and MXA pressure gauges of the same range on hand to cope with sudden failures.

Quick Reference Table for Selection

Based on typical application scenarios, the following RYP models are recommended:

Reasons for recommending models for application scenarios

Small single cylinder, gripper (air consumption<500 L/min) RYP-14-10-2 (with gauge) G1/4 interface, with gauge for easy on-site debugging

Multi cylinder assembly line, pneumatic marking machine RYP-37-10-0 (without gauge) G3/8, Y1 compact size, flow rate of 2200 L/min sufficient

High speed packaging machinery, pneumatic motor RYP-38-08-2 (with gauge) G3/8, Y2 high flow 5000 L/min, output range 0.5-8 bar

Centralized gas source branch pressure reduction (remote adjustment required) RYP-12-16-0 (without gauge) G1/2, maximum output of 16 bar, in conjunction with external pressure sensor

Replace the imported old G1/2 valve RYP-12-10-2 with a standard range of 10 bar, equipped with a table for easy comparison with the original set value
