Danfoss VACON NXI High Power Frequency Inverter Operation Manual

Danfoss VACON NXI High Power Inverter (FI9-FI14) Operation Guide: From Safety Specifications to Advanced Parameter Configuration

In the field of industrial automation, frequency converters are the core equipment for achieving precise speed regulation and energy-saving operation of motors. The VACON NXI series frequency converters, especially high-power models covering FI9 to FI14, are widely used in heavy industry, process control, and infrastructure fields due to their modular design, powerful control performance, and flexible configuration options. This article aims to provide an in-depth interpretation of the operation guide for VACON NXI FI9-FI14 frequency converter, systematically elaborating on the technical points of the entire process from safety regulations, installation layout, electrical connections, to control panel operation, parameter debugging, and fault diagnosis, providing engineers with a professional and detailed technical reference.

Part 1: Safety Regulations and Product Overview

Safety is the primary prerequisite for the operation of industrial equipment, especially for high-power frequency converters, which have high-voltage DC busbars inside. Improper operation may cause serious accidents.

1.1 Core Security Warning

The manual begins with three levels of safety regulations: "DANGER", "Warning", and "CAUTION". The most representative warnings include:

Wait for 5 minutes after power failure: The DC bus capacitor inside the frequency converter may still maintain a lethal voltage after disconnecting the power supply. The manual clearly stipulates that before carrying out any electrical work, the power must be disconnected and wait for at least 5 minutes, and measurement equipment must be used to confirm that there is no voltage before operation can be carried out.

Leakage current risk: The leakage current of the frequency converter may exceed 3.5 mA. Therefore, a protective grounding conductor (PE) with appropriate cross-sectional area must be used, and a B-type residual current operated protective device (RCD) must be used to ensure personal safety.

Unexpected startup risk: When a startup signal is present, the motor may start immediately after power on, power off, or fault reset. The manual emphasizes that I/O functions (including startup inputs) may change when parameters, applications, or software change, and must be operated under the premise of ensuring system safety.

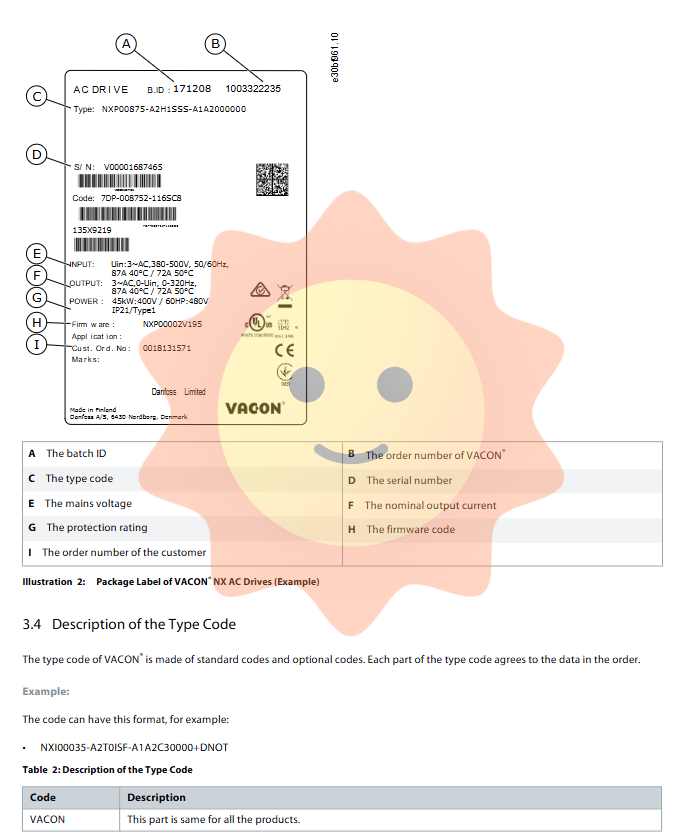

1.2 Product Structure and Technical Overview

VACON NXI frequency converter is divided into two main units in mechanical structure: power unit and control unit. The power unit includes an IGBT inverter bridge, which is responsible for converting DC power into the three-phase AC power required by the motor; The control unit is based on microprocessor software and is responsible for motor control algorithms, I/O signal processing, and user interaction.

Chassis size: FI9 to FI14 cover a wide range from low power to high power, with clear regulations on physical size, weight, and cooling requirements for each size. For example, the IP00 protection level weight of FI9 is 65 kg, while FI14 is as high as 604 kg.

Protection level: The product supports multiple protection levels such as IP00 (open), IP21 (UL Type 1), and IP54 to adapt to different installation environments.

EMC rating: Factory products default to Class T (Category C4) standards and are suitable for Class II environments. The manual specifically states that additional suppression measures may be required to prevent radio interference when used in residential environments.

Part 2: Mechanical and Electrical Installation

Correct installation is the foundation for the long-term stable operation of frequency converters, involving multiple aspects such as environmental requirements, cooling calculations, and cable selection.

2.1 Environmental Requirements and Capacity Reduction Calculation

The operational performance and lifespan of a frequency converter are closely related to its installation environment.

Environmental temperature and derating: The rated power of the frequency converter is based on an ambient temperature of 40 ° C. When the ambient temperature exceeds 40 ° C, it is necessary to reduce the capacity. The capacity reduction coefficient is 1.5% for every 1 ° C increase within the range of 40-50 ° C; Within the range of 50-55 ° C, for every 1 ° C increase, the capacity decreases by 2.5%.

High altitude installation: After the altitude exceeds 1000 meters, the air density decreases, the heat dissipation capacity weakens, and the electrical insulation performance decreases. Therefore, for every 100 meters increase, the load current needs to be reduced by 1%. For example, at an altitude of 2500 meters, the output current needs to be reduced to 85% of the rated value.

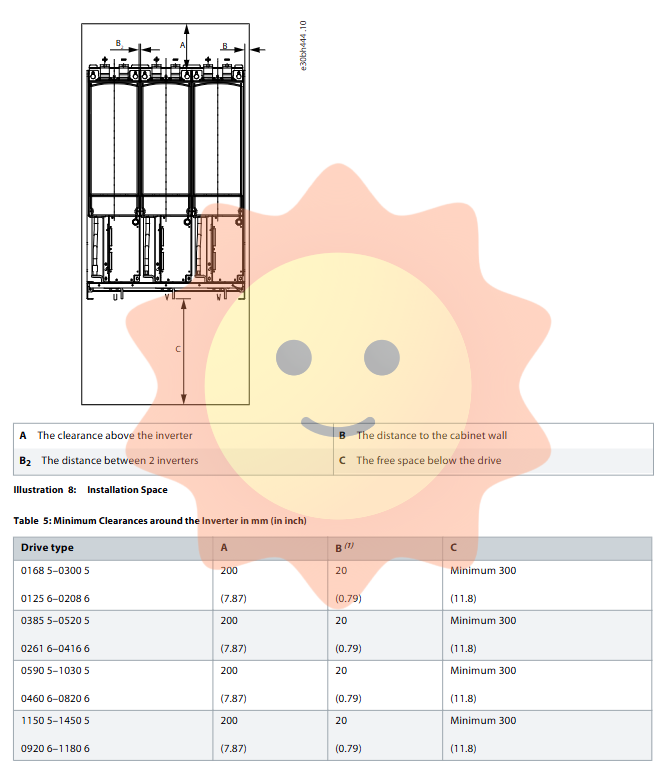

Cooling space: The manual provides detailed installation clearance requirements, including the minimum distance between the top, bottom, and sides. For FI9 to FI14, at least 200 mm of free space is required at the top and bottom. At the same time, the required cooling air volume for different models is also listed, for example, FI12 requires a cooling air volume of 2400 m ³/h to ensure effective heat dissipation.

2.2 Electrical Connections and Cable Selection

Electrical connection is one of the most technologically advanced links, directly related to the electromagnetic compatibility and operational safety of the system.

Cable selection: The manual provides a detailed cable selection table, including recommended cross-sections and types for power cables, motor cables, and control cables. For example, for the FI9 model with a voltage level of 380-500V and an output current of 300A, the recommended motor cable is copper core 3 × 95+50 mm ² or aluminum core 3 × 120+70 mm ². All cables must meet the minimum temperature resistance requirement of 70 ° C.

Grounding and EMC: The manual emphasizes the importance of using grounding conductors that meet the requirements, and recommends using a 360 ° ring grounding method to handle the motor cable shielding layer for optimal EMC performance. For EMC level C4, it is particularly necessary to use cable clamps at the motor end to achieve 360 ° grounding of the shielding layer.

Fuse selection: It is recommended to use aR type (semiconductor protection) or gR type fuses. The manual provides Bussmann fuse models and quantities for different models and voltage levels. For example, the FI12 model requires 2 x 2 170M85473SHT 690V 1250A fuses.

2.3 Control unit and fiber optic connection

For high-power models (FI9 and above), the control unit and power unit communicate through optical fibers to achieve electrical isolation and high-speed data transmission.

Control unit structure: The control unit includes a basic I/O board (OPTA1) and up to 5 optional slots for expanding I/O or fieldbus communication.

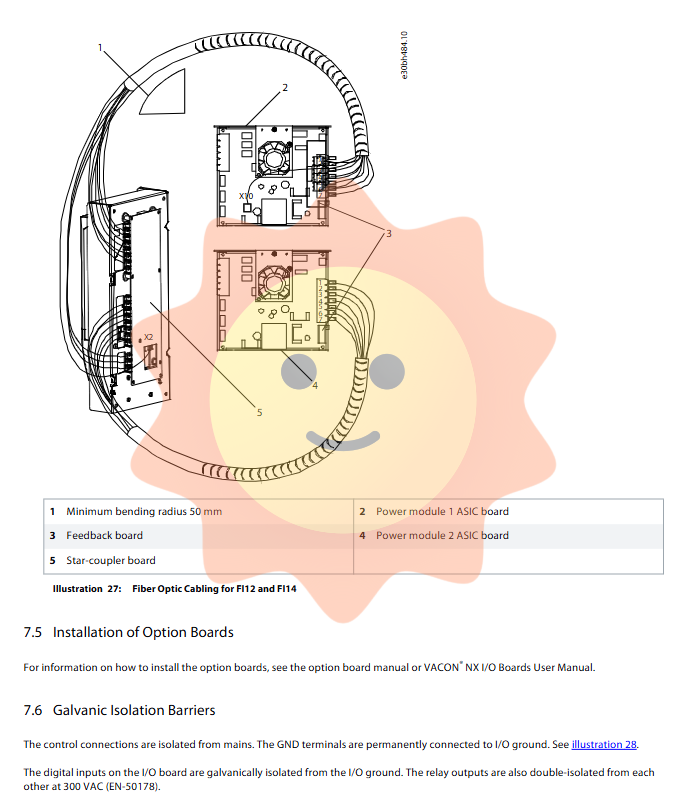

Fiber optic connection: The manual provides a detailed description of the connection method for fiber optic cables, including the minimum bending radius (50 mm) and maximum length (8 m). It is particularly emphasized that fiber optic connections must be strictly numbered, as incorrect connections can damage power electronic components.

24V external power supply: The control unit supports power supply through an external 24V power supply, so that parameter settings and monitoring can still be performed even when the main power supply is disconnected. But the manual also points out that when multiple frequency converters are connected in parallel using a 24V power supply, diodes should be connected in series on the 24V input line of each frequency converter to prevent current backflow.

Part Three: Control Panel Operation and Parameter Configuration

The operation panel of VACON NXI is the core interface for users to interact with the frequency converter, providing comprehensive parameter settings and monitoring functions.

3.1 Menu Structure Navigation

The menu system structure of the control panel is clear, divided into several main menus:

M1: Monitoring menu: Used for real-time viewing of key operating data such as output frequency, motor current, speed, torque, voltage, etc. The data is updated every 0.3 seconds.

M2: Parameter menu: Used to set and modify all application parameters. Parameters are grouped by function (e.g. G2.1 is the basic parameter of the motor), and users can navigate and edit them through the up and down browsing keys and left and right menu keys.

M3: Keyboard Control Menu: Used to select control modes (I/O terminals, keyboard or fieldbus), set keyboard frequency settings, change motor direction, and enable/disable stop button functionality.

M4: Current Fault Menu: Display the currently active faults. If there is a fault, the display screen will show the fault code, brief description, and fault symbol (FAULT or ALARM).

M5: Fault History Menu: Record the last 30 faults that have occurred and arrange them in chronological order. Users can view detailed data records (fault time records) for each fault occurrence, including key information such as output frequency, motor current, DC bus voltage, etc. at that time.

M6: System menu: includes advanced functions such as language selection, application selection, parameter backup, password settings, hardware settings, etc.

M7: Expansion Board Menu: Used to view and manage optional I/O boards or communication boards installed in the control unit slot.

3.2 Key parameter settings and functions

Application selection: The VACON NX series comes with a variety of built-in application macros, such as "Basic Applications", "PID Control Applications", "Multi speed Applications", etc. Users can switch applications through the M6.2 menu, and after switching, all parameters will be restored to the default values of the application.

Parameter backup and recovery: The M6.3 menu provides powerful parameter management functions. Users can save all current parameters as a custom parameter set (Set1/Set2), upload parameters to keyboard memory, or download parameters from the keyboard to another frequency converter, which is very convenient for batch debugging and maintenance.

Password protection: To prevent unauthorized parameter modification, the system menu (M6.5) supports setting passwords. The password can be any number between 1 and 65535, and it is required to enter the password when entering the security menu or modifying key parameters after setting.

Hardware settings: The M6.7 menu allows configuration of the connection status of internal braking resistors, fan control modes (continuous, temperature control, etc.), HMI communication timeout, etc. Among them, the fan control mode can be selected as "continuous" operation or set as "temperature" control, which automatically starts when the temperature of the heat sink exceeds 60 ° C.

Part Four: Debugging and Maintenance

The debugging process is crucial from system power on to formal operation, and standardized maintenance is the guarantee for extending equipment life.

4.1 Safety inspection and insulation measurement before debugging

Before powering on again after the first power on or long-term shutdown, a series of checks must be carried out.

Insulation inspection: The manual provides detailed instructions on measuring the insulation resistance of motor cables, DC power cables, and the motor itself. When measuring, disconnect the cable from the frequency converter and use a 1000V (or higher) megohmmeter to ensure that the insulation resistance is greater than 1 M Ω (at 20 ° C). Special emphasis should be placed on not conducting voltage withstand tests on the frequency converter itself, as the manufacturer has already completed them at the factory.

No load test run: Conduct a no-load test before connecting the motor load. The frequency converter can be started through the control terminal or control panel to check whether the motor direction is correct and whether the operation is smooth.

Motor parameter setting: Basic parameters such as rated voltage, rated frequency, rated speed, and rated current of the motor must be accurately set according to the motor nameplate, which is the basis for ensuring motor control performance.

4.2 Maintenance Plan and Capacitor Restructuring

Although the frequency converter is designed to be maintenance free, the manual still provides a maintenance plan based on operating time.

Regular maintenance: It is recommended to check the terminal tightening torque, clean the heat sink and cooling air duct, and check the operation of the fan every 6-24 months.

Fan and capacitor replacement: The typical lifespan of a fan is 5-7 years and requires regular replacement. The typical lifespan of DC bus electrolytic capacitors is 8-15 years, and replacement should also be considered based on usage.

Capacitor restructuring: If the frequency converter is stored for more than 2 years without power, its DC bus capacitance will experience performance degradation. The manual provides detailed steps for capacitor reconfiguration: connect a DC power source, limit the charging current (up to 800 mA), slowly increase the voltage to the rated value, and maintain power on for several hours according to the storage time to restore the electrochemical characteristics of the capacitor. This is a key step in ensuring reliable device startup after long-term storage.

Part 5: Fault Diagnosis and Handling

Effective fault diagnosis capability is the key to quickly restoring production when there is an abnormality in the frequency converter.

5.1 Fault Types and Display

VACON NXI frequency converters classify faults into four types:

A (Alarm) alarm: indicates abnormal situation, but the frequency converter continues to operate. The alarm information will disappear after about 30 seconds on the screen.

F (Fault) fault: causing the frequency converter to shut down. The cause of the malfunction must be eliminated and manually reset before restarting.

AR (Fault Autorest) automatic reset fault: The frequency converter attempts to automatically reset and restart. If it fails multiple times in a row, it becomes an FT fault.

FT (Fault Trip) Trip: Indicates that the frequency converter is unable to continue operating and requires manual intervention.

5.2 Typical fault codes and troubleshooting

The manual provides a rich list of fault codes and corresponding troubleshooting steps, with the following typical examples:

Fault 1- Overcurrent: may be caused by sudden load changes, motor cable short circuits, or motor mismatches. During troubleshooting, it is necessary to check the load, motor, and cables, and attempt to identify the motor for operation.

Fault 2- Overvoltage: Usually caused by short deceleration time, power overvoltage spikes, or the motor being in a generating state. Solutions include extending deceleration time, activating overvoltage controllers, or using braking units/resistors.

Fault 3- Grounding Fault: Indicates that the total sum of motor phase currents is not equal to zero, indicating an insulation fault in the motor cable or motor. Need to check the motor cable and motor.

Fault 8- System Fault (with code): This is a large category of internal faults, covering various hardware issues such as ASIC feedback, VaconBus communication faults, and charging switch feedback. This type of malfunction usually requires resetting and retry. If it repeatedly occurs, technical support should be contacted.

Fault 30- Safety disabled: Indicates that the safety torque interruption (STO) input on the OPTAF option board has been activated. This is a normal safety protection function, which needs to be released after confirming the safety circuit.

Part 6: Summary and Review of Technical Points

The VACON NXI FI9-FI14 series frequency converter operation guide is a structured and detailed technical document. It is not just an operation manual, but also a comprehensive technical guide that integrates safety regulations, engineering installation, debugging and maintenance, and fault diagnosis.

Summary of Core Points

Safety first: Strictly adhering to safety regulations such as waiting for 5 minutes after power failure, proper grounding, and using B-type RCD is the bottom line to ensure personnel safety.

Refined installation: Before installation, it is necessary to calculate the capacity reduction, ensure sufficient cooling space, select cables that meet EMC requirements, and tighten them according to recommended torque. This is the foundation for reliable operation of the system.

Parameterized management: Fully utilize the menu structure of the keyboard to efficiently set, backup, and copy parameters. Reasonably use password protection, multiple parameter sets, and automatic backup functions to simplify debugging and maintenance work.

Proactive maintenance: Follow the maintenance plan to regularly inspect and replace vulnerable parts such as fans and capacitors. Mastering capacitor restructuring technology can effectively address the recovery issues of long-term storage devices.

Systematic diagnosis: When a fault occurs, it is important to make good use of fault history records and fault time data records, combined with fault codes and sub codes, to conduct systematic analysis and accurately locate the root cause of the problem.

In short, a deep understanding and standardized operation of VACON NXI high-power inverters are key to ensuring their high performance and reliability in industrial applications. Engineers should use this operating guide as an authoritative basis to implement technical details in every aspect, in order to achieve safe, stable, and efficient operation of equipment.
