Danfoss VLT ® Series 3000 series adjustable frequency drive

F: | Au:FAN | DA:2026-03-31 | 980 Br: | 🔊 点击朗读正文 ❚❚ ▶ | Share:

Danfoss VLT ®  3000 series frequency converter: a panoramic view of technology from specification selection to advanced applications

Danfoss VLT ®  The 3000 series Adjustable Frequency Drive (AFD) is a high-performance industrial transmission equipment covering a power range of 1 to 300 horsepower (HP). Its unified control card design runs through the entire product line, providing flexible and reliable solutions for applications ranging from simple fans and pumps to complex constant torque. Based on its official technical manual, this article systematically reviews the core technical architecture, engineering implementation standards, and advanced application configurations of this series of frequency converters, aiming to provide a professional reference that combines theoretical depth and practical guidance for electrical engineers, system integrators, and maintenance personnel.


Product Overview and Technical Specification System

The VLT 3000 series is divided into multiple sub series based on input voltage and power level, mainly covering three voltage levels: 200/220/230V, 380/400/415V, and 440/460/500V. The core performance indicators are presented through detailed specification charts, and engineers need to focus on the following dimensions when selecting:

1. Load capacity and motor matching:

The specification table clearly distinguishes the rated output capacity under two typical load curves: constant torque (CT) and quadratic torque (VT). Taking the 380V series as an example, the VLT 3011 continuously outputs a current of 16.0A in CT mode, corresponding to a maximum motor of 15HP; while in VT mode, the continuous current is increased to 24.0A, which can drive a maximum motor of 20HP. This design allows for the use of smaller frequency converters in VT load applications such as fans and pumps, optimizing costs. The manual clearly states that the maximum motor power "HP" column is the key basis for selection, while the "output current" determines the actual load capacity of the driver.

2. Electrical interface and protection:

Input/output characteristics: The output voltage range can reach 0-100% of the AC line voltage, and the output frequency can be programmed between 0-120Hz or 0-500Hz through parameters. Built in electronic motor thermal protection and supports thermistor input in accordance with DIN44081 standard.

Protection level and wiring: Three chassis options are available: Open Chassis (IP00), NEMA 1 (IP21), and NEMA 12 (IP54) to meet different installation environment requirements. The maximum motor cable length (unshielded) is uniformly nominal at 1000 feet. If shielded cables are used, Danfoss needs to be consulted to determine the specific length limit, which is directly related to the implementation of electromagnetic compatibility (EMC).

3. Key safety regulations:

The manual begins with a prominent Warning sign emphasizing that "even if the AC power is disconnected, touching electrical components may cause serious injury or death." It also provides strict discharge waiting times: for VLT 3002-3032 (230V) and 3002-3052 (460V) models, wait for at least 4 minutes; For VLT 3032-3052 (230V) and all 3060-3250 models, wait for at least 14 minutes. This is an iron rule that must be followed before any installation or maintenance operation. In addition, the STOP button on the panel "does not cut off the AC power cord", which must be remembered in the safety operation process.


Installation Engineering and Cooling Specification

Professional installation is the foundation of reliable operation of frequency converters, and the installation guidance for VLT 3000 series is meticulous.

1. Mechanical installation and clearance:

The frequency converter must be installed on a flat vertical surface to ensure smooth airflow. For models 3002-3022 (230V) and 3002-3052 (380/460V), a minimum clearance distance must be maintained above and below them through natural or forced air cooling: IP00 and IP21 chassis are 3.9 inches (100mm), and IP54 chassis are 5.9 inches (150mm). The 3032-3052 (230V) and 3060-3250 models use forced air cooling and must strictly comply with the minimum clearance requirements for the side, top, bottom, and front in the manual. For example, when wall mounted, the side clearance "a" of the 3032-3052 (230V)/3060-3075 (380-500V) models needs to reach 6.7 inches (170mm). When multiple frequency converters are installed side by side, there may be no gaps on the side, but special requirements for IP20 chassis should be noted.

2. Wiring entry and grounding:

The base plates of NEMA 1 and NEMA 12 models provide wiring knock off holes. For UL/cUL certification applications, the accompanying grounding connection plate must be used. During installation, the green/yellow grounding wire should be connected to the marked grounding terminal inside the frequency converter. On the IP20 chassis model, the grounding plate is aligned with the grounding terminal in the form of a bus bar. This detail reflects the differences and integration of grounding methods between North American safety standards and European designs.

3. Integrity of cooling system:

The manual repeatedly warns through CAUTION: "To ensure proper cooling, the wiring maintenance board at the bottom of the inverter must be in place during operation. Failure to properly seal the wiring area may result in overheating conditions." This requirement applies to all large models and models with maintenance boards, and installation personnel must not remove or leave the board for convenience.

Detailed explanation of wiring system and terminal functions

Clear wiring is a prerequisite for achieving predetermined control functions.

1. Power line connection:

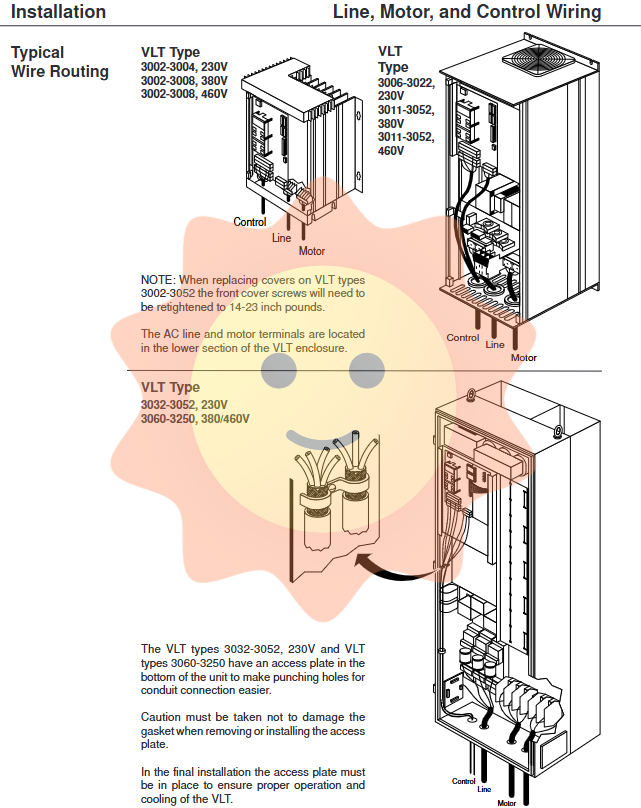

The power and motor wire terminals are located at the bottom of the frequency converter. The manual provides typical wiring diagrams and emphasizes the importance of fuse selection. For example, for VLT 3002-3022 (230V) and 3002-3052 (460V) units, it is recommended to use customer provided BUSS KTN-R (230V) or KTS-R (500V) fuses or equivalent products, and provide a maximum branch fuse current value table for each model (e.g. VLT 3008 460V is 25A). These units have a short-circuit rating of 100000 amperes under the protection of this fuse.

2. Control signal wiring:

Control signal cables must be shielded to prevent radio frequency interference (RFI) and comply with VDE0875 specifications. One end of the shielding layer should be connected to terminal 38 or 61 on the control card, and the other end should be cut and insulated. Control signal lines should be kept as far away as possible from power lines and motor lines; If it is necessary to run parallel within 6 inches, it is strongly recommended to use shielded cables such as Belden 18 AWG. The tightening torque for all control terminal screws is specified as 4.5 Lb In.

3. Depth analysis of control terminals:

The control terminal block is the core interface for functional configuration, and its function is determined by parameter group 4 (input and output).

Digital inputs (Terminal 12, 16-19, 27, 29, 32, 33): Terminal 12 provides+24VDC power (maximum 140mA), and terminal 20 is the common terminal. Terminals 16-33 accept 0/± 24V signals with an input impedance of 2k Ω. Through parameters 400-406, each terminal can be assigned multiple functions such as "reset", "stop", "start", "reverse", "jog", "speed selection", "setting selection", etc. For example, to implement a standard three wire start stop system, parameter 400 needs to be set to "stop" and parameter 402 needs to be set to "latch start", and normally closed contacts should be used at terminal 16 and normally open contacts should be used at terminal 18, both referring to terminal 12.

Analog input/output (Terminal 42, 45, 50, 53, 55, 60): Terminal 50 provides+10VDC power supply (maximum 12mA). Terminal 53 can be configured for various voltage signal inputs such as ± 10V, 0-10V, etc. (input impedance 10k Ω). Terminal 60 can be configured for 0/4-20mA current signal input (input impedance 226 Ω). Terminals 42 and 45 are multifunctional solid-state outputs that can be configured as digital (24V) status signals or analog (0-20mA, 4-20mA) output signals through parameters 407 and 408, used to indicate operating status, current, frequency, etc.

Thermistor input (Terminal 16): When parameter 400 is set to "thermistor", the built-in thermistor of the motor can be connected between terminals 50 (+10V) and 16. When the resistance exceeds 3k Ω, the frequency converter will trigger an alarm or trip, providing direct and reliable motor overheating protection.


Parameterized System: The Core of Control Logic

The VLT 3000 adopts a three-level parameter numbering system (group number, parameter number), divided into 6 major groups, forming a powerful programmable control platform.

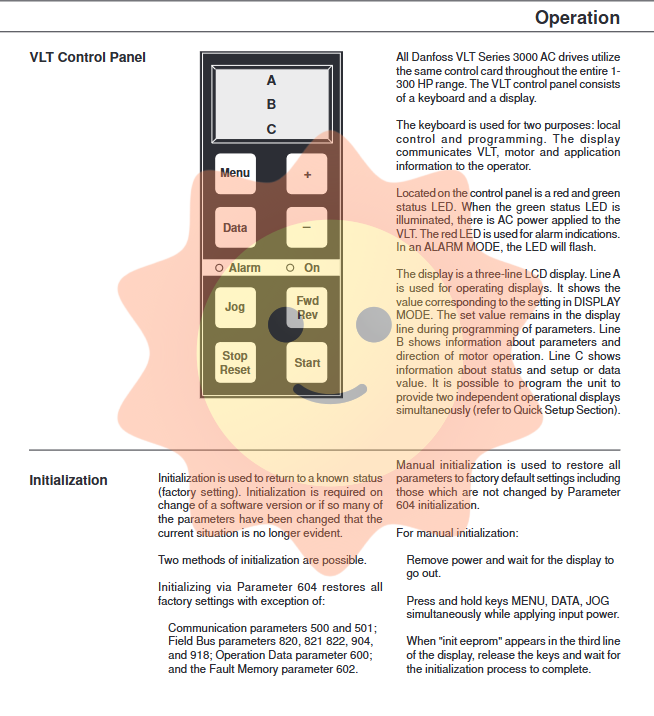

Group 0: Operation and Display

Parameter 003 (operating position): Define whether the frequency converter responds to local keyboard (LOCAL) or remote terminal/bus signals (REMOTE). When selecting LOCAL, the remote terminal input will be ignored, and the speed can only be adjusted using the "+" and "-" keys through parameter 004 (local reference value).

Parameter 004 (local reference value): Set the output frequency in LOCAL mode, ranging from 0 to the maximum frequency (parameter 202).

Parameter 005 (display value at maximum value): a clever scaling function. For example, if set to 1725 and select "RPM" as the display unit in parameter 117, when the output frequency reaches the maximum frequency (such as 60Hz), the display screen will show 1725 RPM, achieving a visual mapping from motor speed to process speed (such as the speed after passing through the reducer).

Group 1: Load and Motor

Parameter 100 (load type): Provides multiple V/f mode options from VT low, medium, and high curves to constant torque curves (with and without compensation). The "constant torque compensation" mode is suitable for CT loads of most standard induction motors; The "constant torque with four quadrant compensation" mode activates negative slip compensation (parameter 113), which is suitable for situations with potential energy loads (such as cranes).

Parameter 101 (speed control): Select open-loop, slip compensation, or closed-loop (PID) control mode. Slip compensation can improve the speed adjustment accuracy to ± 0.5% (within 10% -90% load variation). The closed-loop mode activates the internal PID regulator, with an accuracy of ± 0.1%.

Parameter 106 (Adaptive Motor Tuning): This is a powerful automatic optimization tool. After accurately inputting the motor nameplate data (parameters 103 power, 104 voltage, 105 frequency), select "tuning on", and the frequency converter will automatically run the motor and optimize the internal parameters (109-113) to match the specific motor characteristics, thereby obtaining the best starting performance and operating efficiency. Attention: When tuning, the motor must be unloaded or lightly loaded (<50%), and cannot be used for parallel motors or special motors.

Group 2: Reference Values and Limitations

Parameter 215/216 (acceleration and deceleration time): defines the acceleration and deceleration time from 0Hz to the rated frequency. For high inertia loads, too short deceleration time may cause overvoltage on the DC bus. In this case, it is necessary to consider installing braking options or enabling DC injection braking (parameters 306-308).

Parameter 224 (carrier frequency): default 4.5kHz. Increasing the carrier frequency can reduce motor noise, but it will linearly decrease the output capacity of the frequency converter (to 60% at 14kHz) according to the "High Switching Frequency Derating Curve" in the manual appendix. Important warning: For VLT 3060-3250 models, the carrier frequency must not exceed 4.5kHz, otherwise it may damage the equipment.

Group 3: Functions and Timers

Parameter 305 (Speed start): When the motor shaft may be rotating, start the frequency converter. This function allows it to "capture" the rotating motor and smoothly take over control, avoiding starting current shock. It is suitable for scenarios such as power outage recovery or wind turbine rotation under natural wind.

Parameter 309 (reset mode): can be set to "manual" or "automatic reset x times" (1-10 times). Choosing automatic reset requires extreme caution, as the Warning prompt states: 'The motor may start without warning.' This is absolutely prohibited in hazardous areas where personnel may come into contact with the machinery.

Group 4: Input and Output

As mentioned earlier, this group serves as a bridge connecting hardware terminals and control logic. The output signal configuration of parameters 407 and 408 is extremely rich, including not only standard "running" and "ready" states, but also analog output options such as "0-fMAX 0-20mA", which can directly drive remote instruments to display the frequency or current output of the inverter.

Advanced application features

1. PID closed-loop control (Appendix PI Adjustment Guide)

The appendix of the manual provides a quick setting guide for PID regulation, which is crucial for process control applications such as constant pressure water supply and constant temperature control. The core parameters include:

Parameter 119 (feedforward factor): allows some set point signals to bypass the PID regulator and directly act on the output, which can significantly improve the start-up response speed of large inertia systems.

Parameters 121 (proportional gain P) and 122 (integration time I): need to be debugged according to the system characteristics. For centrifugal fans, P is recommended to be 0.1-0.6, and I is recommended to be 10-12 seconds; For centrifugal pumps, P is recommended to be 0.3-0.8 seconds, and I is recommended to be 3-8 seconds. Parameter 123 (differential time D) is usually set to OFF in pump and fan systems.

Reverse control: For the "reverse" logic of "the higher the water level, the faster the pump speed" in tunnel drainage, the feedback signal (parameter 413) needs to be set as the reverse signal (such as 20-0mA), and the set point calculation formula should be adjusted accordingly (set point%=100% - (expected value/sensor range) × 100%).

2. RS-485 serial communication

The fifth set of parameters defines the complete RS-485 master-slave communication protocol.

Protocol format: Using 22 character ASCII telegram format, including the starting character "<", address, control word, parameter number, data value, checksum, and ending character ">".

Control words and status words: These are the core of communication. 16 bit control characters are encoded using ASCII characters, with each character's lower 4 bits corresponding to a control bit. For example, bit 00 (ON1/OFF1) controls normal slope start stop, bit 03 (COAST/ENABLED) controls free parking, and bit 06 (RAMP STOP/START) controls slope start stop. The status word provides feedback to the host on the 16 bit operating status of the frequency converter (such as ready, running, warning, fault, etc.).

Logical combination: Parameters 503-510 allow the same control function to be set as a "logical AND" or "logical OR" relationship between digital terminals and buses, providing great flexibility. For example, the "start" command can be set to the "logical OR" of terminal 18 and bus control bit 06, meaning that either one is valid to start.


Selection, derating, and debugging practices

1. Application of derating curve

The derating curve in the appendix of the manual is the ultimate guarantee for ensuring the safe operation of the frequency converter under all operating conditions and must be strictly followed.

Environmental temperature derating: For VLT 3002-3008 (Chassis/NEMA 12), the output current needs to be reduced to 84% of the rated value at 45 ° C. For VLT 3060-3250 (CT mode, NEMA 1/12), After exceeding 45 ° C, a 3% reduction in rating is required for every 1 ° C increase.

Altitude derating: After the altitude exceeds 3300 feet (1000 meters), for VLT 3060-3250 (CT mode), the output current needs to be derated by 5% for every 3300 feet increase at 45 ° C, or the maximum ambient temperature allowed to decrease by 3 ° C at full current.

Switching frequency derating: When the carrier frequency exceeds 4.5kHz, the maximum continuous output current linearly decreases, reaching only 60% of the rated value at 14kHz. Meanwhile, the length of motor cables should also be limited to within 130 feet (40 meters).

2. Suggestions for debugging process

Safe power-off and inspection: Confirm that the main power supply is disconnected, wait for the specified discharge time, and then perform wiring inspection.

Initialization and motor parameter setting: After power on, follow the "Quick Set up" process to set the language (parameter 000), motor nameplate parameters (103-105), and perform adaptive motor tuning (parameter 106) in sequence.

Basic functional configuration: Set minimum/maximum frequency (201/202) and acceleration/deceleration time (215/216).

Control logic wiring and parameterization: According to the process requirements, complete the control line wiring and configure the corresponding terminal functional parameters (400 series).

Protection and advanced function settings: Configure motor thermal protection (parameter 315), braking function (300 series) or PID parameters (1 set and appendix).

Communication configuration (if required): Set the address (500), baud rate (501), and bus logic parameters (503-510).

Trial operation and optimization: Under the premise of ensuring safety, conduct no-load and load trial operation, observe current, voltage, temperature, and adjust parameters (such as slip compensation and PID parameters) according to actual working conditions.
