Introduction: Precise Sensory Perception of Industrial Control Systems

In modern industrial automation systems, programmable logic controllers (PLCs) are like the brain, while distributed input/output (I/O) modules are the nerve endings that sense the outside world and execute instructions. The DI 260/A digital input module launched by KEBA is a key component responsible for high-precision and high reliability signal acquisition in the Kemro automation system family. This module is designed for harsh industrial environments and is widely used in core manufacturing equipment such as injection molding machines, robots, presses, and machine tools. This article aims to provide a detailed and professional application guide for automation engineers and system integrators by combining its official project engineering manual (V1.05) to deeply analyze this classic module from technical core, security design, installation specifications to system integration.

Chapter 1: Module Overview and Design Philosophy

1.1 Product positioning and target users

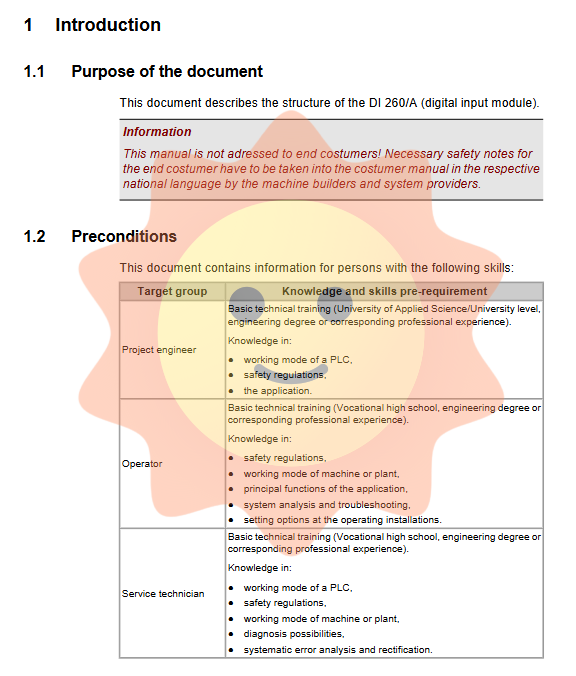

DI 260/A is a compact digital input module designed strictly in accordance with industrial control standards. The manual clearly states that this document is not intended for end customers, but is specifically designed for project engineers, operators, and service technicians of machine manufacturers and system integrators. This positioning determines that its content is deeply focused on the engineering implementation level, requiring readers to have a foundation in electrical engineering, PLC knowledge, understanding of safety regulations, and the ability to diagnose system faults. As an "open device" (compliant with EN 61131-2 and UL 508 definitions), the module must be installed in a control cabinet with sufficient protection level for use, which reflects the hard requirements of industrial products for basic security architecture.

1.2 Hardware Architecture and Appearance Layout

The module adopts a simple and efficient industrial design. The front view clearly displays its core interface: a common reference potential (0V) terminal and a wiring block with 16 digital input channels. The input status is visually displayed through a row of green LEDs on the left, providing great convenience for on-site debugging and status monitoring. Its compact physical dimensions (22.5mm wide, 32.5mm with K-Bus plug, 120mm high, 100mm deep, weighing 130g) support high-density rail installation, optimizing the space utilization of the control cabinet. It is worth noting that the "electronic nameplate" information of the module is stored in the internal EEPROM and can be read by the upper computer application program, which lays the foundation for digital asset management and system configuration automation.

1.3 Core Electrical Characteristics

The power supply of the module is completely provided by the K-Bus on the backplane, including 5V DC required for logic and 24V DC required for input circuits. The maximum power consumption is 0.4W and 1W respectively, with excellent energy efficiency performance. All 16 digital inputs comply with the requirements of "Type 1" in IEC 61131-2 standard: the recognition voltage range for high-level signal "1" is 15V to 30V DC, and the range for low-level signal "0" is -3V to 5V DC, with good noise tolerance. All input channels share a common ground terminal (0V), but are isolated from each other in signal processing logic and have an electrical strength of up to 707V, effectively preventing inter channel interference and ground loop problems.

Chapter 2: Safety Regulations and Proper Use

2.1 Mandatory Safety Warning

The manual emphasizes multi-level hazard warnings with prominent symbols, which is the primary criterion in engineering applications.

Electrical safety: The module must be powered by an extra low voltage (SELV/PELV) power supply with safety isolation, and all connected voltage and power circuits must not exceed a rated value of 50V. This fundamentally avoids the risk of electric shock. Before performing module plugging and unplugging operations, the power must be cut off, otherwise it may cause module damage or unpredictable dangerous states in the control system.

Fire protection: It is mandatory to equip the 24V DC power circuit of the module with suitable external fuses, and the rated breaking current of the fuses should not exceed 10A. This is a key protective measure to prevent fires caused by circuit or module failures.

Environmental and usage limitations: The module can only be used for control applications described in the manual and in conjunction with recommended/approved third-party devices. The working environment temperature is between+5 ° C and+55 ° C, and condensation, strong vibration, and impact should be avoided.

2.2 EMC (Electromagnetic Compatibility) Wiring Guidelines

Good electromagnetic compatibility is the lifeline for stable operation in industrial sites. Although the manual does not elaborate on the details, it clearly states that attention must be paid to "careful wiring and shielding" from the beginning, and guides readers to refer to the more comprehensive "System Manual". This usually means that signal lines and power lines must be laid separately and kept at a sufficient distance; Use shielded cables and ground the shielding layer extensively and at a single point on the control cabinet side; Equip inductive loads (such as relay coils) with suppression devices such as freewheeling diodes. Following these guidelines is a prerequisite for ensuring that the module is free from interference and does not produce harmful emissions to the outside world.

Chapter 3: Wiring Configuration and Advanced Function Applications

3.1 Standard digital input wiring

The 16 digital inputs of the module are used to connect field devices such as switches and sensors (such as proximity switches and photoelectric sensors). The wiring example is as follows: One end of the normally open (NO) or normally closed (NC) contact of the field device is connected to the input channel terminal (DI0-DI15) of the module, and the other end is connected to the common 0V terminal on the front of the module. The module is internally connected to the 24V provided by K-Bus through a pull-up resistor. When the external contacts are closed, the input circuit conducts and the voltage is pulled down to nearly 0V. The module recognizes the "1" state and the corresponding LED lights up. This "wet contact" wiring method is universal and reliable.

3.2 Interrupt Input Function

A significant feature of the DI 260/A is that its first two inputs (DI0 and DI1) can be configured as "interrupt inputs". Unlike ordinary inputs that are scanned and read through PLC loops, interrupt inputs can immediately send interrupt requests to the processor when the signal changes, achieving microsecond level (response time of about 100 μ s) fast response. This is crucial for handling high-speed counting, emergency stop signals, or precise phase capture applications. It should be noted that when used as an interrupt input, its anti shake time is fixed at 34 microseconds, and the manual warns that interference pulses exceeding 10V may cause false interrupts. Therefore, extra attention should be paid to signal conditioning and shielding in environments with strong interference.

3.3 Debouncing function

Mechanical switches and contacts inevitably bounce during operation, causing electrical signals to switch on and off multiple times. The module provides a configurable anti shake time (default 1ms, can be set to 100ms), and only when the input signal is stable and continues to exceed the set anti shake time, the system will confirm and process the state change. This function greatly improves the accuracy and stability of mechanical switch signal acquisition. Of course, this feature is only effective when the input is a regular numeric input, and interrupt input uses a fixed short-term stabilization.

Chapter 4: System Integration and Engineering Configuration

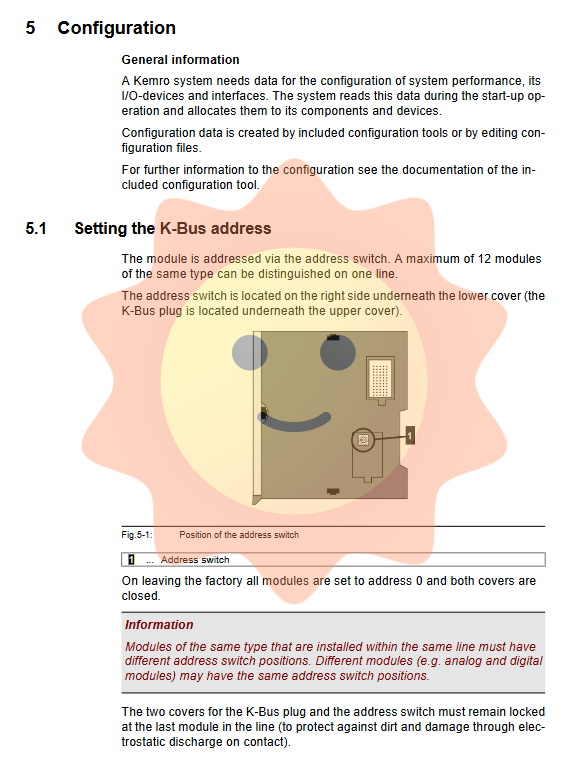

4.1 K-Bus Address Setting

The DI 260/A is addressed through a 16 bit dip switch located on the right side of the module and under the protective cover. On the same K-Bus bus, up to 12 modules of the same type can be distinguished. At the factory, all module addresses are set to 0. During system integration, each module of the same type on the same bus must be assigned a unique address. But different types of modules (such as digital input and analog output modules) can have the same address. This is the foundation for implementing modular and scalable I/O systems. The manual emphasizes that the protective covers of K-Bus plugs and address switches located at the end of the bus must be kept locked to prevent dust and static electricity.

4.2 Configuration Data and Tools

As a part of Kemro automation system, the parameters of the module (such as setting DI0/DI1 as interrupt and setting anti shake time) need to be configured at the system level. Configuration data is generated through engineering software suites provided by KEBA, such as KeStudio U2 or U3, and is read and allocated at system startup. The detailed configuration process should refer to the corresponding System Manual. This combination of software and hardware configuration gives the system a high degree of flexibility.

4.3 Connector selection

The module adopts an open terminal block with a grid spacing of 5.08mm. KEBA recommends using specific models of Weidm ü ller plug-in terminal blocks (such as 2-pole, 4-pole, 6-pole, 8-pole), and states that these terminals are not provided with the module but can be purchased from KEBA. Engineers can also use larger terminal blocks to group and connect multiple signals, but they should be aware that this may result in a decrease in current carrying capacity, and should refer to the terminal manufacturer's derating curve. This design balances wiring flexibility and space efficiency.

Chapter 5: Compliance, Technical Data, and Lifecycle

5.1 International Standards and Certification

The design of DI 260/A fully complies with mainstream industrial standards, which is its passport to enter the global market.

European market: It complies with the EC Electromagnetic Compatibility Directive (2004/108/EC) and RoHS Directive (2002/95/EC), and its compliance is demonstrated by following the harmonized standard EN 61131-2:2007 (covering EMC, electrical safety, fire protection, and environmental conditions).

North American market: The module has passed the UL 508 (Industrial Control Equipment) standard certification, meeting the requirements for fire prevention, electric shock prevention, and structural safety.

The manual also specifically reminds that this product is designed for industrial environments and may cause radio interference if used in residential areas.

5.2 Summary of Detailed Technical Parameters

General data: overvoltage category II, equipment category III. The maximum K-Bus 24V power consumption is 1W, and 5V power consumption is 0.4W.

Digital input: 16 channels, type 1. High level 15-30V, low level -3-5V. Anti shake time can be configured (1ms/100ms). Cycle time 1ms. Electrical isolation 707V.

Interrupt input: 2 channels (DI0, DI1). Response time of 100 μ s (under 5kHz input filtering).

Environment: Operating temperature+5 ° C~+55 ° C; Storage temperature -40 ° C~+70 ° C; Humidity 10% -95% without condensation.

5.3 Scrap disposal

The module is labeled with a wheeled garbage bin with a fork, indicating that it is electrical and electronic waste and is prohibited from being disposed of together with household waste. Users should follow local regulations and dispose of materials through professional recycling channels to achieve material reuse and recycling, fulfilling their environmental protection responsibilities.

Chapter 6: Application Summary and Engineering Value

The KEBA DI 260/A digital input module represents a classic, reliable, and highly standardized design concept for industrial I/O components. It does not pursue the complexity of functions, but has achieved the utmost in its core responsibility - to accurately, reliably, and quickly upload discrete signals from the site to the control system. Its value is reflected in the following aspects:

Reliability cornerstone: Strictly following international standards such as IEC 61131-2 and UL 508, from electrical isolation, noise tolerance to environmental adaptability, all provide guarantees for its long-term stable operation in harsh industrial environments.

Engineer friendly: Clear LED status indicators, flexible address settings, configurable anti shake and interrupt functions, and detailed engineering manuals greatly simplify installation, debugging, and maintenance work.

System Integration: As an integral part of Kemro's automation system, it seamlessly integrates through the backplane K-Bus, supports modular expansion, and conforms to the trend of modern distributed control architecture.

Safety and Compliance: Making safety requirements (such as SELV/PELV power supply, external fuses) the core premise of design and clearly conveying them reflects the manufacturer's high level of responsibility for user and end application safety.

For system integrators, choosing DI 260/A means choosing a validated, fully documented, and compliant solution that meets global mainstream security and EMC standards. Correctly understanding and applying the technical details and safety specifications in the manual is a key step in fully leveraging its performance and building a robust and reliable automation system. Under the wave of Industry 4.0 and intelligent manufacturing, this "sensory" module that provides stable and accurate underlying data collection remains an indispensable and solid foundation for building any advanced and intelligent control system.
