Core Tool of Industrial Automation: Analysis and Application Guide of NSJ Integrated Controller Technology

In modern industrial production, the miniaturization, standardization, and intelligence of control systems have become an irreversible trend. With the expansion of global production bases and the increasing complexity of equipment, engineers are facing unprecedented challenges: how to integrate more powerful control functions in limited space? How to reduce the full lifecycle cost from design, installation to maintenance? How to quickly respond to on-site faults and reduce downtime? In response to these pain points, Omron's NSJ series controllers provide an attractive solution for the manufacturing industry with their "single package" concept that integrates PLC (programmable logic controller) and HMI (human-machine interface).

System architecture: Breaking tradition and merging into one

The design of traditional control systems typically requires separate space planning, wiring, and communication settings for PLC and HMI, which not only occupies valuable control cabinet space but also increases the complexity of system integration. The core innovation of the NSJ series lies in its "single package" architecture. It integrates a complete PLC controller and a high-performance touchscreen display unit into a compact housing, connected through an internal high-speed bus, presenting a unified and coordinated control terminal to the outside world.

Dual CPU independent operation ensures high reliability

Although physically integrated, the display and controller parts of NSJ each have independent CPUs. This means that the interface drawing, data processing, and communication tasks of HMI will not interfere with the logical scanning and execution of the PLC core. This design ensures real-time and deterministic control, making it capable of handling applications with strict reliability requirements.

Built in DeviceNet master station, simplifying fieldbus

In many industrial sites, DeviceNet is a common device level network. The NSJ series controllers come with DeviceNet master functionality integrated as standard at the factory. This design brings significant benefits:

No initial setup required: The main station function is ready to use by default, greatly reducing the configuration work for engineers.

Significantly reducing wiring: Up to 63 slave devices (such as frequency converters, remote I/O, sensors, etc.) can be connected through a single DeviceNet communication cable, replacing a large number of complex point-to-point hard wiring.

Easy standardization: The network-based I/O architecture enables modular and template based design of control systems, making it easy to reuse in different projects.

Extremely compact physical design

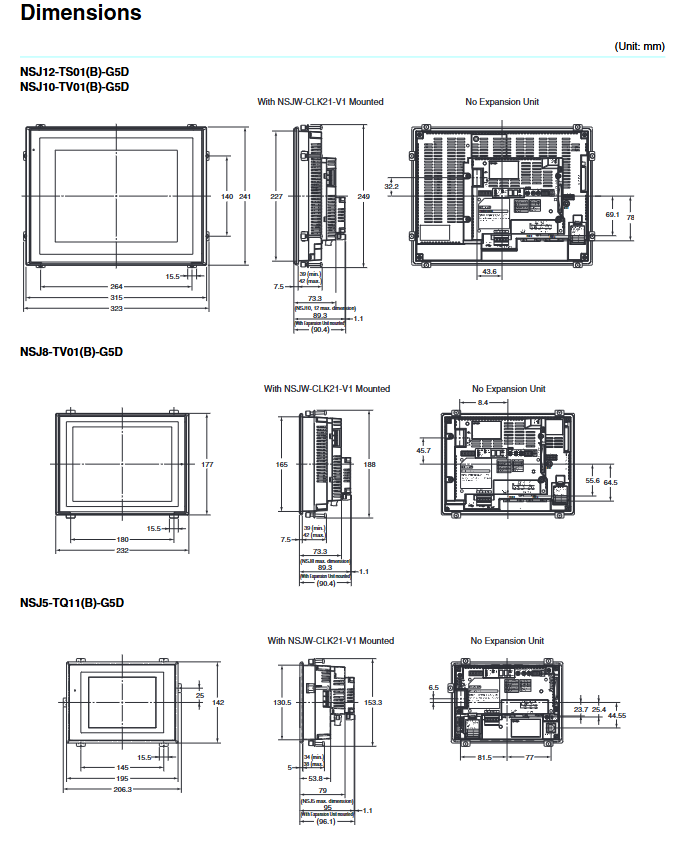

According to the document data, the combined width of the display and controller parts of the NSJ8/10/12 series is only 73.3 millimeters, while the NSJ5 series is only 79.0 millimeters. This slim design makes it very suitable for installation in the increasingly popular standard control cabinets with a width of 400 to 500 millimeters. More importantly, as there is no longer a need to separately plan installation space for PLCs, more areas can be released inside the control cabinet for installing other components such as power supplies, circuit breakers, and terminal blocks. These components can even be directly installed on the back of the NSJ, achieving maximum space utilization.

Core advantage: Efficiency improvement throughout the entire lifecycle of equipment

The value of the NSJ series is not only reflected in hardware integration, but also runs through every aspect of equipment design, debugging, operation, and maintenance.

Design and Debugging: Simplify Complexity

Unified software platform: NSJ series is compatible with Omron's mature software assets. Developers can use CX Designer (the screen design software for NS series PT) to create HMI screens, while using CX Programmer (the ladder diagram programming software for CS/CJ series PLC) to write control logic. This means that the original NS series PT screen data and CS/CJ series PLC programs can be seamlessly reused, protecting users' previous investments.

Single cable debugging: Only one commercially available USB cable is needed to connect the computer and NSJ, and both screen programs and ladder programs can be uploaded and downloaded simultaneously. This eliminates the hassle of switching back and forth between PLC programming cables and HMI programming cables, greatly simplifying the debugging process.

Offline simulation testing: With the CX One integrated FA toolkit, engineers can debug without connecting any actual hardware. By selecting the connection target of CX Designer as CX Simulator (PLC simulation software), both HMI screens and PLC programs can be simulated and run simultaneously on the computer for complete logic and interactive verification. This can detect and correct most design errors in advance, significantly reducing on-site debugging time.

Operation and maintenance: intelligent diagnosis, fast response

For on-site maintenance engineers, quick positioning and problem-solving are core responsibilities. NSJ provides powerful built-in tools for this:

Dual fault eliminator: NSJ comes standard with PLC fault eliminator and DeviceNet fault eliminator. When an error occurs in the system, a guided operation interface will automatically pop up on the HMI screen. Engineers do not need to flip through thick paper manuals, they only need to follow the instructions on the screen to step by step confirm the details of errors, possible causes, and recommended solutions. This greatly reduces the reliance on the personal experience of engineers and accelerates the speed of fault response.

Built in ladder diagram monitoring: This is a highly practical feature of NSJ. In any user run screen, engineers only need about 5 seconds to switch to the PLC ladder diagram monitoring interface. On this interface, you can:

Real time monitoring of the status of the PLC program, checking the on/off of each contact and coil.

Search for the specified address or instruction.

Batch monitor multiple I/O points.

Starting from a certain input bit, search forward or backward for the next instruction using the same address. This is crucial for understanding complex logic and tracking signal paths.

Communication and Networking: Seamless Flow of Information

In modern intelligent manufacturing systems, controllers are not only actuators, but also data sources. The built-in Ethernet port of NSJ provides great convenience for this.

Dual access, single port: Through a physical Ethernet port, the upper computer or network system can simultaneously access the display and controller parts of the NSJ. This means that the host can read or write data from the PLC, as well as obtain alarm information from the HMI, transmit recipe data, or retrieve data log files.

Flexible scalability: For more complex network requirements, NSJ can also add functionality through expansion units:

NSJW-CLK21-V1 (Controller Link Unit): Used to build high-speed, high-capacity data link networks, achieve data sharing between controllers, and is suitable for production lines that require multiple devices to work together.

NSJW-ETN21 (Ethernet Unit): In addition to the existing built-in Ethernet port, it adds additional Ethernet ports and supports richer functions, such as Socket communication through CMND commands, sending/receiving emails, etc.

NSJW-IC101 (I/O Control Unit): This is the interface unit that connects to CJ series expansion racks. Through it, NSJ can mount CJ series motion control units, special I/O units, and CPU bus units, achieving comprehensive expansion from simple logic control to complex motion control.

In depth application: typical scenarios and practical advantages

The theoretical advantages ultimately need to be validated in specific applications. Based on the document content, analyze the practical value of NSJ in several typical scenarios.

Production control system

Scenario description: The upper computer issues production progress information, changeover instructions, and alarm prompts to the controller.

NSJ advantage: A single Ethernet port can achieve bidirectional communication between the upper computer, PLC, and HMI. The upper computer can receive production data from the controller and also receive alarm information from the HMI. No need to separately set communication parameters for HMI and PLC, reducing configuration work.

POP (Point of Sale) system

Scenario: Read product information through a barcode scanner and upload it to the upper computer for product information management.

NSJ advantage: The ultra-thin design allows terminals to be flexibly installed in workstations with limited space. Easily connect to the upper database through the built-in Ethernet port.

Simple positioning control

Scenario: NSJ is connected to a robot controller to achieve simple positioning control.

NSJ advantage: It can be directly connected to the robot controller through I/O or bus, with minimal wiring. Due to the absence of space at the bottom of the control cabinet for PLC, the control cabinet can be designed to be more compact.

DeviceNet device monitoring

Scenario: Utilizing the "intelligent" functions of DeviceNet slave units (such as smart counters and temperature controllers) (such as counting device on-off times and cumulative running time) to achieve predictive maintenance on NSJ.

NSJ advantages: The built-in DeviceNet master station and fault solver, combined with a rich Smart Active Parts (SAP) component library (over 2000), make programming for monitoring and diagnostic functions exceptionally simple. The operator can directly know when equipment maintenance is needed on the HMI.

Technical Specification Essentials: Selection and Configuration Guide

To assist engineers in making accurate selections, the following are key technical specifications extracted from the document.

Product series and performance differences

The NSJ series is mainly divided into two sub series, G5D and M3D, which have significant differences in performance to adapt to applications of different complexities:

UM program capacity: G5D has 60K steps, M3D has 20K steps.

I/O points: G5D supports up to 1280 points, M3D supports 640 points.

Extended Data Memory: G5D has 32K words x 3 Banks of EM (Extended Memory), while M3D does not.

Function block capability: G5D supports up to 1024 FB definitions and 2048 FB instances, far higher than M3D's 128 definitions and 256 instances.

Conclusion: G5D is suitable for high-end applications that require complex calculations, extensive data processing, and structured programming; M3D is suitable for single machine control with relatively simple logic.

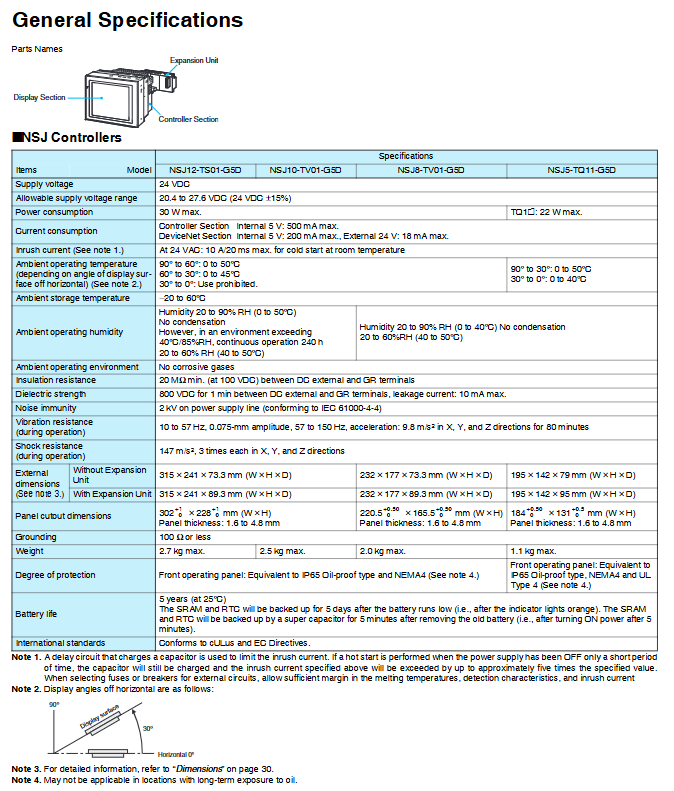

General Specifications

Power supply: 24 VDC power supply (allowable range 20.4 to 27.6 VDC).

Power consumption: Depending on the screen size, the maximum power consumption ranges from 22W to 30W.

Environment: 0 to 50 ° C (varying depending on installation angle and screen size), 20% to 90% RH humidity.

Protection level: The front operation panel meets IP65 (oil proof type) and NEMA4 standards, suitable for harsh industrial environments.

Battery life: 5 years (at 25 ° C), used for backing up SRAM and real-time clock.

Display partial specifications

Size: Available in four specifications: 5.7 inches (NSJ5), 8.4 inches (NSJ8), 10.4 inches (NSJ10), and 12.1 inches (NSJ12).

Color: 256 colors (BMP/JPEG images can display 32768 colors).

Perspective: Left and right ± 80 °, up 80 °, down 60 °.

Multilingual: Supports switching between 8 languages including Japanese, English, Chinese (Simplified/Traditional), Spanish, Italian, German, and French.

Serial port: Provides up to 3 RS-232C ports (two of which are HMI A and B serial ports, and one is the controller serial port).

DeviceNet specifications

Role: Can be set as a master or slave.

Baud rate: 125kbps, 250kbps, or 500kbps.

Communication distance: At 500kbps, the maximum length of the main line is 100 meters.

Maximum number of slave stations: 63..
