Bently Nevada 3300 XL 8mm Proximity Sensor System

F: | Au:FAN | DA:2025-09-12 | 1014 Br: | 🔊 点击朗读正文 ❚❚ ▶ | Share:

Environmental compliance complies with RoHS directive (2011/65/EU) and maritime certification (2019 classification society regulations)

Ordering Information (Core Model and Configuration)

The system components need to be ordered in combination with "probe+extension cable+preamplifier", and the core models and configuration rules are as follows:

1. Probe (divided into standard type/ETR type, armored/unarmored)

Probe Type Model Example Key Configuration Options (Part Number Encoding)

Standard British thread (3/8-24) 330101 (unarmored), 330102 (armored) A: length without thread (0.0~8.8 in, 0.1 in increments); B: Total length of the shell (0.8~9.6 inches, increments of 0.1 inches); C: Total length (0.5-9m); D: Cable type (01=standard with protective cover, 11=FluidLoc with protective cover)

Standard metric thread (M10 × 1) 330103 (unarmored), 330104 (armored) A: length without thread (0~230mm, 10mm increment); B: Total length of the shell (20-250mm, 10mm increments); C: Total length (0.5-9m); D: Cable type

ETR type (high temperature) 330191 (imperial), 330193 (metric) configuration rules are the same as the standard type, with temperature level raised to 218 ℃ (probe)/260 ℃ (cable)

2. Extension cable

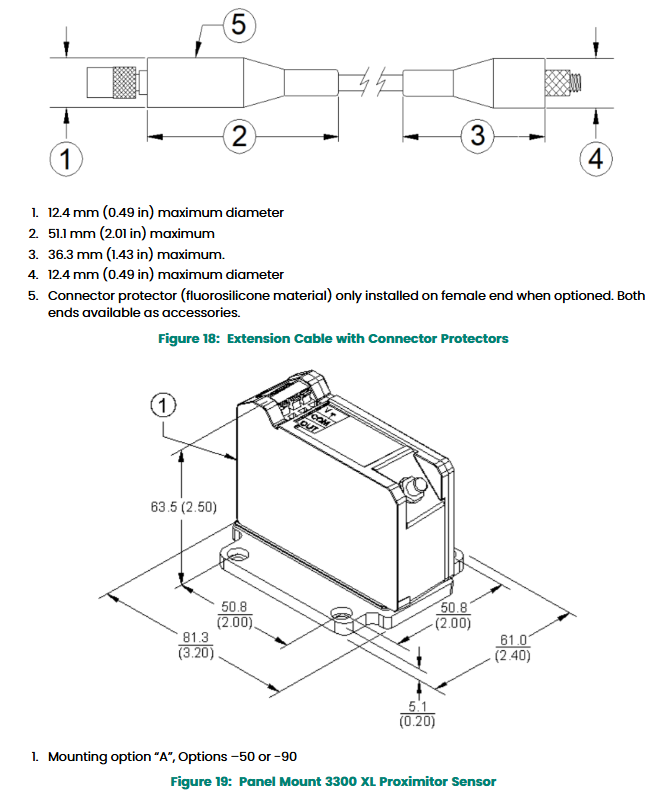

Standard cable: model 330130-AAA-BB-CC, AAA=length (030=3m to 085=8.5m), BB=cable type (00=standard, 10=FluidLoc), CC=certified (05=CSA/ATEX/IECEx);

ETR cable: model 330190-AAA-BB-CC, with the same length options as the standard cable, and upgraded insulation material to PFA.

3. Pre processor

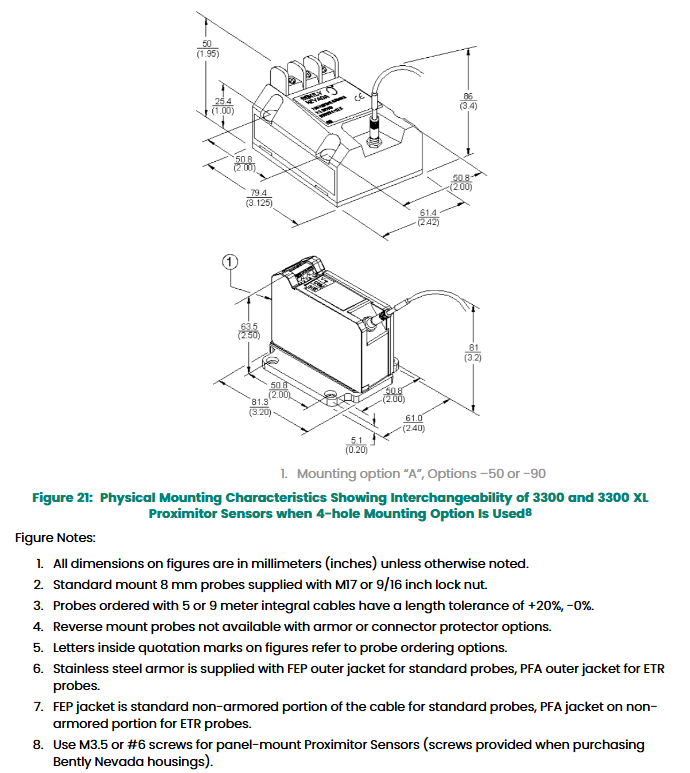

Model 330180-AA-BB, AA=total length and installation method (e.g. -50=5-meter panel installation, -91=9-meter DIN rail installation), BB=certification (05=CSA/ATEX/IECEx).

4. Common accessories

Installation bracket: 137491 (aluminum without threads), 137492 (aluminum with threads), 27474 (phenolic resin with threads, used for electrical isolation);

Testing tools: 148722-01 (test plug), 163356 (connector crimping tool kit);

Protective parts: 40113-02 (connector protective cover kit), 03200006 (silicone self-adhesive tape).
