Albatross NMEA2000 Integration

F: | Au:FAN | DA:2026-05-11 | 337 Br: | 🔊 点击朗读正文 ❚❚ | Share:

From Simulating an Island to Digitalizing the Entire Ship: A Practical Guide to Upgrading Albatross NMEA2000

On many existing yachts and merchant ships, the analog sensors of the last century standard are still widely used - resistance fuel level gauges, pressure transmitters, temperature sensors - which are connected to their respective control panels or instrument panels through independent wiring harnesses. This "simulated island" mode not only leads to complex and difficult expansion of the bridge harness, but also makes it impossible to integrate with modern multifunctional navigation displays (such as Raymarine, Garmin, Simrad, Furuno) or ship centralized monitoring systems (glass bridge). The emergence of NMEA2000 standard (based on CAN bus) provides a high-speed and standardized data sharing network for marine electronic devices. However, it seems out of reach to directly connect the existing analog sensors on board to the NMEA2000 network. Albatross Control System ®  Provided a clear upgrade path: By using Alba Engine, Alba Multi and other conversion modules, the signals from resistive, voltage and VDO sensors are converted into NMEA2000 PGN (parameter group number) data, enabling shipowners to achieve digital monitoring of the entire ship with minimal investment. This article serves as a technical guide for shipyard engineers, system integrators, and senior ship owners, detailing the migration plan, hardware selection, network topology design, configuration steps, and common troubleshooting from simulation systems to NMEA2000.

Why choose NMEA2000 upgrade

Traditional ships typically use point-to-point analog connections (4-20mA, 0-5V, or resistive voltage division) between sensors and instruments. When it is necessary to add monitoring points (such as a second engine or additional fuel tanks), it is necessary to rewire and add instruments, which is costly and unsightly. NMEA2000 uses a single trunk cable to connect all devices, and each device is connected to the backbone network through a drop cable. Terminators need to be installed at both ends of the backbone. The network speed is up to 250 kbit/s, 26 times faster than NMEA0183 (4800 baud), and supports multi master transmission. Any monitor that complies with NMEA2000 can subscribe to data from any node without modifying hardware. The Albatross converter converts the physical quantities of analog sensors into standard NMEA2000 PGN (such as engine parameters 127488, fluid level 127505), enabling display on any brand MFD. This not only simplifies wiring, but also provides a data foundation for future predictive maintenance, remote monitoring, and alarms.


Albatross Converter Selection and Features

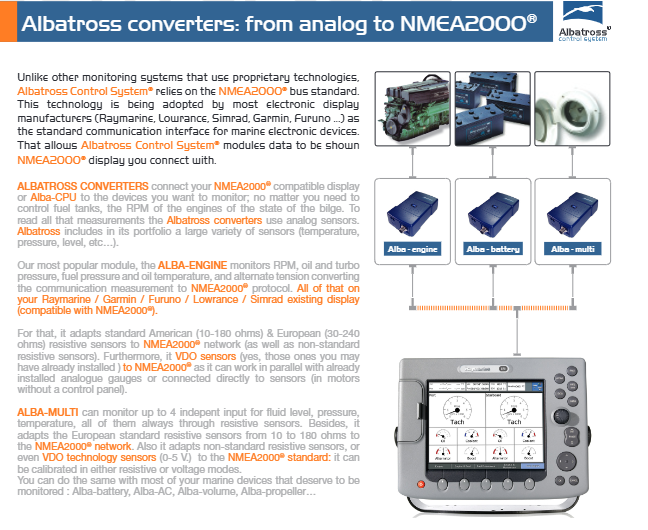

Albatross offers multiple modules specifically designed for simulating to NMEA2000 conversion, with core models including:

2.1 Alba Engine - Engine Specific Converter

This module is suitable for single or dual engines and can be directly connected in parallel to existing analog instrument circuits or directly connected to sensors. It is compatible with the following sensor types:

Resistance type: Standard American 10-180 Ω, European 30-240 Ω, and non-standard resistance range.

VDO sensor: Many European marine engine manufacturers are equipped with VDO sensors (such as 0-5V output), which can be operated in parallel with Alba Engine without interfering with the original instruments.

Frequency/Pulse: The RPM signal can be obtained from the engine speed sensor or crankshaft position sensor.

The parameters that can be monitored by the module include:

Engine RPM

engine oil pressure

Boost pressure (turbo pressure)

fuel pressure

engine oil temperature

Generator/AC generator voltage (Alteror tension)

Each parameter will generate a corresponding NMEA2000 PGN for display or Alba CPU use.

2.2 Alba Multi - Universal Multi Channel Converter

Alba Multi can monitor up to 4 independent inputs and is suitable for:

Liquid level (fuel, fresh water, sewage, lubricating oil)

Pressure (water pressure, air pressure, hydraulic)

Temperature (cabin temperature, seawater temperature, exhaust pipe temperature)

Input methods supported:

Resistance sensor (10-180 Ω European standard, or user calibrated)

Voltage type sensors (0-5V, 0-10V), such as some VDOs or pressure transmitters

Non standard resistance: customizable mapping curve through two-point calibration (no-load and full-scale)

The flexibility of Alba Multi makes it an ideal choice for applications such as oil tank monitoring, refrigerated container temperature monitoring, and fire water pressure in modified ships.

2.3 Alba Battery/Alba AC/Alba Volume and other specialized modules

Alba Battery: Monitor the voltage, current, temperature, and state of charge (SOC) of multiple battery packs.

Alba AC: Monitor the frequency, voltage, current, and load of the AC generator/shore power.

Alba Propeller: Monitor the pitch angle feedback of adjustable pitch propellers.

All Albatross modules use standard NMEA2000 physical interfaces (DeviceNet or M12 connectors), powered by 9-16V DC (24-12V converters are required in 24V systems), and each module is an independent NMEA2000 node.

2.4 Summary of Sensor Compatibility

Typical sensor type output adaptation Albatross module calibration method

American fuel level 10-180 Ω Alba Multi two-point calibration

European/VDO pressure 0-5 V Alba Engine/Alba Multi two-point or three-point calibration

European Temperature (PT100) 100-150 Ω Alba Multi (Resistance Mode) Standard Curve

AC generator voltage 12-14 V Alba Engine (direct input) read directly

Frequency/speed square wave Alba Engine (digital input) pulse per revolution setting

Network topology design and hardware installation

3.1 Main and branch cabling

The standard NMEA2000 network adopts a trunk+branch topology:

The backbone uses 5-core shielded cables: red (power+), black (power -), white (CAN H), blue (CAN L), and bare (shielded). Both ends of the main line must be equipped with 120 Ω terminal resistors (or use T-shaped connectors with terminal resistors).

The length of the drop cable should not exceed 6 meters (for high-speed networks, it is recommended to be less than 1 meter).

The total length of the trunk line can reach 100 meters (Micro connector) or 250 meters (Mini connector), with a maximum of 50 nodes.

Albatross modules typically use Micro-C or Mini-C specification interfaces, and adapter connectors need to be selected based on the existing network type at the shipyard.

3.2 Power Supply

The NMEA2000 mainline must and can only be powered by one power source (usually a 12V marine battery). In 24V ships, a DC-DC converter must be used to reduce the voltage to 12V. The Albatross module has extremely low power consumption (typical value<1W) and can be directly powered by the main line. If there are high current devices (such as electric actuators), it is recommended to provide separate power supply.

3.3 Key points of physical installation

Waterproof and moisture-proof: Although the Albatross module is not labeled with a specific IP rating (usually IP54 or above), it is recommended to install it in the engine room distribution box or dry control box to avoid direct watering.

Signal line connection: Shielded cables are used for sensor wiring, and the shielding layer is grounded at one end (on the Albatross module side). For the case of parallel connection to existing instruments, appropriate resistors should be connected in series to maintain accurate readings of the original instruments (not detailed in the manual but attention should be paid to the load in practice).

NMEA2000 connector: Ensure that the fastening nut of the T-shaped connector is tightened to avoid vibration loosening. Unused ports should be equipped with waterproof plugs.


Configuration and Calibration Process

4.1 Using Alba CPU and Albatross On Board software

Although the Albatross module can be directly connected to any NMEA2000 display, advanced configurations (calibration curves, alarm thresholds, parameter transmission rates) must be completed through the Alba CPU and Albatross On Board software. Recommended workflow:

Hardware connection: Connect the Alba CPU to the NMEA2000 backbone network (as a regular node) and connect it to the configuration computer or touch screen via Ethernet or Wi Fi.

Install software: Run Albatross On Board Software (at least basic package Alba OB I is required).

Auto discovery module: The software automatically scans all Albatross modules on the network and displays their serial numbers and current firmware versions.

Set module parameters:

For Alba Engine: Select the sensor type (American/European/VDO), input the number of pulses per revolution of the engine (usually 4 or 6), and set the upper and lower limits of the oil pressure alarm.

For Alba Multi: Select the input channel and specify the measurement type (liquid level/pressure/temperature). Perform two-point calibration:

Zero point calibration: Record the sensor resistance value (or voltage) when the container is empty, and input the corresponding engineering value (such as 0 L, 0 bar).

Full range calibration: Record the sensor value when the box is full, and input the corresponding engineering value (such as 500 L, 10 bar).

Support non-linear curves: For irregularly shaped fuel tanks, accuracy can be improved through multi-point calibration.

Set alarms and notifications: High and low limit alarms can be configured and sent through software pop ups or NMEA2000 alarm PGN.

4.2 Direct use without Alba CPU

If data only needs to be displayed on a third-party MFD without modifying the calibration curve (the sensor is already a factory standard curve), Alba Engine and Alba Multi can be plug and play directly. By default:

The liquid level sensor is linearly mapped from 0-180 Ω to 0-100%.

The temperature sensor follows the PT100 or VDO standard curve.

If the output characteristics of the sensor do not match the default, it must be calibrated once through the Alba CPU, and then the module will save the calibration data. Even if the Alba CPU is removed, it can still work independently.

4.3 Remote monitoring and multi client

Albatross On Board Software adopts a client server architecture. Alba CPU, as a server, can simultaneously push data to multiple clients (tablets, phones, laptops) through Wi Fi or Ethernet, enabling monitoring of engines, fluid levels, air conditioning, etc. in any cabin. This feature is particularly useful for super boats and catamarans.


Troubleshooting and Common Problems

5.1 Module power supply is normal but NMEA2000 network does not recognize it

Check terminal resistance: Failure to install or missing terminal resistance can cause unstable network communication. The resistance between CAN H and CAN L on the main line should be 60 Ω (two 120 Ω parallel connections).

Checking polarity: Connecting CAN H (white) and CAN L (blue) in reverse will result in no communication. Use a multimeter to check the ground voltage: CAN H is about 2.6V, CAN L is about 2.4V.

Node address conflict: Each NMEA2000 device has a unique address (which can be modified through software). The Albatross module automatically assigns addresses by default, but if it conflicts with manual settings of other branded devices, it needs to be reset through the configuration tool.

5.2 Inaccurate or jumping sensor readings

Calibration mismatch: Perform two-point calibration and ensure that the sensor is in a stable physical state during the calibration process. For fuel tanks, it is recommended to record each point during refueling.

Grounding loop: The sensor shielding layer is not properly grounded, causing measurement drift. Connect the sensor shielding layer to the single ended ground on the Albatross module side.

Incompatible resistance range: Non standard sensors (such as 0-500 Ω) require the use of Alba Multi's "custom" mode and input resistance engineering value correspondence table.

5.3 Alba Engine displays RPM abnormality

Engine pulse per revolution setting error: Most diesel engines have a flywheel tooth count of 120-160, but the speed sensor typically outputs 4, 6, or 8 pulses per revolution (depending on the detection method). Compare and calibrate using a tachometer.

Signal amplitude too low: Alba Engine requires TTL or 5-24V square wave for digital input. If the signal comes from a magneto electric sensor (sine wave), a shaping circuit needs to be installed.

5.4 Alarm not triggered or continuous false alarm

Check the alarm threshold unit: Pay attention to the pressure unit (bar/PSI) and temperature unit (° C/° F) settings. Unified unit system in Albatross On Board software.

Alarm delay setting: To prevent momentary fluctuations from triggering, a delay time (e.g. 5 seconds) can be set for the alarm. Adjust in the "Alarm Settings" menu.

5.5 Module not sending data but LED flashing

Some Albatross modules are equipped with status LEDs, and the flashing frequency can indicate the working status (such as slow flashing=normal, flash flashing=no sensor signal received). Search for the corresponding module manual. If the sensor circuit is confirmed to be normal, try to restore the factory settings through the configuration software.

Integration of lighting and I/O control

In addition to sensor conversion, the Albatross system also supports device control. The Alba Out module can provide relay outputs for controlling navigation lights, cabin lights, water pumps, etc. For example:

After connecting Alba Out to the NMEA2000 network, the lights can be turned on and off through the Albatross On Board software interface or any dedicated PGN command on the MFD connected to the network.

The Alba Lighting module can also detect whether the navigation light bulb has failed (by monitoring current or voltage drop) and issue an alarm to avoid navigation hazards caused by bulb burnout.


Display selection and integration

Albatross recommends using a dedicated high brightness maritime display, which features include:

Ultra high brightness (>1000 cd/m ²) enables sunlight readability.

IP65 waterproof and dustproof.

Multiple video inputs (composite video, S-Video, DVI, VGA), supporting CCTV, DVD, radar playback, etc.

The USB touch screen can directly interact with Albatross On Board Software.

These displays can serve as dedicated monitoring screens or as secondary screens for existing navigation systems, displaying engine parameters, fluid levels, alarm lists, and more in a centralized manner.


Specific steps for migrating from the old system

The following steps apply to upgrading from a traditional analog instrument (without any NMEA2000 equipment) to the Albatross system:

Inventory existing sensors: List the type (resistance/voltage), measurement range, installation location, and existing instrument connection method of each sensor.

Select Albatross module:

Engine parameters → Alba Engine x number of engines.

Liquid level, pressure, temperature → Alba Multi allocated according to the number of channels.

Battery monitoring → Alba Battery.

Navigation light control → Alba Lighting/Alba Out.

Layout NMEA2000 backbone: Select the path (from the cockpit to the cabin), install the backbone cable and T-connector, and add terminal resistors at both ends. Connect the main power supply to a 12V battery (10A fuse).

Install Albatross module: Secure the module near the sensor (shorten the analog cable) and connect the sensor signal line using a waterproof junction box. Keep the original instrument parallel connection to ensure that its original functions are not affected.

Connecting branch lines: Each module is connected to the nearest T-shaped connector through a drop cable.

Connect the monitor: Connect the existing NMEA2000 multifunction monitor (or newly purchased Albatross monitor) to the network.

Preliminary test: Turn on the power and check if the corresponding PGN data appears on the monitor. If there is no data, check the network power supply and terminal resistance.

Calibration and Customization: Connect Alba CPU (or temporarily use a laptop), run Albatross On Board software, calibrate each sensor and set alarms.

Save configuration: Backup the configuration file to USB or cloud storage for future recovery.


Maintenance and expansion suggestions

Regularly check cable connections: Vibration on board may cause the NMEA2000 connector to loosen, check every six months.

Firmware updates: Albatross periodically releases firmware, which can be upgraded online through Alba CPU to fix vulnerabilities or add new PGNs.

System Expansion: When adding a new sensor, simply purchase the corresponding module and connect it to the backbone network without rewiring.

Data recording: Albatross On Board software supports data recording (CSV format), which can be used to analyze engine operating conditions or fuel consumption trends.
