In long-distance or surrounding hazardous areas such as large conveyor lines, packaging machinery, and printing equipment, traditional emergency stop buttons often cannot cover the entire protective zone. The pull switch (cable pull emergency stop device) triggers an emergency stop by laying a steel cable throughout the entire length of the machine, allowing the operator to pull the cable at any position. The Lifeline 4 series cable pull switch from Allen Bradley is currently one of the most comprehensive products of its kind on the market. It integrates a positive mode locking mechanism, mushroom head emergency stop button, cable status indicator, and multiple sets of contacts, and achieves an IP66 protection level, ensuring reliable operation in harsh environments.

This article is based on the official technical information of Lifeline 4 series, combined with on-site installation and maintenance experience, to systematically sort out the selection, mechanical installation, electrical wiring, coordination application with safety relays, common fault phenomena and troubleshooting methods of the switch, helping engineers quickly master the debugging and maintenance skills of the equipment.

Overview of Lifeline 4 Core Features

Lifeline 4 is a cable/button operated safety switch primarily used to provide emergency stop access at any position along conveyors and other machinery. Its main features include:

Characteristic description

The maximum span of the standard type is 75 meters (246 feet), and the extended type is 75 to 125 meters (246 to 410 feet)

Contact configuration 2 N.C.+2 N.O. or 3 N.C.+1 N.O. (both direct disconnect actions)

Operating mechanism in positive mode, the contact immediately locks and disconnects after pulling the wire or pressing the emergency stop button

Reset method: The blue reset knob needs to be intentionally rotated to reset and prevent accidental recovery

The cable status indicator switch cover is equipped with an indicator that clearly displays whether the steel cable is tightened, relaxed, or broken

The integrated emergency stop button mushroom head button is located on the switch cover, providing emergency stop operation even at the end of the cable

Protection level IP66, shell made of die cast alloy, stainless steel pull ring, corrosion-resistant

Certified CE, cULus, T Ü V, CCC, compliant with ISO 13850, IEC 60947-5-1 and other standards

Security data (from official sources):

B10d>2 × 10 times (under minimum load)

MTTFd>385 years

Can be used for PLd systems that comply with ISO 13849-1:2006, as well as SIL2 or SIL3 systems that comply with IEC 62061 (depending on system architecture and application characteristics)

This switch is suitable for Cat. 1 devices (EN 954-1), but Cat. 3 or Cat. 4 systems can be implemented through a reasonable architecture.

Selection Guide

Lifeline 4 offers multiple models, with the main differences being the span, number of contacts, and interface type (conduit or connector). When selecting, the following points should be noted:

2.1 Span selection

75m standard type: suitable for general length conveyor lines.

75-125 m Extended Type: Lifeline Cable Tensioning System (LRTS) is required to ensure that the steel cable maintains appropriate tension over long distances.

2.2 Contact configuration

Typical Applications of Safety Contact Auxiliary Contact Models

2 N.C.+2 N.O. 2 normally closed (forced disconnection) 2 normally open single or dual channel safety circuits with two auxiliary signals

3 N.C.+1 N.O. 3 normally closed and 1 normally open require higher safety contact redundancy

Attention: The safety contact is a direct opening action, which complies with the requirements of Annex K of IEC 60947-5-1. Even if the contact is welded, it can be disconnected under the action of the mechanism.

2.3 Interface Options

Conduit: M20 or 1/2 inch NPT thread.

Connectors: 12 pin M23, 8-pin Micro (M12), or 5-pin Micro (for ArmorBlock Guard I/O). Choosing a connector model can simplify on-site wiring, but it should be noted that not all contacts are led out through the connector (see wiring diagram for details).

2.4 Recommended Logic Interface (Safety Relay)

The document lists various safety relays that can be compatible with Lifeline 4, such as:

MSR127RP: 3 N.O. safety output+1 N.C. auxiliary output, monitoring manual reset, 24V AC/DC.

MSR127TP: Same as above, automatic/manual reset is optional.

MSR126T: 2 N.O. safe output, fixed automatic/manual reset.

MSR30RT: 2 solid-state safety outputs+1 solid-state auxiliary output.

And modular safety relay series (MSR210P, MSR220P, MSR310P, etc.).

When selecting, it is necessary to match the number of input channels, output type (relay or solid-state), and reset logic required for the safety circuit.

Key points of mechanical installation

3.1 Installation location

The Lifeline 4 switch should be fixed on a sturdy bracket, and the recommended mounting bracket (440E-A17130) should be used for the base.

The straight-line distance between switches should not exceed the rated span. Guide pulleys (internal angle pulley 440A-A17101, external angle pulley 440A-A17102) are required at corners to reduce cable friction and maintain smooth pulling.

Cable pulling wires should be arranged along the entire length of the hazardous area, usually at a height of 1-1.5 meters above the ground, for ease of operation.

3.2 Steel cable tension and status indication

One of the core advantages of Lifeline 4 is the cable status indicator. There is a visual window on the switch cover that displays three states:

Tighten and reset: The indicator displays the normal position (such as green or a specific symbol).

Cable slack: When the tension of the steel cable is insufficient due to thermal expansion, contraction or looseness, the internal mechanism of the switch will detect slack and trigger locking, and the indicator will change.

Cable breakage or pulling: When the steel cable is broken or pulled by the operator, the switch immediately locks and the indicator displays the "pulling action" status.

Installation steps:

Thread the steel cable through the pull tab of the switch and connect it to the tension bolt or spring at the other end.

Using a tension meter or based on experience, tighten the steel cable to the operating position tension, with a typical value of 103 N (23.16 lbf).

Adjust the tension spring (440E-A13078) until the cable status indicator shows "normally tightened".

Check the operating force of the steel cable at a deflection of 300 mm, which should be<125 N (28.1 lbf) to ensure ease of pulling.

If the span exceeds 75 meters, the Lifeline Cable Tensioning System (LRTS) must be used and the tension set to 188 N (42.3 lbf) locking value according to the instructions.

3.3 Thermal expansion compensation

The positive mode mechanism design of Lifeline 4 can automatically compensate for the thermal expansion of steel cables. The length change caused by temperature changes will not lead to false triggering, because the internal mechanism has a dead band. However, in extreme temperature difference environments (such as -25 ℃ to+80 ℃), it is still necessary to regularly check the status indicator and re tighten it if necessary.

Electrical wiring and circuit design

4.1 Contact Wiring and Color Codes

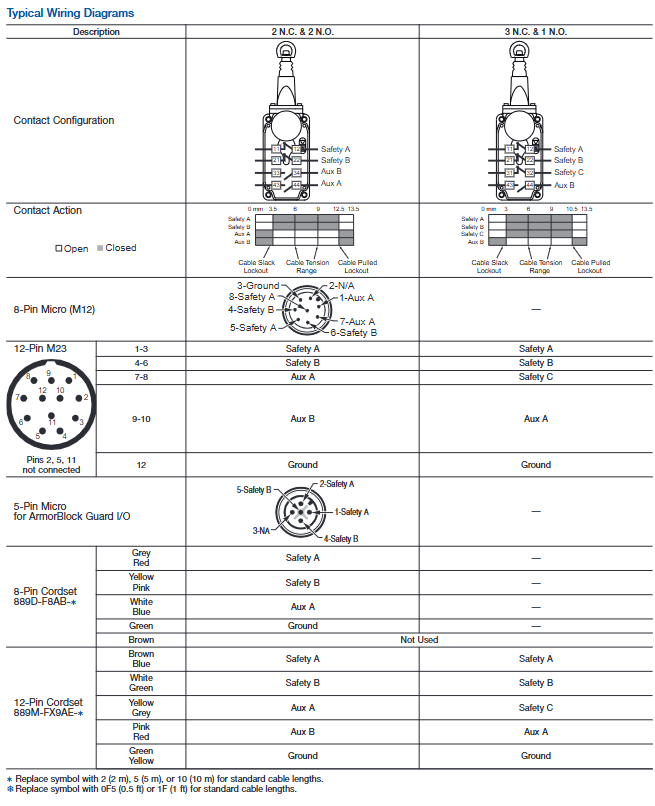

Lifeline 4 offers multiple ways of extraction. The following is a typical configuration:

2 N.C.+2 N.O. contact allocation

Terminal Function Description

11-12 safety contact point A N.C. (normally closed)

21-22 safety contact point B N.C

33-34 auxiliary contact A N.O. (normally open)

43-44 auxiliary contact B N.O

Contact action timing (see curve chart on pages 4-15 of the document):

The cable is properly tensioned and reset → the safety contacts are closed, and the auxiliary contacts are disconnected.

Cable pulling or loosening → The safety contact is immediately disconnected and locked, and the auxiliary contact is closed.

Reset requires rotating the blue knob and re tensioning the steel cable.

3 N.C.+1 N.O. Contact allocation

Terminal Function Description

11-12 safety contact point A N.C

21-22 safety contact point B N.C

31-32 safety contact point C N.C

43-44 auxiliary contact B N.O

4.2 Typical Applications of Safety Relay MSR127

A standard dual channel safety circuit example is provided on pages 4-15 of the document, using two Lifeline 4 switches in series to control the MSR127 safety relay, which in turn controls the main contactors K1 and K2.

Circuit description:

Power supply: 24V DC.

Input circuit: Two Lifeline 4 safety contacts (normally closed) are connected in series and connected to the input terminals S11, S12 and S21, S22 (dual channel) of MSR127.

Feedback loop: The auxiliary normally open contacts of contactors K1 and K2 are connected in series and connected to feedback terminals S33-S34 of MSR127 to monitor whether the contactors are properly closed.

Start: Press the start button (normally open) → MSR127 internal logic meets → Output relay is engaged → K1 and K2 coils are energized → Motor runs.

stop it:

Pull any Lifeline 4 cable → disconnect the safety contact → immediately turn off the output of MSR127 → K1 and K2 lose power → stop the motor.

Press the emergency stop button on any Lifeline 4 cover → Same effect.

Pressing the external stop button (normally closed in series in the input circuit) can also stop.

Reset: Eliminate the fault (after pulling the cable or emergency stop is restored) → Rotate the blue reset knob to reset the switch (close the safety contact) → Press the start button.

Fault detection function:

MSR127 automatically detects input circuit short circuit or open circuit when powered on.

If the K1 or K2 contact is stuck (normally open contact not disconnected), the feedback loop cannot pass during the next startup, and MSR127 will prevent the startup.

If one contactor fails while the other is normal, the motor will still stop and the fault will be detected.

4.3 Connector Wiring (for quick installation)

If the connector model of the pre injected cable is used, the wiring definition is as follows:

8-pin Micro (M12):

Needle 1: Auxiliary A

Needle 2: Not used

Needle 3: Ground

Needle 4: Safety B

Needle 5: Safety A

Needle 6: Safety B

Needle 7: Auxiliary A

Needle 8: Safety A

12 needle M23:

Needles 1-3: Safety A

Needle 4-6: Safety B

Needle 7-8: Auxiliary A

Needle 9-10: Auxiliary B/Safety C

Needle 12: Ground

5-pin Micro (for ArmorBlock Guard I/O):

Needles 1 and 2: Safety A

Needles 4 and 5: Safety B

Needle 3: Not connected

Special attention should be paid when using connectors: not all contacts are led out, for example, the 5-pin model only connects the safety contacts, and the auxiliary contacts are not led out. Therefore, when selecting, it is necessary to confirm the required number of signals.

4.4 Application of auxiliary indicator lights

In long-distance conveyor lines, if multiple switches are connected in series, operators may not be able to quickly determine which switch is triggered. The document suggests connecting indicator lights (such as 24V or 110V LED indicator lights) to the auxiliary contact (N.O.). When a switch is pulled or emergency stop is pressed, its auxiliary contacts close and the corresponding indicator light is lit. This way, maintenance personnel can quickly locate the fault point and shorten the troubleshooting time.

Optional indicator accessories (M20 or 1/2 inch NPT conduit type) include:

Amber/red lens with T-3 1/4 bulb socket.

LED bulbs (24V, 110V, 240V) or LED modules (800T series).

Security performance level analysis

According to ISO 13849-1 and IEC 62061, Lifeline 4, as a sensor component, has excellent B10d and MTTFd data. But in the entire security function, system architecture and diagnostic coverage (DC) also need to be considered.

5.1 Single channel vs dual channel

Single channel wiring: Use only one normally closed contact (such as 11-12) to connect to one input channel of the safety relay. This architecture can reach a maximum of Cat.2 and PLc. Due to the inability to detect short circuits between contacts.

Dual channel wiring: Use two independent normally closed contacts (such as 11-12 and 21-22) to connect to the two channels of the safety relay. This architecture can detect contact cross short circuits and open circuits, with high DC up to Cat.3 and PLd.

If three normally closed contacts are used in conjunction with redundant safety relays, it can even reach Cat. 4 (which must meet all the requirements of ISO 13849-1 for Cat. 4, including forced contact orientation, etc.).

The official statement states that the Lifeline 4 series connection will limit the entire circuit to SIL CL 2 and Cat. 3. Therefore, for situations that require higher performance levels, the use of safety PLCs or dual safety relay modules with diagnostic functions should be considered.

5.2 Life Calculation

Given B10d>2 × 10 ⁶ operations. If operated 10 times a day (3650 times a year), the hazard failure rate λ=0.1 × (1 – DC)/B10d × number of operations? The actual MTTFd has been given a requirement of>385 years, far exceeding 10 years. Therefore, the mechanical lifespan of this switch is extremely long.

Common faults and troubleshooting

During the on-site use of Lifeline 4, common fault phenomena and troubleshooting steps are as follows:

6.1 Safety circuit cannot be reset (safety contacts are not closed)

Phenomenon: After pulling the steel cable or pressing the emergency stop button, rotate the blue reset knob, but the safety relay always detects input disconnection and the motor cannot start.

Possible reasons and solutions:

Root cause checkpoint measures

If the steel cable is not fully tensioned, observe the cable status indicator. If the "slack" symbol is displayed, use the tensioning bolt to adjust the tension of the steel cable until the indicator shows "normal"

The emergency stop button is not pulled out. Check if the mushroom head button is in the pressed state. Rotate the button clockwise to make it pop out

The internal mechanism is stuck and the reset knob is difficult to rotate or there is no "click" sound. After cutting off the power, gently tap the outer shell or open it to check for foreign objects; If it still doesn't work, replace the switch

Contact fusion welding (rare): Use a multimeter to measure whether the safety contacts (11-12) are still open after resetting. If fusion welding occurs, the switch needs to be replaced; Check if the load current exceeds the rated value (10A)

Check for loose wiring terminals and re tighten the internal terminals or connector pins of the switch

6.2 Mistriggering of steel cable (self locking without operation)

Phenomenon: The equipment suddenly stops abruptly during operation, but the steel cable is not pulled.

Root cause analysis:

The steel cable relaxes due to temperature changes (such as an increase in length caused by high temperatures during the day), triggering the relaxation lock.

Steel cables are subjected to mechanical vibrations or collisions with bypass objects.

The tension is too low, approaching the lower limit of the operating position.

solve:

Adjust the tension of the steel cable to the nominal value (103 N), which can be measured using a spring scale.

If the temperature difference is extremely large, it is recommended to use LRTS (Cable Tensioning System) to automatically compensate for length changes.

Check if there are any obstacles on the steel cable path to ensure that the steel cable moves freely.

6.3 Unstable contact signal (safety relay flashing or false alarm)

Phenomenon: The safety relay occasionally disconnects, but the switch status indication is normal.

troubleshoot

Measure the contact resistance of the safety contact circuit, which should normally be less than 0.1 Ω. If the resistance fluctuates, there may be oxidation or burning of the contacts.

Check if the load is inductive (contactor coil), and install surge suppressors (such as RC buffer circuits or varistors).

Check if the wiring terminals are crimped with fine wires from multiple strands, resulting in poor contact.

6.4 After connecting multiple switches in series, the fault location cannot be determined

Phenomenon: Three Lifeline 4 are connected in series, and one of them is pulled, but the safety relay only displays "fault", and the operator does not know which switch is activated.

solve:

Connect indicator lights (LEDs) or PLC input points using the auxiliary contacts (N.O.) of each switch.

When a certain switch is pulled, its auxiliary contact closes and lights up the indicator light at the corresponding position.

Auxiliary contacts can also be connected to the fast input module of the PLC to display the specific fault switch number on the HMI.

6.5 Emergency stop button failure (no response when pressed)

check

Confirm if the button is mechanically stuck (due to dust or foreign objects).

Measure whether the contact of the emergency stop button (internally connected in the safety circuit) can reliably disconnect when pressed.

If the button itself is damaged, the entire upper cover (accessory 440E-A13054, with emergency stop) can be replaced; Or 440E-A17115, no emergency stop).

Maintenance and lifespan management

7.1 Regular inspection items

Periodic project standards

The monthly cable status indicator shows' normal tightening '

Manually pull the steel cable every month and check if the reset knob can rotate smoothly after stopping immediately

Clean the casing and emergency stop button quarterly without corrosion or dust accumulation

Measure the contact resistance of safety contacts every six months to be less than 0.2 Ω

Check the wear of the steel cable every year. If there are broken wires or severe rust, replace the steel cable

Verify the locking force of the switch every two years (using a spring scale) and the required force for pulling 300 mm deflection is ≤ 125 N

7.2 Replacement of worn parts

Steel cable: When obvious rust or breakage occurs, stainless steel cables of the original factory specifications should be used for replacement.

Cable spring: If there is permanent deformation or reduced elasticity, replace the tension spring (440E-A13078).

Upper cover sealing ring: If the IP66 seal fails, replace the entire upper cover component.

7.3 Estimation of Service Life

According to B10d>2 × 10 ⁶ operations, if operated once a day, the mechanical lifespan of the switch can reach 5480 years (theoretical value). However, in actual environments, corrosion, vibration, and electrical loads can shorten the lifespan. It is usually recommended to replace it every 10 years or perform functional verification according to factory safety standards.

Upgrade and replacement suggestions

For old cable switches (such as Lifeline 3 or other brands), replacing them with Lifeline 4 can yield the following benefits:

Positive mode mechanism to avoid false triggering of thermal expansion.

Integrated cable status indication for more intuitive debugging and maintenance.

IP66 protection, suitable for humid and dusty environments.

Multiple contact combinations for easy access to different safety relays.

Replacement steps:

Physical dimension comparison: The installation hole spacing of Lifeline 4 may be different from the old model, and an adapter bracket (440E-A17130) or re drilling is required.

Electrical wiring: The old switch may have a single channel N.C., while Lifeline 4 provides dual channels. It is recommended to upgrade to dual channels to enhance safety levels.

Reconfigure safety relay: If a regular relay was originally used, it should be replaced with a safety relay (such as MSR127) and the start/reset logic should be adjusted.

Adjust the length and tension of the steel cable: Use the cable status indicator for fine adjustment to ensure that the indicator displays the correct status.

Typical application case: Emergency stop system renovation of conveyor line

Background: An 80 meter long belt conveyor in a logistics center, originally equipped with a domestically produced single contact wire switch, often experiences false alarms and shutdowns due to thermal expansion and contraction. It is difficult for maintenance personnel to determine the fault point, and each time they need to check one by one along the conveyor line.

Solution:

Install a Lifeline 4 switch (extended type, 75-125 m span) at each end of the conveyor, connected by a steel cable in the middle, and wrap around the corner with a corner pulley.

Use dual channel wiring to connect the safety contacts of two switches in series and connect them to the MSR127 safety relay.

Each auxiliary contact (N.O.) of the switch is connected in parallel to a 24V red indicator light (installed near the switch).

The output of the safety relay controls the main contactor.

Result:

Thermal expansion and contraction no longer cause misoperation (changes in the absorption length of the dead zone of the positive mode mechanism).

When any switch is pulled or emergency stop is pressed, the corresponding indicator light will light up, and maintenance personnel can locate it within 30 seconds.

The system has reached Category 3, PLd, meets the requirements of ISO 13849-1, and has successfully passed the safety certification.
