Kongsberg C-series digital cutting machines are the main equipment in the fields of packaging, display racks, corrugated cardboard, and composite material processing. However, even the most reliable industrial equipment can experience various abnormalities during long-term high load operation, ranging from unresponsive power supply, inability to reset safety systems, to milling cutter cutting through the table, tool cutting offset, etc. For on-site maintenance engineers, having a structured troubleshooting guide based on official manuals means shortening hours of trial and error into minutes of precise judgment.

This article is based on the latest user manual of Kongsberg C-series, extracting the most common hardware failures, safety system anomalies, tool calibration issues, and maintenance points in daily operations. Combined with practical engineering experience, it provides immediately executable processing steps. Whether you are a novice who has just taken over the equipment or an experienced service technician, this article can help you systematically diagnose and solve the main technical problems of C-series cutting machines.

Power and startup faults

1.1 There is no response after the machine is powered on

When you press the main power switch but there is no display on the operation panel, the indicator light is not on, or the PC cannot start, please troubleshoot in the following order:

Check external power supply: Confirm that the wall socket voltage is 230V ± 10% (or a voltage that meets local standards). Use a multimeter to measure the input voltage.

Check compressed air: The C series cutting machine requires clean and dry compressed air at 7 bar (approximately 100 PSI). Check the pressure gauge on the control station. If it is below 6 bar, the machine will refuse to start and report "Missing compressed air". Check whether the air compressor and pipelines are bent or leaking.

Check the main fuse inside the MPU: There are multiple fuse type switches inside the main power unit (MPU). Turn off the main power and unplug the plug, open the front cover of the MPU, and pull out the cabinet. Check if the fuses for F1 (HPMU vacuum cleaner), F2 (cutting table), F3 (vacuum pump control), and F4 (HPMU spindle and cooler) are in the ON position. If it trips, reset it.

Check the front PC and connection: If the cutting table is powered on but the iPC cannot be connected, it may be due to loose serial cable or the emergency stop button being pressed. Ensure that all emergency stop buttons have been rotated out.

1.2 "Missing compressed air" continuous alarm

Confirm that the output pressure of the air compressor is ≥ 7 bar.

Check the rear air pressure regulator/water separator of the operation station. If there is too much water in the cup, the automatic drain valve may be blocked. Regularly clean or manually drain according to the manual requirements.

Check if there is any air leakage at the tracheal joint at the tool head. Common leakage points include the locking pin cylinder of HDU (heavy-duty unit) and the clamp pneumatic valve of HPMU.

Security system malfunction and reset

The C-series cutting machine is equipped with DynaGuard safety system (four photoelectric beams+mechanical anti-collision switch) and multiple emergency stop buttons. One of the most common reasons for on-site shutdowns is that the security system cannot be reset.

2.1 Symptoms of Security System Failure to Reset

After pressing the "Pause/Servo On" button, the warning light on the top of the Y-shaped frame still flashes rapidly, and the servo power supply cannot be maintained.

The touch screen or control panel displays "Safety system active" or "DynaGuard triggered".

2.2 Troubleshooting steps

Check all emergency stop buttons: Each emergency stop button located on the operation station, left/right end of the crossbeam, feeder (i-BF), and stacker crane (i-MS) must be in the pulled out (released) state. Any pressed emergency stop button will cut off the safety relay.

Check DynaGuard beam: There are a pair of photoelectric emitters/receivers on both sides of the crossbeam. Ensure:

The red light of the transmitter is facing the receiver.

No material fragments, tools, or foreign objects obstruct the beam of light.

The mechanical anti-collision switches (safety stops) at both ends of the crossbeam are centered and have not been hit or tilted. If the collision avoidance switch is triggered, it must be manually pushed back to the center position.

Check the safety bumpers at the bottom: If equipped with i-BF or i-MS, the safety bumper on the gantry will also disconnect the safety circuit after being squeezed. Check the fault information on the touch screen and confirm if there is a 'Safety Bumper Fault'. After releasing the squeezed edge strip, press the blue "Fault Reset" button.

Check the status of the safety relay: If all of the above are normal but still cannot be reset, it may be due to a damaged safety relay or fuse in the MPU. Refer to Chapter 14 of the manual and check the F2-F5 fuses (T10A 250V, 5 × 20mm) on the X1, X2, and Y amplifiers. If the circuit is blown, replace it and then power it back on.

Perform security system reset (models after September 2018): Pressing the "Servo On" button will also reset the security system. The old model needs to be reset by pressing 'Pause' first. After successful reset, the warning light will turn on normally, and then press "Start" to complete the reset to zero.

2.3 Frequent triggering of security systems

Check if the gap between the bottom of the crossbeam and the tabletop is too small (standard about 70mm). If the tabletop is placed with too thick material or the vacuum bed is deformed, it may accidentally trigger the light beam.

Check the cleanliness of the photoelectric head. Wipe the transmitting/receiving window with a soft, lint free cloth to avoid dust accumulation and misoperation.

Servo and motion axis malfunction

3.1 "X1/X2/Y servo error" appears during power on self-test

This usually means that the corresponding servo amplifier board is damaged or the motor encoder feedback is lost.

Attempt to power off and wait for at least 5 seconds before restarting. If the fault persists, check the LED status code on the amplifier board (refer to TG driver or Kollmorgen manual). Common cause: The internal fuse of the amplifier is blown (F2-F5).

If the fuse is intact, contact Kongsberg technical support to replace the amplifier.

3.2 “X1/X2/Y fuse error”

Directly check the fuse (T10A 250V) of the corresponding shaft motor driver. If it melts again after replacement, it indicates that there is a short circuit in the motor or cable, and the insulation resistance of the winding needs to be measured.

In addition, the wiring harness inside the cable drag chain at the end of the crossbeam may be damaged due to long-term bending, resulting in intermittent short circuits. Check if the outer skin of the power line and encoder line in the drag chain is worn.

3.3 Axis motion shaking or inaccurate positioning

Mechanical reasons: The guide rail and rack require regular lubrication. Lubricate the guide rail with Tellus R10 oil every week; Fill the gears with grease every month using a grease gun (through the grease fitting on the cover plate). If there is dry glue or debris on the rack, clean it and re lubricate it.

Parameter reason: Check if the maximum speed of "Jog Settings" in iPC has been accidentally modified. For the C series, the continuous jog speed is directly determined by the maximum speed value, and the percentage is invalid. If the servo parameters (such as gain) have been modified, please restore the factory backup.

Milling unit (HPMU) malfunction

HPMU (High Power Milling Unit) is the core of high value-added machining and also the component that is most prone to problems.

4.1 "Inverter not started yet"/milling cutter spindle not rotating

Wait after safety reset: There is a delay of approximately 10 seconds between the safety system reset and the inverter readiness. If the alarm appears immediately, be patient and wait.

Check communication: Confirm that the serial line connection between the main inverter (IBAG) and the front-end PC is normal. If a USB to COM converter is used, check if the COM port number is correctly set in the iPC. HPMU requires the use of native COM ports.

Check the coolant and cooler: HPMU is a liquid cooled spindle. Chiller malfunction will prohibit starting. Check the error codes on the cooler display screen (such as E03: low water flow, E05: low water temperature). When starting in winter, wait for the cooler to heat up to above 19 ℃. Check whether the coolant pipeline is bent or leaking.

Check the air source: HPMU clamp requires 7 bar air pressure for opening and closing. When the air pressure is insufficient, the spindle will not start. Check the air conditioning valve.

4.2 Milling cutter cutting through table or into conveyor belt

Reason 1: The milling cutter slides downwards in the chuck. After each tool change, the clamp must be tightened with a wrench, and a retaining ring should be used to limit the insertion depth. Clean the inner cone of the handle and chuck to avoid oil stains that may cause a decrease in clamping force.

Reason 2: Tool height measurement error. Re execute the 'Table Top Reference' function (remove material and measure on cutting pads or conveyor belts). Then recalibrate the Tool Height of each milling cutter. For thick materials, it is recommended to add a bias value of+0.2~0.5mm in the "Tool Height Calibration" to prevent penetration.

Reason 3: Insufficient vacuum causes the material to lift during milling. Check the vacuum zone selection - close the vacuum zone that is not covered by the material to enhance adsorption. If using a conveyor belt, ensure that the belt joints are flat.

4.3 Abnormal noise or rough surface during milling

Blunt blade or mismatched speed: Replace milling cutter. When the diameter of a single blade milling cutter is greater than 4mm, the maximum speed shall not exceed 40000 RPM. Short blade knives use high speed, while long blade knives automatically slow down.

Main shaft bearing wear: If the vibration increases with running time and the coolant is normal, it may be the end of the main shaft bearing life. It is recommended to replace the spindle every 2000-4000 hours of operation. The manual states: "Indication of worn beads may be increasing noise, increasing vibrations, or decreasing surface finish

Chuck damage: When the handle slips or bounces beyond the standard, a special tool should be used to replace the chuck. Regularly clean the cone surface of the chuck and the inner cone of the spindle at least once a week.

4.4 The milling cutter cannot be removed from the chuck

Apply 7 bar air pressure, but press the 'Chuck Open' button to release it. At this time, a 12mm wrench and a 17mm wrench can be used in combination, with one person fixing the rotor and the other person counterclockwise loosening the clamp (note: it is strictly prohibited to rotate the rotor while the clamp is open). Remove the clamp and clean the internal debris.

Tool calibration and cutting quality deviation

5.1 Difficult to separate finished products and waste materials after cutting (unable to cut through)

Reason: Insufficient tool depth. Enter the 'Tool Height Calibration' wizard and add a negative offset (e.g. -0.3mm) to the tool. You can also temporarily increase the cutting depth in the depth setting of the homework layer.

Reason: Insufficient vacuum adsorption causes the material to lift during the cutting process. Optimize the vacuum zone or use Blow Back assistance.

5.2 Waste material still connected at the corner (continuous cutting)

Typical problem: The tool lag (Lag) is not set correctly. For rotating tools such as vibration tools and drag tools, the hysteresis value is equal to the radial distance from the tool tip to the center of the tool shaft. Common values: 6mm tool holder lags 3mm, 8mm tool holder lags 4mm. Enter the "Lag Settings" wizard and perform a "Lag test": the system will draw a square, measure the deviation between the actual incision and the theoretical position, and then automatically calculate the compensation value.

It can also be manually adjusted: increasing the hysteresis value can make the corner cut more.

5.3 Cutting line offset (the knife has lateral offset)

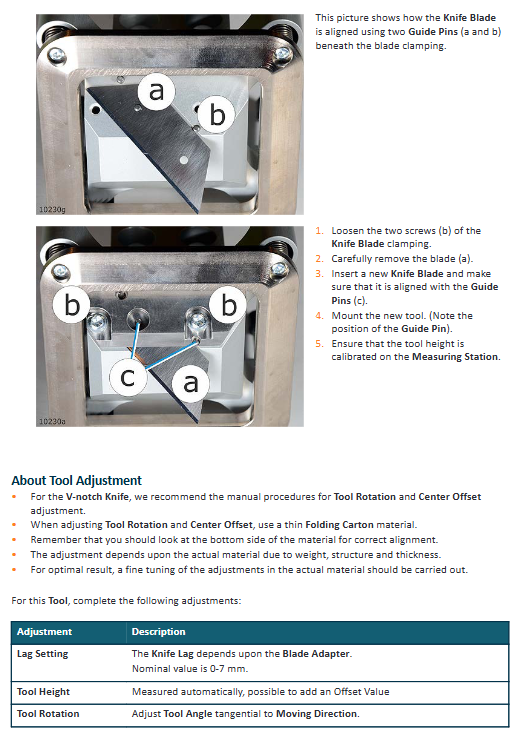

Center Offset: If the two lines cut by the tool in the forward and return directions do not coincide, the center offset needs to be adjusted. Use the "Center Offset Adjustment" wizard or manually test: cut a straight line, rotate the tool 180 ° and return along the same path, measure the deviation distance and fill in the dialog box.

Tool Offset: When there is a deviation between the laser point and the actual cutting position, use the "Tool Offset" wizard to correct it. The system will first make the tool cut a cross, then move the laser point to the center of the cross and automatically calculate the offset.

5.4 Cutting edge burrs, cardboard tearing

Rotation direction: Ensure that the tip of the tool is pointing tangential to the direction of motion. For a drag knife, if the tip of the knife is pointed incorrectly, it will be pushed away by the material, causing tearing. Manually adjust the 'Rotation Adjustment': Cut a line, observe the angle at which the knife enters the material, and fine tune the angle offset value until the knife cuts vertically.

Blade wear: Replace with a new blade. For V-groove knives, heavy-duty knives, etc., blunting the blade will significantly reduce quality.

Feeder and stacker crane malfunction (i-BF/i-MS)

6.1 "Fail to Pick Board" malfunction

Insufficient vacuum: Check whether the suction cup is aging, blocked, or has poor contact with the material pile. The set 'Low Vacuum Set Point' is too high (reference value: empty vacuum value+20). Enter 'Feeder Setting Screen 2', lower the setting value or temporarily set it to 0 to disable detection.

Suction cup not fully in contact: Add "Pick Sheet Additional Travel" (recommended 5-10mm) to allow the suction cup frame to penetrate deeper into the material pile. Be careful not to overtravel the compensator.

Air pressure: Confirm that the feeder air pressure is ≥ 6 bar.

6.2 "Plumger Sensor Stuck" malfunction

The plunger sensor (located at the first suction cup) is stuck. Check if the compensator can move freely up and down, and clean the distance between the sensor and the target gasket (which should be 0.5mm). If the sensor is damaged, replace it.

6.3 Frequent occurrence of 'Safety Bumper Fault'

Check whether the safety edge strips on both sides of the gantry are squeezed by material piles or loose cardboard. After the border is triggered, it needs to be manually reset (press the blue Fault Reset button). If the edge strip itself is damaged, it needs to be replaced.

Daily and Regular Maintenance Checklist

7.1 Daily

Clean the cutting pad and conveyor belt surface with a vacuum cleaner.

Check for debris inside the HPMU vacuum hood and clean the bristles.

Check the liquid level and temperature display of the cooler (normal 19-50 ℃).

7.2 Weekly

Cleaning the guide rail: Wipe the X1, X2, and Y guide rails and lightly apply Tellus R10 oil.

Clean the photoelectric sensor (DynaGuard transmitter/receiver): Wipe with mild soapy water and a soft cloth.

Check the automatic drainage function of the air pressure regulator. If the water cup does not drain automatically, remove and clean it.

7.3 Monthly

Refill the rack and gear with lubricating grease (through the oil nozzle).

Check the tension of the conveyor belt: observe whether the green markings on both sides are within the scale range. If there is a deviation, professional adjustment is required.

Clean the blocking hole of the vacuum table (without conveyor belt model): Use a 0.5-0.6mm steel needle to pass through the hole.

7.4 Quarterly/Semi Annual

Replace the coolant of the cooler (if it is a mixed coolant, supplement it at a concentration of 25%).

Check the wear of the HPMU spindle clamp and replace it if necessary.

Clean the front glass of the bottom camera (USC): Use a microfiber dust removal rod to check if the black tape on the anti warping strip is intact.
