Nidec Unidrive M700 Series Inverter Engineering Troubleshooting and System Optimization Guide

In modern industrial automation systems, AC frequency converters undertake the core tasks of motor speed control, torque regulation, and energy-saving operation. The Unidrive M700/M701/M702 series frequency converters launched by Nidec Control Techniques are widely used in complex working conditions such as fans, pumps, handling, printing, and lifting due to their high-performance closed-loop/open-loop control, built-in PLC, support for multiple fieldbuses, and safe torque cutoff (STO) function. However, on-site engineers often encounter problems such as drive failure to start, tripping during operation, encoder feedback abnormalities, and communication interruptions during debugging, operation, and maintenance. This article is based on the original user manual and combined with practical engineering experience to systematically review the common fault codes, diagnostic logic, safety function applications, and key parameter optimization methods of the Unidrive M700 series frequency converter, helping engineers quickly locate problems, restore production, and improve equipment reliability.

System Overview and Hardware Identification

The Unidrive M700 series includes three main models:

Unidrive M700: Standard Ethernet fieldbus (supports Modbus TCP, EtherNet/IP, Profinet IO), single channel STO input.

Unidrive M701: Provides EIA 485 serial communication interface (Modbus RTU), single channel STO input, suitable for replacing Unidrive SP.

Unidrive M702: Ethernet communication, dual channel STO input, meets higher security integrity levels (SIL3/PLe).

The drive supports four operating modes:

Open loop: suitable for induction motors, V/F or vector control.

RFC-A: Asynchronous motor closed-loop vector control (requiring position feedback).

RFC-S: Closed loop control of permanent magnet synchronous motor (requiring absolute position feedback).

Regen: Four quadrant operation, energy feedback to the grid.

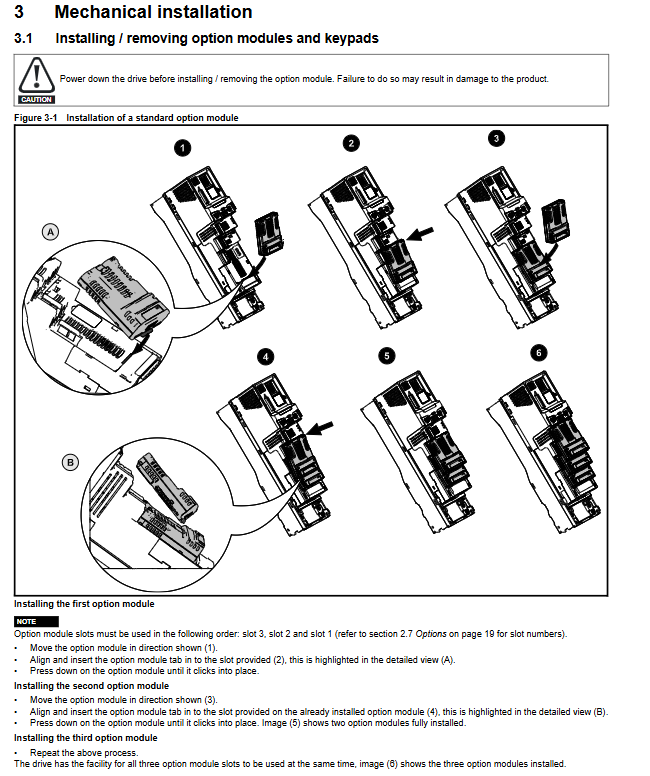

Before starting troubleshooting, it is essential to confirm the drive model, firmware version (Pr 11.029), and installed option modules (such as SI Encoder, SI Ethernet, etc.).

Safety first: Understanding and wiring inspection of STO function

1. The role and limitations of STO

Safe Torque Off (STO) is a safety function that prevents accidental torque generation in motors, complying with EN 61800-5-2, EN ISO 13849-1 Cat.4/PLe, and SIL3 requirements. M700/M701 is a single channel STO (terminal 31), while M702 is a dual channel STO (terminals 11 and 13). When STO is activated, the internal power devices of the drive are blocked, and the motor cannot generate torque, but it does not provide electrical isolation and does not cut off the DC bus voltage.

2. Common STO related faults

Troubleshooting steps for possible causes of malfunction display

Prohibit STO terminal is not connected to 24V or the wiring is disconnected. Measure the voltage of terminal 31 (M700) or 11/13 (M702), which should be 24V. Check if Pr 06.015 is On.

External Trip. 1 STO input 1 low level and Pr 08.010 set to 1 or 3. Check if the STO circuit is disconnected by the external safety relay. If the STO function is not required, set Pr 08.010 to 0 (Disable).

External Trip. 2 STO input 2 low level (M702) is the same as above.

3. Precautions for STO wiring

The STO input can only be reliably turned off when it is at a low level (<5V), and enabled when it is at a high level (>10V).

It is recommended to use shielded twisted pair cables and arrange a separate 0V circuit (terminal 30) to avoid voltage drop causing false shutdown.

For applications that require braking and shutdown (such as emergency stop), a safety timing relay should be used to brake first and then activate STO, as STO itself does not include braking function.

Initiate the rapid fault diagnosis process

1. The POWER indicator light does not light up after power on

Check if the input power supply (L1, L2, L3) voltage is within the rated range (400V level: 380-480V AC).

Check if the auxiliary 24V power supply (terminals 1/2 or 51/52) is connected and the voltage is ≥ 19.2V.

If an external 24V backup power supply is used, it must be connected to the main power supply or set Pr 06.067=1 (low undervoltage threshold enabled), otherwise the drive will display "Waiting For Power Systems" and cannot operate.

2. The drive status displays "Inhibit" and cannot run

Check the voltage of the STO terminal (as mentioned earlier).

Check if Pr 06.015 (Drive Enable) is set to 1.

If controlled through fieldbus, confirm that Pr 06.043 (Control Word Enable) is On and that bit0 (Run Forward) or bit3 (Run Reverse) in the control word is set to 1.

3. Sudden trip during operation "Trip"

Read Pr 10.020 (latest trip code) through keyboard or communication, and determine the fault type by referring to Table 13-4. Common tripping and handling:

Typical causes and solutions for tripping code names

Check if the deceleration time (Pr 00.004) is too short when the DC bus voltage is too high; Confirm the wiring and resistance value of the braking resistor; Check for voltage fluctuations in the input power supply.

3. Instantaneous overcurrent inspection of OI ac output to check if the motor cable is short circuited; Whether the insulation of the motor has decreased; Reduce the speed loop gain (Pr 03.010).

Check if the encoder feedback is lost during the 7 Over Speed motor overspeed check; Reduce the maximum speed limit (Pr 00.002); If using SSI encoder, set Pr 03.047=1 to bypass the boundary trip.

20 Motor Too Hot Motor I ² t Overheating Check if the load is too heavy; Confirm that the rated current Pr 00.046 of the motor is set correctly; Increase the thermal time constant of the motor (Pr 04.015).

21 OHt Inverter IGBT junction temperature too high reduces switching frequency (Pr 00.041); Strengthen ventilation; Check the cooling fan.

32 Phase Loss Input Phase Loss Check Input Power Supply and Wiring; If using DC power supply, set Pr 06.047=2 to disable phase loss detection.

190 Encoder 2 encoder disconnection check 15 pin D-type port wiring; Confirm that the Pr 03.038 encoder type matches; If necessary, turn off wire breakage detection (Pr 03.040=XXXX0).

In depth analysis of encoder and position feedback faults

The Unidrive M700 series supports multiple feedback devices (incremental) through a 15 pin high-density D-shaped port ABZ、SinCos、Hiperface、EnDat、BiSS、SSI、Resolver）。 The P1 interface is always available, and the P2 interface and encoder simulation output depend on the type selected by P1.

1. Encoder power settings

Terminal 13 offers 5V/8V/15V options, set through Pr 03.036. Common error: The encoder is set to 5V, but 8V or 15V is set, causing damage to the encoder. If the voltage drops due to long-distance 5V power supply, it should be changed to 8V and a 5V voltage stabilization module should be installed on the encoder side.

2. Troubleshooting of wire breakage and phase errors

Encoder 2 (disconnected): Subcodes 11/12/13 correspond to disconnected A, B, and Z channels respectively. Check the corresponding pin soldering and shielding.

Encoder 3 (Phase Error): In RFC-S mode, the UVW commutation signal sequence is incorrect or the SinCos signal polarity is reversed. Rotation self-tuning can be performed again (Pr 00.040=2).

Encoder 4/5/6 (communication encoder timeout/CRC error): Check if the communication baud rate (Pr 03.037) matches; Ensure that the total length of the cable does not exceed 50 meters; Use twisted pair shielded wires and ground the shielding layer.

3. Encoder simulation output is unavailable

If the P1 interface uses AB Servo, FD Servo, or other types that occupy all signal lines, the simulation output and P2 interface will fail. The simulation status can be viewed through Pr 03.086 (0=disabled, 1=fully functional, 2=no Z-pulse). If you need to simulate output, you should choose a type that does not occupy all pins (such as a standard AB encoder).

Parameter optimization and motor performance improvement

1. Motor self-tuning (Autotune)

Self tuning is the foundation for optimizing control performance. Select the appropriate self-tuning mode based on the type of motor:

Recommended self-tuning instructions for operating mode

Measure stator resistance, transient inductance, and power factor using open-loop rotation self-tuning (Pr 00.040=2).

RFC-A (asynchronous) rotation self-tuning (Pr 00.040=2) measures stator inductance and saturation characteristics, with the best performance.

RFC-S (synchronous) rotation self-tuning (Pr 00.040=2) measures phase angle (Pr 03.025), Ld, Lq.

Attention: Rotating self-tuning will accelerate the motor to 2/3 of the rated speed, and the load must be disconnected. Static self-tuning (Pr 00.040=1) can be performed under load, but inductance and phase angle cannot be measured.

2. Speed loop gain adjustment

The proportional gain (Pr 03.010) and integral gain (Pr 03.011) of the speed loop directly affect the dynamic response. You can quickly set it through the following methods:

Manual method: Give the driver a step speed command, observe the analog output feedback with an oscilloscope, increase Kp until a slight overshoot occurs, and then callback by 10%.

Automatic method: Set Pr 03.017 to 4 (low bandwidth 5Hz), 5 (standard 25Hz), or 6 (high bandwidth 100Hz), and the driver will automatically calculate the gain.

If the load inertia is known, mechanical inertia measurement can be performed (Pr 00.040=3 or 4), and the result can be written to Pr 03.018, then Pr 03.017=1 (based on bandwidth) is selected for automatic tuning.

3. Current loop gain

The proportional gain (Pr 04.013) and integral gain (Pr 04.014) of the current loop are automatically calculated through self-tuning. If current oscillation occurs, Pr 04.013 can be appropriately reduced; If the dynamic response is insufficient, it can be increased to 1.5 times the self-tuning value (with an overshoot of about 12.5%).

Fieldbus and communication failure

1. Ethernet communication (M700/M702)

IP address conflict: When using a static IP, ensure that the address is unique; When using DHCP, reserve a fixed IP address for the MAC address in the router.

Modbus TCP timeout: Check the Pr 4.15.009 (Modbus Timeout) setting, which defaults to 100ms. If the network latency is high, it can be increased to 500ms. After a timeout occurs, you can select the action (trip or no action) through Pr 4.15.010.

EtherNet/IP RPI timeout: The request packet interval (RPI) configured in the PLC must be greater than the drive response time. Pr 4.20.011 can be set to take action after timeout (maintain last value, reset or trip).

2. EIA 485 Communication (M701)

Wiring: Use RJ45 connectors, pins 2 (RX/TX+), 3 (0V), and 7 (RX/TX -). Please note that EIA 485 dedicated cables must be used and regular network cables are not allowed.

Terminal resistance: For long distances (>100 meters) or high baud rates (>38.4k), a 120 Ω terminal resistor should be connected at both ends of the network (which can be achieved by short circuiting RJ45 pins 1 and 7).

Address and baud rate: Pr 11.023 sets the address (1-247), Pr 11.025 sets the baud rate. After modification, Pr 00.052 needs to be set to 1 and the driver reset to take effect.

NV Media Card Data Backup and Fast Copy

Unidrive M supports parameter cloning using SMARTCARD or SD card (FAT16/32), greatly simplifying batch configuration of multiple drives.

1. Common operation codes (entered in Pr mm.000)

Code functionality

4001 Save all current parameters to file 001 on the card

6001 Load parameters from file 001 on the card to the driver

2001 Create bootable parameter block (automatically loaded upon power up)

9666 Set warning suppression flag (ignore option module or voltage level differences)

9777 Clear read-only flag

2. Fault handling

Card Option: The option module types or slots of the source and destination drives are inconsistent. Data can still be transmitted, but mismatched option menu parameters will be restored to default. This trip can be suppressed by setting 9666.

Card Rating: Different voltage or current levels. The RA attribute parameters will not be overwritten. If safety is confirmed, the warning can be suppressed.

Card Compare: Inconsistent comparison. Used to verify whether the parameters of two drives are completely consistent.

Engineering suggestions for improving system reliability

Regular inspection: Use Pr 10.020~10.029 to view the last 10 trip records and their occurrence times (Pr 10.041~10.060), which can help analyze occasional faults.

Thermal management: Monitor Pr 07.036 (Drive Thermal Accumulation Percentage), and when it exceeds 90%, an "Drive Overload" alarm will appear. It is necessary to strengthen heat dissipation or reduce the load.

Braking resistor: If an external braking resistor is used, Pr 10.030 (rated power), Pr 10.031 (thermal time constant), and Pr 10.061 (resistance value) must be set correctly, otherwise it will falsely report "Brake R Too Hot".

Firmware upgrade: Use Control Techniques PC tool via Ethernet or serial port to update firmware, fix known issues, and add new features. Be sure to backup the parameters before upgrading.

Grounding and shielding: All signal lines (encoders, analog signals, communication) use shielded cables, and the shielding layer is grounded 360 ° low impedance through the driver grounding clip. Avoid parallel wiring with power lines, with a minimum spacing of 200mm.
