Nidec Unidrive M700 Series Inverter Engineering Troubleshooting and System Optimization Guide

In modern industrial automation systems, AC frequency converters undertake the core tasks of motor speed control, torque regulation, and energy-saving operation. The Unidrive M700/M701/M702 series frequency converters launched by Nidec Control Techniques are widely used in complex working conditions such as fans, pumps, handling, printing, and lifting due to their high-performance closed-loop/open-loop control, built-in PLC, support for multiple fieldbuses, and safe torque cutoff (STO) function. However, on-site engineers often encounter problems such as drive failure to start, tripping during operation, encoder feedback abnormalities, and communication interruptions during debugging, operation, and maintenance. This article is based on the original user manual and combined with practical engineering experience to systematically review the common fault codes, diagnostic logic, safety function applications, and key parameter optimization methods of the Unidrive M700 series frequency converter, helping engineers quickly locate problems, restore production, and improve equipment reliability.

System Overview and Hardware Identification

The Unidrive M700 series includes three main models:

Unidrive M700: Standard Ethernet fieldbus (supports Modbus TCP, EtherNet/IP, Profinet IO), single channel STO input.

Unidrive M701: Provides EIA 485 serial communication interface (Modbus RTU), single channel STO input, suitable for replacing Unidrive SP.

Unidrive M702: Ethernet communication, dual channel STO input, meets higher security integrity levels (SIL3/PLe).

The drive supports four operating modes:

Open loop: suitable for induction motors, V/F or vector control.

RFC-A: Asynchronous motor closed-loop vector control (requiring position feedback).

RFC-S: Closed loop control of permanent magnet synchronous motor (requiring absolute position feedback).

Regen: Four quadrant operation, energy feedback to the grid.

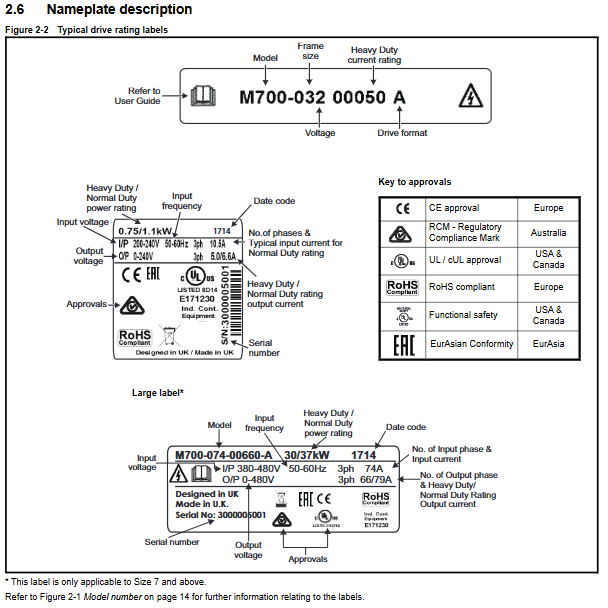

Before starting troubleshooting, it is essential to confirm the drive model, firmware version (Pr 11.029), and installed option modules (such as SI Encoder, SI Ethernet, etc.).

Safety first: Understanding and wiring inspection of STO function

1. The role and limitations of STO

Safe Torque Off (STO) is a safety function that prevents accidental torque generation in motors, complying with EN 61800-5-2, EN ISO 13849-1 Cat.4/PLe, and SIL3 requirements. M700/M701 is a single channel STO (terminal 31), while M702 is a dual channel STO (terminals 11 and 13). When STO is activated, the internal power devices of the drive are blocked, and the motor cannot generate torque, but it does not provide electrical isolation and does not cut off the DC bus voltage.

2. Common STO related faults

Troubleshooting steps for possible causes of malfunction display

Prohibit STO terminal is not connected to 24V or the wiring is disconnected. Measure the voltage of terminal 31 (M700) or 11/13 (M702), which should be 24V. Check if Pr 06.015 is On.

External Trip. 1 STO input 1 low level and Pr 08.010 set to 1 or 3. Check if the STO circuit is disconnected by the external safety relay. If the STO function is not required, set Pr 08.010 to 0 (Disable).

External Trip. 2 STO input 2 low level (M702) is the same as above.

3. Precautions for STO wiring

The STO input can only be reliably turned off when it is at a low level (<5V), and enabled when it is at a high level (>10V).

It is recommended to use shielded twisted pair cables and arrange a separate 0V circuit (terminal 30) to avoid voltage drop causing false shutdown.

For applications that require braking and shutdown (such as emergency stop), a safety timing relay should be used to brake first and then activate STO, as STO itself does not include braking function.

Initiate the rapid fault diagnosis process

1. The POWER indicator light does not light up after power on

Check if the input power supply (L1, L2, L3) voltage is within the rated range (400V level: 380-480V AC).

Check if the auxiliary 24V power supply (terminals 1/2 or 51/52) is connected and the voltage is ≥ 19.2V.

If an external 24V backup power supply is used, it must be connected to the main power supply or set Pr 06.067=1 (low undervoltage threshold enabled), otherwise the drive will display "Waiting For Power Systems" and cannot operate.

2. The drive status displays "Inhibit" and cannot run

Check the voltage of the STO terminal (as mentioned earlier).

Check if Pr 06.015 (Drive Enable) is set to 1.

If controlled through fieldbus, confirm that Pr 06.043 (Control Word Enable) is On and that bit0 (Run Forward) or bit3 (Run Reverse) in the control word is set to 1.

3. Sudden trip during operation "Trip"

Read Pr 10.020 (latest trip code) through keyboard or communication, and determine the fault type by referring to Table 13-4. Common tripping and handling:

Typical causes and solutions for tripping code names

Check if the deceleration time (Pr 00.004) is too short when the DC bus voltage is too high; Confirm the wiring and resistance value of the braking resistor; Check for voltage fluctuations in the input power supply.
