In the field of industrial automation and precision measurement, non-contact displacement sensing technology has become the core means of quality inspection, positioning control, and morphology analysis. The Z4M series laser displacement sensor demonstrates excellent adaptability in many applications with its highest resolution of 1.5 microns, ± 4V analog output, and detection distance of up to 140 millimeters. However, to fully unleash the performance potential of this sensor, engineers not only need to understand its basic specifications, but also must master the technical details of the entire process from installation alignment, sensitivity matching to output calibration and fault diagnosis. This article is based on practical engineering requirements, systematically summarizing the core characteristics and operating points of Z4M series sensors, providing reproducible configuration solutions and problem-solving ideas, and helping users build stable and high-precision displacement measurement systems.

Sensor selection and core specification analysis

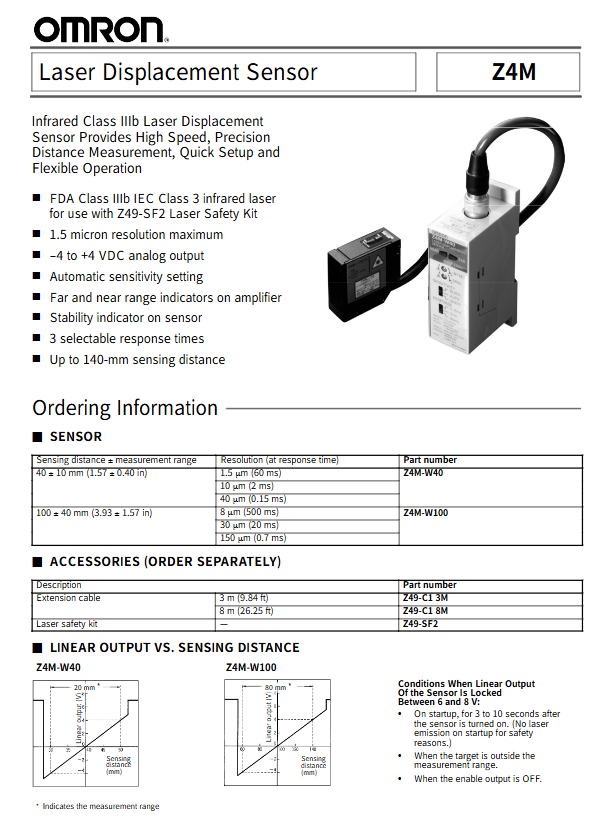

The Z4M series includes two main models: Z4M-W40 and Z4M-W100. The core difference between the two lies in the trade-off between measurement range and corresponding resolution response speed.

1.1 Measurement Range and Accuracy Parameters

Z4M-W40 has a nominal measurement point of 40mm and provides a measurement range of ± 10mm (i.e. between 30mm and 50mm). Within this range, users can obtain three resolutions by switching response times: when the response time is set to 60 milliseconds, the resolution can reach up to 1.5 micrometers; Switch to a 2-millisecond response with a resolution of 10 microns; In the 0.15 millisecond fast response mode, the resolution is 40 microns. This hierarchical design enables the same sensor to adapt to diverse needs ranging from static geometric dimension measurement to high-speed vibration analysis.

Z4M-W100 extends the nominal measurement point to 100 millimeters, with a measurement range of ± 40 millimeters (60 millimeters to 140 millimeters). The corresponding relationship between resolution and response time is: resolution of 8 microns at 500 milliseconds response, 30 microns at 20 milliseconds response, and 150 microns at 0.7 milliseconds response. It is worth noting that the beam divergence effect caused by a longer measurement range leads to an increase in the spot size - at a distance of 100 millimeters, the spot size is about 1.4 millimeters by 0.7 millimeters. Therefore, for the detection of small feature targets, Z4M-W40 should be given priority consideration.

1.2 Linearity and Temperature Stability

The linearity indicators of the two models are 1% (Z4M-W40) and 1.5% (Z4M-W100) of full scale, respectively. The full range here is defined as a distance of 20 millimeters (corresponding to ± 10 millimeters) from the full range, and a voltage full range of 8V (from -4V to+4V). Therefore, the maximum linear error of Z4M-W40 is 0.2 millimeters or 80 millivolts. It should be noted that the linearity test uses white alumina ceramic as the standard target. In actual testing, if the target material, color, or surface roughness changes, the linearity error curve may deviate.

In terms of temperature characteristics, the overall drift of the sensor and amplifier is 0.03% FS/° C. Taking Z4M-W40 as an example, each degree Celsius temperature change introduces a distance drift of about 6 microns (20mm × 0.0003) or a voltage drift of 2.4 millivolts. For applications that require micrometer level accuracy, it is recommended to use or implement temperature compensation algorithms in a constant temperature environment.

1.3 Laser safety level and spot characteristics

The sensor uses an infrared semiconductor laser with a wavelength of 780 nanometers and a maximum output power of 3 milliwatts, which meets the 3B level requirements of the IEC 60825-1 standard and the IIIb level requirements of the FDA. The spot size is defined as the boundary at 1/e ² (13.5%) of the center intensity of the laser beam. The spot diameter of Z4M-W40 at the nominal measurement point of 40mm is approximately 0.6mm; The spot size of Z4M-W100 at 100 millimeters is 1.4 millimeters by 0.7 millimeters. There is still stray light beyond this boundary, which may cause measurement errors when there is a high reflection background around the measured object.

System installation and mechanical alignment

2.1 Matching constraints between sensors and amplifiers

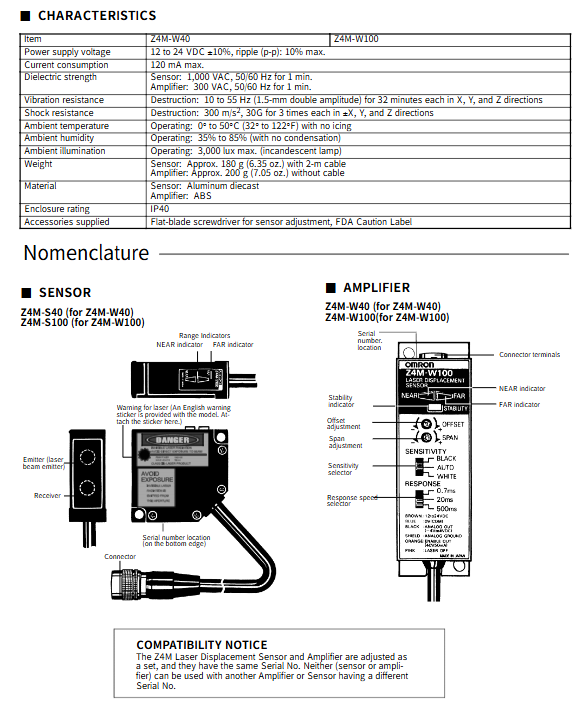

At the factory, the sensor and amplifier are used as paired units for joint calibration, and they have the same serial number. It is strictly prohibited to mix sensors and amplifiers with different serial numbers, otherwise the linear output will fail. During system maintenance or spare parts replacement, paired components must be replaced simultaneously.

2.2 Installation position and indicator alignment method

The sensor body adopts an aluminum die-casting shell with a protection level of IP40 and a weight of approximately 180 grams (including a 2-meter cable). The amplifier housing is made of ABS material and weighs approximately 200 grams. During installation, ensure that the optical window at the front end of the sensor is clean to avoid oil and dust adhesion.

The alignment process relies on two green LED indicators on the sensor - NEAR (near end) and FAR (far end). The criterion for correct alignment is to place the measured target at the desired measurement center distance (40 millimeters for Z4M-W40 and 100 millimeters for Z4M-W100), at which point the NEAR and FAR indicator lights should be steadily lit simultaneously. If only NEAR lights up, it indicates that the target distance is too close; Only FAR illuminated indicates excessive distance; If both flicker, it indicates that the target is completely beyond the measurement range or the received light is abnormal (too strong or too weak). Engineers should use mechanical adjustment to keep the dual lights on, which corresponds to the zero point position of the linear output (the factory default 0V corresponds to the center point of the white ceramic target).

2.3 Vibration prevention and cable routing

The connecting cable between the sensor and amplifier should not be twisted or bent, otherwise it may cause internal disconnection. If extension is required, Z49-C1 series extension cables (available in 3-meter and 8-meter specifications) can be used, but the total length must not exceed 10 meters and shielded cables must be used. The amplifier does not support DIN rail installation in strong vibration environments; If the on-site vibration frequency is 10~55 Hz and the amplitude is more than 1.5 millimeters, screw fixation should be used.

Electrical Connection and Signal Definition

3.1 Terminal Function and Wiring Specification

There are five functional wires on the amplifier side:

Positive pole of power supply (12-24V DC): A minimum driving capacity of 120mA is required. For optimal resolution, it is recommended to use an independent regulated power supply.

0V (blue): The common terminal for the power return line, enable output, and laser shutdown input.

Linear output (black, shielded): Analog voltage signal, output impedance of 100 ohms, range -4V to+4V (adjustable to ± 5V). The shielding layer should be connected to the signal ground of the input device.

Linear GND (shielding layer): It must be separately connected to the analog ground of the measuring device and cannot be mixed with the blue 0V line - although the two are connected internally through a resistor, mixing them will introduce ground loop noise.

Enable Output: NPN open collector electrode output, withstand voltage 40V DC, maximum current 50mA, residual voltage ≤ 1V. When the sensor is in a valid measurement state (stability indicator light not red), this output is turned on.

Laser OFF Input: When this line is short circuited to 0V (residual voltage ≤ 2V), the laser emission immediately stops, while the linear output, indicator light, and enable output remain in their pre turn off state (hold function). When open circuit (leakage current ≤ 0.1mA), laser emission is turned on.

3.2 Output Lock Conditions

In the following three situations, the linear output will be locked at a fixed value between 6V and 8V (instead of the normal output range of -4V~+4V): the 3-10 second warm-up period after the sensor is powered on (when there is no laser emission, which is a safety design); The target exceeds the measurement range; Enable the output to be in the OFF state. By utilizing this characteristic, the control system can determine whether the measurement is valid by detecting whether the output voltage is in the range of 6V~8V.

3.3 Multi sensor anti-interference installation

When two or more Z4M sensors are used side by side at close range, they need to be arranged at a specific distance to avoid mutual interference. For Z4M-W40, the parallel spacing in the same direction should be ≥ 30 millimeters, and the face-to-face spacing should be ≥ 60 millimeters; For Z4M-W100, parallel arrangement in the same direction should be ≥ 60 millimeters, and opposite direction should be ≥ 80 millimeters. Insufficient spacing can cause the receiver to mistakenly pick up scattered light from nearby sensors.

Sensitivity and response speed configuration

4.1 Sensitivity Selection (WHITE/BLACK/AUTO)

The three sensitivity selectors on the amplifier side are used to match the reflectivity of the measured target:

WHITE file: suitable for high reflectivity targets such as white ceramics and white paper (reflectivity~90%). Under this setting, the receiving gain is the lowest, which can avoid light saturation and enable the most rigorous output judgment - enabling the output to quickly turn off when the target deviates from the measurement range.

BLACK file: suitable for low reflectivity targets such as black paper and dark rubber (reflectivity~5%). Gain enhancement to compensate for weak reflected signals.

AUTO mode: Used for targets with reflectivity between black and white (such as gray plastic, metal primary colors). At this point, the gain is automatically adjusted, but it should be noted that in AUTO mode, even if the target is outside the measurement range, the enable output may still erroneously remain in the ON state. If the application does not allow misjudgment, switch to the WHITE mode and accept a smaller measurement range.

4.2 Balancing Response Time and Resolution

The response time selector provides three levels (for Z4M-W40: 0.15ms/2ms/60ms; For Z4M-W100: 0.7ms/20ms/500ms. Its essence is the cut-off frequency setting of the internal low-pass filter: the stronger the filtering, the better the noise suppression (higher resolution), but the slower the response. Engineers should judge based on the target movement speed: if the frequency of target displacement change is f, the response time should be at least less than 1/(2f). For example, detecting 100Hz vibration requires a response time of ≤ 5 milliseconds. In this case, the Z4M-W40 should choose the 2ms range (resolution of 10 μ m), while the Z4M-W100 has a minimum of only 0.7ms (but resolution of only 150 μ m), which is more suitable for low-frequency large displacement measurement.

When evaluating response time, it should be noted that the values given in the data manual are 10% to 90% rise/fall time. If the output is required to be stable within the 1% error band of the final value, it actually requires 2-3 times the nominal response time. For example, in the 60ms gear, stabilizing to 1% accuracy takes approximately 120-180ms.

Offset and range calibration methods

5.1 Offset Adjustment

The default calibration conditions at the factory are: the white alumina ceramic target is located at the measurement center point (40mm or 100mm), with a linear output of 0V. In practical applications, the target material may be different from the white ceramic, resulting in zero point offset. The offset adjustment steps are as follows:

Accurately fix the target at the desired measurement zero position (usually the reference plane of mechanical motion).

Use a precision voltmeter to monitor the linear output voltage.

Rotate the offset adjuster on the amplifier with a small screwdriver to reset the output voltage to zero (0V ± acceptable deviation).

The effective range of offset adjustment is ± 10mm (for Z4M-W40) or ± 40mm (for Z4M-W100), and the output voltage can be adjusted to within ± 5V range. Beyond this range, linearity cannot be guaranteed.

5.2 Span Adjustment

Range adjustment changes the sensitivity coefficient of output voltage to distance variation. The factory default values are 0.4 V/mm (Z4M-W40) and 0.1 V/mm (Z4M-W100), corresponding to 8V output when the full range changes by 20mm or 80mm. In practical applications, if one wishes to amplify displacement signals with small amplitudes, the range setting value can be increased. Calibration steps:

After completing the offset adjustment, move the target from zero by a known distance Δ d (e.g. 5mm).

Measure the output voltage change Δ V at this time.

Rotate the range adjuster to achieve the desired value of Δ V/Δ d. Note that the range adjustment range is ± 30% of the default value, which means that the sensitivity of Z4M-W40 can be adjusted between 0.28~0.52 V/mm.

Re verify the zero offset, as range adjustment may slightly affect the zero point - iterate calibration if necessary.

A typical application scenario: It is necessary to expand the ± 4V output to ± 5V to match a higher ADC input range. The operation method is: first move the target to the position where the output is 4V, then adjust the range regulator to raise the voltage to 5V. At this time, the voltage output corresponding to the full range distance becomes ± 5V, but the linearity index remains.

Status indication and fault diagnosis

6.1 Meaning of indicator light combination

Both the sensor body and amplifier have NEAR and FAR indicator lights, and the amplifier also has a separate stability indicator light (green/red/off).

Meaning and handling measures of NEAR FAR stability indicator light

The bright green target is within the effective measurement range, with sufficient received light and stable measurement. This is the ideal working state.

Bright and extinguished the target within the range, but the amount of received light is in the critical zone (possibly due to low target reflectivity). Check the sensitivity switch settings and try switching from WHITE to BLACK or AUTO.

Turning on or off the red color, or turning off the target if the distance is too close (less than the near end limit of the sensor), or if the reflected light is too strong (such as a mirror). Move the target away or reduce surface reflection.

Turn off the red light or turn off the target too far away (beyond the far end limit), or the reflected light is extremely weak. Move closer to the target or check for light path obstruction.

Flashing red with no target or abnormal extreme light intensity. Confirm that the laser is turned on (laser OFF input open circuit, and power on preheating period has expired).

6.2 Common abnormal phenomena and their elimination

Phenomenon 1: The output voltage remains between 6~8V and does not vary with distance.

Possible reason: Enable output OFF, meaning the sensor has not recognized valid measurements. Check: Is the target within the measurement range? Is the laser turned on (observe if the NEAR/FAR indicator lights are on or flashing)? Does the sensitivity switch match the target reflectivity?

Phenomenon 2: The stability indicator light is green, but the output noise is high.

Possible cause: Electrical interference. Confirm whether the linear output shielding layer is single point grounded; Avoid wiring in the same cable tray as the power line; Check if the power ripple exceeds 10%.

Phenomenon 3: For metal or mirror targets, enable the output to remain ON even after the target is out of range.

This is caused by stray light generated by laser on strongly reflective surfaces. Solution: Adjust the sensor angle to make the specular reflection light deviate from the receiving lens; Or switch back to WHITE mode in AUTO mode to tighten the judgment threshold.

Phenomenon 4: The zero point offset is significant after replacing the target material.

The reflectivity and diffuse reflection characteristics of 780nm infrared light vary greatly among different materials. The offset calibration must be re executed according to Chapter 5. If there is frequent material replacement, it is recommended to use an external setting value storage and automatic loading mechanism.

Laser safety regulations and accessory usage

7.1 FDA/IEC Compliance Requirements

As a Class 3B/IIIb laser product, Z4M must meet the following safety measures:

Interlocking interface: Install interlocking switches on the system protective casing. When the access door is opened, the interlocking contacts will disconnect and the laser emission will immediately stop.

Laser emission indicator: The NEAR/FAR indicator light on the sensor doubles as a warning light (flashing green or constantly on) when the laser is turned on, and it must be ensured that the operator can still recognize it while wearing protective goggles.

Attenuator: The sensor has an inherent built-in attenuation mechanism (such as startup delay) that does not allow users to bypass it.

Label posting: Before use, the accompanying FDA warning label, aperture label, and certification mark must be securely affixed in a visible position on the sensor.

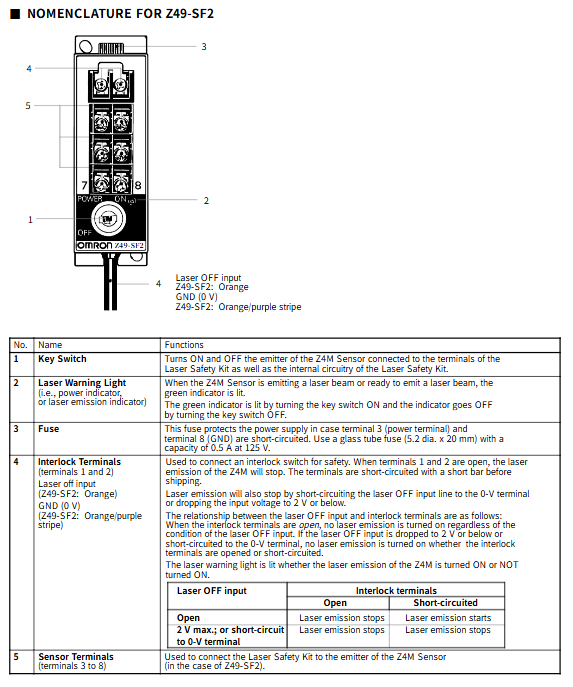

7.2 Z49-SF2 Laser Safety Kit

For applications that require comprehensive compliance with safety standards such as JIS C6802, the Z49-SF2 safety kit can be selected. This kit includes:

Controller: equipped with a key switch, interlocking terminals, and a green laser warning indicator light (also serving as a power indicator). The key switch directly controls the laser emission enable of the sensor.

Beam blocking cover: used to physically block the laser exit when the sensor is not in use.

Interlocking function logic: The controller provides two interlocking terminals (1 and 2). Short circuit at factory; When the external door lock switch is disconnected, regardless of the laser OFF input status, the laser cannot be emitted. If the laser OFF input line (orange) is short circuited to 0V (orange/purple), the laser will also be forcibly stopped. The green indicator light of the controller only lights up when the key is turned on, which does not necessarily mean that the laser will be emitted - the final emission needs to meet the requirements of interlock closure, laser OFF input open circuit, and sensor self preheating.

7.3 Cleaning and Maintenance

The cleaning of optical windows must be cautious: first, use air blowing (do not blow with your mouth) to remove floating dust; Then use a soft lens cloth dipped in anhydrous ethanol to rotate and wipe from the center outwards, without reciprocating friction, to avoid scratching the coating and causing measurement abnormalities. There are no user repairable components inside the sensor, and disassembly is strictly prohibited - disassembly will expose invisible laser radiation.

Application case: Integration with signal processor for measuring eccentricity

The use of Z4M in conjunction with K3TS signal processor can achieve automatic measurement of eccentricity of shaft components. System connection: Z4M linear output connected to K3TS analog input, with a range set to ± 9.999V; enable output connected to K3TS external trigger input. Calibration steps:

Align Z4M with the surface of the measured axis and adjust the distance so that the NEAR/FAR dual lights remain on (center point).

Rotate the spindle at low speed and observe the real-time display reading of K3TS. Using the scaling function of K3TS, correspond the -4V~+4V of the sensor to the actual displacement value (e.g. -10mm~+10mm).

Configure K3TS to "peak hold" mode and set a timed input (e.g. triggered by a button during each measurement cycle). The sensor will continuously collect the maximum and minimum values within one revolution.

Eccentricity=maximum value - minimum value. K3TS can directly output this difference.

Attention: For smooth chrome plated shaft surfaces, mirror reflection may cause misjudgment of the enable output. In this case, the sensor can be slightly tilted (angle ≤ 10 °) and the BLACK sensitivity level can be selected to measure using the diffuse reflection component.
