WCU Ship Control Unit Integration and Troubleshooting Guide

The automation level of modern ships is increasing day by day, and engineers need to monitor hundreds of parameters such as main engine, auxiliary engine, pump set, liquid level, temperature, pressure, etc. in real time. All of this relies on a reliable control unit - WCU (Ship Control Unit). Although WCU, as the core component of K-Chief and other integrated monitoring and alarm systems (IAS), is usually designed to be maintenance free and have a long lifespan, it still encounters problems such as communication interruptions, power failures, and abnormal input signals on site. This article is based on the official technical specifications of the WCU module, combined with years of experience in marine automation engineering, to provide a systematic guide on the hardware installation, electrical connections, environmental adaptability, certification requirements, and common faults of WCU, helping ship engineers and crew members quickly locate problems and restore the system.

WCU product positioning and technical specifications

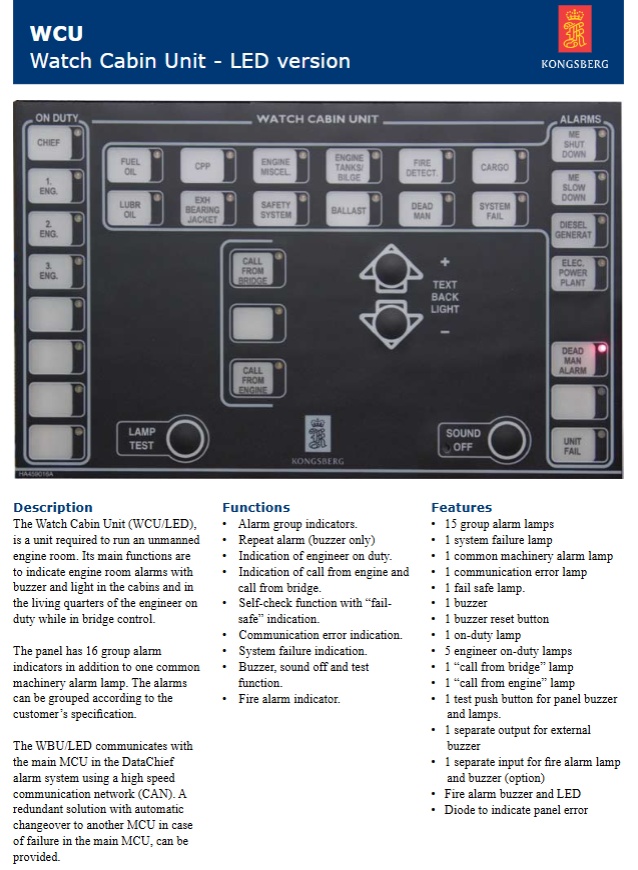

WCU is a specialized control unit suitable for ship control and monitoring systems, typically installed in the engine room control box, central control panel, or distribution board. Its design strictly follows the regulations of the classification society and has characteristics such as wide pressure input, wide temperature operation, vibration resistance, and moisture resistance.

1.1 Core electrical parameters

Parameter value description

Supply voltage 18-32 VDC nominal 24V DC, compatible with 12V requires conversion

Maximum power consumption of 5W, extremely low power consumption, suitable for long-term uninterrupted operation

Working temperature -15 ° C to+70 ° C to meet the cabin environment

Storage temperature -30 ° C to+80 ° C suitable for spare parts storage

Relative humidity of 97% (no condensation) suitable for high humidity environments

Protection level IP 22 prevents solid intrusion larger than 12.5mm, vertical drip protection

Vibration 1G complies with IACS E10 specification

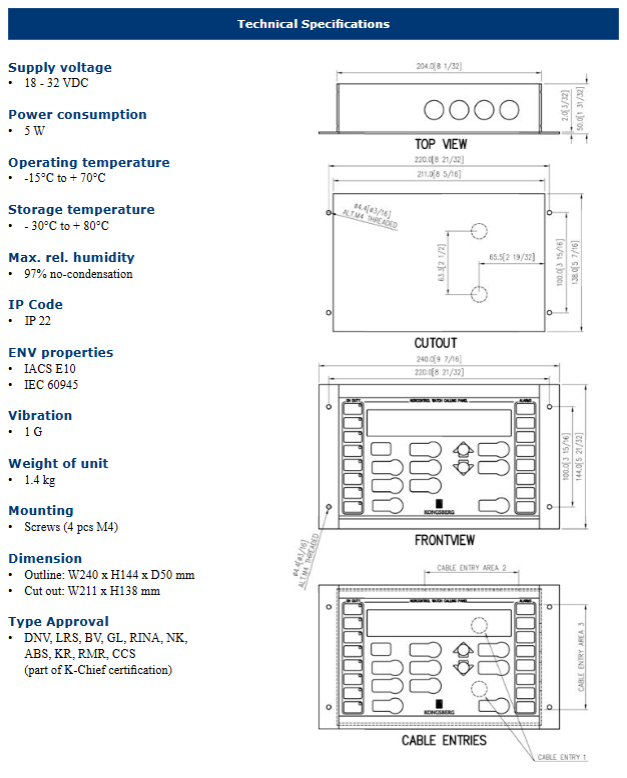

1.2 Mechanical installation dimensions

Dimensions: Width 240mm, Height 144mm, Depth 50mm

Hole size: width 211 mm x height 138 mm (suitable for panel embedded installation)

Weight: 1.4 kg

Installation method: Fixed with 4 M4 screws (usually installed using buckles or screw panels)

1.3 Environmental and Electromagnetic Compatibility Standards

WCU meets the following standards:

IACS E10: Uniform Requirements for Ship Electrical Equipment by the International Association of Classification Societies

IEC 60945: General requirements for maritime navigation and wireless communication equipment (covering environment, EMC, etc.)

1.4 Classification Society Type Certification

WCU has obtained type approval from the following classification societies as part of the K-Chief certification:

DNV (Norwegian Classification Society)

LRS (Lloyd's Register)

BV (French Classification Society)

GL (German Lloyd's, now DNV)

RINA (Italian Classification Society)

NK (Japan Maritime Association)

ABS (American Bureau of Shipping)

KR (Korea Classification Society)

RMR (Romanian Classification Society)

CCS (China Classification Society)

This means that WCU can be directly used in the automation system of global mainstream merchant ships, marine factory ship and warships without additional individual approval.

Hardware installation precautions

2.1 Installation location selection

Control box: WCU should be installed in a dry, well ventilated distribution box or control cabinet to avoid direct exposure to rainwater or condensation environment (IP22 non splash proof).

Cooling distance: Although the power consumption is only 5W, it is still necessary to ensure at least 50mm of space around the module to avoid stacking with other heating devices.

Stay away from strong interference sources: frequency converters, high-power contactors, and wireless transmission antennas can generate strong electromagnetic interference, which may affect the communication stability of WCU. Maintain a distance of at least 300mm or use shielding partitions.

2.2 Panel Opening and Fixation

Cut the panel according to the opening size of 211 × 138 mm (it is recommended to use laser or wire cutting to ensure accuracy).

Insert WCU from the front and lock it with 4 M4 screws (made of stainless steel). Control the torque at around 0.5 N · m to avoid crushing the plastic casing.

If the equipment requires frequent maintenance, a quick installation bracket can be optionally selected (to be ordered separately).

2.3 Grounding and equipotential connection

The shell of WCU should be connected to the main grounding busbar of the ship through a dedicated grounding terminal. Use a yellow green dual color grounding wire with an area of no less than 2.5 mm ², and the grounding resistance should be less than 0.1 Ω. The shielding layer of the signal cable should be grounded at one end (usually on the WCU side) to avoid ground loops.

Electrical wiring and power protection

3.1 Power Input

WCU accepts 18-32 VDC wide voltage input, with a typical power consumption of 5W (approximately 0.2A @ 24V). It is recommended to use a redundant 24V DC power module for marine power supply.

Wiring requirements:

Wire diameter: 1.0-1.5 mm ² (18 AWG).

Polarity: Ensure that the positive and negative poles are correct; The module has built-in reverse protection.

Fuse: It is recommended to connect a 1A slow melting fuse (such as 5 × 20mm T1A) in series at the power input end.

Power supply precautions:

DC-DC boost to 24V is required in a 12V battery system, otherwise undervoltage will cause WCU to malfunction.

When the main power supply is cut off, the WCU should be able to maintain its internal configuration for at least 30 minutes (usually using non-volatile memory without battery backup).

3.2 Input/output interfaces (presumably based on typical control units)

Although the manual does not list the quantity of physical I/O, based on similar products, it is speculated that WCU may have:

Digital input: 8-16 channels, used to connect alarm contacts (temperature switch, pressure switch, float switch).

Analog input: 4-8 channels, 4-20mA or 0-10V, used to connect sensors (pressure transmitters, PT100, etc.).

Digital output: Relay output (2-4 channels), used for alarm lights and buzzers.

Communication interface: CAN bus, RS-485 (Modbus) or Ethernet, used for communication with K-Chief system or upper computer.

Wiring specifications:

The analog input uses shielded twisted pair cables, with the shielding layer grounded at one end.

If the relay output drives inductive loads (such as buzzers, contactor coils), it must be connected in parallel with a freewheeling diode or an RC absorption circuit.

Tighten the screws of all wiring terminals to a torque of 0.4 N · m and check them every six months.

Network and Communication Integration

WCU is usually used as the on-site node of the K-Chief integrated alarm system, connected to the main station (HMI or server) through redundant CAN bus or Ethernet.

4.1 CAN bus wiring

Bus type: twisted pair shielded wire, impedance 120 Ω (recommended Belden 3082A).

Topology: Main branch structure, with 120 Ω terminal resistors connected at both ends of the main line.

The length of the branch line is ≤ 6 meters.

The baud rate is usually 250 kbit/s (corresponding to 250 kbps).

Common problems and troubleshooting:

Unstable communication: Check if the terminal resistance is missing. Measure the resistance between CAN_S and CAN_L, which should be around 60 Ω.

No communication but normal resistance: Check if the power supply voltage is within the range of 18-32V and if the CAN transceiver is damaged (observe the waveform amplitude with an oscilloscope, CAN_S is about 2.5-3.5V, CAN_L is about 1.5-2.5V).

4.2 Ethernet connection (if any)

If WCU supports Ethernet, use CAT5e or higher shielded Ethernet cables to connect to switches or directly connect to K-Chief servers. The IP address needs to be on the same network segment as the system. Common troubleshooting:

Use the ping command to test connectivity, and check IP configuration, network cables, or switch ports if timeout occurs.

If packet loss is severe, check if the shielding layer is grounded and if the cable is routed parallel to the power line (maintaining a distance of at least 200mm).

Troubleshooting Guide

Based on on-site experience, the following are typical fault phenomena, possible causes, and solutions related to WCU.

5.1 WCU not working (power LED not lit)

Possible reasons:

The supply voltage is lower than 18V or higher than 32V.

Reverse power connection (although built-in reverse protection, long-term reverse voltage may cause damage).

The external fuse is blown.

The internal DC-DC converter is damaged.

Inspection steps:

Measure the voltage of the WCU power terminal with a multimeter, which should be between 19-30V.

Check the power fuse.

If the voltage is normal and the fuse is intact, but the LED does not light up, try disconnecting all external signal wires before powering on (excluding load short circuits). If it still doesn't light up, the module hardware is faulty and needs to be repaired or replaced.

5.2 Abnormal analog input readings (or constant maximum/minimum values)

Possible reasons:

The transmitter output circuit is open (reading 0 or very small).

The transmitter output is short circuited (reading at full range or abnormal).

An additional load is connected in series in the 4-20mA circuit.

The grounding loop causes common mode interference.

resolvent:

Connect an ammeter in series with the circuit to measure the actual current value. If it does not match the WCU display value, check the sampling resistance in the input circuit (usually 250 Ω or 100 Ω).

Confirm that the transmitter power supply is normal (two-wire transmitters require an external power source).

If using a three wire or four wire system, check if the common terminal is correctly connected to the AGND of WCU.

For the grounding loop, a signal isolator can be added to the signal loop.

5.3 Digital input status error (normally open/normally closed contacts read opposite)

Possible reasons:

The "NO/NC" logic setting in the software configuration is incorrect.

The actual wiring of external contacts does not match expectations.

resolvent:

Enter the K-Chief configuration software and check the "trigger logic" parameters of the corresponding channel (usually with "normally open" or "normally closed" options).

Use a multimeter to measure the continuity of the contacts and confirm that the actual state is consistent with the configuration.

5.4 Relay output does not operate

Possible reasons:

The software output logic is not enabled.

Relay contact adhesion or coil burnout.

Insufficient driving voltage.

Inspection method:

Force flip the output in test mode and listen for a "click" sound. If not available, measure the voltage at both ends of the relay coil (usually 24V).

If there is voltage but no action, replace the relay (or the entire I/O board).

If the output action is taken but the external load is not working, measure the continuity of the contact end and the load power supply.

5.5 WCU and upper communication interruption

Inspection sequence:

Physical layer: Check for loose cables and connectors. For CAN bus, measure the terminal resistance.

Voltage: Ensure normal power supply to WCU (undervoltage causes communication chip to malfunction).

Address Conflict: Each WCU node must have a unique CAN ID or IP address. Check the dip switch or configuration file.

Baud rate: Confirm that the baud rate of all nodes in the system is consistent (such as 250k).

Bus load: If a large number of nodes frequently send data, it may cause bus conflicts. Use an analyzer to check the bus utilization rate (recommended to be below 50%).

Advanced diagnosis: Use a portable CAN analyzer (such as Kvaser) to monitor the bus and observe for any error frames. If WCU does not send any messages, its communication controller may be damaged.

Maintenance and Periodic Inspection

Although WCU is designed to be maintenance free, it is recommended to perform the following items during annual inspections and daily patrols by classification societies:

6.1 Before each voyage (or every week)

Visual inspection: The shell has no cracks and the indicator lights are in normal condition (power light, communication light).

Touch shell temperature: There should be no obvious burning sensation (normal slight warmth).

Check the tightness of the wiring terminals, especially the power and ground terminals.

6.2 Every three months

Cleaning: Use dry compressed air to blow away dust on the surface of the circuit board (pay attention to electrostatic protection).

Check if the ventilation opening (if any) is blocked.

Perform zero and range sampling on all analog input channels (using a signal generator to inject 4mA and 20mA and verify the displayed values).

6.3 Every year

Tighten all wiring screws to a torque of 0.4-0.5 N · m.

Measure the grounding resistance, which should be less than 0.1 Ω.

Perform communication packet loss rate test: Send 10000 request packets through monitoring software and calculate the timeout rate (which should be less than 0.1%).

Backup the configuration parameters of WCU to external storage (such as USB or server).

6.4 Every five years (or when there are signs of malfunction)

Replace electrolytic capacitors (especially power filter capacitors) - it is recommended to return to the factory for repair.

Replace all plug-in relays (if used).

Update firmware (if there is a new version, it can improve stability).

Environmental violations and enhanced protection measures

The IP22 protection level of WCU means that it can only prevent vertical dripping and cannot withstand water spray or immersion. If installed in a splash prone area of the engine compartment (such as near the cooling water pump), additional protective measures should be taken:

Installed inside a protective box with a sealing strip (recommended IP44 or higher).

Install a water deflector above WCU.

Use anti-corrosion coating circuit boards (which may have been made at the factory, but can be regularly sprayed with three proof paint).

When the humidity exceeds 97% and condensation occurs, even if the WCU itself can work, it may cause oxidation or leakage of the wiring terminals. It is recommended to install a small temperature controlled heater or desiccant inside the control box.

Certification and Compliance Tips

When replacing WCU, it is necessary to confirm that the new module has the same copy of the classification society certificate (the certificate must be accompanied by the ship). For ship changes or new WCUs, the classification society surveyor should be notified to conduct installation inspections and update the equipment list (IED). WCU's type certification covers major classification societies such as DNV, LR, ABS, BV, CCS, etc., so there is no need to certify each project separately. However, the installation drawings and wiring methods must meet the recognized conditions (i.e. comply with IACS E10 and IEC 60945).

Upgrade and spare parts recommendations

Spare part model: Record the complete model of WCU (e.g. WCU-24V-K1). It is recommended to equip at least one spare module (for ocean going vessels).

Compatibility replacement: If the original model is discontinued, a replacement model with corresponding functions, interfaces, and certifications should be selected. Be sure to verify the number of I/O channels, communication protocols, and physical dimensions.

Firmware upgrade: Some ship owners require upgrading WCU firmware through the K-Chief service tool to obtain new features or patches. Before upgrading, it is necessary to backup the configuration and ensure stable power supply during the upgrade process.
