  • YOKOGAWA AIP171 transceiver control module
    ❤ Add to collection

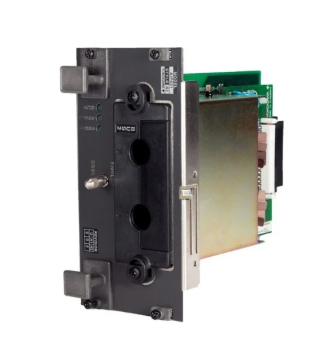

  • YOKOGAWA AIP171 transceiver control module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    The YOKOGAWA AIP171 transceiver control module is a core component of Yokogawa Electric's industrial automation product line in Japan. It is designed specifically for V net repeater systems and plays a critical role in transceiver operation management and network data transmission assurance. Its core function is to centrally control the transceivers in the system, ensure the stability and efficiency of data exchange within the control system and with other equipment, and support both electrical and optical transceivers, which can flexibly adapt to different transmission media requirements. This module adopts an industrial grade design concept, fully considering the complexity of industrial environments, integrating fault detection and isolation functions, and can quickly locate and solve network communication failures, significantly reducing the risk of system downtime. In terms of configuration, the module adopts a convenient DIP switch design, which can complete parameter setting and adjustment without complex software programming, adapt to different network topologies, and greatly simplify the installation, debugging, and maintenance process.

    • ¥20684.00
      ¥21735.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.480KG
    • Quantity:
    • (Inventory: 99999)
Description

The YOKOGAWA AIP171 transceiver control module is a core component of Yokogawa Electric's industrial automation product line in Japan. It is designed specifically for V net repeater systems and plays a critical role in transceiver operation management and network data transmission assurance. Its core function is to centrally control the transceivers in the system, ensure the stability and efficiency of data exchange within the control system and with other equipment, and support both electrical and optical transceivers, which can flexibly adapt to different transmission media requirements. This module adopts an industrial grade design concept, fully considering the complexity of industrial environments, integrating fault detection and isolation functions, and can quickly locate and solve network communication failures, significantly reducing the risk of system downtime. In terms of configuration, the module adopts a convenient DIP switch design, which can complete parameter setting and adjustment without complex software programming, adapt to different network topologies, and greatly simplify the installation, debugging, and maintenance process.


YOKOGAWA AIP171 transceiver control module

Product Overview

The YOKOGAWA AIP171 transceiver control module is a core component of Yokogawa Electric's industrial automation product line in Japan. It is designed specifically for V net repeater systems and plays a critical role in transceiver operation management and network data transmission assurance. Its core function is to centrally control the transceivers in the system, ensure the stability and efficiency of data exchange within the control system and with other equipment, and support both electrical and optical transceivers, which can flexibly adapt to different transmission media requirements. This module adopts an industrial grade design concept, fully considering the complexity of industrial environments, integrating fault detection and isolation functions, and can quickly locate and solve network communication failures, significantly reducing the risk of system downtime. In terms of configuration, the module adopts a convenient DIP switch design, which can complete parameter setting and adjustment without complex software programming, adapt to different network topologies, and greatly simplify the installation, debugging, and maintenance process.


Specification parameters

The core specifications of the YOKOGAWA AIP171 transceiver control module are as follows, providing reliable technical support for stable operation in industrial scenarios:

-Basic information: Model AIP171, manufacturer YOKOGAWA (Yokogawa Electric), product type is Transceiver Control Module, country of origin is Japan;

-Compatible system: designed specifically for V net repeater systems, seamlessly integrated into the system architecture;

-Transceiver control capability: can control up to 16 transceivers, supporting both electrical and fiber optic transceivers;

-Power parameters: The typical power supply voltage is 24 V DC and the power consumption is 20 W;

-Environmental adaptability: The working temperature range is 0 to 50 ° C, and the relative humidity is 0 to 95% RH (non condensing), which can adapt to most industrial site environments;

-Physical parameters: There may be slight differences in the dimensions indicated by different channels. Common specifications include 100mm x 200mm x 30mm (length x width x height), with a weight of 1kg, while others are marked as 2.5cm x 12.7cm x 17.8cm, with a weight of 0.2kg. Please refer to the actual supply for details;

-Configuration method: DIP switches are used for parameter configuration, with simple and intuitive operation.


Performance characteristics

As a key component of industrial network construction, YOKOGAWA AIP171 transceiver control module has multiple core performance advantages, which can comprehensively ensure the reliability and flexibility of network communication:

-Flexible transceiver management capability: supports centralized control of up to 16 transceivers, simplifies the operation and maintenance process of network devices through unified management, and reduces the complexity of multi device collaborative management;

-Multi medium transmission adaptation: compatible with both electrical and fiber optic transceivers, suitable transmission media can be selected according to actual needs such as transmission distance and environmental interference intensity, greatly improving the flexibility of system deployment;

-High network reliability: Built in fault detection and isolation function, capable of real-time monitoring of network communication status, timely detection of fault points and isolation treatment, minimizing the impact of faults on the overall system, reducing downtime, and ensuring production continuity;

-Convenient configuration and maintenance: Based on the DIP switch configuration method, parameter settings can be completed without professional programming skills, with a low threshold for getting started; Modular design makes it easy to disassemble and assemble, facilitating daily maintenance and replacement of faulty modules;

-Industrial grade stable operation: Using high-quality electronic components and rigorous manufacturing processes, it has excellent anti-interference ability and can work continuously and stably in harsh industrial environments such as wide temperature and high humidity, meeting the high reliability requirements of industrial automation scenarios.


Working principle

The core working logic of the YOKOGAWA AIP171 transceiver control module is to achieve reliable transmission of network data and stable maintenance of communication links through centralized control of transceivers within the V net repeater system. The specific workflow can be divided into the following key steps:

Firstly, the module completes initial parameter configuration through DIP switches, specifying the number, type (electrical/fiber optic), and communication related parameters of the controlled transceivers to ensure compatibility with the communication protocols and transmission standards of other devices in the system. During the operation of the system, the module receives real-time instructions from the upper control system and monitors the status of the 16 controlled transceivers, including key information such as their working status, data transmission progress, and link connection stability.

When the transceiver performs data transmission, the module assumes the responsibility of managing and coordinating the data link, ensuring orderly data transmission between multiple transceivers and avoiding data conflicts. At the same time, the built-in fault detection mechanism of the module continuously monitors the status of the communication link. If a fault is found in a certain transceiver or link (such as disconnection, transmission errors caused by signal interference, etc.), the fault isolation function will be immediately activated to isolate the faulty node from the normal network and prevent the fault from spreading and affecting the overall system operation.

In addition, the module will provide real-time feedback on the working status data and fault information of the transceiver to the upper control system, providing accurate equipment status reference for operation and maintenance personnel, facilitating timely troubleshooting and maintenance work, and ensuring the efficient and stable operation of the entire V net repeater network.


Precautions

To ensure the stable operation, extended service life, and personnel safety of the YOKOGAWA AIP171 transceiver control module, the following precautions should be taken during installation, operation, and maintenance:

-Preparation before installation: Before installation and operation, it is necessary to carefully read the product user manual, familiarize oneself with the installation requirements, electrical parameters, and operating specifications of the module, and avoid equipment damage or communication failures caused by improper operation;

-Environmental adaptation: Strictly control the working environment parameters to ensure that the ambient temperature is within the range of 0 to 50 ° C, the relative humidity does not exceed 95%, and there is no condensation. Avoid installing modules in locations with high temperature, high humidity, high dust, strong electromagnetic interference, or susceptible to vibration and impact. If necessary, take protective measures;

-Power specification: A 24V DC power supply that meets the specifications must be used to ensure stable power supply voltage, avoid voltage fluctuations or overvoltage/undervoltage situations, and prevent damage to module circuits; At the same time, pay attention to the correct connection of the positive and negative poles of the power supply, and prevent reverse connection of the power supply;

-Configuration operation: When configuring DIP switches, the power supply should be disconnected first to avoid damage to the switches or incorrect parameter configuration caused by live operation; After the configuration is completed, check again whether the parameter settings meet the system requirements, confirm that there are no errors, and then turn on the power;

-Installation and fixation: Fix according to the module installation specifications to ensure a firm installation and avoid module loosening or poor contact caused by vibration during operation; If installed inside the control cabinet, it is necessary to ensure that there is sufficient heat dissipation space around the module to avoid heat accumulation;

-Fault handling: When the module prompts a fault or system communication abnormality, the fault information should be obtained through the upper system first, and then the power should be disconnected for troubleshooting. It is strictly prohibited to disassemble the module or plug in and unplug the connecting wire without power off; Troubleshooting should be carried out by professional operation and maintenance personnel to avoid expanding the scope of the fault due to misoperation;

-Maintenance: Regularly inspect the appearance of the module and clean the surface dust; Check if the connecting wires are secure and in good contact; If any abnormal conditions such as damage, overheating, or abnormal noise are found in the module, the machine should be stopped immediately for maintenance or module replacement.


Application scenarios

The YOKOGAWA AIP171 transceiver control module, with its industrial grade stability, flexible control capabilities, and reliable communication guarantees, is widely used in various industrial automation and process control systems, especially in scenarios based on V net repeater networks. Specific application areas include:

-Petrochemical industry: In continuous process industrial scenarios such as petroleum refining and chemical production, it is used to build a communication network between process control systems and on-site equipment, ensuring stable transmission of key process parameters such as temperature, pressure, and flow rate, and supporting precise control and safety monitoring of production processes;

-Power industry: Suitable for automation control systems in power plants, substations, and other places, connecting various sensors, transmitters, and control equipment to achieve real-time collection and command transmission of equipment status data during power production and transmission, ensuring stable operation of the power system;

-Metallurgical industry: In high-temperature and strong electromagnetic interference scenarios such as steel and non-ferrous metal smelting, relying on its excellent anti-interference ability and stable communication performance, it builds a reliable industrial network to support the transmission of process control, equipment operation and maintenance data in the smelting process;

-Water treatment industry: used for automation systems such as sewage treatment and water treatment plants, connecting water quality monitoring sensors, water pumps, valves and other equipment to ensure reliable transmission of water quality parameter collection and treatment process control instructions, and helping to efficiently control the water treatment process;

-Other industrial scenarios: It can also be applied to various industrial fields such as food processing, pharmaceutical production, and building materials manufacturing that use control systems such as Yokogawa Centum CS and Centum VP. As the core control component of the V net relay network, it ensures efficient collaborative operation of the entire system.
