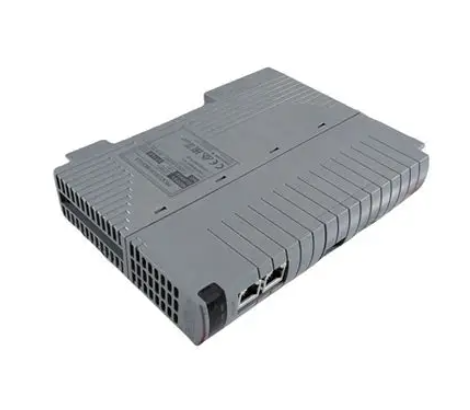

YOKOGAWA CP461-50 processor module

YOKOGAWA CP461-50 processor module

Product Overview and Positioning

YOKOGAWA CP461-50 is a core processor module developed by Yokogawa Electric in Japan specifically for industrial automation control systems. As the "central nervous system" in Yokogawa's industrial control system, its core positioning is to undertake key tasks such as real-time computation, control decision-making, data exchange, and fault diagnosis in industrial processes. This module is widely compatible with various distributed control systems (DCS) and process control systems in Henghe. It can integrate on-site data from various I/O modules, execute preset control logic and algorithms, drive actuators to achieve precise control, and realize status monitoring and abnormal warning of the entire control loop. It is the core component that ensures the stability, safety, and efficiency of industrial production processes.

With its modular design and high compatibility, CP461-50 can seamlessly collaborate with Yokogawa series I/O modules, communication modules, human-computer interaction modules, etc., and flexibly adapt to industrial control scenarios of different scales. It can operate stably from small and medium-sized production devices to large-scale process industrial systems, and is a key support for achieving intelligent process control in Yokogawa industrial automation solutions.

Core product features

1. High performance real-time control capability

The CP461-50 is equipped with a high-performance industrial grade processor core, which has powerful computational processing capabilities and can quickly respond to multi-channel input signals. It can execute complex control algorithms in real time (including multiple PID control modes such as time proportional PID and current proportional PID), and the control cycle can be flexibly set to different levels such as 50ms, 100ms, 300ms, 500ms, etc., ensuring precise control of rapidly changing parameters in industrial processes. Compared to ordinary processor modules, its data processing latency is lower, control instruction execution is faster, and it can effectively ensure the dynamic stability of the production process.

2. Comprehensive fault diagnosis and safety protection

The module is equipped with a comprehensive fault diagnosis mechanism, which can monitor the real-time status of its own hardware, communication links with other modules, input and output signal integrity, and other key links. Once an abnormality is detected (such as signal interruption, communication failure, parameter exceeding limits, etc.), it can immediately trigger an alarm and output fault feedback information, helping operation and maintenance personnel quickly locate problems and shorten downtime. At the same time, the module follows strict industrial safety design standards, has overvoltage and overcurrent protection, and anti electromagnetic interference capabilities, which can effectively resist the impact of complex electromagnetic environments in industrial sites and reduce the risk of equipment damage.

3. Flexible scalability and compatibility with multiple protocols

The CP461-50 adopts a modular expansion architecture, with reserved expansion slots and support for adding additional functional modules (such as communication expansion modules, dedicated computing modules, etc.). It can be flexibly upgraded according to the complexity and functional requirements of industrial scenarios, and is suitable for various applications ranging from simple loop control to complex process collaborative control. In terms of communication compatibility, the module supports RS-485 communication bus and is compatible with various industrial communication protocols such as Modbus and PLC Link, which can achieve communication with upper level monitoring systems PLC、 The high-speed data exchange of intelligent instruments and other devices ensures smooth information flow throughout the entire control network.

4. Convenient configuration and maintenance design

The module supports parameter configuration, control logic programming, and downloading through upper computer software. The operation interface is intuitive and easy to understand, and basic configuration can be completed without complex professional programming skills. At the same time, the module integrates a status indication function, which can intuitively display the power status, operating status, fault status, and communication status through LED indicator lights, making it convenient for operation and maintenance personnel to monitor the real-time operation of the equipment. In terms of maintenance and replacement, a standardized plug-in design is adopted, which is precisely adapted to the rack slots. The replacement process does not require complex disassembly, greatly reducing maintenance downtime.

5. Stable industrial environment adaptability

In response to the diverse and harsh environments of industrial sites, CP461-50 has undergone rigorous environmental adaptability testing and has excellent anti-interference and temperature resistance capabilities. Its working temperature range covers -10 ° C to+55 ° C (-10 ° C to+45 ° C when tightly installed), which can adapt to temperature fluctuations in most industrial workshops; Simultaneously possessing excellent dust and moisture resistance, it can operate stably in dusty and high humidity (non condensing) industrial environments without the need for additional constant temperature and humidity protection facilities.

Detailed technical parameters

1. Core electrical parameters

-Power supply voltage: 100-240V AC, 50/60Hz, wide voltage input design, suitable for industrial power supply standards in different regions;

-Power consumption: Maximum 8VA, low-power design, reduces overall system energy consumption;

-Control mode: Supports 50/100/300/500ms On/Off control, time proportional PID control, current proportional PID control, and can be flexibly selected according to application scenarios;

-Measurement accuracy: thermocouple input ± 0.3% FS ± 1 digit, RTD input/DC voltage/current input ± 0.2% FS ± 1 digit, ensuring the accuracy of data acquisition and control;

-Output types: Supports relay output (1C SPDT, 250V AC/30V DC, 3A), voltage pulse output (19V DC ± 15%, internal resistance 18 Ω, maximum allowable current 24mA DC), current output (0-20mA/4-20mA DC, maximum allowable load resistance 600 Ω), and can directly drive various industrial actuators;

-Input interface: Supports thermocouples RTD、 Multiple input types such as DC voltage/current, compatible with various industrial sensors; Supports 2-channel CT input (measuring current 0.4-50.0A, indicating resolution 0.1A), 2-channel digital input (no voltage dry contacts or open collector);

-Event output: Supports up to 3 event outputs, which can be used for scenarios such as fault alarms and status feedback;

-Communication parameters: RS-485 communication interface, maximum communication rate of 38400bps, supports Modbus and PLC Link protocols, can connect up to 31 units.

2. Physical and environmental parameters

-Size: Compact design, specific size compatible with Yokogawa standard rack installation specifications, saving installation space;

-Weight: 130g (including installation bracket), lightweight design, easy to install and transport;

-Protection level: front panel IP66, with good dust and water splash resistance, can effectively protect internal circuits;

-Working temperature: -10 ° C to+55 ° C (regular installation), -10 ° C to+45 ° C (tight installation);

-Storage temperature: -20 ° C to+60 ° C, suitable for different storage environment requirements;

-Humidity adaptation range: 5% to 95% (non condensing), with no risk of condensation.

3. Compliance and Certification

The module complies with multiple international industrial standards such as EN 61010-1, EN 61326-1 (for use in industrial settings), and EN IEC 63000, ensuring compliance in industrial scenarios in different regions around the world. The product comes with a 12-month original factory warranty to protect users' rights and interests.

Installation and maintenance precautions

1. Installation specifications

-Installation qualification: Installation, wiring, and maintenance work must be carried out by professional engineers or skilled technicians. Non professional personnel are strictly prohibited from operating to avoid safety risks;

-Installation location: It should be selected in an area with good ventilation and away from strong electromagnetic interference sources (such as motors, transformers, and frequency converters), avoiding installation in environments with impact, vibration, corrosive gases, dust, water, oil, solvents, direct sunlight, and radiation; If high temperature radiation cannot be avoided, insulation or enhanced ventilation measures should be taken;

-Installation method: Supports wall installation and DIN rail installation. When installing on the wall, it is necessary to first loosen the fixing screws of the socket, remove the main body, and then fix the socket to the wall with screws; DIN rail installation must follow standard rail installation specifications to ensure a secure installation; When inserting the module into the socket, it should be operated perpendicular to the socket panel to avoid tilting and plugging, which may cause terminal bending and poor contact; After installation, the main body needs to be fixed to the socket with screws to prevent loosening;

-Wiring requirements: Before wiring, the power must be disconnected to avoid module damage or electric shock caused by live wiring; The power wiring and protective grounding wiring should use terminals with insulated sheaths, and the force should be moderate during wiring to avoid excessive pulling of the wires and damage; Strictly follow the wiring diagram to connect external circuits correctly, ensuring that the power supply voltage and input signal meet the module specifications; To prevent lightning surges from entering the module through power and signal cables, lightning arresters need to be installed between the module and the on-site equipment;

-Grounding requirements: The protective grounding terminal must be reliably connected, and the power supply must be connected after the grounding is completed; It is strictly prohibited to cut off the internal or external protective grounding wire, otherwise it will lose its protective function and cause the risk of electric shock.

2. Daily maintenance and fault diagnosis

-Preheating calibration: Before putting the module into use, it needs to be preheated for 10-15 minutes, and the calibration operation can only be carried out after the performance is stable; Calibration requires the use of professional calibration equipment such as counters and oscilloscopes;

-Status monitoring: Real time monitoring of operating status through module LED indicator lights. When the power light is on, it indicates normal power supply. When the operation light is on, it indicates normal operation. When the fault light is on, it is necessary to promptly troubleshoot the problem;

-Regular inspection: Regularly check the installation and fixation of modules, as well as the fastening status of wiring terminals, to prevent loosening and poor contact; Check if the insulation layer of the wire is intact to avoid short circuits caused by insulation damage; Check whether the protective grounding is reliable and ensure that the safety protection function is effective;

-Fault handling: If there is a significant deviation in control accuracy, first check whether the input signal is normal and whether the calibration parameters are accurate; If there is a communication failure, check whether the communication line connection is firm and whether the communication parameters match; If there is no response from the module, check whether the power supply voltage meets the specifications and whether the module is properly fixed; If the fault cannot be eliminated, it is necessary to contact professional maintenance personnel or replace the module. After replacement, parameter configuration and calibration need to be carried out again.
