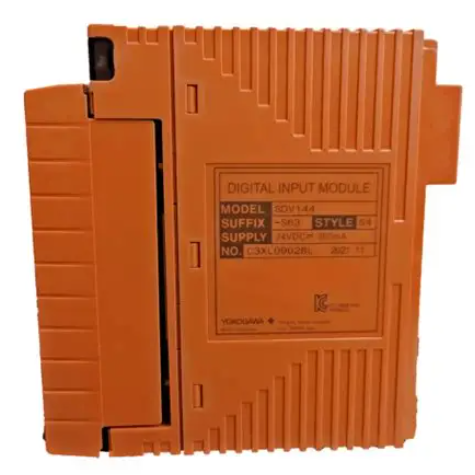

YOKOGAWA SDV144-S63 Digital Input Module

YOKOGAWA SDV144-S63 Digital Input Module

Product Overview

YOKOGAWA SDV144-S63 is a high-performance digital input module developed by Yokogawa Electric in Japan for industrial automation control systems. It is mainly used to collect 24V DC voltage free contact signals on site, and achieve reliable monitoring and transmission of discrete signals such as the operating status and switch position of industrial equipment. This module, with its excellent anti-interference ability, wide temperature working range, and flexible connection method, is widely used in industrial scenarios such as petrochemicals, power metallurgy, and intelligent manufacturing that require strict equipment reliability and stability. The product is originally from Singapore and is a brand new original product. It usually comes with a 12-month warranty period and can be seamlessly integrated into various DCS (distributed control systems) in Yokogawa, providing stable support for the signal acquisition process of industrial control circuits.

From the perspective of model coding rules, SDV144 is the basic model, representing "16 channel, 24V DC, module isolated digital input module"; The suffix "- S63" is the functional identifier, where "S" represents the standard type, "6" represents the equipped signal cable interface adapter without explosion-proof protection, and "3" represents compliance with ISA G3 standard, suitable for a wide temperature working environment from -20 ℃ to 70 ℃. The clear model code facilitates users to quickly identify product specifications and applicable conditions.

Core performance characteristics

1. Multi channel independent acquisition, efficient signal processing

The module adopts a 16 channel independent design, and each channel can be separately connected to a voltage free contact signal. It can simultaneously collect the switch status signals of 16 on-site devices (such as contactor on/off, limit switch triggered/not triggered, etc.), and can meet the monitoring needs of multiple devices without the need for additional expansion modules. The signal acquisition of each channel is independent of each other, avoiding the impact of single channel faults on the signal acquisition of other channels and improving the reliability of signal acquisition.

2. Strengthen module isolation and have excellent anti-interference ability

The module is equipped with a reinforced isolation circuit, which achieves electrical isolation between the input signal and the system core circuit. The isolation withstand voltage can reach 2kV AC (under the collective connection state of 16 input lines, it can withstand for 1 minute), effectively blocking the impact of electromagnetic interference, surge voltage and other factors in the industrial environment on the module core circuit and backend control system. Meanwhile, the isolation design also reduces signal crosstalk between different channels, ensuring the accuracy of signal acquisition and stable operation even in complex industrial electromagnetic environments. In addition, the module isolation resistance can reach 250M Ω, further improving the isolation reliability.

3. Flexible and diverse connection methods, suitable for different on-site needs

To adapt to the wiring environment of different industrial sites, the module provides multiple flexible connection methods: supports crimping terminal connection, which is convenient and firm for on-site rapid construction and later maintenance; Support MIL cable connection, suitable for industrial scenarios with high requirements for connection reliability and strong vibration; At the same time, it can be used with the Yokogawa dedicated signal cable AKB331 to achieve stable connection through the signal cable interface adapter, further enhancing the anti-interference ability of signal transmission. The design of multiple connection methods allows the module to flexibly adapt to different on-site installation conditions and wiring specifications.

4. Industrial grade reliability design, suitable for harsh environments

The module adopts full industrial grade component selection and packaging design, strictly complying with ISA standard G3, and has excellent environmental adaptability. The working temperature range is wide from -20 ℃ to 70 ℃, and it can operate stably for a long time in outdoor industrial environments with low temperature and severe cold, or in high-temperature and hot workshop environments; Simultaneously possessing excellent resistance to vibration and impact, able to adapt to the mechanical vibration environment of industrial sites. In addition, the module can withstand an instantaneous maximum input voltage of 30.0V DC, effectively responding to the impact of on-site power supply voltage fluctuations on the module, further improving its service life and reliability in harsh environments.

Detailed technical specifications

1. Input signal parameters

-Input signal type: no voltage contact signal (suitable for collecting signals from various mechanical switches, contactor contacts, etc.);

-Contact state resistance: The maximum resistance in the ON state is 1k Ω, ensuring that the module can accurately identify the closed state of the contacts; The minimum resistance in the OFF state is 100k Ω, which avoids module misidentification caused by leakage current when the contact is disconnected;

-Input current: 6mA ± 20% (when the external power supply is 24V DC and the input resistance is 0 Ω). This current parameter ensures the module's sensitive recognition of contact signals and avoids excessive current loss to contacts;

-Contact rating: 24V DC ± 20%, 10mA or greater, specifying the range of contact signal power supply and minimum operating current that the module is adapted to, ensuring compatibility with various on-site contact devices;

-Input response time: up to 40ms, able to quickly respond to changes in on-site contact signals, meeting the real-time requirements of signal acquisition in most industrial control scenarios.

2. Power parameters

-External power requirements: 24V DC ± 20%, current capacity 200mA, providing stable power support for the module input circuit;

-Module's own current consumption: maximum 290mA when powered by 5V DC, maximum 140mA when powered by 24V DC. The low-power design reduces the module's load on the system power supply and reduces energy consumption.

3. Physical and environmental parameters

-Weight: There are slight differences in weight under different connection methods. When using crimping terminals or MIL cables for connection, the weight is about 0.36kg, and when equipped with signal cable interface adapters, it is about 0.41kg. The lightweight design facilitates module installation and system integration;

-Working temperature: -20 ℃ to 70 ℃ (compliant with ISA G3 standard);

-Storage environment: It should be stored in a dry, non corrosive gas, and non conductive dust environment, with a storage temperature not exceeding 60 ℃, to avoid damage to module components due to moisture, corrosion, or high temperature.

Installation and wiring specifications

1. Preparation before installation

Before installation, it is necessary to confirm that the module model is SDV144-S63, ensure that the product is brand new and original, check the appearance of the module for any damage, ensure that the pins are not bent or deformed, and ensure that the wiring terminals are not loose. At the same time, confirm that the installation environment meets the environmental parameter requirements of the module, and stay away from strong electromagnetic interference sources (such as large frequency converters, welding machines, etc.), high temperature heat sources, and humid areas; The installation location should reserve sufficient heat dissipation space to avoid overheating faults caused by poor heat dissipation of the module. In addition, installation personnel need to have professional qualifications for industrial automation equipment installation, be familiar with relevant electrical safety regulations and module installation manuals, and avoid equipment damage or personal safety accidents caused by improper operation.

2. Key points of installation operation

The module needs to be installed on standard industrial guide rails or Yokogawa specialized installation brackets. During the installation process, it is necessary to ensure that the module is firmly fixed to avoid loosening due to on-site vibration. During installation, attention should be paid to the installation direction of the module, and installation should be carried out according to the positive and negative poles and signal flow direction marked on the module to avoid abnormal signal acquisition caused by incorrect installation direction. A reasonable distance of no less than 5cm should be maintained between modules and adjacent devices to facilitate heat dissipation and later maintenance operations.

3. Wiring operation specifications

Before wiring, it is necessary to cut off the power supply of all associated devices, including the external power supply of the module, the power supply of the backend control system, and the power supply of the on-site contact devices. It is also necessary to confirm that the DC voltage of the main circuit has dropped to a safe level, and wait for at least 10 minutes before proceeding with the wiring operation to avoid the risk of electric shock. When wiring, it is necessary to strictly follow the requirements of the module wiring manual to distinguish between input signal terminals, power terminals, and grounding terminals, ensuring correct and error free wiring: no voltage contact signal is connected to the corresponding input terminal, external 24V DC power is connected to the power terminal, and the grounding terminal must be reliably grounded. The grounding resistance should be less than 10 Ω to improve the anti-interference ability and safety of the module. After the wiring is completed, it is necessary to check whether all wiring terminals are tightened to avoid poor contact or signal interruption caused by loose wiring; At the same time, organize the wiring to avoid cable entanglement or compression, and prevent signal failure caused by cable damage.

Precautions for safe operation

1. Qualification requirements for operation

All operations such as module installation, wiring, debugging, and maintenance must be carried out by qualified professionals who have received professional training. Operators need to be familiar with the technical specifications, installation manuals, and safety precautions of the module, and have the ability to respond to various emergency situations during the operation process. Non professionals are strictly prohibited from operating the module without authorization to avoid equipment failure or personal safety accidents.

2. Power operation safety

The module carries dangerous voltage, and it is strictly prohibited to carry out wiring, disassembly, maintenance and other operations while the power is connected, otherwise there is a risk of electric shock causing death. Before carrying out any maintenance work, all associated power sources must be cut off and safety measures (such as hanging a "no closing" sign) must be taken to prevent others from accidentally closing the circuit. Before restoring the power supply, it is necessary to check again whether the wiring is correct and whether the terminals are fastened, to ensure that there are no safety hazards such as short circuits and leakage.

3. Electrostatic protection measures

The module contains sensitive electronic components, which may be severely damaged by human static electricity. Before touching the module, the operator must comply with the electrostatic discharge (ESD) regulations and take effective electrostatic protection measures, such as wearing an anti-static wristband and operating on an anti-static workbench, to avoid damage to the module caused by static electricity.

4. Proper use and modification restrictions

The module can only be used for the purpose specified by the manufacturer, and it is strictly prohibited to use it in special fields such as emergency rescue, ships, medical, aviation, nuclear facilities, etc. without permission, otherwise it may lead to serious safety accidents. It is strictly prohibited to modify modules without authorization from Yokogawa Corporation, or replace module components with non Yokogawa original parts. Modifying or using non original parts may cause module failure, performance degradation, and even pose safety hazards. The maintenance and upkeep of the module can only be carried out by Yokogawa Corporation or its authorized professionals. If defects or malfunctions are found in the module, they should be replaced or repaired in a timely manner.

5. External protection measures

Due to module failures, industrial control systems may be shut down or cause major accidents. It is recommended to take necessary external protective measures or backup devices during system design, such as redundant backups, fault alarms, etc., to enhance the reliability and safety of the system. In addition, avoid installing capacitors or lightning protection varistors that improve power factor on the output side of the module. If installation is necessary, they must be retrofitted on the input side of the module; Try not to add circuit breakers, contactors or other switching devices on the output side of the module. If it is necessary to add them, control logic should be used to ensure that the module output current is zero when the switch is activated, in order to avoid any impact on the module caused by the switch.
