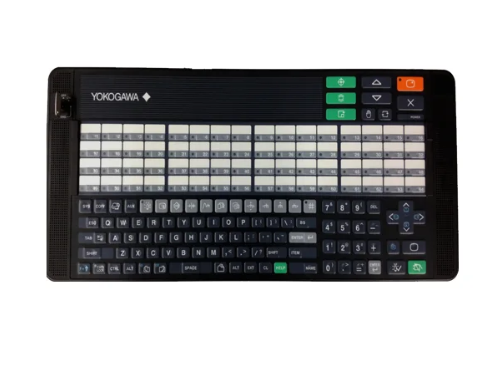

YOKOGAWA AIP830-111 single player keyboard

YOKOGAWA AIP830-111 single player keyboard

Core Basic Information

-Product traceability and positioning: Originating from Japan, it is a dedicated operation terminal for Yokogawa Industrial Control System, focusing on solving core needs such as local control, parameter setting, and status query of equipment in single person scenarios. It is fully compatible with Yokogawa CENTUM series DCS and various industrial controllers, with an active lifecycle status, and can provide long-term stable supply and technical support services.

-Physical specifications: Adopting an industrial grade compact design, the body size is compatible with standard control cabinet panel installation (specific dimensions refer to: about 180mm × 100mm × 50mm, length × width × height), weight is about 0.8kg, the structure is sturdy and durable, can be directly embedded into the control cabinet or console for use, does not occupy too much space, and is convenient for on-site layout planning.

-Environmental adaptability: Following industrial grade environmental standards (IEC 61010-1), the working temperature range is 0 ° C to 50 ° C, and the relative humidity is 45% to 85% RH, which can adapt to the normal temperature and humidity working environment of most industrial plants; It has good anti electromagnetic interference ability and can work stably in complex electromagnetic environments in industrial sites. The storage temperature range is -20 ° C to 65 ° C, meeting the storage and transportation needs of different regions. The installation altitude does not exceed 2000m.

-Certification standards: Through EU CE certification and UL certification, it strictly complies with international industrial safety and electromagnetic compatibility standards, ensuring legal and compliant use in industrial scenarios in the EU, North America, and most parts of the world, and guaranteeing the safety of operators and the reliability of equipment operation from the design source.

-Power supply specifications: Supports industrial standard power supply mode, defaults to 12V DC power supply, and can be powered from the control host through a communication interface; When the length of the control line exceeds 80 meters, a separate 12V DC power supply interface can be used to supplement power supply, with a tolerance of ± 10% for voltage fluctuations and stable power supply adaptability, without the need for additional dedicated power adapters.

Core functions and technical features

The core advantages of AIP830-111 single person operation keyboard lie in its specialized operation design, stable communication transmission, and comprehensive security protection. The specific functional characteristics can be divided into the following key dimensions:

1. Professional button layout and operation experience

Optimize button layout for industrial single person operation scenarios, balancing functionality and ease of operation, ensuring that operators can quickly complete various control command inputs:

-Function partition buttons: integrated digital input area (0-9 numeric keys), function control area (confirm, cancel, reset, emergency stop, etc.), parameter adjustment area (up, down, left, right direction keys, increase/decrease keys), and status switching area (manual/automatic mode switching, run/stop control, etc.). The button functions are clearly partitioned, and the identification is intuitive and easy to understand, reducing the learning cost for operators.

-Industrial grade button quality: using dust-proof, waterproof, and wear-resistant industrial grade silicone buttons, with moderate button travel (about 2.0mm), uniform pressing force (about 50 ± 10g), and a lifespan of over 1 million presses, suitable for high-frequency and long-term operation needs in industrial sites; The button surface is designed with anti slip texture, making it easy for operators to operate accurately when wearing gloves.

-Status indicator function: Equipped with multiple sets of LED status indicator lights, corresponding to key information such as power status, communication status, operation mode, fault alarm, etc. The indicator lights are clearly distinguished in color (green: normal operation; yellow: standby/warning; red: fault/emergency stop), allowing operators to quickly and intuitively grasp the equipment's operating status.

2. Stable communication interface and protocol compatibility

Adopting industrial grade communication interface design to ensure stable data transmission with the control system, compatible with multiple industrial communication protocols:

-Mainstream communication interface: equipped with 2 RJ45 communication interfaces, supporting RS422 serial communication protocol, using 8-core Ethernet cable transmission (following 586B wiring standard), communication distance can reach 1000 meters (standard Ethernet cable), meeting the long-distance wiring needs of industrial sites; Special attention should be paid: This RJ45 interface is a dedicated communication interface and cannot be directly connected to the switch network port to avoid equipment damage or communication failures.

-Protocol compatibility capability: It is directly compatible with the dedicated communication protocol of Yokogawa CENTUM DCS system, and supports Modbus RTU communication protocol, which can easily integrate into existing industrial control systems and achieve communication with upper computers PLC、 Fast integration and data exchange of controllers and other devices.

-Anti interference communication design: The communication line supports shielding layer grounding design, and it is recommended to use shielded twisted pair cables as communication cables. The shielding layer is grounded at one end (host side), which can effectively suppress electromagnetic interference in industrial sites, ensure stable and reliable communication signals, and reduce data transmission error rates to less than 10 ⁻.

3. Comprehensive security protection design

Based on the core requirements of industrial site operation safety, multiple safety protection designs are adopted to ensure the safety of operators and the stable operation of equipment:

-Emergency stop function: equipped with an independent red emergency stop button (with locking function), pressing it can quickly cut off the control circuit, force the equipment to enter a safe state, and effectively respond to sudden fault scenarios; The emergency stop button needs to be rotated clockwise to reset, in order to prevent accidental operation and restore operation.

-Electrical safety protection: Internally integrated overvoltage and overcurrent protection circuits, as well as anti-static protection modules, can resist power fluctuations and electrostatic impacts in industrial sites; All wiring terminals are equipped with insulation protection covers to prevent accidental contact by operators and the risk of electric shock.

-Operation permission control: Supports multi-level operation permission settings (administrator/operator/visitor), with different permissions corresponding to different operation scopes, effectively preventing unauthorized personnel from modifying key control parameters; Permission activation requires password verification, which supports regular password changes to enhance system security.

4. Flexible installation and maintenance methods

Adopting standardized installation design, adapting to the diverse installation needs of industrial sites, and high maintenance convenience:

-Installation method: Supports panel embedded installation and wall mounted installation, equipped with standardized installation holes, which can be directly fixed to the control cabinet panel or wall; Adequate ventilation space should be reserved during installation (it is recommended to reserve more than 50mm of space around the perimeter) to ensure smooth heat dissipation of the equipment.

-Convenience of wiring: Adopting standardized terminal design with a terminal spacing of 5.0mm, compatible with 0.6 × 3.5 standard flathead screwdriver operation, the wiring is firm and easy to maintain in the later stage; The power and communication lines adopt a partitioned wiring design with clear identification, which can effectively avoid equipment damage caused by misconnection.

-Maintenance convenience: The body adopts a modular design, and key components can be disassembled and replaced separately; There are no exposed screws on the surface, and daily cleaning can be directly wiped with a dry soft cloth. It is strictly prohibited to use water or corrosive cleaning agents, and the maintenance cost is low.

Typical application areas

With industrial grade reliability, convenient operating experience, and comprehensive safety protection, the AIP830-111 single person operation keyboard is widely used in various industrial automation scenarios and has become the core human-machine interaction device for single person duty positions. Typical application areas include:

1. Petrochemical process control

At the on-site control station of equipment such as reaction vessels, distillation towers, and storage tanks in petrochemical plants, this keyboard can serve as a single person operation terminal to achieve real-time query and adjustment of equipment operating parameters (temperature, pressure, liquid level), as well as start stop control of process links such as feeding, discharging, and stirring; In emergency situations, operators can quickly cut off relevant circuits by pressing the emergency stop button to ensure production safety.

2. Monitoring of power energy production

In the unit control room or on-site operation post of energy facilities such as thermal power generation and hydropower generation, it can be used for monitoring the operating status, parameter adjustment, and emergency handling of generator sets; For example, in the boiler control system, operators can set combustion temperature and pressure thresholds through the keyboard, adjust coal and water feed rates in real time, and ensure stable operation of the unit.

3. Intelligent manufacturing production line control

In intelligent manufacturing production lines such as automobile manufacturing and electronic processing, a single operator workstation can be connected to the PLC controller of the production line to achieve precise control of conveyor lines, robotic arms, processing equipment, etc; Operators can set processing parameters, switch production modes, start/stop processes, and view real-time equipment operation status through the keyboard to improve production efficiency.

4. Operation and maintenance of environmental water treatment facilities

In various treatment units of sewage treatment plants and water treatment plants (such as grilles, aeration tanks, sedimentation tanks, and disinfection tanks), this keyboard can serve as a single person operation and maintenance terminal to achieve start stop control of water pumps, fans, aeration equipment, as well as setting and adjusting water quality parameters (pH value, turbidity, dissolved oxygen); Suitable for the humid and dusty environment of sewage treatment plants, with high operational stability.

Installation and operation precautions

To ensure the stable operation of the keyboard, the safety of operators, and the reliability of the control system, the following specifications must be strictly followed during installation, wiring, and maintenance:

1. Installation environment requirements

-The installation location should be selected in a dry, clean, non corrosive gas, and non strong vibration area, avoiding direct sunlight, rainwater erosion, and high temperature radiation (away from heat sources such as heaters and transformers, with a distance of not less than 200mm).

-Avoid installation in areas where condensation is likely to occur due to drastic temperature changes, as well as in hazardous environments with flammable and explosive gases and dust; If it must be used in such an environment, an additional explosion-proof protective shell must be provided.

-The installation location should be far away from strong electromagnetic interference sources such as high-voltage equipment and high-power motors. The power and communication lines should be wired separately from the power cables, with a spacing of not less than 200mm, to reduce the impact of electromagnetic interference.

2. Safety wiring specifications

-Before wiring, all relevant power sources must be cut off and warning signs reading 'No Switching on, Working' must be hung to avoid the risk of electric shock; When wiring, it is necessary to strictly follow the product wiring diagram, distinguish between the positive and negative poles of the power supply and the communication line, and avoid equipment damage caused by misconnection.

-It is recommended to use shielded twisted pair cables for communication cables, following the 586B wiring standard, with the shielding layer grounded at one end (on the host side); When the cable length exceeds 80 meters, a separate 12V DC power supply must be activated to ensure stable communication.

-If a fuse needs to be installed in the power circuit, a relay fuse with a rated voltage of 250V and a rated current of 1A should be selected. The fuse should not be installed on the output side of the noise filter to avoid reducing the filtering effect.

-After the wiring is completed, it is necessary to ensure that the electrical wiring cover is completely fastened and all terminals are insulated to prevent accidental contact and electric shock.

3. Key points of operation and maintenance

-Before operation, it is necessary to confirm that the equipment power supply is normal and the communication connection is stable. The permission password should be properly kept and regularly modified to prevent leakage; Unauthorized personnel are strictly prohibited from operating the equipment to avoid system malfunctions caused by misoperation.

-Regular maintenance requires wiping the keyboard surface with a dry soft cloth to remove dust and debris from key gaps; Regularly check the fastening status of the wiring terminals and whether the cable insulation layer is damaged, and promptly deal with any problems found.

-When the equipment malfunctions, the power should be cut off first, and the power supply voltage, wiring status, and communication link should be checked for normal operation; If the fault cannot be eliminated, non professionals are strictly prohibited from disassembling it without authorization. They should contact the official after-sales or certified engineer of Yokogawa Electric for handling.

-When replacing spare parts, it is necessary to use original parts certified by Yokogawa Electric. The use of non certified spare parts is strictly prohibited to avoid affecting equipment performance and safety.

4. Precautions for special scenarios

-When used in humid or rainy environments, it is necessary to ensure that the equipment is well sealed to prevent rainwater or moisture from entering the body and causing short circuits; Do not open the equipment cover in damp environments.

-After the equipment is powered off, it is necessary to wait for more than 5 minutes before closing or opening the cover again to avoid the risk of electric shock caused by residual voltage in the capacitor.

-This product is not suitable for critical applications that directly affect human life safety (such as nuclear power equipment, medical equipment). If it needs to be used in such scenarios, additional safety redundancy equipment needs to be configured.
