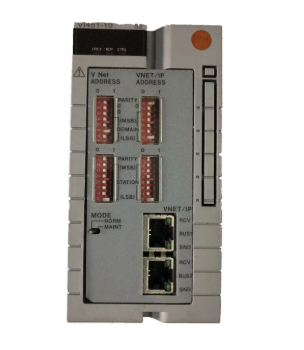

YOKOGAWA VI451-10 Communication Interface Module

YOKOGAWA VI451-10 Communication Interface Module

Core technical parameters

1. Basic specifications and power supply characteristics

This module adopts standardized modular design, with the model clearly labeled as VI451-10, and the core type is a multi protocol compatible industrial communication interface unit. In terms of power supply, an industrial universal 24V DC power supply is used, which has strong adaptability and can be directly connected to the power supply network of most industrial control systems to ensure power supply stability. The typical power consumption is ≤ 15W, and the energy-saving performance is excellent. The protection level reaches IP20, which meets the installation requirements of industrial control room equipment and can effectively prevent solid foreign objects from entering. It is suitable for installation and use in conventional industrial indoor environments. In addition, the module integrates a 600mA self resetting PTC fuse with overcurrent protection function, which can automatically cut off the circuit when the power supply is abnormal or the load is overloaded. After troubleshooting, it can be reset without manual replacement, greatly improving the convenience of system operation and maintenance.

2. Communication performance and protocol support

In terms of communication protocol, VI451-10 has strong multi protocol compatibility, with core support for mainstream industrial communication protocols such as Modbus RTU/TCP, Profinet, EtherNet/IP, etc. It can flexibly switch protocol modes according to actual application scenarios and adapt to industrial equipment and control systems from different manufacturers. The data transmission rate is stable at 100 Mbps (Ethernet interface), and the RS-485 interface communication rate supports 9600~115200 bps adaptive, which can achieve high-speed synchronous transmission of key information such as control instructions and measurement data, effectively reducing data delay and ensuring real-time control requirements. The module is equipped with 4 Ethernet (RJ-45) interfaces and 2 RS-485 interfaces, which can simultaneously connect multiple control modules or field devices, with excellent expansion capabilities.

In terms of compatibility, this module can seamlessly integrate with mainstream industrial control systems such as PLC (Programmable Logic Controller), DCS (Distributed Control System), and SCADA (Data Acquisition and Monitoring System). It also supports direct connection with field devices such as sensors, actuators, and intelligent instruments, achieving cross system and cross device data exchange. In addition, the module also supports RS-232C serial communication (1 9-pin D-Sub socket), and the communication rate can be flexibly configured in 9600, 19200, 38400, and 115200 bps for parameter configuration, data debugging, and firmware upgrade with the upper computer, adapting to different operation and maintenance scenarios.

3. Physical and environmental adaptation parameters

In terms of physical dimensions, the module adopts a compact design with precise dimensions of 120mm (length) x 80mm (width) x 30mm (height), weighing only about 0.25kg. It is compact in size and lightweight, and can be easily installed on standard industrial control cabinets or DIN rails, greatly saving installation space and facilitating system integration layout.

Environmental adaptability is one of the core advantages of this module, with a working temperature range covering -20 ° C to+60 ° C. It can operate stably in cold outdoor industrial scenes or high-temperature production workshops, and is suitable for most industrial environment temperature requirements. At the same time, the module has excellent anti vibration and anti electromagnetic interference capabilities, complying with EN 61000-6-2 (anti-interference) and EN 61000-6-4 (electromagnetic radiation) industrial standards. In industrial sites with frequent mechanical vibrations and complex electromagnetic environments, it can still ensure the stability and accuracy of data transmission. The storage temperature range is -40 ° C to+85 ° C, and the humidity adaptation range is 10% to 90% RH (non condensing), making it convenient for storage and transportation in different climatic regions.

4. Signal and measurement related parameters

As a professional communication interface module, VI451-10 has efficient signal conversion and processing capabilities, supporting bidirectional conversion between analog signals (4-20mA current signals, 0-10V voltage signals) and digital signals. The input impedance is 10 k Ω, and the signal response time is ≤ 5ms. It can quickly respond to signal changes of on-site equipment, ensuring real-time and accurate data exchange. The module also has signal isolation function, with an isolation voltage of 2500V AC (1 minute), which can effectively suppress common mode interference and series mode interference in industrial sites, improve signal transmission quality, and provide reliable data support for fine control of industrial processes.

Core functions and advantages

1. High speed and stable data transmission function

Relying on the compatibility of multiple protocols and a 100 Mbps high-speed Ethernet transmission rate, the module can achieve bidirectional high-speed transmission of control instructions and measurement data without data loss or accumulated delay issues. For the access requirements of different protocol devices, the module is equipped with a built-in protocol conversion engine, which can achieve seamless conversion between Modbus and Profinet, EtherNet/IP and other protocols without the need for additional protocol converters, simplifying the system architecture. In large-scale industrial control systems, the ability to simultaneously support the concurrent data transmission needs of multiple devices ensures the synchronous and coordinated operation of the entire control system, avoiding control errors caused by communication delays.

2. Flexible system integration and expansion capabilities

The modular design enables the VI451-10 to have strong integration flexibility, which can be directly embedded into various DCS systems of Yokogawa, and can also be compatible with industrial control systems from other manufacturers such as Siemens and Rockwell. Four Ethernet interfaces and two RS-485 interfaces support parallel access of multiple devices, facilitating subsequent system expansion and upgrading without the need for large-scale modifications to the original system, reducing system expansion costs. In addition, the module supports remote parameter configuration and firmware upgrade using Yokogawa Communicator parameter configuration software. Key settings such as communication protocol, transmission rate, and signal conversion parameters can be quickly adjusted through the software to improve system debugging and operation efficiency.

3. High reliability and industrial grade durability

The module is designed specifically for harsh industrial environments, using industrial grade high-quality components that have undergone rigorous environmental tolerance and lifespan testing. The electrical lifespan can reach 10 ⁵ times under maximum load, with a long service life, significantly reducing equipment replacement frequency and maintenance costs. At the same time, the module has a comprehensive fault protection function. In addition to the built-in PTC self resetting fuse, it also has overvoltage, overcurrent, short circuit, and surge protection mechanisms. The surge protection complies with the IEC 61000-4-5 standard (± 2kV contact discharge, ± 8kV air discharge), and can quickly cut off the circuit in case of power supply abnormalities, lightning surges, or equipment failures, protecting the safety of the module itself and the entire control system.

4. Real time monitoring and alarm function

The module supports real-time monitoring of its own operating status, communication link status, and signal conversion status, and can configure alarm thresholds. When communication interruption, protocol adaptation abnormalities, power supply voltage fluctuations, or module temperature exceeding the standard occur, the alarm signal can be triggered in a timely manner and fed back to the upper control system. Alarm information can be uploaded in real-time through the communication port, and the module panel is equipped with status indicator lights (power, communication, fault), making it easy for operation and maintenance personnel to intuitively judge the equipment's operating status, quickly locate the fault location, shorten the fault handling time, and ensure the continuous and stable operation of industrial production. The module also has a fault logging function, which can store up to 100 recent fault information and provide data support for system optimization and fault tracing.

Application scenarios and typical deployments

1. Main application areas

The application scenarios of the VI451-10 communication interface module cover multiple industrial fields: in the power industry, it is used for monitoring generator sets in power plants, data acquisition systems for substation equipment, and protocol adaptation and data transmission between intelligent instruments, sensors, and DCS systems; In the petrochemical industry, it is suitable for production workshops with high temperature, high humidity, and multiple interferences, connecting process control equipment with upper monitoring systems to ensure real-time data exchange during crude oil extraction and refining processes; In the metallurgical industry, temperature monitoring of blast furnaces used for steel production, linkage control of rolling equipment, and resistance to electromagnetic interference and vibration environment; In the rail transit industry, it is used in train operation and maintenance monitoring systems to achieve stable communication between onboard equipment and ground monitoring centers, ensuring real-time uploading of operation and maintenance data.

2. Typical deployment methods

The module is routinely deployed in industrial control cabinets and installed using standard DIN rail mounting methods. It is necessary to ensure that the installation surface is flat and not tilted to avoid mechanical vibration affecting the operation of the module. Sufficient heat dissipation space should be reserved during installation, and it is recommended that the distance between modules be no less than 3cm. At the same time, avoid installing near air vents or high-temperature heat sources to prevent affecting the stability of module operation. In terms of wiring, Ethernet cables should use Category 5 or above shielded cables, RS-485 cables should use twisted pair shielded cables to reduce electromagnetic interference, and power cables and signal cables should be laid separately to avoid signal crosstalk. The module grounding needs to be reliable, connected to the system grounding grid through the rear grounding screw, with a grounding resistance of ≤ 4 Ω, to ensure communication stability and personnel safety.

In the system architecture, VI451-10 is usually used as a protocol conversion and communication hub, with one end connected to the main controller and operation station through an Ethernet interface, and the other end connected to on-site sensors, actuators, intelligent instruments and other devices through RS-485 or Ethernet interfaces, achieving full link data transmission and protocol adaptation of "upper system module field devices". For large-scale distributed control systems, communication coverage can be extended by cascading or networking multiple modules, improving the overall communication capacity and reliability of the system. At the same time, redundant communication configurations are supported to further ensure the uninterrupted operation of communication links.

Installation and use safety regulations

1. Safety precautions for installation

Before installation, it is necessary to carefully check the module model and order requirements to ensure that the protocol requirements and interface types of the product match the application scenario; The installation environment must meet the requirements of no flammable or explosive gases, no high concentration corrosive gases (such as H ₂ S, SOx, etc.), to avoid corrosion and damage to module components; It is strictly prohibited to perform installation, disassembly, or wiring operations while the module is powered on. The power must be cut off first and the capacitor discharge must be completed before proceeding with the operation; During the installation process, avoid touching the module terminals to prevent static electricity from damaging the internal circuit. It is recommended to wear an anti-static wristband for operation.

When using the DIN rail installation method, it is necessary to ensure that the rail specifications comply with the EN 50022 standard, and to use the manufacturer's provided fixing buckles for fastening to avoid module vibration caused by unstable installation; If wall mounted installation is used, matching installation brackets and fixing screws should be used to ensure that the installation surface has sufficient load-bearing capacity; The installation location should avoid direct sunlight, rain splashing, and dust accumulation, and be placed in a well ventilated area.

2. Operation and maintenance standards

Before connecting the power supply, it is necessary to confirm that the power supply voltage is consistent with the rated voltage of the module (24V DC), with a fluctuation range of no more than ± 10%, to avoid module damage caused by voltage mismatch; During operation, it is necessary to regularly check the operating status of the module, including the status of indicator lights, temperature, and wiring tightness. If any abnormalities are found, the module should be shut down for troubleshooting in a timely manner; When replacing spare parts, it is necessary to use parts approved by Yokogawa's original factory. It is strictly prohibited to use non original parts to avoid affecting module performance and system stability; When configuring parameters or upgrading firmware, it is necessary to first backup the original configuration files to prevent system failures caused by configuration loss.

The module is not suitable for critical safety application scenarios that directly affect or threaten human life (such as nuclear facility control, medical equipment control, etc.); When reusing after long-term disuse, it is necessary to conduct a power on test first to confirm that the module communication function and signal conversion function are normal before connecting to the system; Operation and maintenance personnel need to have professional qualifications, read the complete operation guide before operation, and be familiar with the parameter settings and fault handling process of the module; In areas with frequent thunderstorms, additional lightning protection devices need to be installed to enhance the module's lightning resistance.
