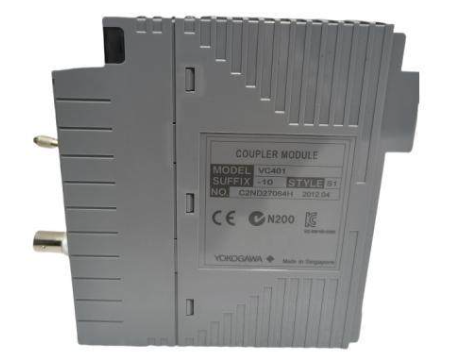

YOKOGAWA VC401-10 Coupling Module

YOKOGAWA VC401-10 Coupling Module

Detailed explanation of core technical parameters

1. Basic specifications and power supply characteristics

This module adopts a standardized modular design, with the model clearly labeled as VC401-10, and the core type is a VNET protocol specific coupling unit. In terms of power supply, an industrial universal 24V DC power supply is used, which has strong adaptability and can be directly connected to the power supply network of most industrial control systems to ensure power supply stability. The protection level reaches IP20, which meets the installation requirements of industrial control room equipment and can effectively prevent solid foreign objects from entering. It is suitable for installation and use in conventional industrial indoor environments. In addition, the module integrates a 900mA self resetting PTC fuse with overcurrent protection function, which can automatically cut off the circuit when the power supply is abnormal or the load is overloaded. After troubleshooting, it can be reset without manual replacement, greatly improving the convenience of system operation and maintenance.

2. Communication performance and protocol support

In terms of communication protocol, VC401-10 exclusively supports VNET industrial bus protocol, which is the core communication protocol in Yokogawa Industrial Control System, designed for high-speed data transmission and reliable communication. The data transmission rate is stable at 100 Mbps, which can achieve high-speed synchronous transmission of key information such as control instructions and measurement data, effectively reducing data latency and ensuring real-time control requirements. The module is equipped with 10 communication ports, which can simultaneously access multiple control modules or field devices, with excellent expansion capabilities.

In terms of compatibility, this module can seamlessly integrate with mainstream industrial control systems such as PLC (Programmable Logic Controller), DCS (Distributed Control System), and SCADA (Data Acquisition and Monitoring System). It also supports encoder interfaces such as RS-422 and TTL, as well as auxiliary communication protocols such as Modbus. It can flexibly adapt to industrial equipment from different manufacturers and achieve cross system data exchange. In addition, the module also supports RS232C serial communication with baud rates of 9600, 19200, and 38400. Parameter configuration and data debugging with the upper computer are achieved through a 9-pin D-Sub socket, and communication parameters can be flexibly set according to actual needs.

3. Physical and environmental adaptation parameters

In terms of physical dimensions, the module adopts a compact design, with precise external dimensions of 100mm (length) x 68mm (width) x 26mm (height), and a weight of only about 0.2kg (some versions are about 0.18kg). It is compact in size and lightweight, and can be easily installed in standard industrial control cabinets or control panels, greatly saving installation space and facilitating system integration layout.

Environmental adaptability is one of the core advantages of this module, with a working temperature range covering -40 ° C to+85 ° C. It can operate stably in extremely cold outdoor industrial scenes or high-temperature production workshops, breaking through the temperature limitations of conventional industrial equipment. At the same time, the module has excellent anti vibration and anti electromagnetic interference capabilities, which can still ensure the stability and accuracy of data transmission in industrial sites with frequent mechanical vibrations and complex electromagnetic environments. The storage temperature range should be consistent with the working temperature range, making it convenient for storage and transportation in cold northern regions or high-temperature southern regions.

4. Signal and measurement related parameters

As an input/output interface module, VC401-10 has multi-channel signal processing capability and supports multiple signal types, including analog signals (0-10V voltage signal, 4-20mA current signal) and digital switch signals. The input impedance is 10 k Ω and the signal sampling rate can reach 100ms. It can quickly respond to signal changes of on-site equipment, ensuring real-time and accurate measurement data. The module also has high-resolution signal processing capabilities, which can achieve precise acquisition and conversion of weak signals, with a display accuracy of 0.1%, providing data support for fine control of industrial processes.

Analysis of Core Functions and Advantages

1. High speed and stable data transmission function

Based on the VNET protocol and a high-speed transmission rate of 100 Mbps, the module can achieve bidirectional high-speed transmission of control instructions and measurement data without data loss or accumulated delay issues. In large-scale industrial control systems, the ability to simultaneously support the concurrent data transmission needs of multiple devices ensures the synchronous and coordinated operation of the entire control system, avoiding control errors caused by communication delays.

2. Flexible system integration and expansion capabilities

The modular design enables VC401-10 to have strong integration flexibility, which can be directly embedded into the Yokogawa μ XL series DCS system, and can also be compatible with industrial control systems from other manufacturers. 10 communication ports support parallel access of multiple devices, facilitating subsequent system expansion and upgrading without the need for large-scale modifications to the original system, reducing system expansion costs. In addition, the module supports remote parameter configuration using LL50A parameter setting software, which can quickly adjust key settings such as communication parameters and sampling rates through the software, improving system debugging and operation efficiency.

3. High reliability and industrial grade durability

The module is designed specifically for harsh industrial environments, using industrial grade high-quality components that have undergone rigorous environmental tolerance and lifespan testing. The mechanical lifespan can reach 10 ⁸ times, and the electrical lifespan can reach 10 ⁵ times under maximum load, with a long service life and significantly reduced equipment replacement frequency and maintenance costs. At the same time, the module has a comprehensive fault protection function. In addition to the built-in PTC self resetting fuse, it also has overvoltage, overcurrent, and short-circuit protection mechanisms, which can quickly cut off the circuit in case of power supply abnormalities or equipment failures, protecting the safety of the module itself and the entire control system.

4. Real time monitoring and alarm function

The module supports real-time monitoring of its own operating status and communication link status, and can configure alarm thresholds. When signal transmission is abnormal, power supply voltage fluctuates, or module temperature exceeds the standard, the alarm signal can be triggered in a timely manner and fed back to the upper control system. Alarm information can be uploaded in real-time through the communication port, making it easy for operation and maintenance personnel to quickly locate the fault location, shorten the fault handling time, and ensure the continuous and stable operation of industrial production. Some versions also have data recording function, which can store historical operating data and fault information, providing data support for system optimization and fault tracing.

Application scenarios and typical deployments

1. Main application areas

The application scenarios of the VC401-10 coupling module cover multiple industrial fields: in the power industry, it is used for controlling generator sets in power plants and in power grid monitoring systems to achieve communication between sensors, actuators, and DCS systems; In the petrochemical industry, production workshops adapted to high temperature and high pressure are connected with process control equipment and upper monitoring systems to ensure precise control of crude oil extraction and refining processes; In the metallurgical industry, blast furnace control and rolling process monitoring are used for steel production to resist the effects of high temperature and vibration environments; In the mechanical manufacturing industry, equipment linkage control is used for automated production lines to achieve signal interaction between PLC and various actuators.

2. Typical deployment methods

Modules are commonly deployed in industrial control cabinets and installed horizontally. It is necessary to ensure that the installation surface is flat and not tilted to avoid mechanical vibration affecting the operation of the modules. Sufficient heat dissipation space should be reserved during installation, and it is recommended that the distance between modules be no less than 5cm. At the same time, avoid installing in the position where the air outlet blows directly to prevent the accuracy of the temperature sensor from being affected. In terms of wiring, shielded cables should be used for communication cables to reduce electromagnetic interference. Power cables and signal cables should be laid separately to avoid signal crosstalk. The module grounding needs to be reliable, connected to the system grounding grid through the rear grounding screw to ensure communication stability and personnel safety.

In the system architecture, VC401-10 is usually used as an intermediate communication hub, with one end connected to the main controller and operation station through VNET protocol, and the other end connected to on-site sensors, actuators, encoders and other devices, achieving full link data transmission of "upper system module field devices". For large-scale control systems, communication coverage can be extended by cascading multiple modules to enhance the overall communication capacity of the system.

Installation and use safety regulations

1. Safety precautions for installation

Before installation, carefully check the module model and order requirements to ensure that the product matches the application scenario; The installation environment must meet the requirements of no flammable or explosive gases, no high concentration corrosive gases (such as H ₂ S, SOx, etc.), to avoid corrosion and damage to module components; It is strictly prohibited to perform installation, disassembly, or wiring operations while the module is powered on. The power must be cut off first and the capacitor discharge must be completed before proceeding with the operation; During the installation process, avoid touching the module terminals to prevent static electricity from damaging the internal circuit.

If the rack installation method is used, four slotted screws and plastic sleeves provided by the manufacturer should be used for fastening. The rack should be equipped with guide rails and slides to reduce the mechanical stress on the module panel; If used as a desktop instrument, it is necessary to stick the rubber feet and strips provided by the manufacturer and place them in a well ventilated location without direct sunlight.

2. Operation and maintenance standards

Before connecting the power supply, it is necessary to confirm that the power supply voltage is consistent with the rated voltage of the module (24V DC) to avoid voltage mismatch and module damage; During operation, it is necessary to regularly check the operating status of the module, including the status of indicator lights, temperature, and wiring tightness. If any abnormalities are found, the module should be shut down for troubleshooting in a timely manner; When replacing spare parts, it is necessary to use parts approved by Yokogawa's original factory. It is strictly prohibited to use non original parts to avoid affecting module performance and system stability.

The module is not suitable for critical security application scenarios that directly affect or threaten human life; When restarting after long-term disuse, it is necessary to conduct a power on test to confirm that the module's communication and signal processing functions are normal before connecting to the system; Operation and maintenance personnel need to have professional qualifications, read the complete operation guide before operation, and be familiar with the parameter settings and fault handling process of the module.
