Albatross NMEA2000 Integration

Troubleshooting and Common Problems

5.1 Module power supply is normal but NMEA2000 network does not recognize it

Check terminal resistance: Failure to install or missing terminal resistance can cause unstable network communication. The resistance between CAN H and CAN L on the main line should be 60 Ω (two 120 Ω parallel connections).

Checking polarity: Connecting CAN H (white) and CAN L (blue) in reverse will result in no communication. Use a multimeter to check the ground voltage: CAN H is about 2.6V, CAN L is about 2.4V.

Node address conflict: Each NMEA2000 device has a unique address (which can be modified through software). The Albatross module automatically assigns addresses by default, but if it conflicts with manual settings of other branded devices, it needs to be reset through the configuration tool.

5.2 Inaccurate or jumping sensor readings

Calibration mismatch: Perform two-point calibration and ensure that the sensor is in a stable physical state during the calibration process. For fuel tanks, it is recommended to record each point during refueling.

Grounding loop: The sensor shielding layer is not properly grounded, causing measurement drift. Connect the sensor shielding layer to the single ended ground on the Albatross module side.

Incompatible resistance range: Non standard sensors (such as 0-500 Ω) require the use of Alba Multi's "custom" mode and input resistance engineering value correspondence table.

5.3 Alba Engine displays RPM abnormality

Engine pulse per revolution setting error: Most diesel engines have a flywheel tooth count of 120-160, but the speed sensor typically outputs 4, 6, or 8 pulses per revolution (depending on the detection method). Compare and calibrate using a tachometer.

Signal amplitude too low: Alba Engine requires TTL or 5-24V square wave for digital input. If the signal comes from a magneto electric sensor (sine wave), a shaping circuit needs to be installed.

5.4 Alarm not triggered or continuous false alarm

Check the alarm threshold unit: Pay attention to the pressure unit (bar/PSI) and temperature unit (° C/° F) settings. Unified unit system in Albatross On Board software.

Alarm delay setting: To prevent momentary fluctuations from triggering, a delay time (e.g. 5 seconds) can be set for the alarm. Adjust in the "Alarm Settings" menu.

5.5 Module not sending data but LED flashing

Some Albatross modules are equipped with status LEDs, and the flashing frequency can indicate the working status (such as slow flashing=normal, flash flashing=no sensor signal received). Search for the corresponding module manual. If the sensor circuit is confirmed to be normal, try to restore the factory settings through the configuration software.

Integration of lighting and I/O control

In addition to sensor conversion, the Albatross system also supports device control. The Alba Out module can provide relay outputs for controlling navigation lights, cabin lights, water pumps, etc. For example:

After connecting Alba Out to the NMEA2000 network, the lights can be turned on and off through the Albatross On Board software interface or any dedicated PGN command on the MFD connected to the network.

The Alba Lighting module can also detect whether the navigation light bulb has failed (by monitoring current or voltage drop) and issue an alarm to avoid navigation hazards caused by bulb burnout.

Display selection and integration

Albatross recommends using a dedicated high brightness maritime display, which features include:

Ultra high brightness (>1000 cd/m ²) enables sunlight readability.

IP65 waterproof and dustproof.

Multiple video inputs (composite video, S-Video, DVI, VGA), supporting CCTV, DVD, radar playback, etc.

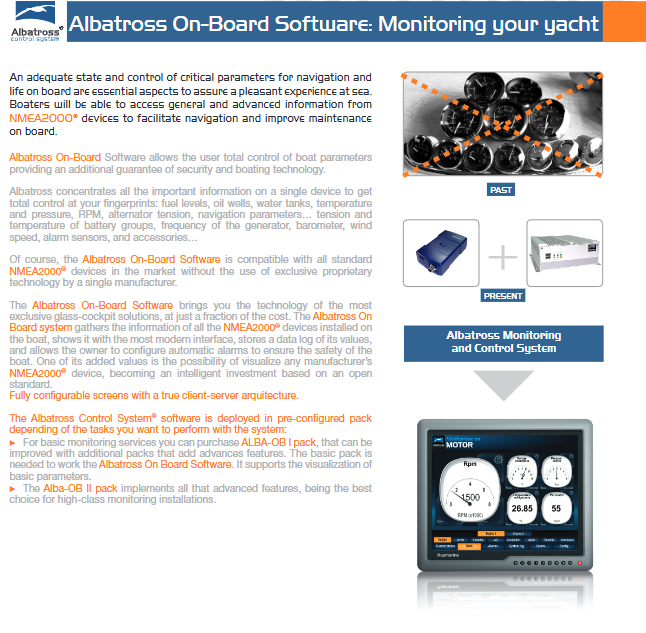

The USB touch screen can directly interact with Albatross On Board Software.

These displays can serve as dedicated monitoring screens or as secondary screens for existing navigation systems, displaying engine parameters, fluid levels, alarm lists, and more in a centralized manner.

Specific steps for migrating from the old system

The following steps apply to upgrading from a traditional analog instrument (without any NMEA2000 equipment) to the Albatross system:

Inventory existing sensors: List the type (resistance/voltage), measurement range, installation location, and existing instrument connection method of each sensor.

Select Albatross module:

Engine parameters → Alba Engine x number of engines.

Liquid level, pressure, temperature → Alba Multi allocated according to the number of channels.

Battery monitoring → Alba Battery.

Navigation light control → Alba Lighting/Alba Out.

Layout NMEA2000 backbone: Select the path (from the cockpit to the cabin), install the backbone cable and T-connector, and add terminal resistors at both ends. Connect the main power supply to a 12V battery (10A fuse).

Install Albatross module: Secure the module near the sensor (shorten the analog cable) and connect the sensor signal line using a waterproof junction box. Keep the original instrument parallel connection to ensure that its original functions are not affected.

Connecting branch lines: Each module is connected to the nearest T-shaped connector through a drop cable.
