Allen Bradley Lifeline 4 Cable Switch Field Installation and Troubleshooting Complete Guide

Cable pulling wires should be arranged along the entire length of the hazardous area, usually at a height of 1-1.5 meters above the ground, for ease of operation.

3.2 Steel cable tension and status indication

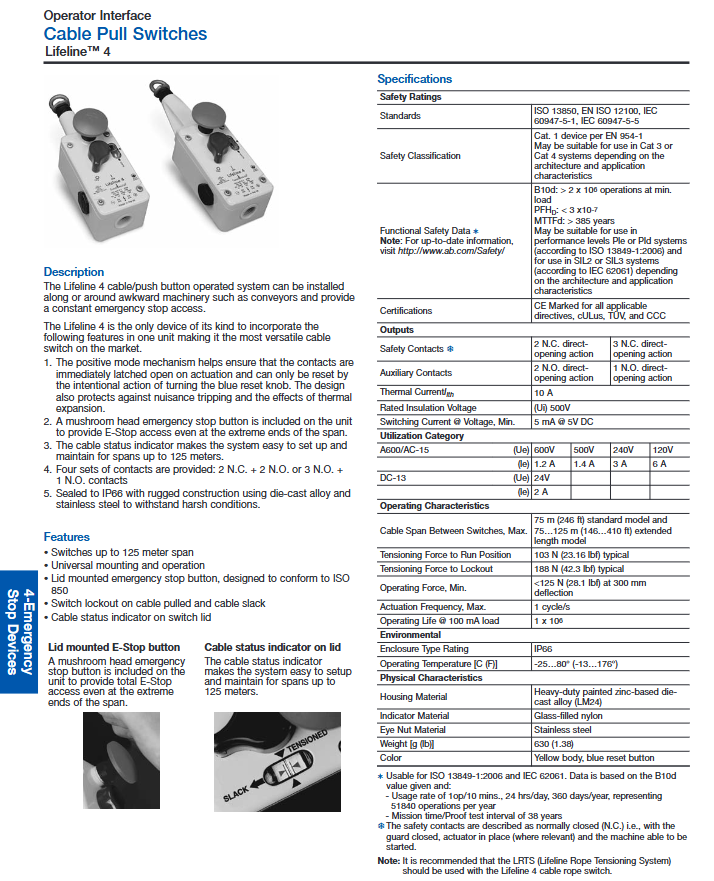

One of the core advantages of Lifeline 4 is the cable status indicator. There is a visual window on the switch cover that displays three states:

Tighten and reset: The indicator displays the normal position (such as green or a specific symbol).

Cable slack: When the tension of the steel cable is insufficient due to thermal expansion, contraction or looseness, the internal mechanism of the switch will detect slack and trigger locking, and the indicator will change.

Cable breakage or pulling: When the steel cable is broken or pulled by the operator, the switch immediately locks and the indicator displays the "pulling action" status.

Installation steps:

Thread the steel cable through the pull tab of the switch and connect it to the tension bolt or spring at the other end.

Using a tension meter or based on experience, tighten the steel cable to the operating position tension, with a typical value of 103 N (23.16 lbf).

Adjust the tension spring (440E-A13078) until the cable status indicator shows "normally tightened".

Check the operating force of the steel cable at a deflection of 300 mm, which should be<125 N (28.1 lbf) to ensure ease of pulling.

If the span exceeds 75 meters, the Lifeline Cable Tensioning System (LRTS) must be used and the tension set to 188 N (42.3 lbf) locking value according to the instructions.

3.3 Thermal expansion compensation

The positive mode mechanism design of Lifeline 4 can automatically compensate for the thermal expansion of steel cables. The length change caused by temperature changes will not lead to false triggering, because the internal mechanism has a dead band. However, in extreme temperature difference environments (such as -25 ℃ to+80 ℃), it is still necessary to regularly check the status indicator and re tighten it if necessary.

Electrical wiring and circuit design

4.1 Contact Wiring and Color Codes

Lifeline 4 offers multiple ways of extraction. The following is a typical configuration:

2 N.C.+2 N.O. contact allocation

Terminal Function Description

11-12 safety contact point A N.C. (normally closed)

21-22 safety contact point B N.C

33-34 auxiliary contact A N.O. (normally open)

43-44 auxiliary contact B N.O

Contact action timing (see curve chart on pages 4-15 of the document):

The cable is properly tensioned and reset → the safety contacts are closed, and the auxiliary contacts are disconnected.

Cable pulling or loosening → The safety contact is immediately disconnected and locked, and the auxiliary contact is closed.

Reset requires rotating the blue knob and re tensioning the steel cable.

3 N.C.+1 N.O. Contact allocation

Terminal Function Description

11-12 safety contact point A N.C

21-22 safety contact point B N.C

31-32 safety contact point C N.C

43-44 auxiliary contact B N.O

4.2 Typical Applications of Safety Relay MSR127

A standard dual channel safety circuit example is provided on pages 4-15 of the document, using two Lifeline 4 switches in series to control the MSR127 safety relay, which in turn controls the main contactors K1 and K2.

Circuit description:

Power supply: 24V DC.

Input circuit: Two Lifeline 4 safety contacts (normally closed) are connected in series and connected to the input terminals S11, S12 and S21, S22 (dual channel) of MSR127.

Feedback loop: The auxiliary normally open contacts of contactors K1 and K2 are connected in series and connected to feedback terminals S33-S34 of MSR127 to monitor whether the contactors are properly closed.

Start: Press the start button (normally open) → MSR127 internal logic meets → Output relay is engaged → K1 and K2 coils are energized → Motor runs.

stop it:

Pull any Lifeline 4 cable → disconnect the safety contact → immediately turn off the output of MSR127 → K1 and K2 lose power → stop the motor.

Press the emergency stop button on any Lifeline 4 cover → Same effect.

Pressing the external stop button (normally closed in series in the input circuit) can also stop.

Reset: Eliminate the fault (after pulling the cable or emergency stop is restored) → Rotate the blue reset knob to reset the switch (close the safety contact) → Press the start button.

Fault detection function:

MSR127 automatically detects input circuit short circuit or open circuit when powered on.

If the K1 or K2 contact is stuck (normally open contact not disconnected), the feedback loop cannot pass during the next startup, and MSR127 will prevent the startup.

If one contactor fails while the other is normal, the motor will still stop and the fault will be detected.

4.3 Connector Wiring (for quick installation)

If the connector model of the pre injected cable is used, the wiring definition is as follows:

8-pin Micro (M12):

Needle 1: Auxiliary A

Needle 2: Not used

Needle 3: Ground

Needle 4: Safety B

Needle 5: Safety A

Needle 6: Safety B

Needle 7: Auxiliary A

Needle 8: Safety A

12 needle M23:

Needles 1-3: Safety A

Needle 4-6: Safety B

Needle 7-8: Auxiliary A

Needle 9-10: Auxiliary B/Safety C

Needle 12: Ground

5-pin Micro (for ArmorBlock Guard I/O):
