Introduction: Medium Voltage Protection Relays for the Future

In industrial and power systems, protective relays are the core equipment that ensures the safe and stable operation of the power grid. With the development of digital technology, modern protective relays are no longer just fault detection devices, but intelligent terminals that integrate protection, measurement, monitoring, communication, and control. The FP-5000 multifunctional protection relay launched by Eaton is a representative work of this trend.

FP-5000 is a panel mounted relay based on microprocessor technology, designed to comply with both ANSI and IEC standards. It can be applied to the protection of incoming lines, connections or feeders of any voltage level, especially suitable for medium voltage distribution lines of 69kV and below. The device includes AC or DC control power supply and can achieve True RMS detection of each phase and ground current. A single FP-5000 can meet the complete protection requirements of three-phase circuits, integrating multiple protection functions such as current, voltage, and user selectable options.

This article aims to provide a comprehensive technical guide for system engineers, operators, and maintenance personnel, deeply analyzing the functional characteristics, technical specifications, installation and debugging, programming configuration, and communication applications of FP-5000, helping users fully tap into the potential of this intelligent protection relay.

Core protection functions and features

The outstanding advantage of FP-5000 lies in its rich protection function library. Through IEEE standard equipment numbering classification, it covers almost all the protection elements required for medium voltage feeders.

2.1 Overcurrent protection (50/51/67)

Instantaneous overcurrent (50P, 50X, 50R): Provides two-stage independent instantaneous overcurrent components, each of which can be set with direction (forward, reverse, or bidirectional) and adjustable delay (0-9999 cycles). 50P is for phase current, 50X is for the fourth CT input (usually used for grounding or neutral point), and 50R is the calculated residual current.

Inverse time overcurrent (51P, 51X, 51R): supports 10 standard curves and 3 user-defined curves. The curve family includes thermal models (It, I ² t, I ⁴ t, Flat), ANSI standards (extreme inversion, very inversion, medium inversion), and IEC standards (IEC-A, IEC-B, IEC-C). Users can set the startup value, time multiplier, and reset characteristics (instantaneous, timed, or computational reset).

Directional element (67): The overcurrent element can select directionality and accurately determine the fault direction through phase to phase voltage or zero sequence/negative sequence voltage polarization.

2.2 Voltage and Frequency Protection (27/59/81)

Main voltage/auxiliary voltage components: provide two-stage undervoltage (27M-1/2, 27A-1/2) and overvoltage (59M-1/2, 59A-1/2) protection respectively, which can operate for any phase, any two phases or three phases.

Neutral point overvoltage (59N): Based on calculated or measured zero sequence voltage, it can be selected to start based on fundamental or true RMS.

Frequency protection (81): two-stage underfrequency (81U) and overclocking (81O) protection, with an accuracy of up to ± 0.02Hz.

2.3 Unbalance and Power Protection (46/47/32)

Negative sequence current/voltage protection (46, 47): detects system imbalance by calculating the ratio of negative sequence to positive sequence. Set thresholds (based on I ₁/I ₂ or V ₁/V ₂ amplitude) and percentage settings separately, and delay tripping.

Power protection (32): It can be configured as forward or reverse power, and can choose between over power or under power criteria for reverse power protection or load loss detection.

2.4 Circuit Breaker Related Functions (50BF, Circuit Breaker Monitoring)

Circuit breaker failure protection (50BF): When a trip command is issued, if the fault current still exists after a set delay, a backup trip signal is issued. It can be set as internal trip start, external input start, or both.

Circuit breaker status monitoring: Real time monitoring of the position of the circuit breaker through the auxiliary contacts of 5a/56a, and providing functions such as inconsistent status alarm, slow opening/closing alarm, and monitoring of tripping/closing coils.

Wear record of circuit breaker: Accumulate breaking current and operation times, and issue maintenance alarm when reaching the set threshold.

2.5 Other advanced protection functions

Regional interlocking (87B): Through hard wiring, rapid interlocking and coordination between adjacent protection devices are achieved, enabling selective busbar protection levels.

Simultaneous inspection (25): Used in situations where synchronous closing is required, the maximum voltage difference, angle difference, and slip can be set.

Cold Load Pickup: When the line is disconnected for a long time and then reconnected, it automatically adjusts the overcurrent setting or locks the instantaneous period to prevent misoperation caused by load surge.

Advanced measurement and monitoring capabilities

FP-5000 is not only a protective device, but also a high-precision power monitoring instrument.

3.1 Electrical parameter measurement

True RMS measurement: Sample the current and voltage of each phase at 32 points per cycle and calculate the true RMS of the 15th harmonic.

Power and Electric Energy: Measure three-phase active power, reactive power, apparent power, and power factor (apparent/displacement), cumulative electric energy (kWh, kvarh, kVAh), and support forward/reverse/net electric energy measurement.

Demand statistics: Fixed or sliding windows can be set for 1-60 minutes to record the demand values and peak demand for current and power.

Extreme value recording: Automatically record the maximum and minimum values of each electrical parameter and their occurrence time.

3.2 Power Quality Analysis

Harmonic monitoring: Calculate the harmonic occupancy rate and total distortion (THD) of voltage and current from the 2nd to the 31st order.

Phasor diagram: Real time display of the amplitude and phase angle of each phase current and voltage, facilitating on-site phase verification.

3.3 Event and waveform recording

Event Log (SOE): It can record up to 100 events with a 1ms timestamp, including protection element start/return, input/output status changes, constant value changes, etc.

Trip log: Record detailed information of the last 16 trip events, including fault type, time, effective value, phasor value, and internal status flags.

Waveform capture: It can store up to 256 cycles of voltage and current waveform data (4 × 64, 8 × 32, or 16 × 16 cycles), activated by various triggering conditions (trip, disturbance, logic, manual), providing valuable data for fault analysis.

Hardware Design and Technical Specifications

4.1 Mechanical Structure and Installation

Fully withdrawable design: FP-5000 adopts an internal and external chassis structure, with internal electronic units that can be hot swappable. The CT circuit has a self short circuit function, which facilitates maintenance and replacement without interrupting external wiring.

Size and opening: The external dimensions are approximately 6.5 inches wide x 10 inches high x 7 inches deep. The standard opening size complies with Eaton's DT/MP series, and IQ panel opening modification solutions are also provided.

Protection level: The front panel has a protection level of IP52 (dustproof and drip proof), and the shell has a protection level of IP20.

4.2 Input/Output Configuration

Analog input: 4-channel current input (rated 5A or 1A), 4-channel voltage input (maximum 120Vac L-N). CT/PT ratio is programmable.

Digital input: 8-channel optically isolated dry contact input, provided with 40Vdc wet voltage internally, can be used for circuit breaker status, remote control, set value switching, etc.

Digital output: 7 relay outputs, including 5 normally open (Form A) and 2 conversion contacts (Form C). Among them, 6 channels are programmable, and 1 channel is a fixed "relay health" output. The contact capacity meets the ANSI C37.90 standard and can disconnect 5A/30VDC or 5A/250Vac.

4.3 Power Supply and Control

Power options: Two types of power boards are available: standard type (100-120Vac or 48-125VDC) and high-voltage type (100-240Vac or 100-250Vdc).

Power consumption: maximum 20-22VA.

Real time clock: Equipped with lithium battery, the clock accuracy is ± 1 minute/month at 25 ℃, and the battery can maintain the clock and event log for 72 hours after power failure.

4.4 Measurement accuracy

Current/voltage: 0.5% CT/VT rated value (measured value), 0.5% reading (when exceeding twice the rated value).

Power/electrical energy: 1.0% (power factor=1) to 1.5% (power factor 0.5).

Frequency: ± 0.02Hz.

Harmonic: ± 1%.

4.5 Environmental conditions

Working temperature: -40 ℃ to+60 ℃.

Storage temperature: -40 ℃ to+85 ℃.

Humidity: 5% to 95% non condensing.

Altitude: up to 2500 meters.

Front panel operation and human-machine interface

The front panel design of FP-5000 is intuitive and practical, suitable for on-site operation and monitoring.

5.1 Display and buttons

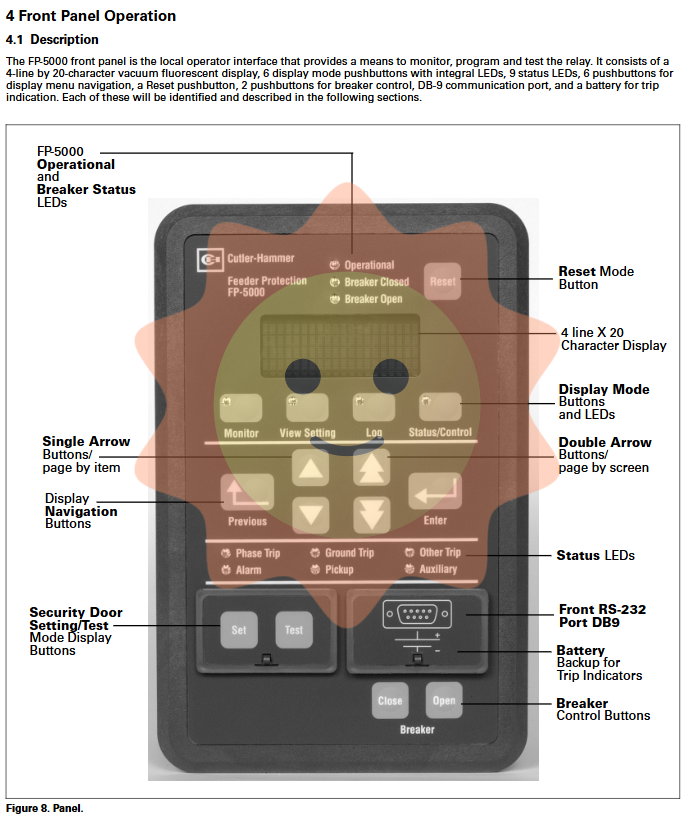

Vacuum fluorescent display screen: 4 lines x 20 characters, with backlight, can display measured values, set values, and event information.

Function buttons: including dedicated buttons for reset, monitoring, viewing settings, logging, status/control, settings, testing, etc. Each button is equipped with an LED indicator light.

Navigation buttons: up and down arrows (scroll line by line), up and down double arrows (scroll page), confirm and return keys.

Circuit breaker control: Independent "close" and "open" buttons that require authorization to be activated.

5.2 Status indicator light (LED)

Operation indicator light: Green flashing indicates that the microprocessor is running normally.

Trip/alarm indicator light: red, indicating phase trip, ground trip, other trips, alarm, start, etc. respectively.

Auxiliary LED: yellow, user programmable definition.

Setting/testing status light: red, indicating programming or testing mode.

Battery test button: used to check the status of the backup battery.

5.3 Operating Modes

Monitoring mode: View real-time measurement values (current, voltage, power, energy, demand, extremum, phasor diagram, etc.).

View setting mode: Read only view all system configurations and protection settings.

Log mode: View trip logs, event logs, and historical statistical data.

Status/Control Mode: View input/output status, self-test results, version information; Can perform control operations (such as resetting, switching setting groups, triggering waveform capture).

Setting mode: Enter with password to modify all parameters.

Test mode: Enter through the security door and password, and perform fault simulation, relay forced operation, area interlock testing, etc.

Installation and Wiring Guide

6.1 Mechanical Installation

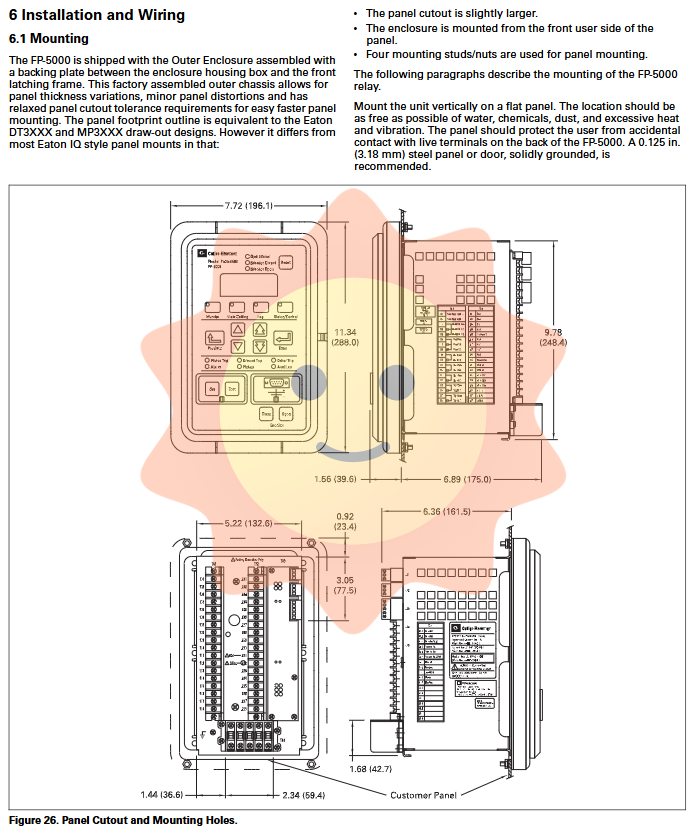

Opening requirements: The standard panel opening size is 6.5 inches wide by 10 inches high, and the tolerance must be strictly controlled. During installation, the external chassis is inserted from the front of the panel and secured with four screws.

IQ modification: For the original Eaton IQ series instrument openings, seamless replacement can be achieved by adjusting the installation frame.

6.2 Electrical Wiring

CT wiring (TB4): Strict attention must be paid to polarity and phase sequence, and the CT secondary side needs to be grounded at one point. The recommended wire specification is 14-10 AWG.

PT Wiring (TB2): Supports star or delta connections. It is important to note that the secondary side of the voltage transformer must be grounded, and the terminal VG (TB2-218) must be connected internally to the casing. It is strictly prohibited to connect phase or neutral wires.

Control power supply (TB1): Terminal 101 is the DC positive or AC live wire, and 102 is the common terminal.

Input/Output (TB1, TB2): Digital inputs need to be connected to an internal wet power supply (C In Source 205/210) through external dry contacts. The output contact capacity of the relay needs to match the load.

Communication and Interlocking (TB3): Provide INCOM communication ports (J1, J2) and regional interlocking interfaces (J3). It is recommended to use shielded twisted pair cables and wire noses at the terminals to prevent short circuits.

6.3 Grounding

The casing must be reliably grounded through a dedicated grounding terminal, with a grounding wire not less than 14 AWG. All secondary common terminals of CT and PT should also be grounded.

Programming and Settings

The setting of FP-5000 can be completed through the front panel, front panel RS-232 port (using PowerPort software), or rear INCOM communication port (using PowerNet software).

7.1 Set Group and Password

Multiple setting groups: Supports up to 4 complete protection settings, which can be switched through panel, communication, or external input to adapt to different operating modes.

Password protection: The factory default password is "0000", and the default password is accepted within the first two minutes after power on. The password consists of a combination of 4 letters and numbers, and is shared between the setting mode and the testing mode.

7.2 Main Setting Categories

System configuration: Define system frequency, phase sequence, CT/PT ratio, connection method, primary/secondary display units, etc.

Protection setting: Set the starting value, delay, curve type, and direction according to the functional group (phase overcurrent, ground overcurrent, imbalance, voltage, frequency, power, circuit breaker failure, power factor, synchronization, etc.).

System alarm: Set power, demand THD、 Alarm thresholds for circuit breaker operation times, cumulative breaking current, etc.

Input/output configuration: Map physical input points (Cin1-8) to logical functions (such as 52a, BFI, remote reset); Map the logical outputs (OG1-7) to physical relays and define logical relationships (AND/OR and NOT/OR) and contact characteristics (self hold/non hold/delayed reset).

Programmable logic: Build custom logic using 6 logic gates, 6 timers, 2 latches, and 12 locking doors to achieve complex interlocking and control strategies.

Communication settings: Set INCOM address, baud rate, and RS-232 port rate.

7.3 Save and Activate

After modifying the settings, it is necessary to save them through a confirmation prompt, otherwise the changes will be invalid. If the circuit breaker is in the closed state during storage, it may trigger the misoperation of the protective component, and caution should be exercised during operation.

Communication and Network Integration

FP-5000 provides flexible and diverse communication interfaces for easy integration into automation systems.

8.1 Communication Interface

Front panel RS-232: Used for local connection to a PC, running PowerPort software for monitoring, configuration, or firmware upgrades.

Rear INCOM port (J1): Connected to IMPACC network, supports 9600bps FSK modulation, uses shielded twisted pair cable, and has a maximum distance of 10000 feet. Centralized management can be achieved through PowerNet software.

Rear INCOM accessory bus (J2): reserved for future expansion of I/O modules.

Protocol support: INCOM protocol (compliant with IMPACC standard) and Modbus RTU protocol (optional communication board).

8.2 Supporting software

PowerPort: Free software that communicates with a single FP-5000 via RS-232 port, allowing for reading and writing of fixed values, viewing of real-time data, and event records.

PowerNet: A comprehensive power monitoring software based on client/server architecture that enables remote monitoring, event management, trend analysis, and waveform viewing of all FP-5000 and other Eaton devices in the network.

FlashLoader: A specialized tool used to upgrade the internal firmware of FP-5000 via serial port.

Programmable Logic Applications

The built-in programmable logic function of FP-5000 gives users great flexibility to customize protection and control solutions according to specific applications.

9.1 Logic Components

Logic gate (LG1-6): 4 inputs can be configured as AND, OR, AND, OR.

Timer (TG1-6): It has adjustable power on delay and power off delay, and the delay unit can be in cycles or seconds.

Latch (Q1-2): It has set and reset inputs, with reset priority.

Locking door: Provide independent locking logic for each overcurrent component (50/51). When the logic conditions are met, the protective component is locked and cannot be tripped.

9.2 Logical Input Source

Logic gate inputs can come from: protection component start/trip signals, contact input status, system alarms, circuit breaker status, communication commands, outputs of other logic gates/timers, etc. All inputs can be selected as normally open or normally closed (taking the opposite).

9.3 Typical Applications

Complex interlocking: For example, through logic gates, "reclosing is only allowed when the circuit breaker is in the closed position and there is no external locking signal".

Advanced alarm: Combining multiple conditions (such as overcurrent+negative sequence voltage) to generate specific alarm signals.

Waveform trigger customization: Utilizing logic gate 6 to output trigger waveform capture, achieving waveform recording for specific event combinations.

Testing and Maintenance

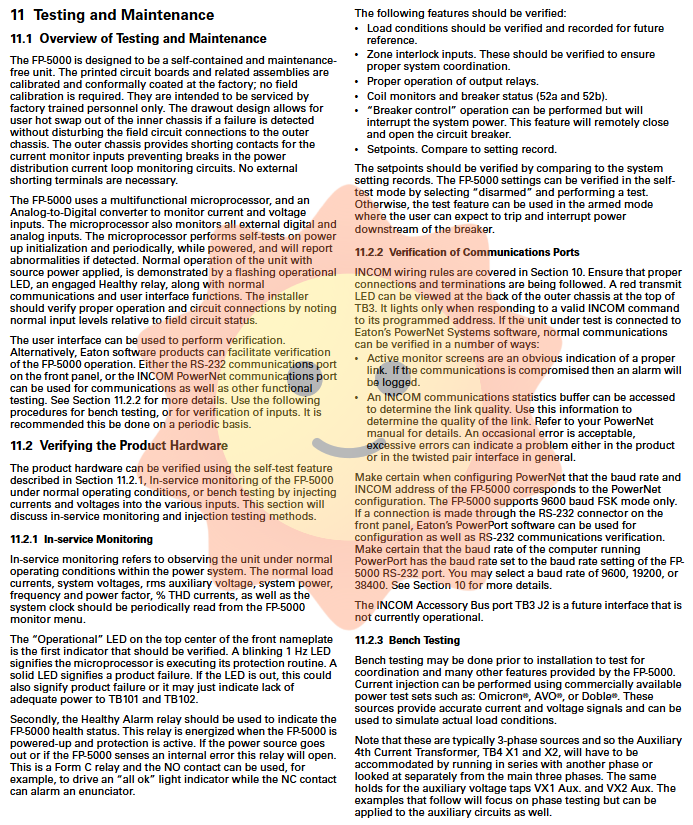

FP-5000 has comprehensive self checking and testing functions to ensure long-term reliable operation of the equipment.

10.1 Self diagnosis

Continuous self check: Real time monitoring of processor, memory, analog circuit, and constant value integrity. Any serious malfunction will cause the 'Relay Health' output contact to release and display an error code on the front panel.

Warning and malfunction: divided into warning (such as low battery level, abnormal clock) and serious malfunction (requiring immediate replacement). The protection function is disabled in the event of a serious malfunction.

10.2 Test Mode

Fault simulation: Input simulated voltage and current phasor values through the test menu, check the protection action logic and action time, and set the maximum test time. During simulation, you can choose to "release the trip" to avoid actual export.

Relay operation test: It can forcibly drive any programmable output relay and check the external circuit.

Regional interlocking test: Manually activate the regional interlocking output signal to verify the communication link and logic coordination.

10.3 Battery Maintenance

Trip indicator battery: There is a CR2032 button battery under the front cover plate, which is used to maintain the trip status indicator (red LED) when the control power is lost. There are battery test buttons and test indicator lights on the panel, it is recommended to check them regularly.

Replacement requirement: The battery must be inserted or replaced when the device is powered on to avoid unnecessary consumption.

10.4 Cleaning

Only dry cloth should be used for cleaning, and the use of water or solvents is strictly prohibited.

Troubleshooting and Support

When the system encounters an exception, FP-5000 provides multiple means to help quickly locate the problem.

Event log: Recording all events in chronological order is the preferred tool for tracing the fault process.

Trip log: contains detailed electrical quantities and internal status at the moment of fault, accurate to milliseconds.

Waveform data: Use PowerNet software to replay waveforms and visually analyze the transient process of faults.

Circuit breaker related alarms: such as broken trip coils, circuit breaker refusal to move, etc., can quickly locate secondary circuit or mechanism problems.

Technical Support: Eaton provides a 24-hour technical support hotline (1-800-809-2772), and the latest documents and software can also be obtained through the official website.

Standard conformity certification

FP-5000 is designed and manufactured strictly in accordance with international and North American standards, with major certifications including:

ANSI/IEEE C37.90: Performance Standard for Relay Systems.

UL/CUL 1053: Certification for Ground Fault Sensing and Relay Equipment (5A version).

EMC standards:

Immunity: Complies with ANSI C37.90.1 (surge), ANSI C37.90.2 (RF), and EN61000-4 series standards.

Launch: Complies with CISPR-11 Class A and FCC Part 15 Class A.

Environmental adaptability: Meet the temperature, humidity, and vibration requirements of industrial environments.
