Honeywell Expert Series-C I/O Module

Honeywell Expert Series-C I/O Module

Basic Information

Document ID: EP03-490-520, Release 520, Version 1.5

Scope of application: Expert Series-C I/O modules and C300 controllers, supported since the Expert R300 version

Core component definition:

IOTA (Input Output Termination Assembly): A component that integrates I/O module fixation and on-site wiring functions. The module is directly plugged into IOTA without the need for an additional chassis

IOM (Input Output Module): A module equipped with core electronic components to achieve specific I/O functions and obtain power from IOTA

Core functions and design highlights

1. Universal design advantages

Compact integrated architecture: IOM and field terminals are integrated into IOTA, eliminating the need for independent electronic component chassis, significantly reducing device size, and improving cabinet space utilization

Convenient wiring and maintenance: using two-level "separable" terminals, convenient for on-site wiring installation and later maintenance; Supports up to 12AWG (2.5mm ²) multi strand wire access

Simplified power supply and redundancy: The on-site power supply is provided through IOTA, eliminating the need for additional power and manual wiring; Redundant configuration only requires adding a second IOM on IOTA, without the need for external cables or control devices

Efficient heat dissipation and layout:

Vertical installation design: Suitable for scenarios where on-site wiring is connected from the top/bottom of the cabinet

Tilted structure: optimizes air circulation inside the cabinet, improves heat dissipation efficiency, and adapts to high-density installation requirements

Information Ring "Identification: Quickly guide maintenance personnel to view equipment status information

Built in protection mechanism: Input/output circuits have short-circuit protection, no need to connect fuses in series, reducing installation and maintenance costs

2. IOTA multifunctional integration

IOTA serves as the core carrier, integrating multiple functions and reducing external component dependencies

Support switching between single module and redundant module configurations

Built in process signal termination and signal conditioning functions

Directly connect to networks such as FTE, I/O LINK, etc

Realize on-site power distribution without the need for external wiring grouping

Provide stable power supply for the inserted IOM

Module Classification and Key Specifications

The Series-C I/O module covers 8 major categories of signal processing requirements, with different modules focusing on parameters such as channel quantity, input/output range, and accuracy. The core classifications and representative module specifications are as follows:

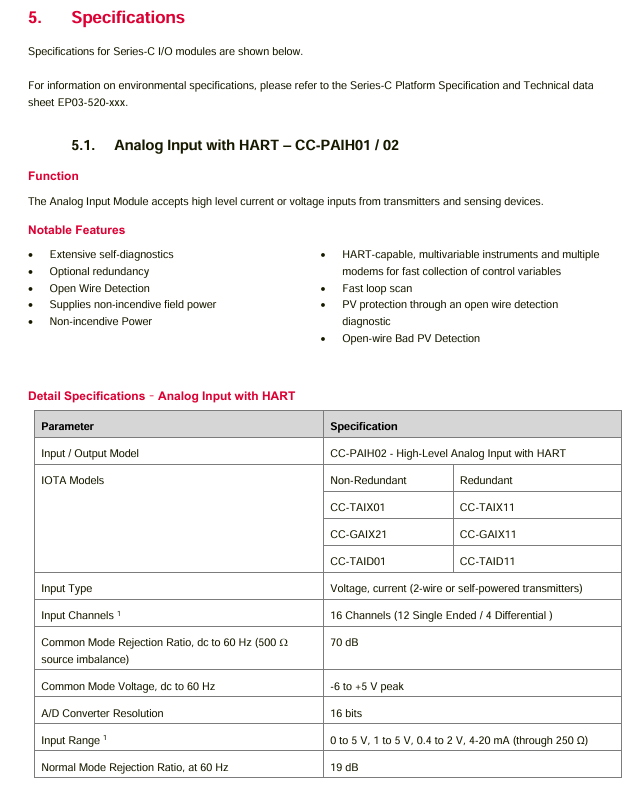

1. Analog input module (AI)

Mainly used to receive current/voltage signals from transmitters or sensors, with some supporting the HART protocol for device configuration and status monitoring.

Module model, core function, channel number, input type/range, key characteristics

CC-PAIH01/02 with HART protocol 16 current (4-20mA), voltage (0-5V/1-5V/0.4-2V) 12 single ended+4 differential channels, supports open circuit detection, Class 1 Div 2 non flammable power supply

CC-PAIH51 with HART protocol 16 current only (4-20mA, 200 Ω load) full single ended channel, no voltage/differential input, supports HART device configuration

CC-PAIX01/02 does not have HART protocol. The current (4-20mA) and voltage (0-5V/1-5V/0.4-2V) are consistent with the parameters of CC-PAIH01/02 and do not have HART function

CC-PAIN01 without HART protocol 16 only current (4-20mA, 200 Ω load) full single ended channel, non flammable power supply, suitable for basic current signal acquisition

2. Temperature input module

Specially designed for thermocouples (TC) and thermistors (RTD), supporting low-temperature drift and high-precision temperature measurement.

Module model, core function, number of channels, support for sensor types, key characteristics

CC-PAIM01 (LLMUX) temperature multiplexing 64 (16 channels/FTU) TC (J/K/E/T/B/S/R, etc.), RTD (Pt100/Ni120/Cu10) need to be matched with PMIO FTA, support remote cold end compensation, 1-second scanning cycle

CC-PAIL51 low-level temperature input 16 TC/RTD (configurable per channel) directly integrated into Series-C IOTA, no external FTA required, operating temperature from -40 to+70 ℃

3. Pulse Input Module (PI)

Used for processing pulse generation equipment signals, suitable for measurement and trade handover scenarios, supporting high-precision frequency and cycle measurements.

Module model CC-PPIX01

Number of channels: 8 single channels/4 dual channels (can be mixed configuration)

Frequency range: Single channel 0-100kHz, dual channel 0-10kHz

Accuracy within the range of 0.5Hz-100kHz, ± 0.001% reading error

Key features support MeterSuite trade handover application, compliant with ISO 6551 standard, with "quick cut-off" function (1ms delay)

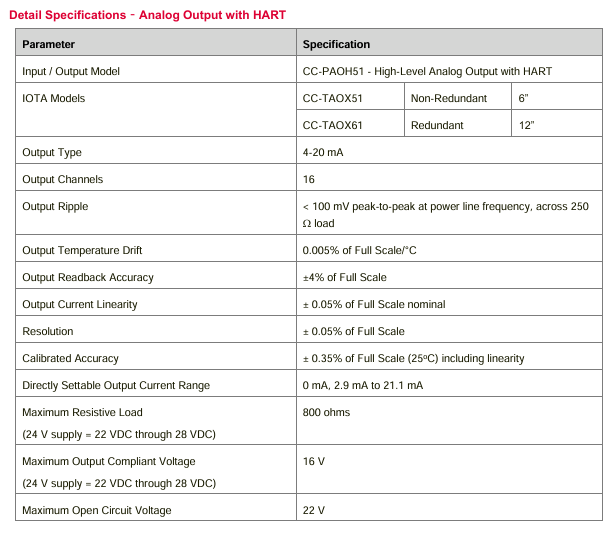

4. Analog Output Module (AO)

Output stable current signals to actuators and recorders, with partial support for HART protocol and configurable fault safety status.

Module model, core function, channel number, output range, key characteristics

CC-PAOH01/51 with HART protocol 16 4-20mA support FAILOPT (maintain last value/switch to safe value), open circuit detection, accuracy ± 0.35% of full range at 25 ℃

CC-PAOX01/PAON01 without HART protocol 16 4-20mA and with HART module parameters consistent, without HART communication function, maximum load 800 Ω (24V power supply)

5. Digital Input Module (DI)

Receive discrete voltage signals, adapt to different voltage levels, and partially support sequence of events (SOE) recording.

Module model, voltage level, channel number, key characteristics

CC-PDIL01/51 24VDC 32 CC-PDIL01 supports open circuit detection and isolation voltage of 1500VAC; CC-PDIL51 has no open circuit detection and is isolated from 1000VAC

CC-PBIS01 24VDC 32 supports SOE (1ms resolution), three scanning modes (normal 20ms/fast 5ms/SOE mode)

CC-PDIH01 high voltage (110VAC/220VAC/125VDC) 32 is compatible with different high voltage signals, and can switch voltage types by replacing IOTA, reducing the variety of spare parts

6. Digital Output Module (DO)

Output discrete signals to control external devices (such as solenoid valves, intermediate relays), with short-circuit protection and fault safety configuration.

Module model, output type, number of channels, key characteristics

CC-PDOB01 24VDC bus type (source output) 32 no fuse short circuit protection, supports FAILOPT, maximum 0.5A per channel, maximum 6A per module

CC-PDOB01 (relay IOTA) dry contact (NO/NC configurable) 32 with CC-TDOR01/11 IOTA, maximum contact 250VAC/125VDC, mechanical life 5 million times

CC-PDOD51 24VDC current output with 32 coating protection, maximum 0.1A per channel, isolation voltage 1000VAC

7. Universal Input/Output Module (UIO)

Single module supports multiple types of signal configurations, with high flexibility and adaptability to complex mixed signal scenarios.

Module model, channel number, configurable type, key characteristics

CC-PUIO01 32 AI/AO/DI/DO/pulse input (15-18 channels) supports HART 7, -40 to+70 ℃ working temperature, electronic short circuit protection

CC-PUIO31 32 AI/AO/DI/DO/SOE/pulse input (any 4-channel) HART channel independent modem, SOE 1ms resolution, pulse frequency 0-15kHz

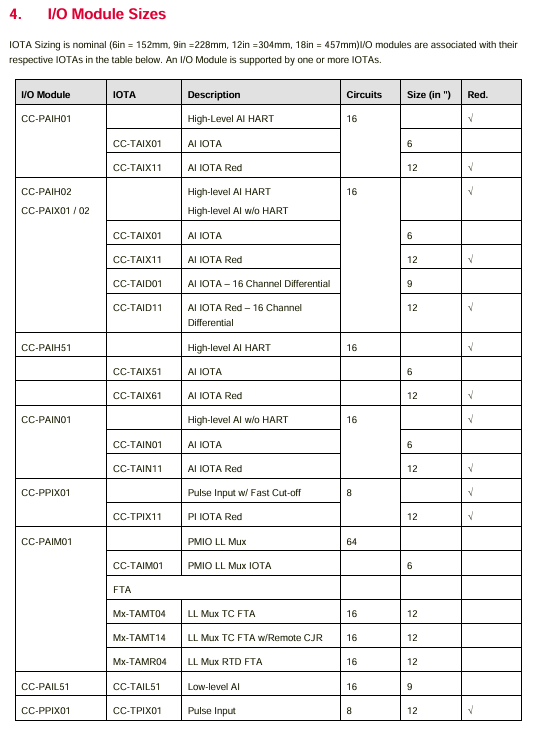

IOTA size and compatibility configuration

The size of IOTA varies with module type (analog/digital) and redundancy requirements. Non redundant configurations have smaller sizes, while redundant configurations require longer IOTA. The specific adaptation relationship is as follows (excerpt from core combinations):

IOM type non redundant IOTA model non redundant size (inches) redundant IOTA model redundant size (inches) number of channels

Analog Input (AI) CC-TAIX01 6 CC-TAIX11 12 16

Temperature input (LLMUX) CC-TAIM01 6-64 (FTA required)

Pulse Input (PI) - CC-TPIX11 12 8

Analog Output (AO) CC-TAOX01 6 CC-TAOX11 12 16

Digital input (24VDC) CC-TDIL01 9 CC-TDIL11 12 32

Universal Input Output (UIO) CC-TUIO31 9 CC-TUIO41 12 32

Installation and safety regulations

1. Installation requirements

Module positioning: IOM needs to be plugged into the corresponding IOTA, which is fixed to the 24VDC bus power supply rail of the cabinet with screws

Wiring specifications:

Wire specifications: It is recommended to use copper wire with a rated temperature of 75 ℃, and a single terminal can support 2 wires of the same specification or 1 maximum 12AWG wire

Stripping length: Unified at 0.25 inches (7mm), excessive length may result in exposed wires and pose a risk of electric shock

Noise protection: Ensure that the module installation screws are tightened and grounded according to specifications; The noise reduction gasket on the right side of the module (both sides of the power module) should be in contact with adjacent modules/cabinets to avoid electromagnetic noise interference

2. Installation requirements for hazardous areas

For Class I Zone 2 hazardous environments, the following regulations must be followed:

Only applicable to Class I Zone 2 A/B/C/D hazardous areas or non hazardous areas, and cannot be used for other hazardous level scenarios

It is prohibited to replace module components, otherwise it may damage the explosion-proof applicability

Before power outage or confirming the safety of the area, it is forbidden to disconnect the equipment connection to avoid the risk of explosion

Ordering Information (Core Components)

In addition to the IOM module, matching IOTA and fan components need to be selected based on the number of cabinet slots and power supply type. Some key models are as follows:

Product Description Model

16 channel with HART analog input module CC-PAIH01

32 channel 24VDC digital input module CC-PDIL01

32 channel 24VDC bus type digital output module CC-PDOB01

32 channel universal input/output module CC-PUIO31

17 slot cabinet 120VAC fan component IC697ACC721

17 slot cabinet 24VDC fan component IC697ACC744

9-slot cabinet 240VAC fan component IC697ACC624

Supplementary explanation

Environmental specifications: The temperature and humidity tolerance, vibration and impact and other environmental parameters of the module should refer to the "Series-C Platform Specifications" and technical document EP03-520-xxx

Compliance certification: FCC, EU directives and other compliance information, please refer to Appendix A of the "Expert RX7i Installation Manual" (GFK-2223)

Maintenance suggestion: Regularly check the tightness of IOTA terminal wiring, module temperature, and LED status. In case of faults, prioritize using the "information ring" and LED to determine the type of problem (such as open circuit, short circuit, overheating)
