Product Overview

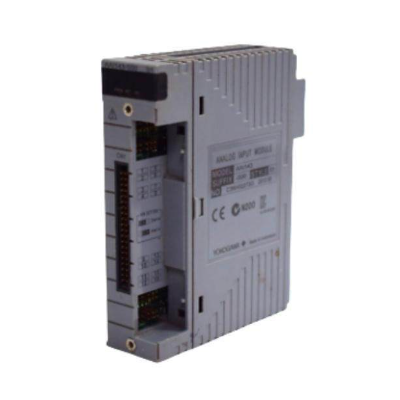

YOKOGAWA AAI143-H50 is a high-performance 16 channel isolated analog input module developed by Yokogawa Electric in Japan. Its core function is to accurately collect 4-20mA current signals from industrial sites, convert analog signals into digital signals through high-precision analog-to-digital conversion, and transmit them to the backend control system to achieve real-time monitoring and precise control of process variables. This module, with its ultra-high measurement accuracy of ± 0.02% reading ± 1 μ A, full channel isolation design, and HART digital communication function, has become the core component for high-precision signal acquisition in the field of industrial automation. It is widely used in industries such as petrochemicals, power metallurgy, and intelligent manufacturing that require strict signal acquisition accuracy and stability. The product adopts industrial grade sturdy packaging, with IP67 high protection level, and can operate stably in harsh industrial environments. It provides a 12-month standard warranty period and is seamlessly compatible with mainstream DCS systems such as Henghe Centum VP, as well as industrial control equipment such as PLC and SCADA. It is an ideal choice for new project construction and existing system upgrades.

From the logical analysis of model coding, AAI is the core series identifier of Yokogawa Analog Input Module, representing "Analog Input Interface"; 143 "is the specific specification code within the series, pointing to the 16 channel core configuration; The suffix "H50" indicates the functional and protection level identification, where "H" represents support for the HART digital communication protocol, enabling remote diagnosis and parameter configuration, and "5" represents no explosion-proof protection configuration (models with the suffix "- E" have explosion-proof protection). In addition, the module can extend its functionality through additional code, such as/K4A0 being able to achieve adaptive connection with the AEA4D terminal board, and/A4S00 configured with clamp connection terminals to enhance connection reliability, making it easy for users to accurately select according to on-site needs.

Core performance characteristics

1. 16 channel fully isolated design, precise and reliable signal acquisition

The module adopts a 16 channel independent isolation design, with each channel achieving electrical isolation from the core circuit and other channels, effectively avoiding signal crosstalk between channels and ensuring signal integrity in multi signal parallel acquisition scenarios. Equipped with high-precision A/D conversion chips, the measurement accuracy reaches ± 0.02% with a reading of ± 1 μ A, which can accurately capture small changes in on-site signals and meet the requirements of high-precision industrial process monitoring; Supports 4-20mA standard current signal input, compatible with 0-20mA extended range, can directly adapt to various industrial analog output devices such as pressure transmitters and flow sensors, without the need for additional signal conversion modules, simplifying the system architecture.

2. Support HART digital communication, efficient and convenient remote operation and maintenance

The module is equipped with a built-in HART communication module that supports the HART digital communication protocol. It can achieve digital signal interaction while transmitting analog signals, making it convenient for users to remotely configure parameters, diagnose faults, and upload data. Channel range calibration, alarm threshold setting, sensor status monitoring and other operations can be completed through the upper computer system without the need for on-site module disassembly, greatly improving operation and maintenance efficiency; Simultaneously compatible with various industrial standard communication protocols such as Modbus RTU and Modbus TCP, it has good system compatibility and can be easily integrated into various existing industrial automation control systems.

3. Multi mode connection design, adapted to diverse on-site needs

The module provides multiple flexible connection methods to meet the wiring and installation needs of different industrial sites: standard configuration of crimping terminal blocks, which are firmly and reliably wired, making it easy for rapid construction and later maintenance on site; Support MIL connector cable connection, suitable for industrial scenarios with strong vibration and high requirements for connection stability; Convenient connection to the terminal board can be achieved through the KS cable interface adapter (model ATK4A-00), enhancing the flexibility of system integration. Some configuration models can also be adapted to dedicated terminal boards through additional code, further expanding their connection functions and adapting to the wiring specifications of complex industrial sites.

4. Industrial grade sturdy design with excellent environmental adaptability

The module adopts full industrial grade component selection and robust packaging design, with excellent environmental adaptability and anti-interference performance. The working temperature range is wide from -20 ℃ to 85 ℃, and it can operate stably for a long time in outdoor environments with low temperature and severe cold, as well as in high-temperature and hot workshop environments; The protection level reaches IP67, with dustproof and waterproof functions, and can adapt to harsh industrial environments with high humidity and dust. Built in anti-interference circuit and surge protection device, in compliance with industrial electromagnetic compatibility standards, can effectively resist on-site electromagnetic interference and surge voltage impact; Adopting a 220V AC wide voltage power supply design, the power supply has strong adaptability, ensuring stable operation in scenarios of power supply voltage fluctuations.

Detailed technical specifications

1. Input signal parameters

-Input channel: 16 independent isolated channels;

-Signal type: 4-20mA current signal, compatible with 0-20mA extended range;

-Measurement accuracy: ± 0.02% reading ± 1 μ A;

-Response time: less than 1ms, can quickly respond to on-site signal changes;

-Input impedance: Suitable for standard industrial sensors to ensure stable signal transmission.

2. Power and communication parameters

-Power supply: 220V AC wide voltage power supply;

-Power current consumption: slightly different depending on configuration, ≤ 500mA under standard configuration;

-Communication interface: Supports HART digital communication and is compatible with protocols such as Modbus RTU and Modbus TCP;

-Communication speed: configurable, adaptable to different system communication requirements;

-Signal indication: Equipped with LED indicators for power, operation, communication, and channel fault status, the status is clear at a glance.

3. Physical and environmental parameters

-Dimensions: 2.5cm x 12.7cm x 12.7cm (length x width x height), compact design for easy installation;

-Weight: Approximately 0.4kg, lightweight design reduces installation load;

-Working temperature: -20 ℃ to 85 ℃;

-Storage environment: Temperature range of -40 ℃ to 100 ℃, relative humidity of 5% -95% (non condensing), no corrosive gas or conductive dust environment;

-Protection level: IP67;

-Installation method: DIN rail installation, standardized installation for easy system integration.

Installation and wiring specifications

1. Preparation before installation

Before installation, it is necessary to confirm that the module model is AAI143-H50 and the additional code matches the on-site requirements. Check that the module appearance is not damaged, the wiring terminals are not loose, and the indicator lights are not damaged. Confirm that the installation environment meets the requirements of module environmental parameters and is kept away from strong electromagnetic interference sources (such as large frequency converters, high-voltage cables, etc.), high-temperature heat sources, and corrosive gas environments; The installation location should reserve sufficient heat dissipation and operating space to avoid excessive dense installation with other devices. Installation personnel need to have professional qualifications for installing industrial automation equipment, be familiar with module installation manuals and relevant electrical safety regulations, prepare specialized installation tools, compatible cables, and wiring terminals in advance. If it involves intrinsic safety application scenarios, isolated safety barriers should be prepared in advance (it is prohibited to connect Zener safety barriers).

2. Key points of installation operation

The module adopts the standard DIN rail installation method. During installation, the module buckle should be aligned with the rail and smoothly pushed in to ensure that the buckle is fully tightened, avoiding module loosening or displacement caused by on-site vibration. The installation direction must strictly follow the positive direction of the module identification to ensure that the indicator lights are visible and the wiring terminals are operable. A minimum distance of 10cm should be maintained between modules and adjacent devices to ensure effective heat dissipation and maintenance space in the future. After installation, gently pull the module to confirm that it is firmly fixed without any looseness; If the installation environment has high vibration, additional fixed brackets can be added to enhance stability.

3. Wiring operation specifications

Before wiring, all associated equipment power must be cut off, including module power supply, backend control system power supply, and on-site sensor power supply. Confirm that the voltage has dropped to a safe level and wait for at least 10 minutes before proceeding with wiring operations to avoid the risk of electric shock. It is recommended to use shielded twisted pair cables for analog signals, and the cable length should be reasonably controlled according to the communication protocol requirements. The shielding layer should be grounded at one end (with a grounding resistance of less than 10 Ω) to avoid parallel laying with power cables. If cross laying is required, it should be kept perpendicular with a spacing of not less than 100mm to reduce electromagnetic interference. Strictly distinguish the input terminals, power terminals, and communication terminals of each channel when wiring, and connect them according to the module wiring manual: sensor signals are connected to the corresponding channel input terminals, 220V AC power is connected to the positive and negative terminals of the power supply, and communication lines are connected to the corresponding communication terminals; In intrinsic safety scenarios, isolated safety barriers need to be connected in series on the input side. After the wiring is completed, check that all terminal connections are securely fastened, organize the cables to avoid compression or entanglement, and ensure that there are no short circuits, virtual connections, or other issues.

Precautions for safe operation

1. Qualification requirements for operation

The installation, wiring, debugging, maintenance, and parameter configuration of modules must be carried out by professionals who have received professional training and obtained relevant qualifications. Operators need to read the module installation manual and safety precautions in advance, familiarize themselves with the working principle, communication protocol, and operation process of the module, and have the ability to respond to sudden failures. Non professionals are strictly prohibited from disassembling, wiring, or modifying module parameters without authorization, in order to avoid equipment failure, signal distortion, and even personal safety accidents.

2. Power operation safety

When the module is working, it is powered by 220V AC high voltage, which carries dangerous voltage. It is strictly prohibited to carry out wiring, disassembly, plugging or maintenance operations while the power is connected, otherwise it may cause serious danger of electric shock and death. Before carrying out any maintenance operation, all associated power sources must be cut off, and safety measures such as hanging a "Do Not Close" sign and locking the power switch must be taken to prevent others from accidentally closing. Before restoring the power supply, it is necessary to check the correctness of the wiring, the tightness of the terminals, and the status of the module again to ensure that there are no safety hazards such as short circuits and leakage.

3. Electrostatic protection and intrinsic safety requirements

The module contains high-precision electronic components, which may be severely damaged by human static electricity. Before touching the module, the operator must comply with the electrostatic discharge (ESD) regulations and take effective electrostatic protection measures, such as wearing an anti-static wristband and operating on an anti-static workbench, to avoid damage to the module caused by static electricity. In intrinsic safety application scenarios, it is strictly prohibited to connect Zener safety barriers. Isolation safety barriers must be used, and the selection of safety barriers must comply with module specifications to avoid safety hazards caused by mismatched safety barriers.

4. Proper use and modification restrictions

The module can only be used for industrial automation signal acquisition scenarios according to the manufacturer's specified purpose. It is strictly prohibited to use it in special fields such as emergency rescue, medical, aviation, nuclear facilities, etc. without permission, otherwise it may cause serious safety accidents. It is strictly prohibited to modify, disassemble, or replace module components with non Yokogawa original parts without authorization from Yokogawa Corporation. Modifying or using non original parts may cause module failure, performance degradation, and even pose safety hazards. The maintenance and upkeep of the module can only be carried out by Yokogawa Corporation or its authorized professionals. If defects or malfunctions are found in the module, they should be replaced or repaired in a timely manner.

5. Environmental and load protection

Avoid installing modules in environments beyond their environmental parameter range, such as high temperature, high humidity, corrosive gases, or severe vibration environments. If it is necessary to install in special environments, additional protective measures should be taken (such as installing protective boxes, heat dissipation devices, etc.). When connecting sensors, it is necessary to ensure that the sensor output signal matches the module input range. It is strictly prohibited to connect signals that exceed the range, otherwise it may damage the module channel. Due to module failures, industrial control systems may be shut down or cause major accidents. It is recommended to take necessary external protective measures or backup devices during system design, such as redundant backups, fault alarms, etc., to enhance the reliability and safety of the system.
