  • FOXBORO P0500RY Terminal Cable Assembly
    ❤ Add to collection
  • FOXBORO P0500RY Terminal Cable Assembly

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    FOXBORO P0500RY is an integrated industrial grade terminal cable assembly. Its core function is to provide a stable signal transmission channel between the P0500RU control module and distributed I/O nodes, as well as on-site sensors/actuators in the FOXBORO control system. At the same time, standardized component design simplifies on-site wiring and debugging processes. This component is not a single cable, but a complete solution that includes customized cables, gold-plated terminal connectors, anti loosening fasteners, shielded grounding clips, and identification sleeves, specifically designed for FOXBORO I/A Series ® The signal transmission characteristics of the system are optimized and designed with high impedance matching accuracy, which can effectively reduce signal attenuation and electromagnetic interference. Its modular component combination not only meets the short distance wiring requirements inside the cabinet, but also adapts to the medium to long distance signal transmission between on-site equipment and control cabinets, providing full process guarantee for the signal link of the control system.

    • ¥16347.00
      ¥18457.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:1.457KG
    • Quantity:
    • (Inventory: 99999)
Description

FOXBORO P0500RY is an integrated industrial grade terminal cable assembly. Its core function is to provide a stable signal transmission channel between the P0500RU control module and distributed I/O nodes, as well as on-site sensors/actuators in the FOXBORO control system. At the same time, standardized component design simplifies on-site wiring and debugging processes. This component is not a single cable, but a complete solution that includes customized cables, gold-plated terminal connectors, anti loosening fasteners, shielded grounding clips, and identification sleeves, specifically designed for FOXBORO I/A Series ® The signal transmission characteristics of the system are optimized and designed with high impedance matching accuracy, which can effectively reduce signal attenuation and electromagnetic interference. Its modular component combination not only meets the short distance wiring requirements inside the cabinet, but also adapts to the medium to long distance signal transmission between on-site equipment and control cabinets, providing full process guarantee for the signal link of the control system.

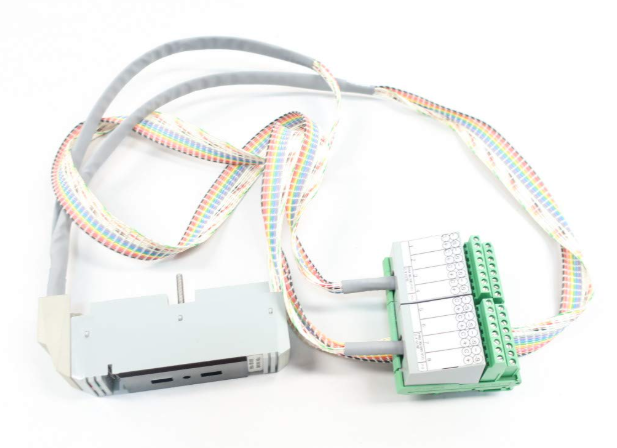

FOXBORO P0500RY Terminal Cable Assembly

Basic Overview of Components

FOXBORO P0500RY is an integrated industrial grade terminal cable assembly. Its core function is to provide a stable signal transmission channel between the P0500RU control module and distributed I/O nodes, as well as on-site sensors/actuators in the FOXBORO control system. At the same time, standardized component design simplifies on-site wiring and debugging processes. This component is not a single cable, but a complete solution that includes customized cables, gold-plated terminal connectors, anti loosening fasteners, shielded grounding clips, and identification sleeves, specifically designed for FOXBORO I/A Series ® The signal transmission characteristics of the system are optimized and designed with high impedance matching accuracy, which can effectively reduce signal attenuation and electromagnetic interference. Its modular component combination not only meets the short distance wiring requirements inside the cabinet, but also adapts to the medium to long distance signal transmission between on-site equipment and control cabinets, providing full process guarantee for the signal link of the control system.


Core structure and functional characteristics

1. Customized cable body: Balancing low loss and strong shielding

The core cable of the component adopts multi stranded oxygen free copper conductors, with wire diameters optimized to 0.6mm (signal core) and 1.0mm (power core) according to the transmission signal type, which not only improves the tensile strength of the cable, but also reduces high-frequency signal transmission losses by reducing skin effect. The insulation layer is made of high temperature resistant cross-linked polyethylene (XLPE) material, with a temperature resistance level of 125 ℃. Combined with an outer flame-retardant polyolefin (PO) sheath, it achieves excellent oil and chemical corrosion resistance, and can withstand common oil stains, acid and alkali steam erosion in industrial sites. The shielding structure adopts a dual shielding design of "tin plated copper mesh+aluminum-plastic composite tape", with a copper mesh coverage rate of ≥ 95% and an aluminum-plastic composite tape overlap rate of ≥ 25%, which can effectively suppress common mode and differential mode interference and ensure the pure transmission of signals in strong electromagnetic environments.

2. Dedicated terminal connector: high reliability connection guarantee

The component is equipped with FOXBORO customized crimping terminal connectors, which are divided into two types: signal type (RJ45/BNC) and power type (terminal block). Both use gold-plated contact design with a contact resistance of ≤ 3m Ω, effectively avoiding signal attenuation or power drop caused by poor contact. The joint housing is made of reinforced nylon material, with an IP67 protection level, built-in waterproof sealing ring and dust cover, and can be directly applied to damp and dusty on-site environments. Based on the interface characteristics of the P0500RU control module, the pin definitions of the connectors are perfectly matched with the module interface, allowing for "plug and play" without the need for additional adapters, significantly reducing on-site debugging time.

3. Integrated accessories: Strengthen installation stability

The P0500RY component includes a complete set of installation accessories, including stainless steel anti loosening fasteners and nylon anti loosening washers, which can effectively prevent joint loosening caused by industrial site vibration; The shielding grounding clip is designed with low impedance to reliably connect the cable shielding layer to the cabinet grounding system, with a grounding resistance of ≤ 1 Ω, further enhancing its anti-interference ability; The identification sleeve is made of heat-resistant polytetrafluoroethylene material, which can clearly indicate the purpose of the cable and the corresponding node number for easy identification during later operation and maintenance. The integrated design of these accessories solves the problems of chaotic accessory matching and low installation efficiency in traditional cable wiring.

4. Wide range environmental adaptability: adapted to meet the needs of multiple scenarios

The components have undergone rigorous environmental adaptability testing, and the cable body and joints can operate stably within a wide temperature range of -40 ℃ to 105 ℃, fully adapting to extreme environments such as harsh outdoor conditions in the north and high-temperature metallurgical workshops. The sheath material meets the UL94 V-0 flame retardant standard and can quickly self extinguish in fire scenarios to prevent the spread of fire; Simultaneously possessing excellent UV resistance, the service life can reach over 8 years when used outdoors without frequent replacement.

5. System level compatibility: Accurately match FOXBORO devices

The components are tailor-made for the FOXBORO system, and the cable impedance is optimized to 100 Ω± 5% (differential signal transmission) based on the communication characteristics of the P0500RU control module, perfectly matching the module interface impedance and effectively reducing signal reflection interference. Whether connecting the P0500RU control module to the P0400ZG node bus module, or connecting the FBM series I/O module to the field sensor, no additional impedance matching device is required, and a stable signal transmission link can be directly constructed to improve system integration reliability.


Key technical parameters

Component composition

Customized cable+gold-plated terminal connector+anti loosening fastener+shielding grounding clip+identification sleeve

Cable conductor

Stranded oxygen free copper, signal core 0.6mm (AWG 22), power core 1.0mm (AWG 18)

characteristic impedance

100 Ω± 5% (differential signal), 50 Ω± 5% (coaxial signal)

Insulation layer material

Cross linked polyethylene (XLPE) with insulation thickness of 0.5mm

Shielding structure

Inner layer 95% tinned copper mesh+outer layer aluminum-plastic composite tape double shielding

Outer sheath material

Flame retardant polyolefin (PO), color is industrial blue (RAL 5015)

Terminal connector type

Signal end: RJ45/BNC (optional); Power end: crimping terminal block

rated voltage

Signal core: 300V AC/DC; Power core: 600V AC/DC

Working temperature range

-40℃~105℃

relative humidity

0%~95% (no condensation)

standard length

0.5m, 1m, 3m, 5m, 10m (customizable up to 50m)

Flame retardant rating

UL94 V-0 grade, compliant with IEC 60332-3 standard

signal attenuation

≤ 0.3dB/10m (at 1MHz frequency), ≤ 1.5dB/10m (at 100MHz frequency)


Applicable scenarios and supporting applications

The P0500RY terminal cable component, with its system level compatibility and environmental adaptability, is widely used in various signal transmission scenarios of FOXBORO automation control systems. The core applicable scenarios and supporting equipment include:

1. Connection between control module and node bus: Equipped with P0500RU control module and P0400ZG node bus module, it is used for control signal transmission of petrochemical refining equipment, realizing bidirectional interaction between control instructions and on-site data, ensuring precise control of reaction kettle temperature, pressure and other parameters.

2. I/O module and sensor link: Connect FBM207B and other I/O modules with on-site temperature, pressure, and flow sensors to achieve low loss transmission of monitoring data in high-temperature environments such as boiler workshops in power plants, providing reliable data support for generator control.

3. Power module power supply link: In conjunction with the P0400GH fieldbus power module, it provides stable power supply for distributed I/O nodes and intelligent actuators, while transmitting equipment status feedback signals. It is suitable for integrated wiring of power and signals in intelligent manufacturing production lines.

4. On site wiring in harsh environments: Used to connect liquid level sensors, toxic gas detectors, and P0500RU control modules in humid and corrosive environments such as chemical tank areas and sewage treatment plants. With IP67 protective connectors and corrosion-resistant sheaths, it ensures long-term reliable operation.

5. High speed communication scenario: Suitable for 100Mbps Ethernet communication links in FOXBORO systems, such as connecting P0500RU control modules with upper computer SCADA systems, to ensure high-speed uploading of production data and real-time issuance of control instructions.
