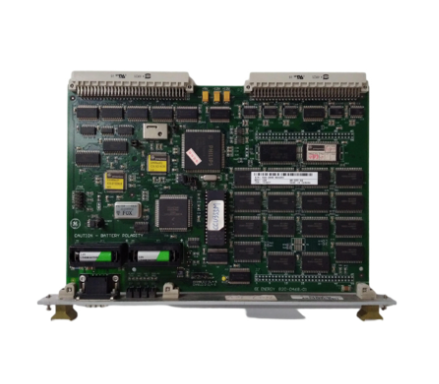

  • GE WESDAC D20ME II Remote Terminal Unit (RTU) Main Processor Card
    ❤ Add to collection
  • GE WESDAC D20ME II Remote Terminal Unit (RTU) Main Processor Card

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    GE WESDAC D20ME II is a high-performance remote terminal unit (RTU) main processor card launched by General Electric (GE) for remote monitoring and control scenarios. As the core control component of the WESDAC D20 series RTU, it undertakes key responsibilities such as data acquisition, logical operations, instruction execution, communication scheduling, and system management. This processor card is designed specifically for industrial grade remote applications and can achieve real-time monitoring and precise control of the operating status of remote devices in decentralized industrial scenarios. It is the core hub that connects on-site perception layer devices with upper level dispatch centers and is widely applicable to fields such as oil and gas pipelines, water conservancy and water management, and power distribution networks that require remote control.

    • ¥18454.00
      ¥19560.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:2.570KG
    • Quantity:
    • (Inventory: 99999)
Description

GE WESDAC D20ME II is a high-performance remote terminal unit (RTU) main processor card launched by General Electric (GE) for remote monitoring and control scenarios. As the core control component of the WESDAC D20 series RTU, it undertakes key responsibilities such as data acquisition, logical operations, instruction execution, communication scheduling, and system management. This processor card is designed specifically for industrial grade remote applications and can achieve real-time monitoring and precise control of the operating status of remote devices in decentralized industrial scenarios. It is the core hub that connects on-site perception layer devices with upper level dispatch centers and is widely applicable to fields such as oil and gas pipelines, water conservancy and water management, and power distribution networks that require remote control.




GE WESDAC D20ME II Remote Terminal Unit (RTU) Main Processor Card

Product Overview

GE WESDAC D20ME II is a high-performance remote terminal unit (RTU) main processor card launched by General Electric (GE) for remote monitoring and control scenarios. As the core control component of the WESDAC D20 series RTU, it undertakes key responsibilities such as data acquisition, logical operations, instruction execution, communication scheduling, and system management. This processor card is designed specifically for industrial grade remote applications and can achieve real-time monitoring and precise control of the operating status of remote devices in decentralized industrial scenarios. It is the core hub that connects on-site perception layer devices with upper level dispatch centers and is widely applicable to fields such as oil and gas pipelines, water conservancy and water management, and power distribution networks that require remote control.

Compared to ordinary RTU processors, D20ME II has the core advantages of high stability, strong anti-interference ability, and flexible communication adaptability. It adopts an industrial grade chip architecture and redundant design, which can adapt to harsh conditions such as large temperature differences, complex electromagnetic environments, and unstable power supply in remote areas. It ensures the continuous smoothness of remote control links and reliable and accurate data transmission, providing core computing power support for the safe and efficient operation of remote industrial systems.


Core functions and features

1. Efficient data collection and real-time logical operation

This main processor card has powerful multi type data processing capabilities, supporting the integration of various types of on-site signals such as analog signals (such as pressure, flow, temperature), discrete signals (switch status), pulse signals (such as cumulative flow), etc. Through standardized I/O interfaces and expansion modules, it can achieve parallel data acquisition of dozens to hundreds of monitoring points (the specific number depends on the expansion configuration). The processor is equipped with a high-performance industrial grade CPU, which has fast processing speed and low processing delay. It can execute complex control logic, mathematical operations, and data filtering processing in real time, such as automatically triggering device start stop, parameter adjustment and other control instructions based on collected data, meeting the strict real-time requirements of remote control. At the same time, it supports data caching function, which can locally store critical data in case of communication interruption and automatically supplement transmission after restoring connection to avoid data loss.

2. Multi protocol communication and flexible networking capabilities

As the core communication hub of remote control, D20ME II has rich communication interfaces and multi protocol adaptation capabilities, supports RS-232/485, Ethernet, GPRS/4G (through expansion module) and other communication modes, and can flexibly connect to different transmission links. In terms of communication protocols, it is compatible with mainstream industrial communication protocols such as Modbus RTU/TCP, IEC 60870-5-101/104, DNP3.0, etc. It can seamlessly integrate with GE upper level scheduling systems (such as iFIX, CIMPLICITY), and can also adapt to third-party SCADA (Data Acquisition and Monitoring Control System) to achieve cross system data exchange and instruction transmission. In addition, it supports multiple networking modes such as point-to-point and point to multipoint, and can flexibly construct star and chain network topologies according to the distribution of on-site devices, adapting to the communication needs of dispersed devices in remote areas.

3. Industrial grade environmental adaptability and high reliability design

For complex remote environments, D20ME II adopts a fully industrial grade hardware design with excellent environmental adaptability. The working temperature range covers -40 ℃ to 70 ℃, and can withstand extreme temperature environments such as high temperature Gobi and cold plateau; The humidity adaptation range is 5% to 95% (without condensation), and it can still operate stably in humid scenarios such as water conservancy hubs and coastal stations. At the same time, the processor card has strong electromagnetic compatibility (EMC) performance, complying with the IEC 61000-4 series standards, and can resist electromagnetic radiation and conducted interference generated by industrial equipment, lightning interference, etc., avoiding distortion of data acquisition and control instructions. Hardware supports configurations such as power redundancy and communication redundancy. When the main power supply or communication link fails, it can automatically switch to the backup link to ensure the continuity of system operation.

4. Comprehensive system management and fault diagnosis functions

The processor card is equipped with a comprehensive system management module that supports both local and remote dual configuration management methods. Locally, the computer can be connected through the debugging port, and GE specific configuration software (such as WESDAC Configuration Studio) can be used for control logic programming, parameter configuration, module calibration, and other operations; Remote monitoring, program updates, and troubleshooting of processor cards can be achieved through the upper level dispatch center, significantly reducing the operation and maintenance costs of remote sites. At the same time, it has comprehensive fault diagnosis capabilities and can perform real-time self checks on its own CPU, memory, communication interfaces, and connected I/O modules. When hardware failures, communication interruptions, signal abnormalities, and other problems occur, it will provide timely feedback through status indicator lights, fault codes, and remote alarm signals, making it easy for operation and maintenance personnel to quickly locate and handle the problem.

5. Secure and reliable control and data encryption

To ensure the security of remote control, D20ME II has multiple security protection mechanisms. At the control level, support hierarchical management of control instruction permissions to prevent unauthorized operations; At the data transmission level, it supports data encryption transmission function, which can encrypt collected data and control instructions to prevent data from being tampered with or stolen during remote transmission. In addition, the processor card has an anti misoperation design, a dual confirmation mechanism for key control instructions, and supports a fail safe mode. When the system encounters an abnormality, the output can be automatically switched to a preset safe state (such as emergency stop or valve closure) to avoid safety accidents caused by equipment loss of control.


Key technical parameters

Core CPU

Industrial grade 32-bit high-performance CPU, operating frequency ≥ 200MHz

storage capacity

Program memory ≥ 128MB, data memory ≥ 64MB, supports SD card expansion

Support signal types

Analog quantity (4-20mA, 0-5V), discrete quantity (dry contact, wet contact), pulse quantity

communication interface

2-channel RS-485, 1-channel RS-232, 1-channel Ethernet (RJ45), supporting expansion of GPRS/4G modules

Supported Protocols

Modbus RTU/TCP, IEC 60870-5-101/104, DNP3.0, etc

power supply method

DC 12V/24V wide voltage power supply, supporting power redundancy

working environment

Temperature: -40 ℃~70 ℃; Humidity: 5%~95% (no condensation)

Protection level

Board level protection, suitable for installation in cabinets with IP20 and above levels

redundant function

Support redundancy of primary and backup processors, power supply, and communication links


Applicable scenarios

The D20ME II main processor card, with its remote control capability, environmental adaptability, and reliability, is widely used in industrial fields that require decentralized monitoring and control. Typical scenarios include:

1. Oil and gas pipeline industry: used for remote monitoring and control of long-distance oil and gas transmission pipelines, collecting data such as pipeline pressure, flow rate, temperature, and valve status, remotely controlling pump station start stop and valve switch, and achieving unmanned and intelligent control of pipeline transportation process.

2. Water conservancy and water management industry: applied to remote control of reservoirs, hydropower stations, water plants, and sewage treatment plants, monitoring parameters such as water level, water quality, and flow rate, remotely controlling gate lifting and water pump operation, ensuring stable and efficient water resource scheduling and water treatment processes.

3. Power distribution network industry: used for remote monitoring of urban and rural power distribution networks, collecting data on distribution transformer load, voltage, current, etc., realizing line fault detection, remote closing/opening control, improving distribution network operation and maintenance efficiency and power supply reliability.

4. Metallurgical mining industry: In remote mining and beneficiation systems, remote monitoring of equipment operation status, ore reserves, and other data is used to control the operation of crushers, conveyors, and other equipment, reducing on-site operational risks and labor costs.

5. Environmental monitoring industry: Used for remote collection of environmental parameters in industrial parks, nature reserves, and other scenarios, monitoring indicators such as air quality, water quality, and noise, and achieving real-time upload and abnormal alarm of environmental data.


Summary of Product Advantages

-Strong core computing power: High performance CPUs support parallel processing of multiple types of data and complex logical operations, meeting the real-time requirements of remote control.

-Flexible communication adaptation: multi interface and multi protocol support, can adapt to different transmission links and upper systems, and has strong networking capability.

-Strong environmental adaptability: With industrial grade hardware design, it can withstand harsh conditions such as extreme temperatures and electromagnetic interference, making it suitable for deployment in remote scenarios.

-Safe and reliable operation: Supports multiple redundancy and fault safety mechanisms, combined with data encryption and permission management, to ensure system stability and data security.

-Low operation and maintenance costs: Supports both local and remote management, with comprehensive fault diagnosis capabilities, significantly reducing on-site operation and maintenance workload.
