Industrial Control System Upgrade and Diagnosis: Deep Practice of CV Series PLC Platform

In the long river of industrial automation, upgrading and maintaining control systems is the cornerstone of ensuring the continuous and efficient operation of production lines. Faced with the challenges of technological iteration and spare parts discontinuation, how to safely and efficiently migrate the old C-series PLC system to the more powerful CV series platform, and master an effective fault diagnosis method, is a task that every automation engineer must overcome. This article will explore in depth the system upgrade and diagnostic practices based on the CV series PLC from three dimensions: system compatibility, memory and instruction planning, and professional diagnostic techniques.

From C Series to CV Series: A Systematic Migration Project

Migrating mature C-series control systems to CV series is not a simple hardware replacement. This is a system engineering project that requires careful planning, with the core of understanding the differences between the two series in architecture, memory allocation, and instruction set, and developing a detailed 'compatibility roadmap'.

1. Hardware compatibility: selection of core components

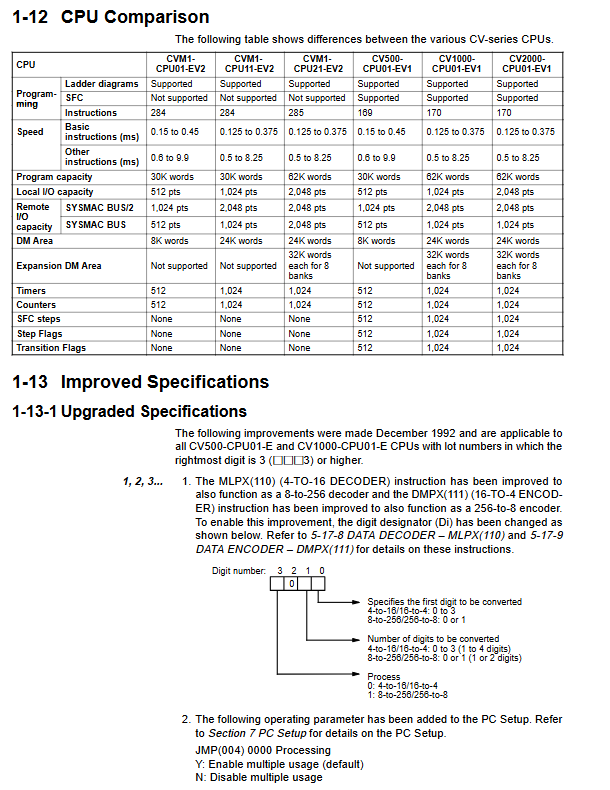

Not all C-series units can continue to be used in CV series systems. Successful migration begins with a precise evaluation of the hardware. CPU、 The core components such as power supply and backplane must be replaced with CV series dedicated models, which is the foundation for building a new system. For example, the CV500/CV1000/CV2000 series CPUs offer local I/O capacities ranging from 512 points to 2048 points, and support mixed programming of SFC (Sequential Function Diagram) and ladder diagram, which is unmatched by early C-series CPUs.

However, in order to maximize the protection of existing investments, many I/O units and some special I/O units can continue to be used. 16 point, 32 point, and even 64 point ordinary I/O units have good backward compatibility. However, it should be noted that specific models of ASCII units such as C500-ASC03 are not compatible. In addition, the units of the SYSMAC BUS remote I/O system can continue to be used, but more advanced SYSMAC BUS/2 systems must use CV series dedicated master station units.

2. Memory Planning: Understanding New Data Boundaries

The CV series introduces a more complex and refined memory structure than the C series. Before performing program conversion, it is necessary to re plan your data memory. Here are several key memory areas and their application points:

CIO (Core I/O) area: This is the bridge between PLC and the physical world for interaction. In the CV series, the CIO area is subdivided into multiple sub areas such as I/O area, workspace, SYSMAC BUS/2 area, link area, and hold area. When upgrading, it is necessary to remap the IR (internal relay) and SR (special relay) addresses in the original C-series program to the corresponding CIO area addresses in the CV series. For example, the hold function in the original program should be mapped to the hold area from CIO 1200 to CIO 1499.

DM (Data Memory) and EM (Extended Data Memory) areas: The DM area is the main data storage area, and CV1000 and above models provide a 24K word DM area. For applications that require processing large amounts of data, the CV1000/CV2000 series supports optional EM units, providing up to 256K words (divided into 8 banks) of expandable storage space. This is a huge advantage that allows engineers to store recipe data, historical records, etc. in separate banks, dynamically switching through EMBC (171) instructions, greatly optimizing data management.

Index and Data Register: The CV series introduces IR0-IR2 and DR0-DR2, powerful tools that the C series does not have. They support indirect addressing, automatic increment, and decrement addressing. When upgrading complex data processing algorithms, utilizing these registers can greatly simplify the program and improve execution efficiency. For example, processing an array containing 100 elements using IR for indirect addressing is much more elegant and efficient than writing 100 MOV instructions.

The Evolution of Instruction Sets and the Art of Programming Optimization

The instruction set of the CV series has been greatly expanded and optimized based on the C series, and mastering these new instructions is the key to unleashing the performance of the new platform.

1. Say goodbye to the "middle" command: innovative input comparison

In C-series programming, a common pattern is to first use a CMP (Compare) instruction, and then trigger subsequent actions based on status flags (such as 25505, 25506). This requires additional instructions and intermediate bits.

The CV series (especially CVM1 version 2) introduced a revolutionary "input comparison command". These instructions can be directly concatenated in the conditions of the ladder diagram, making the program logic more intuitive.

For example, to achieve an output that lights up when the value of D00100 is greater than D00200, in the C series, it may be necessary to:

LD CMP(20) AND 25506 OUT

In the CV series, it can be directly written as:

LD AND >(320) OUT

This "symbolic" programming approach not only reduces the amount of code, but also makes the logical structure of the program clear at a glance, greatly improving readability and debugging efficiency.

2. The leap in computing power: Symbolic mathematics and floating-point operations

For complex applications that require PID regulation, flow calculation, or positioning control, the CV series provides a powerful set of mathematical instructions.

Symbolic mathematical instructions: Traditional BCD and BIN calculation instructions have been upgraded to "symbolic" instructions such as+B (404), - C (412), * U (422), etc. This means that you can write PLC programs like writing mathematical formulas. More importantly, they natively support signed and unsigned binary and BCD operations, and provide dedicated overflow (OF) and underflow (UF) flags, which are crucial for handling negative numbers and preventing data overflow.

Floating point operations: For situations that require high-precision calculations, the CV series version 2 CPU provides a complete floating-point instruction set. The FLT (452) and FIX (450) instructions are used to convert between 16 bit integers and 32-bit floating-point numbers. +F (454), - F (455), * F (456), and/F (457) correspond to addition, subtraction, multiplication, and division operations, respectively. By using these instructions, engineers can easily implement complex mathematical modeling within the PLC without relying on the upper computer.

3. Program structure optimization: ingenious use of working bits and differential instructions

Excellent program structure is the guarantee of system stability.

Work position: In the CV series, unused CIO areas, holding positions, etc. can be used as work positions (internal relays). A classic usage is to first output the complex AND or logic result to a working bit, and then concatenate other conditions after that working bit to control the final output. This can decompose a large logical network into multiple manageable small blocks, significantly improving the readability of the program.

Differential instructions: DIFU (013) and DIFD (014) are powerful tools used to generate single pulses. For example, triggering a counter through DIFU with a button (rising edge signal) can prevent the counter from counting incorrectly multiple times due to button shaking or prolonged operation time. The UP (018) and DOWN (019) instructions go further by directly differentiating execution conditions without the need for additional working bits, making programming more concise.

Professional level fault diagnosis: from passive response to active prevention

Being able to quickly and accurately locate faults on the production site is the core value of engineers. The CV series PLC provides a range of powerful self diagnostic and troubleshooting tools to help you build a transparent and controllable maintenance environment.

1. Build a custom alarm system using the FAL/FALS command

You can embed custom error detection logic in the program using the FAL (006) and FALS (007) instructions.

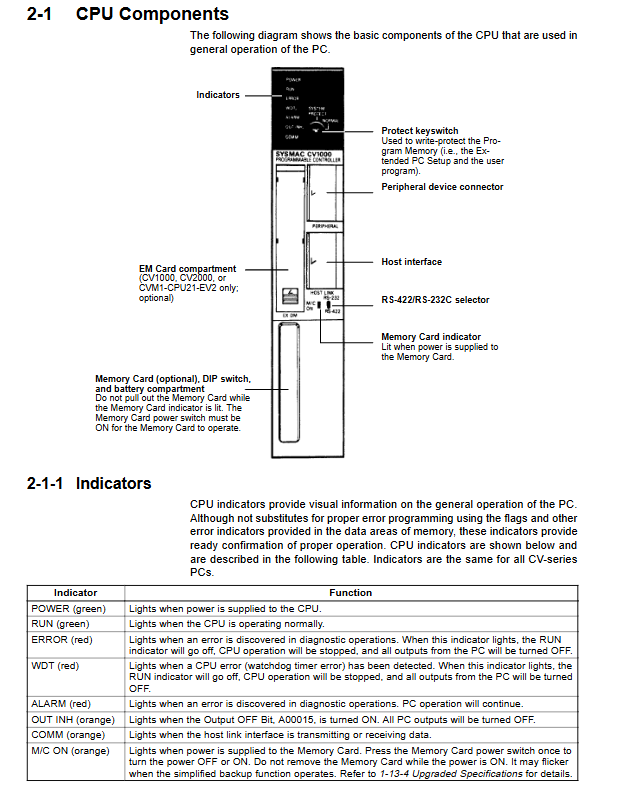

FAL (006): Execute this command when a non fatal fault is detected (such as product count reaching a threshold or a valve action timeout). It will store a specific error code (range 4101 to 42FF) in the A400 register and light up the ALARM indicator on the CPU panel, but the PLC will continue to operate. You can even associate each FAL instruction with an ASCII message of up to 16 characters. When a fault is triggered, this message will be displayed on the programming tool, directly informing the operator of "left bin shortage" instead of a vague "system alarm".

FALS (007): Used to detect serious faults (such as safety circuit disconnection, critical sensor failure). Once executed, the PLC will immediately stop running, turn off all outputs, and store a fatal error code (range C101 to C2FF) in A400, while illuminating the ERROR indicator light. This provides program level assurance for achieving safe shutdown of equipment.

By properly planning the FAL/FALS commands, you can convert the "symptoms" of the equipment into precise "diagnostic codes", freeing maintenance personnel from tedious line troubleshooting.

2. Gain a deeper understanding of the Auxiliary Area signage

Auxiliary Area is the "black box" of PLC, which records the real-time status and historical events of the system. Mastering the key indicators proficiently is an essential skill for advanced fault diagnosis.

A401: It is the "Fault Summary" area. For example, A40106 (FALS Flag) and A40108 (Cycle Time Too Long Flag) can quickly narrow down the scope of the fault.

A402: Provide more specific error information. A40204 (Battery Low Flag) reminds you to replace the battery in a timely manner to prevent program or data loss. A40215 (FAL Flag) indicates that a non fatal FAL alarm has occurred.

A100-A199 (Error Log Area): This is one of the most powerful diagnostic tools. By default, it will record the last 20 errors, including the error code, the time the error occurred (accurate to seconds), and the date. You can modify the PC setup to expand this log area to the DM or EM area, storing up to 2047 records. By analyzing error logs, you can discover intermittent fault patterns such as' a brief power outage occurring at 3am every day ', which is crucial for solving difficult and complicated problems.

3. Use instructions for online diagnosis

In addition to passively viewing the flag, you can also actively diagnose in the program.

FPD (177) (Failure Point Detection): This is an advanced diagnostic command. You can use it to monitor the execution time of an instruction block. For example, monitoring the "extend" action of a cylinder, if the time from issuing the command to the feedback signal of the limit switch exceeds the threshold you set (such as 3 seconds), the FPD command can automatically trigger a FAL alarm and output which input condition (e.g. forward limit switch 000501) was not met. This is equivalent to embedding an intelligent "time relay+logic analyzer" inside the PLC, greatly simplifying the process of locating mechanical equipment faults.

MSG (195) (Display Message): In complex sequential control, you can execute the MSG instruction at the beginning of each step, displaying "Executing: Step 25- Heating" on the human-machine interface or programming software. When the device gets stuck at a certain step, the message on the screen will freeze, informing you of the precise location of the program execution, which is particularly effective for debugging sequential control programs.
