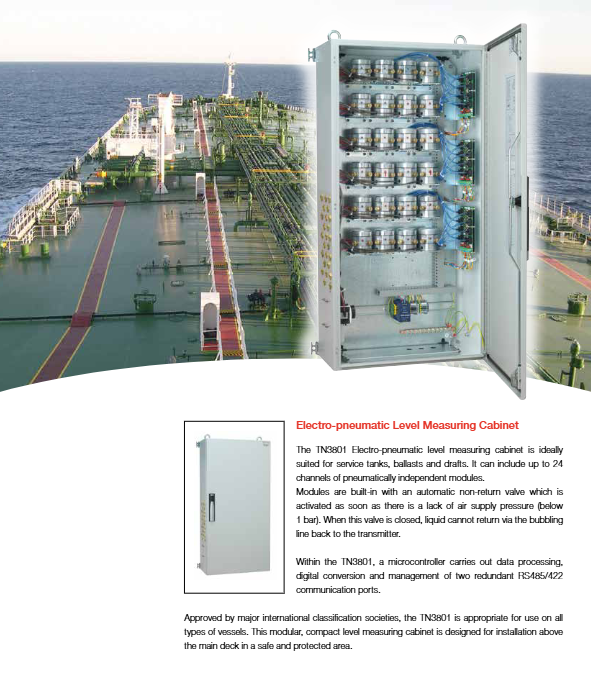

Complete Guide to On site Maintenance and Troubleshooting of Honeywell TN3801 Electro Motive Liquid Level

2.3 Data Processing and Communication

TN3801 is equipped with a microcontroller that is responsible for:

Collect back pressure analog signals from each channel and perform AD conversion

Perform linearization, temperature compensation, and density correction

Manage two redundant RS485/RS422 communication ports using standard Modbus RTU protocol

Redundant communication design means that when the main communication line fails, the system automatically switches to the backup line without manual intervention. This is crucial for ship automation systems such as IAS and AMS - liquid level data can be continuously uploaded to the bridge or engine room monitoring system without being lost due to a single point of failure.

Key points for installation and debugging

3.1 Mechanical installation requirements

Installation location: above the main deck, in a safe and protected area. Avoid direct exposure to ocean waves, high temperature heat sources, or locations with severe vibrations.

Protection level: IP44, splash proof, but not recommended for long-term exposure to high-pressure water jets.

Pneumatic interface: The pneumatic interface of each channel is a ¼ GAS internal thread. It is recommended to use stainless steel or reinforced nylon pipes to connect to the cabin bubble pipes.

Air source quality: An oil-water separator and a 5 μ m level filter should be installed to prevent oil mist or moisture from entering the flow regulator and causing blockage. TN3801 can be optionally equipped with an integrated air filtration unit, strongly recommended for selection.

3.2 Electrical Wiring

Power supply: 230 VAC or 115 VAC, pay attention to terminal labeling. Extremely low power consumption (0.5 VA/channel), the whole machine usually does not exceed 15 VA.

Communication cable: Two RS485/422 channels use shielded twisted pair cables, it is recommended to use AWG 22 or thicker, and the shielding layer should be grounded at one end. The maximum transmission distance can reach 1200 meters (baud rate ≤ 9600).

Analog output (if configured): 4-20 mA active or passive output, maximum load resistance of 500 Ω.

3.3 Debugging steps

Airtightness test: Without connecting the air source, seal the air outlet of each channel with a plug, introduce 6 bar compressed air, and check for leaks in the pipeline joints.

Channel self-test: Activate each channel one by one through the built-in diagnostic mode (see technical manual MT5015 for details), and observe whether the output of the back pressure sensor is linear.

Zero and full calibration: Use a reference chamber or simulated pressure source with known liquid level height to perform two-point calibration on each channel. The official recommendation is to calibrate at 20 ℃ to achieve an accuracy of ± 0.3% FS.

Communication testing: Read the registers of each channel through a Modbus master station (such as PLC or PC debugging software) to verify the address, baud rate, and parity settings.

Common fault phenomena and troubleshooting

Based on years of on-site experience, the faults of TN3801 mainly focus on four aspects: gas source problems, pipeline blockage/leakage, communication interruption, and channel accuracy drift. The following provides a standardized troubleshooting process based on the classification of fault phenomena.

4.1 Fault phenomenon 1: Abnormal low or no change in liquid level reading of one or all channels

Possible reasons:

Air source interruption or insufficient pressure (<1 bar)

The bubble tube in this channel is blocked (due to sludge and crystals in the cabin)

Automatic non return valve mistakenly closes (although rare, if there are foreign objects inside the air path, it can cause the valve core to get stuck)

Back pressure sensor damaged

Troubleshooting steps:

Observe the gas supply pressure gauge on the TN3801 panel (if configured) and confirm if the input pressure is between 6-10 bar. If it is below 1 bar, check the ship's main air system or pressure reducing valve.

Remove the bubble tube connector of the faulty channel, briefly ventilate (3-5 seconds), and feel with your hand whether there is airflow at the tube mouth. If there is no airflow, it indicates that the internal air path is blocked or the flow regulator is malfunctioning.

Alternative method: Connect the gas path of this channel to another known normal cabinet. If the reading is restored, the original bubble tube will be blocked; If the issue persists, it is within TN3801.

Check the automatic non return valve: Use a small screwdriver to lightly press the valve core. If it can rebound normally and open after ventilation, then the valve is normal. Otherwise, the channel module needs to be replaced.

Temporary emergency measures: If measurement is urgently needed, the gas path of the adjacent normal channel can be temporarily switched to the faulty cabinet (note that the original channel must be closed), but it needs to be restored after maintenance.

4.2 Fault phenomenon 2: All channel readings fluctuate or jump simultaneously

Possible reasons:

Unstable gas source pressure (such as significant pressure fluctuations caused by the start and stop of an air compressor)
