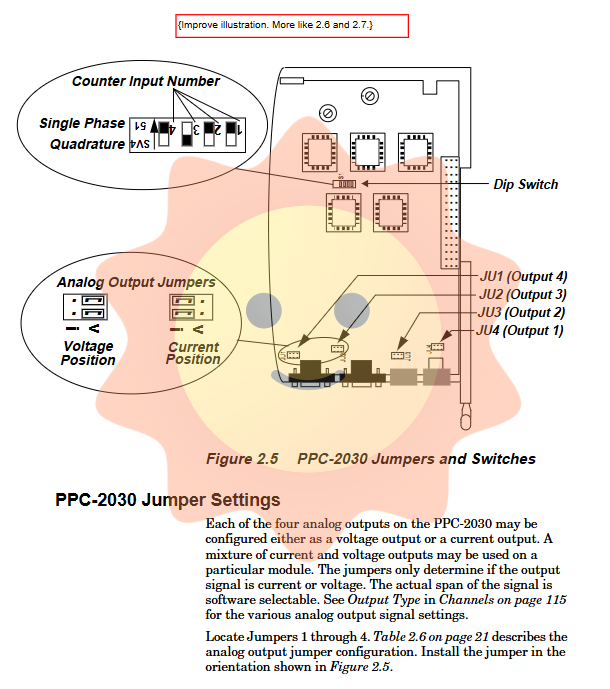

Watlow PPC-2000 System Deployment and Configuration Guide

Tuning Gain: The degree to which the control algorithm responds to load changes in terms of recovery speed. Optional options include "aggressive", "nominal", or "damped", Damped 1-4）。

Adaptive Mode: includes "Adapt" (adapt, normal control), "Reset" (reset, relearn load characteristics), and "Hold" (pause learning but retain current parameters).

Enabling condition: Only channels 1 to 8 can be set to adaptive control. The system must be in automatic mode, and process variables typically need to be at least 40 engineering units below the set point to initiate learning.

5. Communication and Modbus Protocol

PPC-2000 supports Modbus RTU protocol and can be used as a slave to connect to the host or human-machine interface.

Network address: Supports up to 32 PPC controllers for networking. Addresses 1-4 can be set through the panel rotary switch, while addresses 5-32 need to be set through PPCComSu software and the switch should be placed in position 'D'.

Interface selection: Supports RS-232 (point-to-point,<50 feet) and RS-485 (multi-point,>4000 feet). It is recommended to use 4-wire shielded twisted pair for RS-485 wiring and connect 120 Ω terminal resistors at both ends of the network.

6. Troubleshooting and maintenance

The system provides a variety of LED status indicators for diagnosis.

Processor module (PPC-2010): The green LED indicates the normal state when the logic program stops; Quick flashing indicates that the logic program is running; The orange LED indicates a watchdog timeout or low voltage error.

Analog input module (PPC-202x): The red LED light on indicates an open sensor or RTD open circuit; Flashing indicates common mode voltage overload.

Common handling:

If communication is not possible, check for address conflicts, baud rate settings, and termination resistance.

If the system crashes, try shutting down and restarting or performing RAM clearing (set the processor switch to 'E' and then back to 'D').

If the digital I/O status is incorrect, check the polarity of the wiring and the external power supply voltage (matching the controller common terminal).

7. Environmental specifications

Working temperature: 0 ° C to 60 ° C.

Relative humidity: 10% to 95% (non condensing).

Altitude: up to 2000 meters.
