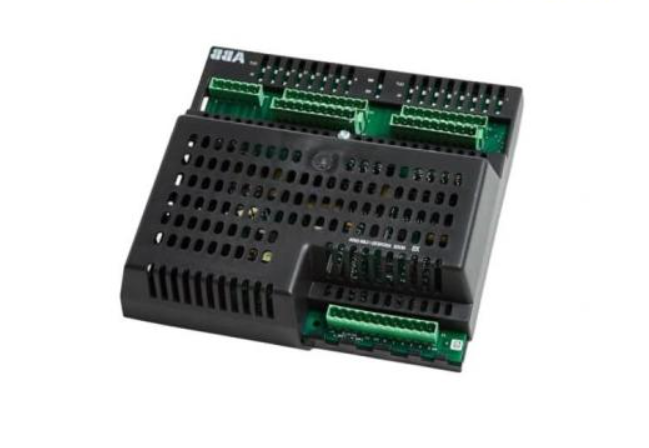

ABB DSQC327A Combination I/O Module

ABB DSQC327A Combination I/O Module

Main Features

Combination design: DSQC327A is a combination I/O module that integrates digital input, digital output and analogue output functions, which is suitable for a variety of industrial automation application scenarios.

High performance: The module is equipped with high-speed and high-precision signal processing capability, which can meet the needs of complex industrial automation systems.

High reliability: Made of high-quality materials and advanced production technology, it has high reliability and stability to ensure the normal operation of the system.

Easy to install and maintain: modular design makes installation and maintenance more convenient and reduces the maintenance cost of the system.

Technical Specifications

Supply Voltage: Normally 24VDC (Direct Current Voltage).

Digital Inputs: Provides 16 digital input signal channels for receiving digital signals from field devices.

Digital Output: Provides 16 digital output signal channels for sending digital control signals to field devices.

Analogue Output: Provides 2 analogue output signal channels for outputting analogue signals to control the operation of field devices.

Interface type: usually equipped with 2 x 10-pin connectors for connection with other devices.

Application Areas

DSQC327A modules are widely used in industrial automation, including but not limited to the following scenarios:

Robot control system: As part of a robot control system, it is used to receive and send digital and analogue signals required for robot operation.

Production line automation: In production line automation systems, they are used to monitor and control the operating status of production equipment.

Process control system: in the process control system, it is used to monitor and control various process parameters to ensure the stability and safety of the production process.

Cautions

Compatibility: When purchasing and using DSQC327A module, please make sure it is compatible with your ABB industrial robot or other automation equipment.

Correct Installation: Please follow the installation guide provided by ABB to install the module correctly and make sure all connections are correct.

Regular maintenance: Check and maintain the module on a regular basis to ensure its proper operation and prolong its service life.

Technical support: In case of any technical problems or malfunctions, please contact ABB official technical support or authorised service providers.

APPLICATIONS

• Safety Shutdown

• Electrical Stability and Load Control

• Process Shutdown

• Reactor Control

• Emergency Shutdown

• Critical Batch Processing

• Sequence and Interlock Control

• Fire & Gas Protection and Detection

• Critical Process Control

• Burner Management and Control

• Turbine and Compressor Control

• Wellhead/Sub-Sea Control

• Unmanned Installations

• FPSOs

Product Advantages

High precision: with high-precision control and data processing capabilities to ensure the accuracy and stability of system operation.

High stability: manufactured with advanced technology and materials to ensure long-term stable operation and reduce maintenance costs.

Powerful communication ability: support a variety of communication protocols, convenient for data exchange and communication with other equipment and systems.

Easy to expand and upgrade: modular design makes the system can be flexibly expanded and upgraded according to the actual demand.
