  • YASKAWA CP-317/217 IF Communication Interface Module
    ❤ Add to collection
  • YASKAWA CP-317/217 IF Communication Interface Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    CP-317/217IF belongs to the Yaskawa CP-9200SH series communication module, which adopts a modular design concept and can be flexibly combined with Yaskawa CP series and MP series controllers (such as MP920, MP2300, etc.) to form a complete industrial control and communication system. The overall size of this module is 2.2cm × 12.4cm × 12.6cm, with a weight of approximately 1.5kg. It has a compact structure and is easy to install densely in industrial control cabinets. Its core positioning is to solve the communication barriers between different devices in industrial scenarios, achieve real-time data transmission between sensors, actuators, frequency converters, intelligent instruments and controllers, and provide stable communication guarantees for precise control and intelligent monitoring of automated production.

    • ¥16437.00
      ¥17944.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.270KG
    • Quantity:
    • (Inventory: 99999)
Description

CP-317/217IF belongs to the Yaskawa CP-9200SH series communication module, which adopts a modular design concept and can be flexibly combined with Yaskawa CP series and MP series controllers (such as MP920, MP2300, etc.) to form a complete industrial control and communication system. The overall size of this module is 2.2cm × 12.4cm × 12.6cm, with a weight of approximately 1.5kg. It has a compact structure and is easy to install densely in industrial control cabinets. Its core positioning is to solve the communication barriers between different devices in industrial scenarios, achieve real-time data transmission between sensors, actuators, frequency converters, intelligent instruments and controllers, and provide stable communication guarantees for precise control and intelligent monitoring of automated production.


YASKAWA CP-317/217 IF Communication Interface Module

Product Core Overview

CP-317/217IF belongs to the Yaskawa CP-9200SH series communication module, which adopts a modular design concept and can be flexibly combined with Yaskawa CP series and MP series controllers (such as MP920, MP2300, etc.) to form a complete industrial control and communication system. The overall size of this module is 2.2cm × 12.4cm × 12.6cm, with a weight of approximately 1.5kg. It has a compact structure and is easy to install densely in industrial control cabinets. Its core positioning is to solve the communication barriers between different devices in industrial scenarios, achieve real-time data transmission between sensors, actuators, frequency converters, intelligent instruments and controllers, and provide stable communication guarantees for precise control and intelligent monitoring of automated production.

From the perspective of product series correlation, CP-317 and CP-217IF belong to the Yaskawa serial communication module series, with highly similar functional architectures. Among them, the technical data of CP-217IF is relatively more complete, and its core features can serve as an important reference for understanding the functions of CP-317; Both rely on Yaskawa's mature industrial communication technology to ensure communication stability and compatibility in complex industrial environments.


Core functional characteristics

1. Multi interface configuration, adapted to diverse communication needs

As a representative model of this series, CP-217IF is equipped with a variety of serial interfaces, including two RS-232C interfaces and one RS-422/485 interface. Each of the three interfaces has its own focus, covering different communication distances and device type requirements. among which

-RS-232C interface (CN1 is a D-Sub 9-pin connector): supports point-to-point short-range communication, with a transmission distance usually not exceeding 15 meters, suitable for connecting close range smart instruments, programming devices (such as MPE720 programmers), etc. This interface can be used as an engineering port to achieve engineering configuration, program upload and download, and device debugging functions for controllers such as MP920 by connecting programming devices.

-RS-422/485 interface: Supports differential signal transmission, strong anti-interference ability, transmission distance up to 1200 meters (RS-485), suitable for long-distance, multi node communication scenarios. RS-422 is a full duplex communication system that enables point-to-point bidirectional data transmission; RS-485 is a half duplex communication system that supports up to 32 bus type connections, making it easy to build large-scale distributed communication networks. It is widely used to connect remote sensors, frequency converters, and other devices.

Although there is relatively little publicly available technical information on CP-317, based on the characteristics of its series of products, it is speculated that its interface configuration is similar to CP-217IF, with a serial communication interface as the core, focusing on meeting the basic serial communication requirements in industrial scenarios. It can complement or replace CP-217IF in terms of functionality and model, and adapt to the system configuration needs of different users.

2. Multi protocol support, breaking down communication barriers between devices

Protocol compatibility is the core competitiveness of industrial communication modules. CP-317/217IF has strong protocol support capabilities and can seamlessly integrate with Yaskawa's own equipment and third-party industrial equipment

-Core Protocol: Supports the Yaskawa standard Memobus protocol and Extended Memobus protocol, which are the "common languages" for communication between Yaskawa industrial equipment and enable efficient data exchange between CP series and MP series controllers and modules. The master device can accurately read the operating parameters and status information of the slave device by sending instructions that comply with the Memobus/Extended Memobus format, or issue control instructions to the slave device. After receiving the instructions, the slave device will return the execution result as a standard response message, ensuring the accuracy and real-time communication.

-Extension Protocol: In addition to proprietary protocols, this module also supports multiple general industrial communication protocols and custom protocols, enabling cross brand collaboration with third-party brands such as Mitsubishi and Siemens' PLCs, frequency converters, and other equipment. For example, in the remote crane monitoring system of the port container terminal, the module can interact with Yaskawa PLC through Memobus protocol, and cooperate with Mitsubishi frequency converter through Melsec protocol to achieve precise control of lifting equipment actions and energy optimization.

3. High speed and stable communication to ensure control accuracy

This module relies on Yaskawa's optimized communication circuit design and signal processing algorithms to achieve high-speed data transmission, which can meet the strict requirements for real-time performance in industrial control. For example, in the stamping line of automobile manufacturing, the module can transmit real-time position and pressure data of the press, robotic arm, and sensors with low transmission delay, ensuring that the synchronous control accuracy of the controller on the equipment reaches 0.1 millimeters, helping to increase the production cycle to 15 strokes per minute, which is 30% more efficient than traditional communication solutions.

At the same time, the module has excellent anti-interference ability. Through the built-in electromagnetic shielding layer and signal self calibration algorithm, it can effectively resist the effects of electromagnetic interference, voltage fluctuations, and other factors in industrial environments. In the high-temperature (70 ℃) and strong electromagnetic interference environment of the steel rolling workshop, the signal transmission error rate can still be ensured to be less than 0.01%, and the annual drift rate is only ± 0.1% F.S., ensuring long-term stability of operation.

4. Flexible programming and expansion capabilities

CP-317/217IF supports programming configuration through ladder diagrams or SFC language. Users can flexibly define data transmission logic and implement custom communication processes in the program through the Message Send and Message Rcv functions. In addition, the module adopts a modular architecture that can be flexibly expanded according to system requirements. By combining with Yaskawa power modules, CPU modules, SVA modules, etc., it can quickly build control and communication systems that are suitable for different industrial scenarios, reducing the difficulty and cost of system integration.

5. Low power consumption and fault diagnosis characteristics

The module adopts energy-saving design, with a normal operating power consumption of less than 15W. Combined with dynamic power management technology, in standby mode without data transmission, the standby current can be as low as 1.5 μ A, which can effectively reduce the overall energy consumption of industrial systems. For example, in the winding system of the lithium battery separator production line, the module runs continuously 24 hours a day, and the annual power saving of a single line can reach 5000kWh, which is equivalent to reducing 3.5 tons of carbon dioxide emissions, in line with the development trend of green manufacturing.

At the same time, the module is equipped with a comprehensive fault diagnosis function, which can monitor the communication link status, interface connection status, and its own operating status in real time. When communication interruption, signal abnormality and other problems occur, the alarm can be quickly triggered and the fault information can be uploaded to the controller or monitoring system, which facilitates the timely troubleshooting of problems by operation and maintenance personnel, avoids production interruption caused by communication failures, and improves the safety and reliability of system operation.


Detailed Explanation of Communication Protocol and Transmission Mechanism

The core communication mechanism of CP-317/217IF is based on the Memobus/Extended Memobus protocol, which is a master-slave communication protocol designed by Yaskawa specifically for industrial serial communication. It has the characteristics of simple communication format, high transmission efficiency, and strong anti-interference ability. Its core transmission process is as follows:

1. Communication topology structure

Adopting a master-slave architecture, typically with Yaskawa CP series or MP series controllers as the master device and CP-317/217IF modules as the communication interface carrier, connecting multiple sensors, frequency converters, and other slave devices to form a 1: N (master to many slave) communication network; It can also achieve 1:1 (point-to-point) direct communication and adapt to different system architecture requirements. In the Ethernet expansion scenario, by combining with the 218IF series Ethernet interface module, TCP/UDP protocol Ethernet communication can also be achieved, supporting up to 32 slave devices connected via UDP and 16 slave devices connected via TCP.

2. Core transmission process

1. Main device instruction sending: The main device (controller) generates instruction frames in Memobus/Extended Memobus format according to control requirements. The instruction frames include core fields such as slave device address, function code, data length, data content, and checksum. The checksum is used to ensure the accuracy of instruction transmission and avoid data errors caused by interference.

2. Instruction transmission and reception: The master device transmits instruction frames to the target slave device through the corresponding interface (RS-232C/RS-422/485) of the CP-317/217 IF module; The module will perform signal conversion and amplification on instruction frames to ensure stable transmission in industrial environments.

3. Device response: After receiving the instruction frame from the device, the address and checksum are verified. After verification, the corresponding operation (such as uploading running parameters, executing control actions, etc.) is executed, and a response frame is generated, which includes information such as execution status and returned data.

4. Response data feedback: The device sends the response frame back to the CP-317/217IF module through the original communication link. The module processes the response frame and transmits it to the main device. The main device determines the instruction execution result based on the response information and then carries out subsequent control logic.

In addition, the module also supports free-form communication, and users can customize the instruction frame format and transmission logic according to the communication needs of special devices, further enhancing the adaptability and flexibility of the product.


Typical application scenarios

CP-317/217IF, with its multi interface, multi protocol, and high reliability characteristics, is widely used in various industrial automation scenarios and has become a core component for achieving device collaboration, data acquisition, and precise control. The following are several typical application cases:

1. Automotive manufacturing industry: Welding and stamping line control

In the automotive welding workshop, the CP-317/217IF module is connected to more than 200 welding sensors, actuators, and frequency converters through an RS-485 interface, collecting real-time key data such as welding current, temperature, and weld position, and transmitting the data to the Yaskawa MP series controller through the Memobus protocol; The controller adjusts welding parameters accurately based on data feedback to achieve closed-loop control of the welding process. After a joint venture car company applied this solution, the virtual welding rate of solder joints decreased from 0.8% to 0.2%, and the overall equipment efficiency (OEE) increased by 18%. In the stamping line, modules achieve synchronous control of the press and robotic arm through high-speed data transmission, ensuring stamping accuracy of 0.1 millimeters and significantly improving production pace.

2. New energy industry: production of lithium battery separators

The bi-directional stretching process of lithium battery separators requires extremely high precision in tension control. The CP-317/217 IF module is connected to a tension sensor through an RS-422 interface and uses a transparent transmission mode to forward real-time tension data to the controller, achieving gradual control of taper tension. After a leading lithium battery company applied this module, the fluctuation of diaphragm thickness decreased from ± 1.5 μ m to ± 0.3 μ m, the A-level product rate increased from 92% to 99.5%, and the annual income increased by over 20 million yuan. Meanwhile, the low-power feature of the module supports 24-hour continuous operation, further reducing production energy consumption.

3. Port logistics industry: remote monitoring of intelligent lifting equipment

At the automated port terminal, the CP-317/217IF module establishes a communication network between the lifting equipment and the central control room. The module is connected to the pressure sensor and angle sensor on the lifting device through the RS-485 interface, and real-time data on the lifting device load, posture, etc. is collected and uploaded to the central control room through the industrial switch; Based on data feedback, the central control room sends adjustment instructions to the hoist actuators through modules to achieve real-time optimization of hoist posture. After the application of this solution at a certain automated terminal in Shanghai Port, the loading and unloading efficiency increased by 25%, and the single ship in port time was shortened by 4 hours, significantly improving the port logistics turnover efficiency.

4. Metal processing industry: Hot rolling and cold rolling control

In the steel rolling workshop (such as Baosteel's 1580mm hot rolling production line), the CP-317/217IF module is linked with magnetic powder brakes and tension sensors, and real-time transmission of strip tension data is achieved through RS-485 interface. The controller realizes closed-loop adjustment of strip tension based on the data. Practical application shows that this solution can reduce the deviation of strip steel from ± 15mm to ± 3mm, directly reduce the scrap rate by 18%, and reduce annual economic losses by 15 million yuan. The anti high temperature and anti electromagnetic interference characteristics of the module ensure stable operation in a rolling environment with high temperature of 70 ℃ and strong electromagnetic interference.


Appearance structure and installation specifications

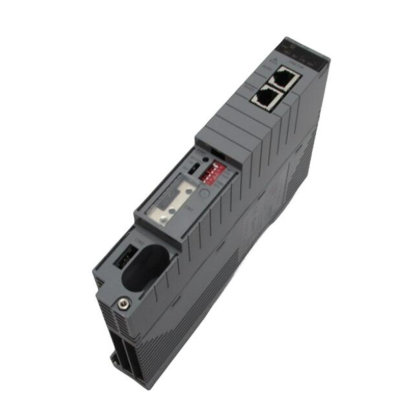

1. Appearance and interface layout

CP-317/217IF adopts a rectangular structure, with a high-strength engineering plastic shell and multiple status indicator lights (power light, communication status light, fault alarm light) on the surface, which can intuitively reflect the operation status of the module (such as whether the power supply is normal, whether the communication is smooth, whether there are faults, etc.), making it easy for operation and maintenance personnel to quickly troubleshoot problems. There is an interface area on the front or side of the module, which clearly distinguishes between RS-232C (D-Sub 9-pin) and RS-422/485 interfaces. The interface is designed with dust-proof protection to reduce dust damage to the interface; The bottom is equipped with guide rail installation slots and fixed screw holes, suitable for two installation methods.

2. Installation environment requirements

To ensure stable operation of the module, the installation environment must meet the following requirements:

-Environmental conditions: Installed in a dry, clean, and ventilated environment, avoiding dust, moisture, corrosive gases, and severe vibrations; The working temperature range is usually -10 ℃~60 ℃, and the relative humidity is ≤ 85% (no condensation); If the ambient temperature exceeds 50 ℃, a forced fan or cooling fan should be equipped, but avoid blowing cold air directly towards the module.

-Anti interference requirements: Keep away from high-voltage equipment, power equipment, and power cables, and the distance from power cables should be greater than 200mm to avoid electromagnetic interference affecting communication stability; If it is not possible to stay away, shielded cables should be used and grounding treatment should be done.

3. Installation and operation specifications

The module supports two standard installation methods, and the installation process must strictly follow the following specifications:

-Guide rail installation: It can be directly installed on a 35mm wide guide rail that complies with DIN46277 standard. During installation, align the card slot at the bottom of the module with the guide rail, press down and slide it to a fixed position to ensure that the module is tightly clamped without any looseness. This method is easy to install and facilitates the disassembly and maintenance of modules in the later stage.

-Screw fixation: Use M3 screws to fix the module to the installation panel through the fixing screw holes at the bottom of the module; If the module has 4 screw holes, it is recommended to use the two holes on the diagonal to secure it firmly and avoid module displacement due to vibration. The torque of screw tightening should be controlled at around 0.5N · m to avoid damaging the module due to over tightening or loosening, which may result in unstable fixation.

-Installation spacing: Sufficient heat dissipation space should be reserved between the module and surrounding equipment or cabinet walls, with a recommended spacing of no less than 20mm. If a dense installation method is used (such as multiple modules arranged continuously), ventilation and heat dissipation should be strengthened to avoid affecting the module life due to high temperature.

4. Wiring specifications

The quality of wiring directly affects the stability and safety of communication, and the following requirements must be followed when wiring:

-Preparation before wiring: All external power sources of the system must be cut off to avoid electric shock or module damage caused by live wiring; Confirm that the module model, interface type, and wiring equipment match, and select cables that meet specifications (such as shielded twisted pair cables recommended for RS-485 communication).

-Cable selection: RS-232C communication uses standard serial cable, with a length not exceeding 15 meters; RS-422/485 communication uses shielded twisted pair cables, with a length not exceeding 1200 meters and a cable cross-sectional area of 0.25~1.65mm ² (single core/multi-core can be used).

-Shielding treatment: The shielding layer of the shielded cable needs to be grounded at one end of the host side to avoid potential difference caused by grounding at both ends, which may lead to the introduction of interference signals; The analog output line and remote RS-485 communication line must use shielded twisted pair cables, and if necessary, a common mode coil can be connected at the front end of the signal receiving equipment to suppress line interference.

-Wiring operation: Use a straight screwdriver with a specification of 0.6 × 3.5mm and a length greater than 130mm for wiring operation, with a terminal spacing of 5.0mm. Peel off the insulation layer of the wire to an appropriate length to ensure that the conductor is fully inserted into the terminal, avoiding the exposed part of the wire from contacting adjacent terminals and causing a short circuit; After the wiring is completed, gently pull the wire to confirm that there is no looseness.

-Fuse setting: The module itself is not equipped with fuses. If additional protection is required, relay fuses can be set according to the specifications of rated voltage 250V and rated current 1A.
