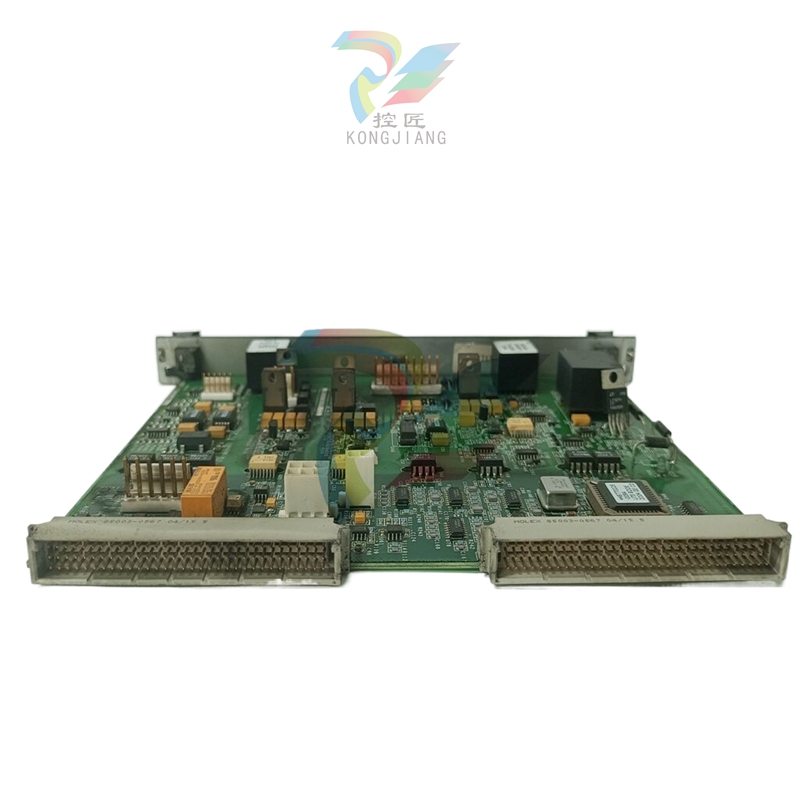

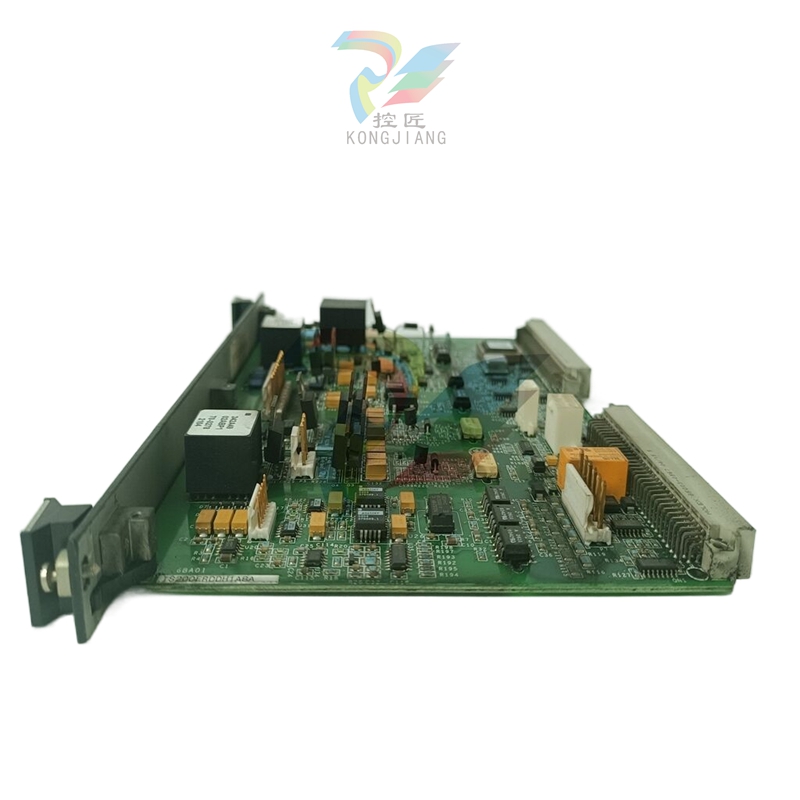

GE IS200ERDDH1ABA Exciter Regulator Dynamics Discharge Board

GE IS200ERDDH1ABA  Exciter Regulator Dynamics Discharge Board

Product Overview

The GE IS200ERDDH1ABA is a specific board or module that is primarily used as an exciter regulator in electric power generation systems. It is equipped with a dynamic discharge function, which can quickly release the energy in the excitation system when necessary to ensure the stability and safety of the power system.

Main features

Excitation system control:

The board can accurately control the excitation system of the generator to ensure that the voltage and excitation current are within the required range, thus maintaining the stability of the power system.

Voltage Adjustment:

It is equipped with the function of monitoring and adjusting the output voltage of the generator to ensure that it is consistent with the voltage of the power network and improve the operating efficiency of the power system.

Frequency Stability:

Helps maintain the generator's output frequency within the required range, ensuring the stability and quality of the power system.

Real-time monitoring:

Usually with real-time monitoring function, it can continuously monitor the generator's parameters such as voltage, current and frequency, so as to discover and deal with abnormal situations in time.

Communication interface:

It supports communication interfaces such as Ethernet and RS-485, which is convenient for data exchange and communication with other control systems to achieve remote monitoring and control.

High reliability:

Designed to consider the stability and reliability in industrial environment, it adopts high-quality electronic components and advanced technology to ensure stable work under various conditions.

Protection function:

Equipped with functions such as overload protection and short-circuit protection, it can cut off the power supply in time under abnormal conditions to prevent equipment damage or personnel injury.

Technical specifications

Model: IS200ERDDH1ABA

Manufacturer: GE

Input Voltage Range: DC 18V~30V (or may vary according to specific application scenarios)

Output Voltage Range: 0~10V DC

Maximum Current Output: 1A

Size: There may be two different size information, one is 10cm×15cm×2cm (or 100mm×150mm×20mm) and the other is 34cm×18cm×10cm (or 340mm×180mm×100mm), which may be due to the differences between versions or different measurement methods.

Weight: Approx. 2KG

Certification: CE and RoHS certified to ensure product safety and environmental protection.

Application Areas

GE IS200ERDDH1ABA Exciter Regulator Dynamic Discharge Board is widely used in various electric power generation systems, especially in scenarios that require precise control of the excitation system. It can improve the stability and security of the power system, reduce the failure rate and extend the service life of the equipment.

• Simulation

• Instrumentation

• Industrial control

• Process control and monitoring

• Factory automation

• Intelligent networked PLC controllers

• Automated test

• Data acquisition

Versatile I/O

• Control of GE Fanuc digital AC servos

• Home and overtravel switch inputs for each servo axis

• Two position capture strobe inputs for each position feedback input

• 5v, 24v and analog I/O for use by the PLC

• Incremental quadrature encoder input for Follower mode master axis

• 13-bit analog output for each auxiliary axis can be controlled by PLC or used as servo tuning monitor
