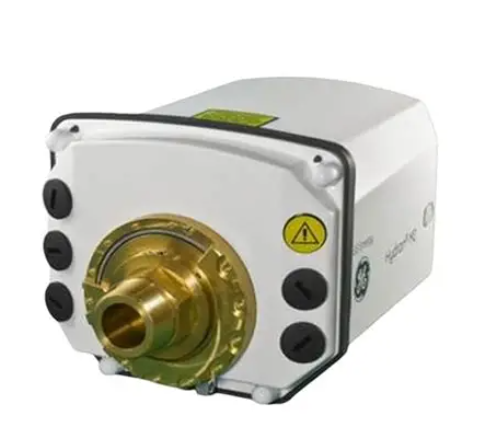

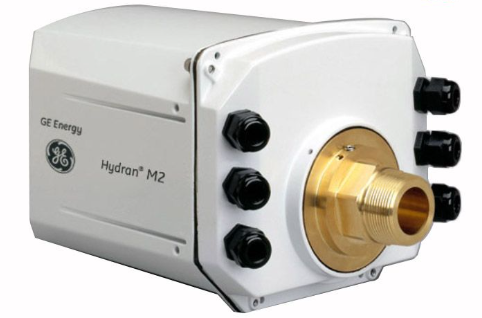

GE Hydran M2-X Transformer Condition Monitoring Device

Core positioning and product features

1.1 Core Value Positioning

The insulation system of transformers will undergo chemical degradation under pressure such as overload and aging, producing hydrocarbon gases and water that dissolve in the insulation oil. These substances are important warning signals for equipment failure. The core mission of Hydran M2-X is to achieve early detection and intervention of faults through continuous monitoring of these key parameters. Its essence is an intelligent asset protection device that integrates "monitoring analysis warning auxiliary decision-making", providing reliable data support for transformer asset performance management (APM).

1.2 Basic Product Information

brand ownership

GE Vernova(GE Grid Solutions)

Place of Origin

United States, imported equipment

warranty policy

7-year product warranty, sensor lifespan exceeding 10 years (accelerated aging test shows MTTF of 11.5 years)

Hazardous environment version

M2-X-HZ model, UL certified, suitable for Class I, Zone 2 hazardous locations

Safety Certification

CE, UL, ATEX and other international certifications, in compliance with relevant IEC standards

Core monitoring functions and technical parameters

2.1 Monitoring Parameters and Sensor Configuration

The Hydran M2-X offers a flexible sensor configuration solution, allowing for the selection of different types of sensing modules based on monitoring needs. Additionally, it is equipped with dedicated sensors for monitoring water content in oil. The specific configuration is as follows:

-Gas monitoring options: Firstly, traditional composite gas sensors can monitor four key fault characteristic gases: H ₂ (hydrogen), CO (carbon monoxide), C ₂ H ₂ (acetylene), and C ₂ H ₄ (ethylene); The second is a discrete hydrogen gas sensor that only monitors H ₂ (applicable to mineral oil transformers).

-Moisture monitoring: By using a thin-film capacitive humidity sensor, the moisture content in the oil is directly measured. The data is displayed in units of% RH (relative humidity) and ppm (parts per million concentration), which can accurately identify insulation paper degradation and gasket leakage issues.

-Extended parameters: By connecting external sensors, it is possible to expand the monitoring of parameters such as top oil temperature and load current. Combined with mathematical models based on IEEE standards, it is also possible to calculate derived indicators such as winding hot spot temperature, deepening equipment status diagnosis.

2.2 Key Technical Parameters

parameter category

specific indicators

measurement range

Hydrogen: 0-2000ppm; Moisture: 0-100% RH; Temperature: -20 ℃ to 120 ℃ (measured), -40 ℃ to 60 ℃ (working environment)

Power demand

90-264V AC,47-63Hz; Or 110-240V AC (different configurations)

communication interface

Supports multiple protocols such as Ethernet, PROFIBUS, CANopen, RS485, Modbus, etc

physical dimensions

The standard configuration is about 120mm x 80mm x 25mm, weighing 0.5kg; some models are 280mm x 160mm x 140mm, weighing 3.2kg (due to configuration differences)

Oil compatibility

Standard mineral insulating oil, natural ester based oil, synthetic ester based oil

Core advantages and competitiveness

3.1 Low maintenance and high reliability design

The device adopts an integrated design without moving parts, which reduces the number of failure points structurally. Combined with long-life sensor technology, it significantly reduces operation and maintenance costs. Its ASIC chip integrated design enhances stability in extreme temperature environments, allowing it to operate normally even in low temperatures of -40 ℃ or high temperatures of 60 ℃, meeting the requirements of harsh industrial scenarios.

3.2 Flexible deployment and convenient installation

The compact design allows it to be directly installed on existing single valves of transformers without the need for large-scale equipment modifications, and usually can be installed without power outages, greatly reducing the impact of deployment on production. The installation method supports horizontal DIN rails or dedicated brackets for fixation, suitable for different on-site environments.

3.3 Powerful Functionality Scalability

The Hydran M2-X has a flexible architecture of "basic monitoring+on-demand expansion": on-site upgrades can increase analog signal input channels and connect to more types of sensors; Support integration with GE Kelman multi gas DGA equipment and Multilin 845 protection control relays to achieve synchronous analysis of chemical monitoring and electrical measurement data, improving diagnostic accuracy.

3.4 Intelligent data integration capability

The device can seamlessly integrate into the GE digital ecosystem, including Perception ™ Transformer fleet management software Predix ™ Industrial Internet platform and various SCADA systems support remote data transmission, historical trend analysis and fleet level (cluster level) status assessment. The built-in 128 × 64 pixel backlit LCD display screen and operation keyboard facilitate on-site personnel to directly view data and configure equipment.


Application scenarios and scope of application

Hydran M2-X is designed specifically for various types of medium and large transformers, with application scenarios covering the entire power system chain and key equipment in the industrial field, including:

1. In the field of public utilities, core equipment such as transmission transformers, distribution transformers, and substation main transformers provide guarantees for the safe and stable operation of the power grid.

2. Industrial field: Industrial transformers in industries such as petrochemicals, metallurgy, and manufacturing are particularly suitable for scenarios that require high equipment reliability in continuous production processes.

3. Special environmental requirements: With the M2-X-HZ hazardous environment version, it can be deployed in Class I, Zone 2 hazardous areas with flammable gas and steam risks, such as transformers in oil fields and chemical parks.

4. Upgrade of old equipment: Provide modern monitoring solutions for old transformers using mineral oil or new ester based oil, and upgrade the status monitoring capability without replacing the main equipment.


Installation and operation precautions

1. Installation and maintenance must be carried out by qualified professionals to avoid equipment damage or personal safety risks caused by improper operation;

Before conducting internal operations on the equipment, it is necessary to notify the substation or on-site operator in advance to prevent false alarms from being triggered due to parameter changes, system restarts, etc;

When installing in hazardous environments, the M2-X-HZ model must be selected and the explosion-proof installation specifications must be strictly followed;

4. Regularly check the communication link and sensor status to ensure stable data transmission. The device firmware can be upgraded on-site or remotely to obtain new features.
