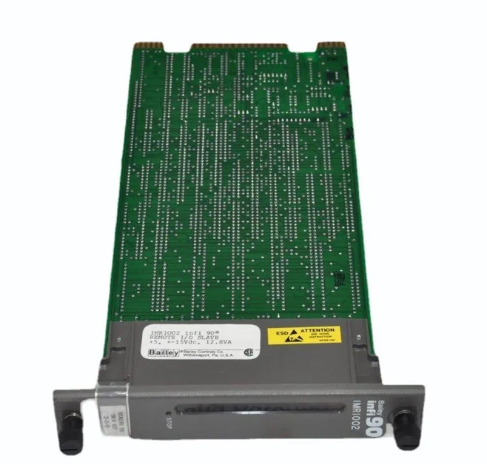

  • ABB IMRIO02 Remote Input/Output Module
    ❤ Add to collection
  • ABB IMRIO02 Remote Input/Output Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    The ABB IMRIO02 Remote I/O module is a core peripheral device in ABB's automation control system, designed specifically for distributed signal acquisition and control requirements in industrial sites. Its core function is to break the physical binding limitations between traditional I/O modules and controllers, achieve remote data exchange with the main controller through industrial communication networks, effectively solve problems such as scattered distribution of industrial field equipment, complex wiring, and signal transmission attenuation, and provide flexible and efficient signal processing solutions for automation systems.

    • ¥6648.00
      ¥6068.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.570KG
    • Quantity:
    • (Inventory: 99999)
Description

The ABB IMRIO02 Remote I/O module is a core peripheral device in ABB's automation control system, designed specifically for distributed signal acquisition and control requirements in industrial sites. Its core function is to break the physical binding limitations between traditional I/O modules and controllers, achieve remote data exchange with the main controller through industrial communication networks, effectively solve problems such as scattered distribution of industrial field equipment, complex wiring, and signal transmission attenuation, and provide flexible and efficient signal processing solutions for automation systems.




ABB IMRIO02 Remote Input/Output Module

Module Overview

The ABB IMRIO02 Remote I/O module is a core peripheral device in ABB's automation control system, designed specifically for distributed signal acquisition and control requirements in industrial sites. Its core function is to break the physical binding limitations between traditional I/O modules and controllers, achieve remote data exchange with the main controller through industrial communication networks, effectively solve problems such as scattered distribution of industrial field equipment, complex wiring, and signal transmission attenuation, and provide flexible and efficient signal processing solutions for automation systems.

This module has high reliability, strong anti-interference ability, and convenient configuration characteristics, and is widely compatible with ABB AC500 series PLC and other mainstream industrial control systems. It can seamlessly integrate into various industrial scenarios such as discrete manufacturing and process control, providing stable hardware support for equipment status monitoring, process parameter acquisition, and execution mechanism control.


Core functions and advantages

2.1 Multi type signal processing capability

The IMRIO02 module integrates rich I/O channel resources and can simultaneously process digital and analog signals, meeting the diverse signal acquisition and control needs of industrial sites

-Digital Input (DI): Supports the connection of dry contacts and PNP/NPN sensor signals, with photoelectric isolation protection function, which can effectively suppress on-site electromagnetic interference and ensure accurate acquisition of switch signals (such as equipment start stop status, limit switch signals, etc.).

-Digital Output (DO): It can drive actuators such as relays, solenoid valves, indicator lights, etc. The output types include transistors, relays, etc., meeting the requirements of different load characteristics and achieving precise control of on-site equipment.

-Analog Input (AI): Compatible with industrial standard analog signals such as 4-20mA current signal and 0-10V voltage signal, it can collect continuously changing process parameters such as temperature, pressure, flow rate, liquid level, etc., with high accuracy and good linearity, providing reliable data for process control.

-Analog output (AO): capable of outputting 4-20mA/0-10V standard signals, used to control the operating parameters of regulating valves, frequency converters, and other equipment, achieving closed-loop control of the process.

2.2 Flexible Remote Communication Capability

The module is equipped with high-performance industrial communication interfaces and supports mainstream industrial Ethernet protocols such as PROFINET, EtherNet/IP, Modbus TCP, etc. Communication parameters can be flexibly configured according to system requirements

-The communication speed can reach up to 100Mbps, with low data transmission delay, ensuring real-time interaction between control instructions and on-site data, meeting the needs of high-speed automated production lines.

-Supporting various network topologies such as star and bus, it can achieve multi module networking expansion, cover dispersed industrial equipment to the maximum extent, and reduce wiring costs and difficulties.

-Equipped with communication fault diagnosis function, it can promptly provide status information to the main controller when the network is interrupted or communication is abnormal, facilitating the system to quickly locate the fault.

2.3 High reliability and industrial grade protection

In response to the harsh operating environment of industrial sites, the IMRIO02 module has strengthened its reliability and protective performance in hardware design:

-Adopting a wide voltage power supply design (usually supporting 24V DC ± 20%), it adapts to the unstable power environment of industrial sites and has overvoltage, overcurrent, and short-circuit protection functions to avoid damage to the module caused by abnormal power supply.

-The module casing is made of flame-retardant and impact resistant materials, with a protection level of IP20 (for cabinet installation) or higher (some derivative models support IP67), which can resist the influence of harsh factors such as dust, moisture, and vibration.

-The internal circuit adopts technologies such as optoelectronic isolation and surge suppression, with an isolation voltage of up to 2500V AC, effectively resisting on-site electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring stable operation of the module in strong interference environments (such as motor groups and frequency converters).

2.4 Convenient Configuration and Maintenance

The module supports parameter configuration through specialized configuration software such as ABB Automation Builder, which is intuitive and convenient to operate

-The visual interface can quickly complete operations such as defining I/O channel types, configuring communication parameters, and setting fault thresholds. It supports batch import/export of parameters to improve configuration efficiency.

-The module is equipped with LED status indicator lights, which can display the real-time operation status of power, communication, and I/O channels, making it easy for on-site personnel to quickly judge the working status of the module.

-Support online diagnosis and maintenance functions, which can remotely read operating parameters such as module internal temperature and power supply voltage, as well as I/O channel fault information through configuration software, reducing on-site inspection workload.


Key technical parameters

power supply

input voltage

24V DC(19.2V DC - 28.8V DC)

Digital input

number of channels

Usually 8/16 channels (depending on the model)

input type

PNP/NPN optional, dry contact support

digital output

number of channels

Usually 8/16 channels (depending on the model)

output type

Transistor (maximum current 2A/channel), relay (maximum current 5A/channel)

Analog input

number of channels

Usually 4/8 channels (depending on the model)

input range

4-20mA (two-wire/four wire system), 0-10V, accuracy ± 0.1%

Analog output

number of channels

Usually 4/8 channels (depending on the model)

output range

4-20mA (load ≤ 500 Ω), 0-10V (load ≥ 1k Ω), accuracy ± 0.1%

communication interface

interface type

RJ45 Ethernet interface

Supported Protocols

PROFINET、EtherNet/IP、Modbus TCP

environmental parameters

Operating Temperature

-20 ℃ -60 ℃ (wide temperature models support -40 ℃ -70 ℃)

Protection level

Shell protection

IP20 (in cabinet), IP67 (outdoor/on-site installation, specific models)


Applicable scenarios

The IMRIO02 module, with its flexible remote communication capability and stable signal processing performance, is widely used in various industrial automation fields, with typical scenarios including:

1. Discrete manufacturing industry: In the production of automotive parts and mechanical processing lines, it is used to collect the operating status of equipment (such as motor start stop, tool wear signals) in a dispersed manner, and remotely control the execution mechanisms such as conveyor belts and robotic arms to achieve centralized monitoring and decentralized control of the production line.

2. Process control field: In industries such as chemical, petroleum, and water treatment, it is used to remotely collect process parameters such as reactor temperature, pipeline pressure, and medium flow rate. Through analog output, it controls the opening of regulating valves and pump speed to ensure stable production processes.

3. Power system: In substations and new energy power stations, it is used to collect switch cabinet status, current and voltage signals, remotely control circuit breakers, indicator lights and other equipment, and achieve unmanned monitoring of power equipment.

4. Intelligent warehousing and logistics: In three-dimensional warehouses and logistics sorting systems, it is used to collect shelf position signals and cargo detection signals, control the operation of stacker cranes and sorting robots, and improve the automation level of logistics systems.


Precautions for use

-Installation specifications: The module should be installed in a well ventilated location away from heat sources (such as frequency converters, heaters) and strong electromagnetic interference sources. Sufficient heat dissipation space should be reserved when installing inside the cabinet (it is recommended to have a vertical spacing of ≥ 5cm); Outdoor installation requires selecting models with a protection level of IP67 or higher, and taking waterproof and dustproof measures.

-Wiring requirements: Power wiring must strictly distinguish between positive and negative poles to avoid module damage caused by reverse connection; I/O signal cables should be wired separately from power cables (with a spacing of ≥ 30cm), and it is recommended to use shielded twisted pair cables for analog cables, with a single end grounding of the shielding layer to reduce signal interference.

-Configuration: During configuration, it is necessary to ensure that the communication protocol is consistent with the main controller, and that parameters such as IP address and subnet mask are set to avoid conflicts with other devices in the network; The type of I/O channel should be accurately configured based on the characteristics of the access signal to avoid acquisition errors or device damage caused by signal mismatch.

-Fault handling: If there is a communication failure in the module, first check the network cable connection and communication parameter configuration; If the I/O channel signal is abnormal, channel self-test can be performed through configuration software, or sensors/actuators can be replaced to troubleshoot the fault point; When the module fails, it needs to be replaced after power off to avoid live operation.
