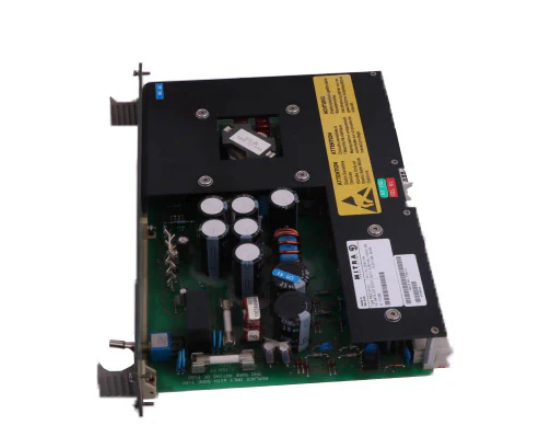

ABB KUC321AE HIEE300698R1 power module



ABB KUC321AE HIEE300698R1 power module

Core positioning and advantages of the product

KUC321AE HIEE300698R1 serves as the "power center" of the PLC system, with its core function being to convert the AC input power of the industrial site into the standard DC power required by the PLC and peripheral modules, and ensure the stability and continuity of the output voltage. Industrial power grids often face problems such as voltage fluctuations, instantaneous shocks, and harmonic interference. Ordinary power modules are prone to output instability or even shutdown, leading to PLC system failures. This power module, through its built-in high-efficiency conversion circuit, filtering unit, and redundant protection mechanism, can not only achieve stable conversion of wide range AC inputs, but also resist grid interference and load changes, providing "uninterrupted" high-quality power supply for PLC control systems, ensuring the continuity and reliability of system operation.

Compared to conventional industrial power modules, the core advantages of KUC321AE are concentrated in four aspects: first, wide input range and efficient conversion, supporting multiple voltage levels of AC input, with a conversion efficiency of over 90%, reducing energy loss; The second is high stability output, with output voltage accuracy controlled within ± 1%, effectively avoiding damage to PLC electronic components caused by voltage fluctuations; The third is a comprehensive protection mechanism that integrates multiple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit. It quickly responds to abnormal working conditions and protects the module itself and load equipment; The fourth is industrial grade environmental adaptability, using industrial grade components that are resistant to high and low temperatures and vibrations, adapting to a wide temperature working environment of -10 ℃~60 ℃, and meeting the requirements of complex industrial scenarios.

Core Function Analysis

1. Wide range AC input and stable DC output

This module supports wide range AC input and can adapt to single-phase input voltages of 100-240V AC without the need to manually switch voltage levels. It can adapt to the voltage requirements of different regions and scenarios of the power grid, reducing the difficulty of module selection and deployment. Through the built-in switch power conversion circuit, the AC input is efficiently converted into a standard DC output of 24V DC, and the output current can meet the power supply requirements of multiple modules in parallel. At the same time, the module adopts high-precision voltage stabilization technology, combined with PID feedback regulation mechanism, which can ensure that the output voltage is stable within the range of 24V DC ± 1% even in the case of input voltage fluctuations of ± 15% or load changes, providing stable working power for the CPU module, signal processing module, I/O module, etc. of the PLC, avoiding system data loss or logical misjudgment caused by voltage fluctuations.

2. Multiple safety protections and fault warnings

To cope with various power supply risks in industrial sites, KUC321AE integrates comprehensive protection functions and forms a "multiple protection network". One is overcurrent protection. When the output load current exceeds the rated value, the module will automatically limit the output current to avoid module burnout caused by load short circuit or overload; The second is overvoltage protection. If the output voltage exceeds the threshold (usually 28V DC) due to abnormal conditions, the module will quickly cut off the output to protect the electronic circuits of load devices such as PLC; The third is over temperature protection. When the internal temperature of the module exceeds 65 ℃, the cooling fan will automatically accelerate. If the temperature continues to rise to 75 ℃, the module will activate thermal protection and shut down to prevent component damage due to high temperature; The fourth is short-circuit protection. When a direct short circuit occurs at the output terminal, the module will instantly trigger the short-circuit protection mechanism, cut off the output circuit, and automatically resume operation after the fault is eliminated. In addition, the module provides real-time feedback on the working status (normal, fault, overload) through LED indicator lights, making it easy for operation and maintenance personnel to quickly identify the type of fault.

3. Efficient heat dissipation and low-energy design

The module adopts an efficient switching power supply topology structure, with a conversion efficiency of up to 92%, significantly reducing energy loss and lowering electricity costs in industrial production. In terms of heat dissipation design, the module adopts a composite heat dissipation method of "natural heat dissipation+intelligent fan heat dissipation": when the module load rate is below 50% and the internal temperature is below 45 ℃, the fan is in a dormant state to reduce noise and energy consumption; When the load rate increases or the temperature exceeds 45 ℃, the fan automatically starts and adjusts the speed according to the temperature to ensure that the internal components of the module always work within the safe temperature range. Meanwhile, the module casing adopts a hollow heat dissipation structure to enhance air circulation efficiency and further improve heat dissipation performance.

4. Flexible expansion and convenient integration

KUC321AE adopts a standardized DIN rail installation design, which can be installed together with other modules of ABB PLC (such as signal processing module, I/O module) in the standard control cabinet, saving installation space. The module supports multiple parallel operations, and through parallel current sharing technology, the output power can be stacked to meet the high-power power supply requirements of large PLC systems. In addition, the wiring terminals of the module are designed to prevent accidental insertion. The input and output terminals are clearly distinguished and equipped with fastening screws, effectively avoiding poor contact or power interruption caused by loose wiring, and improving the convenience of installation and maintenance.

Key technical parameters

input parameters

input voltage

100~240V AC (single-phase), 50/60Hz (wideband adaptive)

input current

Maximum 8A (100V AC input), maximum 4A (240V AC input)

output parameters

output voltage

24V DC， Accuracy ± 1%

Rated output current

20A (single module), supports parallel expansion of multiple modules

Ripple and Noise

≤ 50mVpp (within 20MHz bandwidth)

protection function

Protection type

Overcurrent, overvoltage, overtemperature, short circuit protection, automatic fault recovery

Efficiency and power consumption

conversion efficiency

≥ 90% at full load and ≥ 92% under typical operating conditions

environmental parameters

Working temperature/humidity

-10 ℃~60 ℃/10%~95% RH (no condensation)

mechanical parameters

Dimensions (length x width x height)/Installation method

150mm × 100mm × 120mm/standard 35mm DIN rail installation

Display and indication

LED indicator light

Power indicator light (green, constant light indicates normal input), operation indicator light (green, constant light indicates normal output), fault indicator light (red, constant light indicates module fault)

Typical application scenarios

1. Power supply for large-scale PLC control systems

In large-scale PLC control systems in industries such as metallurgy and chemical engineering, it is usually necessary to supply power to multiple devices simultaneously, including CPU modules, signal processing modules (such as PFVK135), I/O modules, communication modules, etc., with a high total power demand. KUC321AE can provide a stable 24V DC power supply for the whole PLC system through multiple parallel connection. Its wide input range can adapt to the fluctuations of the internal power grid of the factory. Multiple protection functions can avoid the power failure of the whole system due to a module failure, and ensure the continuous operation of the production process.

2. Power supply for intelligent manufacturing production lines

In intelligent manufacturing production lines such as automobile manufacturing and electronic component assembly, PLC systems require real-time control of robots, conveyor belts, detection equipment, etc., with extremely high requirements for power supply continuity and stability. As the core power supply module, KUC321AE can provide precise power supply for the control circuits of PLC systems and related actuators. Its low ripple output characteristics can avoid the interference of voltage noise on detection equipment and sensor signals, ensuring the automation control accuracy and production efficiency of the production line.

3. Power supply for automation equipment in the power system

In substations and distribution automation systems, PLC equipment needs to operate stably for a long time to achieve functions such as power parameter monitoring and switch control. The wide temperature working characteristics and high reliability of KUC321AE can adapt to the harsh environment of outdoor control cabinets in substations. Its overvoltage and overcurrent protection functions can resist instantaneous voltage surges in the power system, providing safe and stable power supply for PLC equipment and ensuring the reliability of power system automation control.

4. Power supply for chemical process control

In the chemical production process, PLC systems need to control equipment such as reaction vessels, valves, pumps, etc., and there are harsh conditions such as high temperature and dust on site. KUC321AE adopts industrial grade protection design, which can work stably in complex environments. Its efficient heat dissipation function can avoid module failures caused by high temperatures. At the same time, multiple protection mechanisms can prevent power supply abnormalities caused by sudden load changes in chemical equipment, ensuring the safety and stability of chemical production processes.

Precautions for use

-Installation specifications: The module should be installed in a well ventilated, dust-free, and non corrosive gas control cabinet, away from high-power heating equipment (such as frequency converters); When installing DIN rails, it is necessary to ensure that the module is firmly fixed to avoid loose wiring caused by vibration; When installing multiple modules in parallel, at least 10cm of heat dissipation space should be reserved between modules to prevent heat accumulation.

-Wiring requirements: The input power cord should use copper core cables that meet the current carrying capacity requirements (recommended ≥ 2.5mm ²), and be equipped with an air switch (rated current 10A) as input protection; The appropriate wire diameter for the output power line should be selected based on the total load current to avoid voltage drop caused by line loss; The input neutral wire (N) and live wire (L) cannot be reversed, and the positive and negative poles (+24V, 0V) of the output must correspond to the load. Reversing is strictly prohibited, otherwise it may burn out the module and load equipment.

-Grounding requirements: The grounding terminal of the module must be reliably grounded with a grounding resistance of ≤ 4 Ω to enhance anti-interference ability and ensure safety; The protective grounding and signal grounding inside the control cabinet should be set separately to avoid interference from the grounding loop.

-Operation monitoring and maintenance: Regularly observe the status of the module LED indicator light. If the fault indicator light (red) is constantly on, it is necessary to promptly investigate the input voltage and load situation; Regularly check the tightness and corrosion of the wiring terminals, and immediately deal with any looseness or oxidation found; If there is abnormal heating during the operation of the module (shell temperature exceeding 70 ℃), the machine should be stopped to check whether the cooling fan and load are normal.

-Fault handling: If the module has no output, first check whether the input power supply is normal and whether the air switch trips; If the output voltage is abnormal, check whether the load is overloaded or short circuited; If the fault indicator light is on and cannot be restored by itself, ABB professional technicians should be contacted for maintenance to avoid disassembling the module on their own.
