  • FUJI NP1Y32T09P1 high-speed output module
    ❤ Add to collection

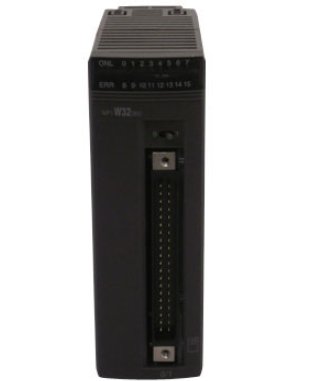

  • FUJI NP1Y32T09P1 high-speed output module

    NP1Y32T09P1 is a high-speed transistor output module launched by Fuji for industrial automation control needs, belonging to the expansion module category of Fuji NP1 series PLC. The main function of this module is to receive control instructions from the PLC host and convert them into high-speed and stable electrical signals for output, driving external execution components (such as servo motors, stepper motors, solenoid valves, indicator lights, etc.) to operate. Its core advantage lies in breaking through the response speed limit of ordinary output modules, achieving microsecond level output switching, and possessing multi-channel independent control capability, which can meet the precise control requirements under complex working conditions.

    • ¥8734.00
      ¥9045.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.580KG
    • Quantity:
    • (Inventory: 99999)
Description

NP1Y32T09P1 is a high-speed transistor output module launched by Fuji for industrial automation control needs, belonging to the expansion module category of Fuji NP1 series PLC. The main function of this module is to receive control instructions from the PLC host and convert them into high-speed and stable electrical signals for output, driving external execution components (such as servo motors, stepper motors, solenoid valves, indicator lights, etc.) to operate. Its core advantage lies in breaking through the response speed limit of ordinary output modules, achieving microsecond level output switching, and possessing multi-channel independent control capability, which can meet the precise control requirements under complex working conditions.




FUJI NP1Y32T09P1 high-speed output module

Basic overview of module

NP1Y32T09P1 is a high-speed transistor output module launched by Fuji for industrial automation control needs, belonging to the expansion module category of Fuji NP1 series PLC. The main function of this module is to receive control instructions from the PLC host and convert them into high-speed and stable electrical signals for output, driving external execution components (such as servo motors, stepper motors, solenoid valves, indicator lights, etc.) to operate. Its core advantage lies in breaking through the response speed limit of ordinary output modules, achieving microsecond level output switching, and possessing multi-channel independent control capability, which can meet the precise control requirements under complex working conditions.

This module adopts a standardized structural design and seamlessly connects with the Fuji NP1 series PLC host through a dedicated bus interface, without the need for complex wiring configurations, greatly simplifying the system integration process. At the same time, the module has a complete self diagnostic function, which can monitor the status of the output channel and the operation of the module in real time, making it easy for engineering personnel to quickly locate faults and improve system maintenance efficiency.


Core technical characteristics

1. High speed output performance, precise and rapid response

The most prominent feature of NP1Y32T09P1 is its high-speed output capability, with a single output channel response time as low as microseconds, far superior to ordinary transistor output modules. This feature enables the module to accurately capture high-frequency control instructions from the PLC host, effectively avoiding control errors caused by output delays. It is particularly suitable for control scenarios that require high-speed start stop and precise positioning, such as electronic component mounting equipment, high-speed sorting robots, etc.

The module supports pulse output function, and some channels can achieve high-frequency pulse signal output. The pulse frequency range covers tens of Hz to tens of kHz (specific parameters need to refer to the official manual), which can be directly used to drive the position control of stepper motors or servo motors, reducing the use of dedicated pulse generators and lowering system costs.

2. Multi channel independent control, flexible adaptation

The module is equipped with 32 independent transistor output channels, each of which can independently receive control instructions and perform output actions, with low interference between channels and high control accuracy. The channel output form supports normally open contact output, and the load type can be flexibly configured according to actual needs to adapt to DC loads (such as DC24V solenoid valves, servo drive control terminals, etc.).

The load capacity of the output channel has been optimized, and a single channel can withstand a certain range of rated current (usually 0.5A-1A, subject to official parameters), supporting applications where multiple channels are connected in parallel to drive larger loads. At the same time, it has overcurrent protection function. When the load current exceeds the rated value, the module can quickly cut off the output, protecting the module and load equipment from damage.

3. High reliability design, suitable for harsh working conditions

In response to the complex environment of industrial sites, NP1Y32T09P1 adopts high reliability hardware design and protective measures. The module is equipped with a surge absorption circuit, which can effectively suppress the impact of surge voltage generated by external circuits on the internal components of the module; At the same time, it has the ability to resist electromagnetic interference, meets industrial grade EMC standards, and can operate stably in strong electromagnetic interference environments, avoiding output misoperation caused by signal interference.

The outer shell of the module is made of flame-retardant materials, which have good heat dissipation performance and a wide working temperature range (usually -10 ℃~55 ℃). It can adapt to harsh industrial environments such as high and low temperatures, humidity, and dust, improving the applicability and stability of the system in different scenarios.

4. Convenient diagnostic and maintenance functions

The module integrates comprehensive self diagnostic functions, and through communication with the PLC host, the operating status of the module (such as whether the channel is outputting normally, whether there is overcurrent fault, whether the power supply is stable, etc.) can be fed back to the host control system in real time. Engineering and technical personnel can view diagnostic information through PLC programming software (such as Fuji WINNP1), quickly locate fault channels and types, greatly reducing fault troubleshooting time.

In addition, the module surface is equipped with status indicator lights for each channel, which can intuitively judge the working condition of the channel through the on/off status of the indicator lights, facilitating quick inspection and preliminary fault diagnosis by on-site personnel.


Key technical parameters

Module Model

NP1Y32T09P1

Number of output channels

32 channels

output type

NPN transistor output (normally open)

Rated output voltage

DC24V (typical value)

Rated current of a single channel

0.5A (continuous), 1A (instantaneous)

Output response time

≤ 10 μ s (on), ≤ 50 μ s (off)

Pulse output frequency

0.1Hz~100kHz (partial channels)

Working temperature range

-10℃~55℃

Working humidity range

35%~85% RH (no condensation)

Protection level

IP20 (module front)

Connection method with the host

NP1 series dedicated bus interface

Dimensions (W × H × D)

Approximately 90mm × 110mm × 120mm (subject to actual product)


Typical application scenarios

1. High speed automated production line

In high-speed automated production lines such as electronic component assembly and food packaging, equipment needs to quickly grasp, locate, process, and transport a large number of workpieces, requiring extremely high response speed of the executing components. The NP1Y32T09P1 module can accurately control the start and stop of components such as conveyor belt motors and robotic arm drive solenoid valves through high-speed output signals, ensuring smooth connection between various processes and improving the overall operating efficiency and product qualification rate of the production line.

2. Precision motion control field

In scenarios that require precise motion control such as CNC machine tools, laser cutting equipment, and printing equipment, the high-frequency pulse output function of the module can directly provide control signals for servo motors or stepper motors, achieving precise speed adjustment and position positioning of the motor. Its microsecond level response speed can effectively reduce hysteresis errors in motion control, improve the machining accuracy and control stability of the equipment.

3. Logistics sorting and warehousing system

In systems such as express sorting centers and automated warehouses, it is necessary to quickly identify, classify, and transport a large amount of goods. The sorting mechanism and conveying equipment have high operating frequency and strong coordination requirements. The NP1Y32T09P1 module can simultaneously control the actions of multiple sorting solenoid valves and conveyor line motors, ensuring accurate sorting and transportation of goods at designated locations through high-speed output signals, and improving the sorting efficiency and reliability of the logistics system.

4. Intelligent instruments and detection equipment

In industrial testing equipment (such as product size inspection and quality inspection equipment), it is necessary to quickly control the execution of component actions (such as the mechanism for removing non-conforming products) based on the signals from the detection sensors. The high-speed response characteristic of the module ensures that the removal mechanism is immediately activated upon detecting abnormal signals, preventing unqualified products from flowing into the next process and improving the reliability and accuracy of the detection equipment.
