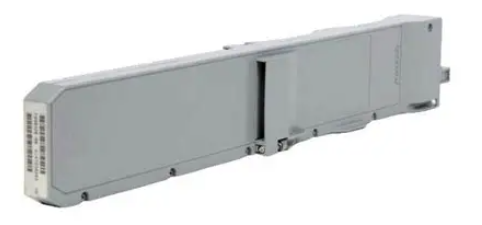

FOXBORO P0903ZE I/A series fieldbus isolation module

FOXBORO P0903ZE I/A series fieldbus isolation module

Product Overview

FOXBORO P0903ZE is a high-performance fieldbus isolation module developed by FOXBORO specifically for industrial automation communication scenarios. It is a core communication component of the classic I/A series control system. This module is positioned with "isolation protection+stable transmission" as its core, specifically addressing interference suppression, signal attenuation, and system reliability issues in industrial fieldbus communication. It is a key communication node that connects decentralized devices with upper level control systems.

It achieves high-speed and long-distance transmission of Profibus DP bus signals through electrical isolation, fiber optic transmission, and redundancy design technologies, while effectively blocking ground interference and voltage fluctuations between different devices. It is widely adaptable to various complex industrial environments and provides underlying communication support for the stable operation of automation systems.

Specification parameters

Basic Information

Model

P0903ZE/FOXBORO I/A series fieldbus isolation module

Power Characteristics

Working voltage/isolation

DC 9-36V wide input, with DC1500V power isolation and reverse protection function

communication interface

fiber optic interface

1-2 155M dual optical interfaces, supporting transmission distances of over 20km, compatible with single-mode/multi-mode optical fibers

communication interface

Electrical interface

1-2 Profibus DP ports, supporting bus arbitration function

Communication performance

communication rate

Supports Profibus DP standard communication rate and has rate adaptive capability

protective performance

Electrical interface protection

4000V lightning protection, 1.5A overcurrent, 600W surge protection, effectively resisting industrial interference

environmental adaptability

Protection level/working temperature

IP30 protection level, suitable for industrial environments ranging from -10 ℃ to 60 ℃, resistant to dust and vibration

Installation and Instructions

Installation method/indicator light

35mm standard guide rail installation; 6 dual color LEDs, indicating power supply, fiber optic link, and fault status

Performance characteristics

P0903ZE, relying on FOXBORO industrial communication technology, has demonstrated significant advantages in isolation protection, transmission stability, and other aspects. Its core features include:

1. Dual isolation and interference suppression: Adopting a power signal dual isolation design, DC1500V power isolation blocks ground loop interference, and bus signal electrical isolation avoids communication failures caused by voltage differences between devices. Combined with the electromagnetic interference free characteristics of fiber optic transmission, it ensures signal transmission integrity under complex working conditions.

2. High speed and long-distance transmission capability: The 155M high-speed fiber optic interface supports reliable transmission of burst data, breaking through the limitations of traditional electrical signal transmission over a transmission distance of over 20km, solving the communication problem of cross regional equipment in large factories, and compatible with the Profibus DP standard protocol, adapting to existing bus systems.

3. Fully redundant and highly reliable design: Supports redundant dual network fiber ring network topology, combined with dual power supply redundant input design. When the main link or main power supply fails, it can automatically switch to the backup link/power supply with a switching time of ≤ 10ms, ensuring uninterrupted operation of the communication system.

4. Comprehensive alarm and protection mechanism: Built in relay alarm output function, combined with 6 dual color LED status indicators, can provide real-time feedback on power failures, fiber link interruptions, bus abnormalities, and other states; The multiple protection design of the electrical interface reduces the risk of equipment damage caused by extreme situations such as lightning strikes and surges.

5. Industrial grade durability and convenience: The chassis is reinforced with wavy aluminum, and the IP30 protection level is suitable for dusty and humid industrial environments; The standardized guide rail installation design simplifies the deployment process, supports hot plugging operations (in accordance with specifications), and facilitates system maintenance and upgrades.

Working principle

FOXBORO P0903ZE, as the "isolation transmission hub" of fieldbus, operates around the core process of "signal conversion isolation protection transmission relay status monitoring", which is divided into five key steps:

1. Signal access stage: The module is connected to the bus signals of field devices (such as sensors and actuators) through the Profibus DP electrical port, or to the remote fiber link signals through the fiber optic interface, achieving bidirectional access capability between electrical and optical signals.

2. Isolation conversion stage: After the electrical signal is connected, it first passes through the signal isolation unit and achieves electrical isolation through optoelectronic coupling technology to block external interference signals; Subsequently, the signal conversion unit converts the electrical signal into an optical signal (or vice versa), completing the electrical optical/optical electrical conversion and preparing for long-distance transmission.

3. Transmission relay stage: The converted optical signal is transmitted through a 155M high-speed fiber optic interface, and the module's built-in signal amplification circuit performs gain processing on the attenuated optical signal to ensure stable signal amplitude within a distance of 20km; At the same time, the bus arbitration unit determines the priority of dual bus signals to ensure the orderly switching of redundant links.

4. State monitoring stage: The monitoring unit collects real-time parameters such as power supply voltage, fiber link optical power, bus communication rate, etc., compares them with preset thresholds, and immediately triggers an alarm mechanism when detecting low optical power (<-25dBm), abnormal power supply voltage (<9V or>36V), and other situations.

5. Alarm output stage: Output alarm signals to the upper control system through relay contacts, while controlling the corresponding LED indicator lights to switch colors (such as the red light turning on when there is a power failure), providing intuitive fault location basis for operation and maintenance personnel, ensuring quick response.

Precautions

To ensure stable communication of P0903ZE module and extend the service life of the equipment, the following operating specifications and precautions must be strictly followed:

5.1 Installation and wiring specifications

-The module should be installed in a well ventilated control cabinet, away from high-temperature heat sources (such as heaters) and strong electromagnetic radiation sources (such as frequency converters and large motors). The installation spacing should be ≥ 5cm to ensure good heat dissipation, and the ambient temperature should be controlled within the range of -10 ℃~60 ℃.

-Before fiber optic wiring, it is necessary to use specialized fiber optic cleaning paper to wipe the interface end face to avoid dust pollution that may cause optical power attenuation; The bending radius of the optical fiber should be ≥ 30mm, and excessive bending is strictly prohibited to cause fiber breakage. After wiring, the dust cap should be tightened.

-Power wiring should strictly distinguish between positive and negative poles. It is recommended to use copper core wires with a cross-sectional area of ≥ 1.5mm ². The tightening torque of the wiring terminals should be controlled between 0.8~1.2N · m to avoid loosening and poor contact; Follow the wiring sequence of 'connect power first, then connect bus'.

5.2 Operation and Operational Safety

-Before the module is put into operation, parameters such as bus speed and redundancy mode need to be set through FOXBORO dedicated configuration software to ensure compatibility with other equipment parameters in the system; After operation, observe the status of the LED indicator light and confirm that all link communications are normal (green light is always on).

-When performing hot plugging operations, it is necessary to first disconnect the enable signal of the corresponding bus link to avoid the bus system being paralyzed due to live plugging and unplugging; When replacing a module, it is necessary to ensure that the firmware version of the new module is consistent with the original module to prevent protocol incompatibility.

-Do not plug or unplug fiber optic interfaces while the module is powered on to avoid damage to the optical module caused by instantaneous impact of optical power; During fiber optic link testing, it is forbidden to face the optical interface directly towards the human eye to prevent laser burns.

5.3 Maintenance and Emergency Response

-Establish a regular maintenance plan: Check the operating status weekly through LED indicator lights, use a power meter to measure the optical power of the fiber optic link every month (normal range -10dBm~-20dBm), and clean the module surface and control cabinet dust every quarter.

-When there is a communication interruption, first locate the fault type through the LED indicator light: the power light flashing red indicates power abnormality, and the fiber light flashing red indicates link interruption. It is necessary to first check the wiring and equipment status of the corresponding link.

-After encountering sudden situations such as lightning strikes and surges, specialized instruments should be used to test the isolation performance and optoelectronic device parameters of the module. Only after confirming that there is no damage can it be put back into operation. It is prohibited to directly connect it to the system for use.

Application scenarios

Thanks to its dual isolation, long-distance transmission, and high reliability, the P0903ZE module is widely used in various industrial scenarios that require strict communication stability. Its core application areas include:

1. Petrochemical industry: Used in refining workshops, oil and gas extraction platforms, and other scenarios to connect dispersed pressure transmitters, regulating valves, and other equipment, avoiding electromagnetic spark risks in flammable and explosive environments through fiber optic transmission, while resisting interference from high temperatures and corrosive environments.

2. Large manufacturing factories, such as automobile manufacturers, metallurgical factories, etc., require long-distance transmission of equipment communication across workshops. Modules achieve equipment collaboration for stamping, welding, and other processes through a 20km fiber optic link, and redundant design ensures continuous operation of production lines.

3. Power system: In thermal power plants and substations, it is used to connect PLC, measurement and control devices and other equipment. The dual isolation design blocks interference between devices of different voltage levels, ensuring reliable transmission of control signals during power generation and transmission.

4. Municipal infrastructure: In scenarios such as sewage treatment plants and water treatment plants, monitoring equipment of each treatment unit is connected through fiber optic ring network topology to solve cross regional communication problems and adapt to humid and dusty working environments.

5. Data center and industrial Internet: as the communication node of industrial data collection, the field equipment data is transmitted through isolation and uploaded to the cloud platform to avoid industrial interference affecting data accuracy and provide reliable data support for intelligent manufacturing.
