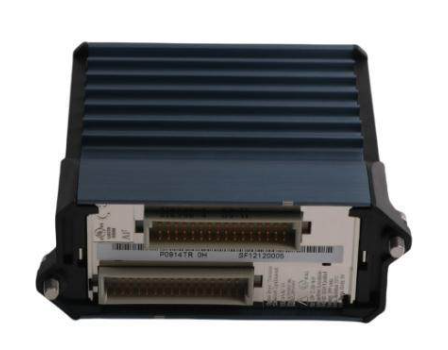

FOXBORO P0903ZN control module

FOXBORO P0903ZN control module

Product Overview

FOXBORO P0903ZN (abbreviated as P0903ZN) is a high-performance industrial control module developed and produced by FOXBORO Corporation in the United States. It belongs to FOXBORO's classic I/A series control system and is the core component for signal acquisition and isolation transmission in the field of industrial automation. This module has dual core functions of digital input and signal isolation. It can accurately collect digital signals from on-site sensors, switches, and other devices, and can also achieve electrical signal isolation between fieldbus and control room equipment through professional isolation design. It is like the "signal guardian" of industrial control systems, providing a solid guarantee for signal transmission reliability in complex industrial environments.

As the "hardcore brain neuron" in the industrial control industry, P0903ZN breaks the limitations of traditional module functions. Its high stability and strong compatibility make it highly favored in fields such as power, chemical, and water treatment that require strict system reliability. It has become the preferred component for upgrading old equipment and building new projects.

Specification parameters

Basic Information

Model: P0903ZN; Brand: FOXBORO; Series: I/A Series

Belonging to FOXBORO's mature I/A control system system, with strong compatibility

Input channel

16 channel digital input

Can simultaneously collect multiple on-site device signals to improve signal processing efficiency

input voltage

Supports multiple types such as 24V DC, 120V AC, etc

Compatible with sensors and switch devices of different specifications, with wide compatibility

Bus standard

Adopting RS485 bus standard

Compliant with industrial universal bus specifications, ensuring stability and anti-interference of data transmission

Isolation performance

Dual electrical isolation between input channels and between input and system

Professional isolation chip design, effectively blocking interference signal transmission

Installation Design

Three card slot design

Easy to install and maintain quickly, compatible with industrial standard control cabinets

core configuration

High performance processor

Ensure high precision and fast response capability of signal processing

Performance characteristics

1. High reliability isolation and protection

The module adopts a combination design of professional isolation chips and high-performance processors to achieve comprehensive electrical isolation between input channels and between inputs and systems. It can effectively resist common interference sources such as electromagnetic interference and voltage fluctuations in industrial sites, significantly reduce the bit error rate during signal transmission, and avoid equipment misoperation or system failure shutdown caused by interference. It is the "anchor" of industrial sites.

2. Super compatibility and adaptability

Supporting multiple input voltage types such as 24V DC and 120V AC, it can seamlessly integrate with various industrial field devices such as photoelectric sensors, travel switches, proximity switches, etc., without the need for additional signal conversion devices. As a member of the I/A series, it can perfectly integrate into FOXBORO's existing control system, and can quickly adapt and play a role in upgrading old production lines or building new automation projects.

3. Fast response and high-precision processing

The high-performance processor equipped greatly improves the signal processing speed, which can quickly capture the status changes of on-site equipment and complete signal conversion and transmission, with low response delay. Its precise signal processing capability can effectively filter out noise signals, ensuring the authenticity and accuracy of signals uploaded to the control system, and providing reliable basis for control decisions.

4. Convenient maintenance and diagnostic design

The module is equipped with independent LED status indicator lights, and the on/off status of each input signal can be visualized in real time. When signal abnormalities occur, maintenance personnel can quickly locate the fault channel through the indicator lights, shortening the troubleshooting time. Some systems support live plugging and unplugging functions, which can be maintained without shutting down, greatly reducing production interruption losses. It is a "thoughtful tool" for maintenance personnel.

5. Dual bus input enhanced redundancy

Equipped with dual bus input function and adopting redundant design concept, when the main bus fails, it can automatically switch to the backup bus to ensure uninterrupted signal transmission, further improving the continuity and safety of system operation, especially suitable for critical production links with zero tolerance for downtime.

Working principle

FOXBORO P0903ZN uses the core workflow of "signal acquisition isolation processing transmission feedback" to achieve reliable flow of industrial field signals, which is divided into three key steps:

1. Signal acquisition stage: The module is connected to on-site sensors, switches, and other devices through 16 digital input channels. When the status of on-site devices changes (such as valve opening and closing, pump start and stop), corresponding digital signals (high/low) will be generated. The input channel captures these signals in real time and transmits them to the internal processing unit of the module.

2. Isolation and processing stage: Professional isolation chips perform electrical isolation processing on the collected signals to block the transmission of on-site interference signals to the control system; At the same time, high-performance processors perform noise reduction and discrimination on isolated signals, filter out invalid noise signals, and convert effective signals into transmission signals that comply with the RS485 bus standard.

3. Transmission and feedback stage: The processed standard signal is transmitted to the main control system (such as PLC host) in the control room through a dual bus input interface for logical judgment and control instruction output by the system; At the same time, the module provides real-time feedback on the transmission status of each signal through LED indicator lights, combined with built-in diagnostic functions, to promptly issue prompts when bus faults or signal abnormalities occur, facilitating quick response.

Throughout the process, isolation design and dual bus redundancy are the core to ensure operational reliability, ensuring stable and accurate signal transmission in complex industrial environments.

Precautions

-Installation specifications: It is necessary to strictly follow the design requirements of the three card slot for installation, ensure that the module is firmly connected to the control cabinet card slot, and avoid poor contact caused by vibration; The installation location should be far away from strong electromagnetic radiation sources (such as high-power frequency converters) and maintain a minimum distance of 10cm from heating equipment to prevent high temperatures from affecting module performance.

-Wiring requirements: Before wiring, it is necessary to confirm that the voltage specifications of the on-site equipment match the input voltage of the module (such as 24V DC equipment cannot be connected to a 120V AC channel). When wiring, positive and negative polarities should be distinguished to avoid reverse wiring and burning out the module; The bus wiring should follow the RS485 bus specification to ensure that the terminal matching resistor is connected correctly and reduce signal reflection interference.

-Live operation specifications: Hot plugging operations can only be performed in systems that support live plugging. Insulated gloves must be worn before operation to avoid direct contact of the module metal interface with hands; Non supporting systems must first cut off module power supply and bus signals to prevent system short circuits caused by live operations.

-Environmental adaptation: The module is suitable for environments with a temperature range of -10 ℃~60 ℃ and a relative humidity of ≤ 90% (no condensation). It should be avoided from use in high temperature, high humidity, dusty or corrosive gas environments. If necessary, a protective box should be equipped for isolation and protection.

-Maintenance taboos: Do not disassemble the module casing randomly during daily maintenance to avoid damaging the internal isolation chip and processor; When cleaning the module, use a dry soft cloth to wipe it, and do not rinse it directly with water or organic solvents.

-Fault handling: When the LED indicator light flashes abnormally, it is necessary to first check whether the on-site equipment and wiring are normal, and then locate the fault point through the system diagnostic function. It is not allowed to directly replace the module to expand the fault.

Application scenarios

With high stability, strong anti-interference ability, and wide compatibility, P0903ZN plays a core role in key control processes in multiple industrial fields, with main application scenarios including:

1. Electricity and energy industry

In the auxiliary control systems of thermal power plants, wind power plants, hydropower plants, etc., it is used to collect digital information such as boiler water level switches, fan start stop status, and high-voltage cabinet alarm signals. Through isolated transmission, it ensures the stable operation of the power plant monitoring system and avoids power generation equipment shutdown or safety accidents caused by signal interference.

2. Chemical and petroleum industries

In the control system of chemical reaction vessels and petroleum refining equipment, it is responsible for collecting valve switch status, pressure switch signals, combustible gas detection signals, etc. Its high isolation design can resist strong electromagnetic interference and corrosive environmental effects in chemical workshops, ensuring the continuity and safety of the production process, and meeting the strict standards of the chemical industry.

3. Water treatment and environmental protection field

In the automation systems of sewage treatment plants and water treatment plants, it is used to monitor the start and stop status of sewage lifting pumps, sedimentation tank liquid level switch signals, dosing equipment operation status, etc. Through precise signal acquisition and transmission, the automation control of water treatment processes is achieved, improving water treatment efficiency and water quality stability.

4. Mechanical manufacturing and automated production lines

In automated production lines such as automotive parts manufacturing and electronic component assembly, signals from conveyor belt travel switches, robotic arm positioning, product detection sensors, etc. are collected and coordinated with PLC systems to achieve precise linkage control of equipment, reduce product quality problems caused by signal errors, and improve the automation level and production efficiency of the production line.
