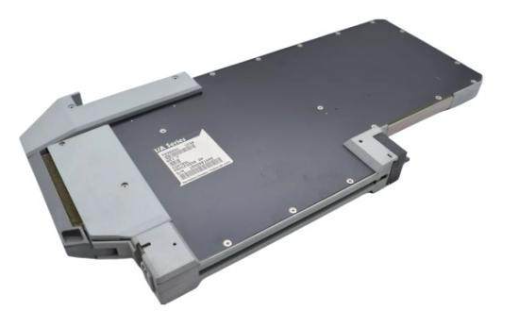

  • FOXBORO P0961EF-CP30B High Performance Digital Output Module
    ❤ Add to collection
  • FOXBORO P0961EF-CP30B High Performance Digital Output Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    FOXBORO P0961EF-CP30B is a high-performance digital output module specially designed for industrial automation closed-loop control by FOXBORO Corporation (a subsidiary of Avis) in the United States. It belongs to the classic I/A Series system core component camp. This module has precise digital signal output as its core function, aiming to convert the control instructions of the DCS/PLC main controller into industrial grade signals that can directly drive the on-site execution mechanism. It is a key bridge connecting the control center and the execution end.

    • ¥20585.00
      ¥24573.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.450KG
    • Quantity:
    • (Inventory: 99999)
Description

FOXBORO P0961EF-CP30B is a high-performance digital output module specially designed for industrial automation closed-loop control by FOXBORO Corporation (a subsidiary of Avis) in the United States. It belongs to the classic I/A Series system core component camp. This module has precise digital signal output as its core function, aiming to convert the control instructions of the DCS/PLC main controller into industrial grade signals that can directly drive the on-site execution mechanism. It is a key bridge connecting the control center and the execution end.


FOXBORO P0961EF-CP30B High Performance Digital Output Module

Product Overview

FOXBORO P0961EF-CP30B is a high-performance digital output module specially designed for industrial automation closed-loop control by FOXBORO Corporation (a subsidiary of Avis) in the United States. It belongs to the classic I/A Series system core component camp. This module has precise digital signal output as its core function, aiming to convert the control instructions of the DCS/PLC main controller into industrial grade signals that can directly drive the on-site execution mechanism. It is a key bridge connecting the control center and the execution end.

As the core executing component of the industrial control layer, it adopts the FOXBORO standard modular structure, which not only seamlessly adapts to I/A series DCS systems and mainstream PLC control cabinets, but also has the characteristics of fast installation and online maintenance. It is widely used in fields such as power plants, petrochemicals, metallurgy, etc. that require strict control accuracy and reliability, providing stable output guarantee for valve start stop, pump group control, indicator light drive and other scenarios.


Specification parameters

Brand/Model

FOXBORO P0961EF-CP30B

Belonging series

I/A Series system

Product Type

High performance digital output module

warranty period

One year (genuine standard warranty)

Electrical parameters

Output signal type

Digital switch quantity (compatible with industrial standard voltage levels)

Electrical parameters

driving capability

Support direct driving of small and medium-sized actuators (typical load current 1-5A/channel, depending on model configuration)

Electrical parameters

power supply voltage

24VDC industrial standard power supply (compatible with 18-36VDC wide range input)

Electrical parameters

insulation resistance

≥ 10M Ω (500V DC test condition)

Physical specifications

installation dimensions

Compatible with I/A series standard racks, module thickness meets 3U industrial specifications

environmental parameters

Operating Temperature

-10 ℃~60 ℃ (industrial wide temperature range)

environmental parameters

relative humidity

5%~95% (no condensation)

core performance

Redundancy capability

Support redundant configuration of output channels, automatic switching in case of failure to ensure continuous operation

core performance

communication protocol

Compatible with mainstream industrial protocols such as FOXBORO proprietary bus and Modbus


Performance characteristics

-High reliability output design: adopting independent channel isolation technology, each output signal has overcurrent and overvoltage protection functions, which can effectively resist on-site surge impact and avoid overall system abnormalities caused by single channel faults. Support channel level redundant configuration, enabling uninterrupted output switching in critical control scenarios.

-Accurate and fast response characteristics: The digital signal output delay is ≤ 1ms, far superior to the average response standard of industrial control. It can accurately capture controller instructions and drive actuators in real time, especially suitable for dynamic scenarios such as rapid valve adjustment and production line rhythm control.

-High system compatibility: As a native component of the I/A Series system, it can directly connect to the FBM interface of controllers such as FOXBORO FCP270, and is compatible with third-party PLC systems without the need for additional conversion modules, reducing system integration costs.

-Industrial grade environmental adaptability: Through rigorous vibration testing (≤ 0.5g@10-150Hz )With electromagnetic compatibility certification, it can operate stably in high-temperature metallurgical workshops, corrosive chemical environments, and strong electromagnetic interference areas of power plants, meeting the requirements of IP54 protection.

-Convenient operation and maintenance design: The module is equipped with channel status indicator lights (running/fault/output activation) on the front, supporting online diagnostic function. Technical personnel can remotely query channel load, temperature and other parameters through FOXBORO dedicated software to quickly locate the fault point.


Working principle

The FOXBORO P0961EF-CP30B module serves as the "execution converter" for control instructions, and its workflow revolves around the closed-loop logic of "instruction reception signal processing power output state feedback". The core mechanism is as follows:

1. Instruction reception and parsing: The module receives digital control instructions (such as "valve open" and "pump start") from the DCS/PLC main controller through the system bus interface, and the internal microprocessor completes protocol parsing and instruction verification to ensure the legality and integrity of the instructions.

2. Signal isolation and amplification: The analyzed control signal is processed by a photoelectric isolation unit to achieve electrical isolation between the control circuit and the output circuit, avoiding strong electrical interference from entering the control center on site; Subsequently, the weak signal is converted into an industrial grade signal with driving capability through a power amplification circuit.

3. Execution end drive output: The amplified digital signal is transmitted to the on-site execution mechanism (such as solenoid valve, contactor, regulating valve) through an independent output channel, triggering the corresponding action; At the same time, the module collects real-time current and voltage parameters of the output circuit to achieve load status monitoring.

4. Status feedback and diagnosis: Convert the output status (such as "activated" and "abnormal load") and monitoring data into standard communication signals, feed them back to the main controller, and form a complete control loop; If overcurrent, overvoltage or other faults are detected, immediately activate the protection mechanism to cut off the output and send a fault alarm signal.

In the scenario of redundant configuration, the main and backup channels synchronize their status in real time. When the main channel fails, the built-in switching unit of the module can activate the backup channel within 50ms, ensuring that control instructions are not interrupted.


Precautions

This module is directly associated with on-site execution mechanism control. Installation, debugging, and maintenance operations must be carried out by professionals with industrial control qualifications. Non professional operations are strictly prohibited from causing safety accidents.

-Installation specifications: It needs to be installed inside a standard PLC control cabinet, with a vertical deviation of less than 1 ‰. A heat dissipation space of ≥ 300mm should be reserved at the top of the module, and multiple modules should be installed in parallel with a time interval of ≥ 50mm. The control cabinet should be away from high temperature heat sources and spray areas, and the grounding system resistance value should be less than 4 Ω.

-Wiring operation: Before wiring, the module power supply and the execution end power supply must be cut off. The connection between the output terminal and the cable needs to be tightened with a torque wrench (torque value 4-6N · m); Power cables and signal cables are laid in separate slots with a spacing of ≥ 300mm to avoid electromagnetic interference.

-Power configuration requirements: A regulated power supply that meets industry standards must be used to avoid voltage fluctuations exceeding the range of 18-36VDC; It is recommended to configure an independent power supply circuit and not share the power supply line with high-power devices.

-Debugging and Calibration: Prior to initial use, channel address configuration and redundant parameter settings must be performed using FOXBORO specialized software; Use an insulation resistance tester (500V DC) to perform insulation testing on the output channel to ensure that the insulation performance meets the standard.

-Maintenance and replacement: Daily maintenance requires regular cleaning of module heat dissipation holes and checking of wiring terminal fastening status once a month; When replacing modules, it is necessary to use genuine spare parts of the same model, backup parameters before replacement, and perform channel consistency testing after replacement.

-Fault handling taboos: When an output fault occurs, it is strictly prohibited to directly short-circuit the output terminal and force it to activate; It is necessary to first locate the cause of the fault through diagnostic software, eliminate the malfunction of the actuator, and then restore the operation of the module.


Application scenarios

Based on its core advantages of high reliability and fast response, P0961EF-CP30B module is widely used in various industrial automation control scenarios, especially in fields that require strict execution accuracy and system stability:

1. Power plant DCS monitoring system: used for coal feeder start stop control of boiler combustion system, turbine drain valve switch drive, and pump group control of generator cooling system, ensuring continuous operation of power generation equipment through redundant outputs. In the desulfurization and denitrification system, the spray valve is driven to accurately execute the spray instruction to ensure that the exhaust emissions meet the standard.

2. In the field of petrochemicals: In the control of reaction vessels in refining units, the feed control valve is driven to achieve precise material ratio; In the chemical storage tank area, the on/off status of the emergency shut-off valve is controlled to quickly respond when abnormal pressure is detected, avoiding the risk of leakage.

3. Metallurgy and Intelligent Manufacturing: In the blast furnace ironmaking system of steel plants, the hot blast furnace valve is driven to adjust the supply air temperature; In the automotive welding production line, controlling the start stop and action switching of the robotic arm, coupled with fast response characteristics, ensures stable production pace.

4. Water treatment and environmental protection system: The aeration tank fan control and dosing pump start stop adjustment of the sewage treatment plant control the sewage treatment process parameters through precise output; At the water quality monitoring station, the sampling valve is driven to collect water samples periodically.

5. Intelligent industrial furnace control system: In the tempering and sintering furnace systems of industries such as glass and ceramics, it controls the lifting and lowering of furnace doors and the on/off of heating elements to achieve precise execution of temperature curves and improve product quality stability.
