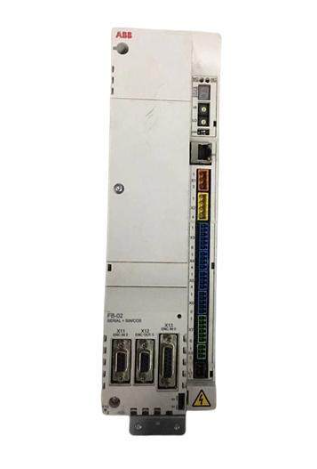

ABB PCD235C101 3BHE057901R0101 Expansion Adapter



ABB PCD235C101 3BHE057901R0101 Expansion Adapter

Core functions and performance advantages

1. Multi dimensional interface expansion to enhance system access capability

This expansion adapter has rich interface expansion functions and can accurately supplement the interface shortcomings of the core control unit. It supports the expansion of digital input/output (DI/DO) and analog input/output (AI/AO) interfaces. The digital interface is compatible with various signal types such as dry contacts and wet contacts, while the analog interface supports industrial standard signals such as 4-20mA current signal and 0-10V voltage signal, which can meet the access requirements of different types of sensors and actuators. By expanding with a single adapter, the number of interfaces in the control unit can be increased by 30% -50%, effectively solving the problem of dense device access in complex industrial scenarios.

2. High speed and stable communication to ensure reliable data transmission

Built in high-performance communication processing chip, supporting the conversion and transmission of multiple industrial communication protocols, including mainstream protocols such as Modbus RTU/TCP, Profibus DP, EtherNet/IP, etc., enabling seamless data exchange between devices with different communication standards. The communication speed can reach up to 100Mbps, with a data transmission delay of less than 5ms. It can quickly respond to control instructions and on-site signal feedback, avoiding the problem of decreased control accuracy caused by data transmission lag. At the same time, adopting differential signal transmission technology, it has strong anti electromagnetic interference ability and can maintain communication stability even in industrial strong electromagnetic environments.

3. Flexible adaptation and compatibility, reducing system upgrade costs

By adopting standardized hardware interfaces and modular design, seamless plug and play integration can be achieved with multiple ABB core control units (such as AC800M, S800 series, etc.) without the need for large-scale modifications to the original control system. At the same time, the adapter supports firmware online upgrade function, which can remotely update programs through the upper system to adapt to new control requirements or communication protocols, extend the service life of the equipment, and reduce the cost investment caused by system upgrades. In addition, it also has a wide voltage input characteristic, which can adapt to power environments in different industrial scenarios.

4. Intelligent diagnosis and protection to enhance operational convenience

Equipped with comprehensive intelligent diagnostic functions, it can monitor key information such as interface connection status, signal transmission quality, and power operation parameters in real time. When interface looseness, signal abnormalities, overvoltage, overcurrent, and other faults occur, it can quickly trigger an alarm mechanism and provide timely feedback on fault information through indicator light flashing, fault code output, and other methods. At the same time, it has multiple protection functions such as overcurrent protection, short circuit protection, and surge protection, which can effectively avoid equipment damage caused by external faults and reduce the difficulty and cost of operation and maintenance.

Key technical parameters

input power

DC 24V ± 20%, ripple ≤ 100mV

Adapt to industrial standard DC power supply system

Extension interface type

8 DI, 8 DO, 4 AI, 2 AO

Can be combined and expanded as needed to meet the needs of multiple scenarios

communication protocol

Modbus RTU/TCP、Profibus-DP、EtherNet/IP

Support mainstream industrial communication protocol conversion

communication rate

10/100Mbps adaptive

Adapt to communication needs of different bandwidths

Working environment temperature

-20℃-60℃

Adapt to high and low temperature industrial site environments

relative humidity

5% -95%, no condensation

Resistant to humid industrial environments

Protection level

IP20 (body), IP65 (terminal block)

The body is suitable for installation inside the control cabinet, and the terminals can withstand on-site dust and water vapor

Overall dimensions

120mm x 80mm x 35mm (length x width x height)

Compact structure, saving installation space

Structural design and installation characteristics

Adopting a modular and compact design, the overall volume is small, weighing only 0.5kg, and can be flexibly installed in standard 19 inch cabinets or small control cabinets, suitable for dense installation scenarios. The shell is made of flame-retardant ABS material, which has good insulation performance and mechanical strength, and can effectively resist adverse factors such as on-site vibration and impact. The wiring terminal adopts a spring type crimping structure, which is convenient and firm for wiring, and can effectively prevent loose wiring caused by vibration. At the same time, it supports quick insertion and removal, improving installation and maintenance efficiency.

The front end of the equipment is equipped with multi-color status indicator lights, including power indicator lights, communication status lights, interface operation lights, etc. The operation and maintenance personnel can intuitively judge the equipment operation status and fault type through the color and flashing status of the indicator lights, and can quickly locate problems without the need for professional detection tools. In addition, the device has reserved heat dissipation holes, which, combined with an internally optimized heat dissipation structure, can ensure that the temperature of the device remains stable within a safe range when operating at full load.

Application scenarios and typical cases

With its flexible scalability and stable performance, ABB PCD235C101 3BHE057901R0101 expansion adapter is widely used in various industrial automation systems, including:

-Power industry: In the boiler control system of thermal power plants, expanding sensor interfaces such as temperature, pressure, and flow can achieve precise monitoring and control of the combustion process;

-Metallurgical industry: The continuous rolling production line of steel enterprises connects various detection instruments and actuators, expands communication interfaces to achieve real-time data interaction with the central control system;

-Chemical industry: Chemical reaction kettle control system, expanding analog output interface to control valve opening, and achieving linkage with Safety Instrumented System (SIS) through protocol conversion;

-Intelligent manufacturing: In automated production lines, connect robots, conveyors, visual inspection equipment, etc., expand interface capacity to achieve multi device collaborative control.

A typical case is the automation production line upgrade project of a large automotive parts processing plant, where the original control system interface was insufficient, resulting in the inability to connect the 12 newly added visual inspection equipment. By deploying three ABB PCD235C101 expansion adapters, not only has stable access to all detection equipment been achieved, but seamless communication with the original PLC system has also been achieved through protocol conversion. The detection efficiency of the production line has been improved by 25%, and the false alarm rate has been reduced by 40%.

Key points of operation and maintenance

To ensure the long-term stable operation of the ABB PCD235C101 3BHE057901R0101 expansion adapter, the following operation and maintenance specifications must be followed:

1. Regular cleaning: Clean the surface, wiring terminals, and heat dissipation holes of the equipment every month, use a dry brush to remove dust, and avoid dust accumulation affecting heat dissipation and signal transmission;

2. Wiring inspection: Check the fastening of the wiring terminals every quarter, with a focus on inspecting the wiring in areas with high vibration to prevent poor contact caused by looseness;

3. Communication testing: Conduct comprehensive testing of communication functions every six months, check the integrity and real-time performance of data transmission through the upper system, and update communication protocol firmware in a timely manner;

4. Power monitoring: Regularly monitor the voltage stability of the input power supply to avoid equipment damage caused by overvoltage or undervoltage. It is recommended to use it in conjunction with a voltage regulator;

5. Fault handling: When a fault alarm occurs, first determine the type of fault through the indicator light, and then check the interface connection, signal line, and power supply accordingly. It is strictly prohibited to plug or unplug modules while they are live.
