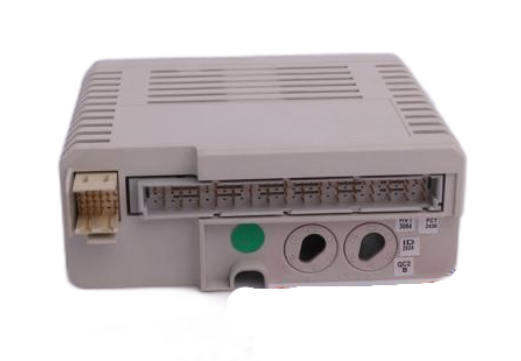

  • ABB PM510V08 3BSE00B373R1 processor module
    ❤ Add to collection
  • ABB PM510V08 3BSE00B373R1 processor module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    As a representative processor module of the AC 500 series, PM510V08 3BSE00B373R1 has undergone targeted optimization in hardware configuration and computational performance, which can meet the control requirements of most small and medium-sized automation projects.

    • ¥12224.00
      ¥12474.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:3.470KG
    • Quantity:
    • (Inventory: 99999)
Description

As a representative processor module of the AC 500 series, PM510V08 3BSE00B373R1 has undergone targeted optimization in hardware configuration and computational performance, which can meet the control requirements of most small and medium-sized automation projects.




ABB PM510V08 3BSE00B373R1 processor module

Module core parameters and performance

As a representative processor module of the AC 500 series, PM510V08 3BSE00B373R1 has undergone targeted optimization in hardware configuration and computational performance, which can meet the control requirements of most small and medium-sized automation projects. The specific core parameters are as follows:

1. Core computing capability

The module is equipped with a high-performance 32-bit microprocessor, with a main frequency of up to 166MHz and excellent instruction processing speed. The execution time of basic logic instructions is only 0.1 microseconds, which can quickly respond to input signals and output control instructions, effectively improving the real-time control accuracy of the system. Its built-in floating-point arithmetic unit can efficiently handle complex mathematical operations, suitable for scenarios including closed-loop control and process parameter calculation.

2. Storage capacity configuration

The module is equipped with 64KB of user program memory (RAM) and 512KB of non-volatile flash memory (Flash), which can be used to store user programs, system configurations, and critical parameters. Even in the event of a power outage, it can ensure that data is not lost without the need for additional backup batteries, reducing maintenance costs. At the same time, it supports expanding storage capacity through external storage cards to meet the storage needs of large programs or massive data.

3. Power supply and environmental adaptability

The power input range is DC 24V ± 20%, with wide voltage adaptability, which can cope with power fluctuations in industrial sites; The working temperature range is 0 ℃~60 ℃, the storage temperature range is -40 ℃~85 ℃, the humidity adaptation range is 5%~95% (no condensation), and it can operate stably in harsh industrial environments. Its anti-interference ability meets the IEC 61131-2 standard.

4. Interface and Expansion Capability

The module adopts a modular design, equipped with one RS485 communication interface (supporting Modbus RTU protocol) and one Ethernet interface (supporting Modbus TCP/IP protocol), which can achieve communication with the upper computer HMI、 Efficient communication between sensors and other smart devices. In addition, through the AC 500 series expansion bus, up to 8 expansion modules (including digital I/O, analog I/O, special function modules, etc.) can be connected to flexibly expand the system's control functions and adapt to different application scenarios.


Core functions and technological advantages

1. Programming support that meets international standards

This module is fully compatible with the IEC 61131-3 standard and supports five programming languages: ladder diagram (LD), function block diagram (FBD), structured text (ST), sequential function diagram (SFC), and instruction list (IL). Users can choose the appropriate programming method based on project requirements and programming habits. Paired with ABB's dedicated CODESYS programming software, it provides an intuitive programming interface, rich function libraries, and online debugging functions, greatly improving programming efficiency and debugging convenience.

2. Efficient real-time control capability

The module adopts a priority scheduling mechanism, which can set the priority of different control tasks (the highest priority task cycle can be as low as 1ms), ensuring that key control tasks (such as closed-loop regulation, emergency stop control, etc.) are executed first and ensuring the real-time response performance of the system. At the same time, the built-in high-speed counter interface (supporting up to 10kHz) can be directly connected to an incremental encoder to achieve precise acquisition and control of parameters such as motor speed and material position.

3. Comprehensive fault diagnosis and protection functions

To improve the reliability of the system, the module integrates comprehensive fault diagnosis functions, which can monitor the power status, communication link, I/O module connection, and program running status in real time. When a fault occurs, the LED indicator lights (power light, running light, fault light) on the module intuitively display the fault type and upload the fault information to the upper computer, making it easy for operation and maintenance personnel to quickly locate and troubleshoot the fault. In addition, it supports program password protection function to prevent unauthorized personnel from modifying control programs and ensure system security.

4. Flexible communication and integration capabilities

In addition to supporting standard Modbus RTU/TCP communication protocols, industrial Ethernet protocols such as Profinet and EtherNet/IP can also be supported through firmware upgrades or the use of dedicated communication modules, enabling interconnectivity with different brands of automation equipment. At the same time, it supports OPC UA protocol, can seamlessly connect to the industrial Internet platform, provide support for equipment remote monitoring, data collection and analysis, and help enterprises achieve intelligent manufacturing transformation.


Applicable scenarios

Based on its stable performance, flexible scalability, and high cost-effectiveness, the ABB PM510V08 3BSE00B373R1 processor module is widely used in the following fields:

1. Manufacturing automation: used for logical control, equipment linkage, material conveying control, etc. of production lines, such as automotive parts production lines, electronic component assembly lines, packaging machinery control systems, etc., to achieve automation and efficiency in the production process.

2. Energy and power industry: Suitable for auxiliary control of small and medium-sized substations, operation control of photovoltaic inverters, start stop and speed control of diesel generators, etc., to ensure stable energy production and supply.

3. In the field of water treatment and environmental protection: used for water pump control, aeration system regulation, water quality parameter monitoring and feedback control in sewage treatment plants, to achieve automated operation and standard discharge of water treatment processes.

4. Transportation and logistics industry: applied to intelligent warehousing for shelf movement control, conveyor belt speed regulation, automatic toll collection system control in parking lots, etc., to improve the efficiency of logistics transportation and warehousing management.

5. Building automation: used for central air conditioning system control, water supply and drainage system control, intelligent start stop of lighting system, etc. in buildings, to optimize building energy consumption and create a comfortable environment.


Installation and usage precautions

1. Installation specifications: The module should be installed in a well ventilated, dust-free, and non corrosive gas control cabinet, avoiding direct sunlight and severe vibration; Sufficient heat dissipation space should be reserved during installation (at least 5cm space should be reserved above and below the module) to ensure good heat dissipation.

2. Wiring requirements: The power wiring must strictly distinguish between positive and negative poles to avoid module damage caused by reverse connection; Communication lines and power lines should be wired separately to reduce electromagnetic interference. If necessary, shielded cables can be used and grounded properly.

3. Debugging points: Before the first debugging, it is necessary to check whether the module hardware connection is firm and whether the power supply voltage is normal; Before downloading a program through programming software, it is necessary to perform syntax checks and logic verification on the program to avoid device malfunctions caused by program errors.

4. Maintenance suggestion: Regularly clean the dust on the surface of the module and check whether the wiring terminals are loose; Regularly backup user programs and system configurations to prevent data loss; If the module malfunctions, it should be promptly repaired by contacting ABB's official after-sales or professional technical personnel to avoid self disassembly.
