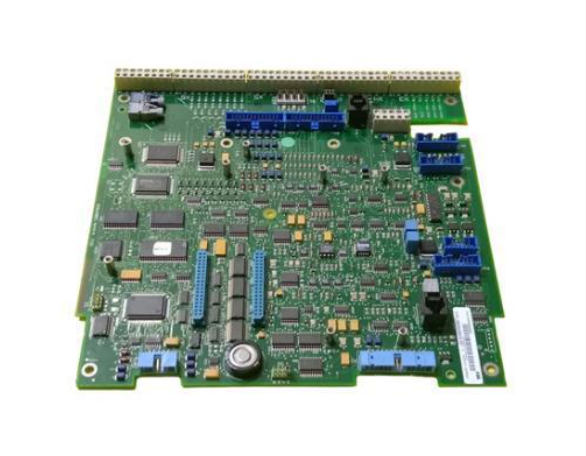

ABB SDCS-CON-2-COAAT 3ADT220090R2 Controller

ABB SDCS-CON-2-COAAT 3ADT220090R2 Controller

Product Overview

ABB SDCS-CON-2-COAAT (order number 3ADT220090R2) is the core control unit in ABB industrial transmission systems, mainly used in high-performance frequency converters such as ACS 800, to undertake key tasks such as logic control, parameter adjustment, status monitoring, and communication interaction of the transmission system. This controller is designed based on advanced microprocessor architecture, with high-precision control algorithms, fast response capability, and powerful scalability. It can meet the precise speed regulation and efficient control requirements in various industrial transmission scenarios, and is widely used in the transmission control systems of mechanical equipment such as fans, water pumps, conveyor belts, compressors, and metallurgical rolling mills.

As the "brain" of the transmission system, the SDCS-CON-2-COAAT controller integrates hardware control modules and software algorithms to achieve real-time control of core parameters such as motor speed, torque, and power. At the same time, it has complete fault diagnosis and protection functions, providing solid guarantees for the safe and stable operation of the transmission system. Its standardized interface design and flexible configuration also enable it to easily integrate into different industrial automation systems, improving the overall integration efficiency of the system.

Core functional features

1. High precision transmission control

The controller is equipped with various advanced motor control algorithms, including vector control (VC), direct torque control (DTC), scalar control, etc., which can be flexibly selected according to different motor types (asynchronous motors, synchronous motors, etc.) and control requirements. Among them, direct torque control technology can achieve fast and precise adjustment of motor torque and magnetic flux. Even in low-speed operation or scenarios with severe load fluctuations, it can ensure the stability of motor speed. The speed control accuracy can reach ± 0.01% (based on the rated speed of the motor), meeting the requirements of high-precision transmission technology.

The controller supports multiple speed setting methods, including analog signals (4-20mA/0-10V), digital signals, pulse signals, and communication settings, which can adapt to different control system instruction input requirements and achieve diversified control logic design.

2. Improved protection mechanism

To cope with various abnormal situations in the industrial transmission process, SDCS-CON-2-COAAT is equipped with comprehensive fault protection functions, ensuring the safety of the motor and transmission system from both hardware and software levels. Specific protection types include overcurrent protection, overvoltage protection, undervoltage protection, overtemperature protection, motor stalling protection, ground fault protection, phase loss protection, etc. When the system detects abnormal parameters, the controller can trigger protective actions within microseconds, by cutting off outputs, issuing alarm signals, and other methods to avoid equipment damage or safety accidents.

In addition, the controller also supports fault recording and tracing functions, which can store recent fault event information (including fault type, occurrence time, operating parameters at the time of the fault, etc.), providing important basis for operation and maintenance personnel to troubleshoot problems and shorten fault handling time.

3. Powerful communication and interaction capabilities

The SDCS-CON-2-COAAT controller has rich communication interfaces and comes standard with RS485, Ethernet, and other communication ports. It supports multiple mainstream industrial communication protocols, such as Modbus RTU, Profinet, EtherNet/IP, DeviceNet, etc. It can seamlessly interface with upper level devices such as PLC, SCADA systems, HMI human-machine interfaces, etc., and complete the reception of control instructions and uploading of operational status data. Through communication networks, operation and maintenance personnel can achieve remote monitoring, parameter setting, and fault diagnosis of the transmission system, reducing on-site operational workload.

The controller also supports multi machine linkage control function, which can achieve synchronous operation of multiple frequency converters through communication bus, meeting the collaborative control requirements in scenarios such as assembly line and multi motor transmission, and improving the coordination and stability of the production process.

4. Flexible parameter configuration and debugging

This controller supports parameter configuration and debugging through various methods, including ABB dedicated debugging software (such as DriveComposer Pro), local operation panels (such as control panels), and upper computer systems. The debugging software provides an intuitive graphical interface, allowing operation and maintenance personnel to quickly set motor parameters, control modes, protection thresholds, communication parameters, and other content. It also supports parameter import/export and batch configuration, greatly improving the debugging efficiency when deploying multiple devices.

The controller has a built-in self-tuning function that can automatically identify motor parameters (such as stator resistance, rotor resistance, inductance, etc.), optimize control algorithm parameters based on motor characteristics, simplify the debugging process, and ensure control accuracy and system stability.

5. High reliability and environmental adaptability

SDCS-CON-2-COAAT adopts industrial grade high reliability components and modular design, with stable hardware structure and strong anti-interference ability, which can adapt to the complex electromagnetic environment of industrial sites. The controller has a wide operating temperature range (usually -10 ℃~60 ℃), supports stable operation under harsh conditions such as dust and vibration, and meets the stringent usage requirements of industries such as metallurgy, chemical engineering, and mining.

The connection between modules adopts anti loosening design, effectively avoiding poor contact caused by vibration; At the same time, the controller has a comprehensive heat dissipation design to ensure that the temperature of the components remains within a safe range during high load operation, thereby extending the service life of the equipment.

Key technical parameters

control parameters

control mode

Vector Control (VC), Direct Torque Control (DTC), Scalar Control (V/F)

Speed control accuracy

± 0.01% (rated speed, in vector control mode)

Torque response time

≤ 1ms (in direct torque control mode)

Support motor types

Three phase asynchronous motor, permanent magnet synchronous motor, synchronous reluctance motor

Communication parameters

communication interface

1 x RS485, 1 x RJ45 Ethernet ports (some models can be expanded)

Supported Protocols

Modbus RTU、Profinet、EtherNet/IP、DeviceNet

communication rate

RS485: up to 115200bps; Ethernet: 10/100Mbps adaptive

communication range

RS485: up to 1200 meters (shielded wire); Ethernet: Maximum 100 meters (twisted pair)

Electrical parameters

power supply voltage

24V DC（±15%）

operating current

Typical value 0.8A, maximum value 1.2A

Isolation level

2500V AC (1 minute) between input/output and power supply

environmental parameters

Operating Temperature

-10℃~60℃

Storage temperature

-40℃~85℃

Protection level

IP20 (controller itself), requires cooperation with the inverter cabinet to achieve higher protection

mechanical parameters

Installation method

Internal guide rail installation of frequency converter (compatible with ACS 800 series)

Dimensions (length x width x height)

Approximately 85mm × 120mm × 40mm (subject to actual product)

Applicable scenarios

1. General industrial transmission scenarios

In general mechanical equipment such as fans, water pumps, and air compressors, the SDCS-CON-2-COAAT controller can achieve smooth speed regulation and energy-saving control of the motor. By accurately adjusting the motor speed to match the load demand, the energy consumption of equipment operation is effectively reduced, while avoiding damage to the power grid and equipment caused by the surge current during motor start stop, and extending the service life of equipment. For example, in a water supply system, the controller can automatically adjust the speed of the water pump according to changes in pipeline pressure, achieving constant pressure water supply, improving water supply stability, and saving electricity.

2. Metallurgy and non-ferrous metal industry

In metallurgical equipment such as rolling mills, continuous casting machines, and blast furnace fans, this controller meets the strict requirements of metallurgical processes for transmission systems with its high-precision torque and speed control capabilities. For example, in the transmission of a rolling mill, the controller can achieve synchronous operation of multiple rolling mill motors to ensure uniform thickness of the rolled material; At the same time, its powerful overload capacity and fast protection function can adapt to the characteristics of large load fluctuations in metallurgical sites, ensuring continuous production.

3. Chemical and petrochemical industries

The high reliability and anti-interference ability of the SDCS-CON-2-COAAT controller can adapt to the strong corrosion and electromagnetic interference environment of chemical production sites in scenarios such as agitators, conveying pumps, and reactor drives. The controller ensures the stability of the chemical reaction process by precisely controlling the operating parameters of the motor; At the same time, its comprehensive fault diagnosis function can promptly detect equipment abnormalities, avoiding chemical raw material waste or safety accidents caused by transmission failures.

4. Mining and lifting equipment

In equipment such as mine hoists, belt conveyors, and cranes, controllers can achieve smooth start stop, speed regulation, and braking control of motors, improving the safety and reliability of equipment operation. For example, in a mine hoist, the controller ensures smooth operation of the hoist under heavy loads by accurately controlling the motor speed and torque. At the same time, its emergency braking protection function can quickly respond in case of sudden failures, ensuring the safety of personnel and equipment.

5. Intelligent manufacturing production line

In intelligent manufacturing production lines such as automobile manufacturing and electronic processing, the SDCS-CON-2-COAAT controller achieves precise synchronous control of production line transmission equipment through collaborative communication with PLC, robots, and other devices. For example, in the automotive assembly line, the controller can control the conveyor belt motor to synchronize with the robot's movements, improving assembly efficiency and accuracy; Meanwhile, its supported industrial Ethernet communication function facilitates integration into intelligent manufacturing systems, enabling real-time collection and traceability of production data.

Precautions for use

-Installation and compatibility: This controller is a specialized accessory for ABB ACS 800 series frequency converters, and must be installed with internal guide rails strictly in accordance with the frequency converter installation manual to ensure compatibility with the frequency converter power module and interface module; During installation, it is necessary to disconnect the main power supply of the frequency converter to avoid short circuit faults caused by live operation.

-Parameter configuration specification: Before the first use, the motor parameter self-tuning and control parameter configuration need to be completed through debugging software. The parameter setting should be combined with the motor model, load characteristics, and process requirements to avoid abnormal motor operation or equipment damage caused by parameter errors; After modifying important parameters, it is necessary to save and backup the configuration file in a timely manner.

-Wiring requirements: Communication lines and power lines need to be wired separately to avoid electromagnetic interference; RS485 communication lines need to use shielded twisted pair cables, and terminal resistors (usually 120 Ω) should be installed at the end of the bus to ensure stable communication; The wiring terminals should be securely fastened to prevent poor contact from causing malfunctions.

-Regular maintenance and inspection: Regularly check the operating temperature, wiring terminal fastening, and heat dissipation and ventilation of the controller, clean the dust inside the frequency converter, and avoid overheating of the controller due to poor heat dissipation; Regularly check the running status and fault records of the controller through software debugging to achieve preventive maintenance.

-Fault handling principle: When the controller has a fault alarm, the fault code should be checked through the frequency converter operation panel or debugging software first, and the problem should be solved according to the fault code prompt; Before the fault is resolved, it is not allowed to forcefully reset the operation to avoid expanding the scope of the fault; When replacing the controller, it is necessary to ensure that the new controller model matches the order number and import the backup configuration parameters.

-Firmware upgrade: Pay attention to ABB's official controller firmware updates, and if necessary, upgrade the firmware through debugging software to obtain new feature support and vulnerability fixes; During the upgrade process, it is necessary to ensure stable power supply to avoid controller damage caused by upgrade interruptions.
