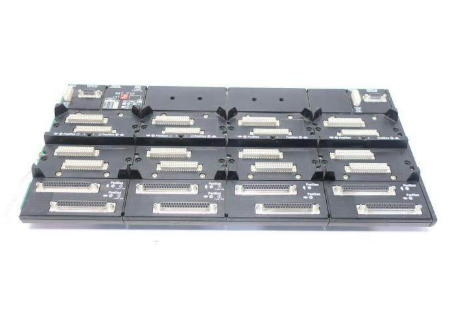

  • FOXBORO SY-0399095E SY-0303451D+SY-0303460E DC power module
    ❤ Add to collection
  • FOXBORO SY-0399095E SY-0303451D+SY-0303460E DC power module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    The FOXBORO SY-0399095E SY-0303451D+SY-0303460E DC power module is a highly reliable power supply solution designed by FOXBORO specifically for industrial automation control systems. It consists of the SY-0399095E main control module, SY-0303451D rectifier module, and SY-0303460E monitoring module, and is a core component of the FOXBORO power system series. This module has stable power supply as its core function, which can convert AC input into high-precision DC output required by industrial equipment. It also has complete monitoring, protection, and redundancy expansion capabilities, providing continuous and reliable power guarantee for core control equipment such as PLC, DCS, and control boards.

    • ¥14945.00
      ¥16964.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:1.050KG
    • Quantity:
    • (Inventory: 99999)
Description

The FOXBORO SY-0399095E SY-0303451D+SY-0303460E DC power module is a highly reliable power supply solution designed by FOXBORO specifically for industrial automation control systems. It consists of the SY-0399095E main control module, SY-0303451D rectifier module, and SY-0303460E monitoring module, and is a core component of the FOXBORO power system series. This module has stable power supply as its core function, which can convert AC input into high-precision DC output required by industrial equipment. It also has complete monitoring, protection, and redundancy expansion capabilities, providing continuous and reliable power guarantee for core control equipment such as PLC, DCS, and control boards.




FOXBORO SY-0399095E SY-0303451D+SY-0303460E DC power module

Product Overview

The FOXBORO SY-0399095E SY-0303451D+SY-0303460E DC power module is a highly reliable power supply solution designed by FOXBORO specifically for industrial automation control systems. It consists of the SY-0399095E main control module, SY-0303451D rectifier module, and SY-0303460E monitoring module, and is a core component of the FOXBORO power system series. This module has stable power supply as its core function, which can convert AC input into high-precision DC output required by industrial equipment. It also has complete monitoring, protection, and redundancy expansion capabilities, providing continuous and reliable power guarantee for core control equipment such as PLC, DCS, and control boards.

Its modular architecture realizes the full process closed-loop management of "power supply rectification monitoring". SY-0303451D is responsible for efficient conversion from AC to DC, SY-0303460E monitors the real-time operation status of the power supply, and SY-0399095E is responsible for system coordination and fault handling. The three work together to ensure power supply stability. The product is widely used in industries with strict requirements for power supply reliability, such as petrochemicals, power energy, metallurgy and steel, and rail transit. It can be directly connected to the FOXBORO series control system and is also compatible with third-party industrial equipment. It is the "power core" for the safe operation of industrial automation systems.


Specification parameters

Module independent parameters

SY-0399095E main control module: supports up to 4 rectifier modules for parallel expansion; Redundant switching time ≤ 1ms; equipped with RS485/Ethernet communication interface; Support dry contact alarm output (8 channels)

SY-0303451D rectifier module: Input voltage: AC 220V ± 20% or AC 380V ± 20% (switchable); Output voltage: DC 24V/48V/110V (configurable); Output current: 20A/module; Conversion efficiency ≥ 92%; Voltage stabilization accuracy ± 0.5%

SY-0303460E monitoring module: monitoring parameters: input/output voltage, output current, module temperature, battery status; Monitoring accuracy: voltage ± 0.1V, current ± 0.1A; equipped with LCD display and button operation functions; Support local parameter settings and remote configuration

Common Parameters - Output Characteristics

Output ripple ≤ 10mVp-p; Load adjustment rate ≤ 0.3%; Voltage stability ≤ 0.2%; Maximum parallel output current: 80A (4 20A modules)

Common Parameters - Protection Function

Overcurrent protection: 110% -150% rated current can be set, with delayed tripping; Overvoltage protection: 115% -120% rated voltage, instantaneous tripping; Undervoltage protection: 80% -85% rated voltage, alarm and switch redundancy; Short circuit protection: instantaneous current limiting, automatically restored after troubleshooting; Over temperature protection: module temperature drops when ≥ 85 ° C, shuts down when ≥ 95 ° C

Common parameters - environmental conditions

Working temperature: -10 ° C to+55 ° C; Storage temperature: -40 ° C to+85 ° C; Relative humidity: 5% -95% (no condensation); Altitude: ≤ 2000m (beyond which capacity reduction is required); Vibration resistance: IEC 60068-2-6 (5-500Hz, 5g)

Common Parameters - Battery Management

Support integration of lead-acid/lithium batteries; Charging mode: Constant current constant voltage float charging three-stage mode; Battery overcharge/overdischarge protection; Battery capacity monitoring and low capacity alarm

Common Parameters - Physics and Authentication

Installation method: 19 inch standard cabinet installation; Dimensions (single module): 482.6mm × 132mm × 150mm; Protection level: IP20; Safety certification: UL, CSA, CE, IEC 61010; Electromagnetic compatibility: IEC 61000-4


Performance characteristics

1. High stability and precise power supply capability

The SY-0303451D rectifier module adopts high-frequency switching power supply technology and digital control scheme, with a conversion efficiency of over 92%, effectively reducing energy consumption while ensuring output stability. The voltage stabilization accuracy is controlled within ± 0.5%, the output ripple is below 10mVp-p, and the load adjustment rate is ≤ 0.3%. Even when the load changes dramatically (such as equipment start stop), the output voltage fluctuation can still be maintained within a very small range, providing pure and stable DC power supply for precision control equipment and avoiding equipment misoperation or damage caused by voltage fluctuations.

2. Flexible redundancy and scalability

The SY-0399095E main control module supports up to 4 SY-0303451D rectifier modules running in parallel, achieving N+1 or N+2 redundant configuration. When a rectifier module fails, the main control module can complete load transfer within 1ms, ensuring uninterrupted output and greatly improving system power supply reliability. The module supports switching between AC 220V and AC 380V input voltages, and the output voltage can be configured between 24V/48V/110V to meet the power supply needs of different industrial equipment, without the need to replace hardware to meet diverse scenarios.

3. Full dimensional monitoring and intelligent management

The SY-0303460E monitoring module has comprehensive parameter monitoring capabilities, which can real-time collect 12 key parameters such as input/output voltage, output current, module temperature, battery status, etc., and display them intuitively on the LCD screen. It also supports local button operation and remote communication configuration. The main control module uploads data to the upper monitoring system through Ethernet or RS485 interface, realizing centralized monitoring of power operation status, supporting remote start stop, parameter modification and fault query, and reducing on-site operation costs for operation and maintenance personnel.

4. Multiple protections and security guarantees

The system is equipped with multiple protection mechanisms such as overcurrent, overvoltage, undervoltage, short circuit, overheating, and battery overcharging/overdischarging, forming a comprehensive safety protection network. When a short circuit fault occurs, the module instantly enters a current limiting protection state to avoid high current burning out the circuit; When the module temperature is too high, it automatically performs a capacity reduction or shutdown operation to prevent device damage; The battery management function can effectively extend the service life of backup batteries and ensure that the system can safely switch to battery power supply in case of sudden power outages.

5. Strong environmental adaptability and high reliability

The module adopts industrial grade components and reinforced structure design. The core components have undergone rigorous environmental tests such as high and low temperature, vibration, and impact, and can operate stably in a wide temperature environment from -10 ° C to+55 ° C. It is suitable for complex scenarios such as high-temperature workshops and cold outdoor environments. The average time between failures (MTBF) of the overall system exceeds 200000 hours, and it supports hot swappable replacement of rectifier modules. The replacement process does not affect the normal power supply of the system, greatly reducing downtime and losses.


Working principle

The FOXBORO SY-0399095E SY-0303451D+SY-0303460E DC power module has the core workflow of "AC input rectification conversion voltage regulation output monitoring and protection", and achieves stable power supply and intelligent management through the collaborative cooperation of three modules. The specific principle is as follows:

1. Communication input and rectification conversion stage

The AC 220V/380V AC power supply is connected to the SY-0303451D rectifier module after passing through the input switch, lightning arrester, and EMC filtering circuit. The rectifier bridge inside the module converts AC power into pulsating DC power, and the power factor is improved to above 0.95 through power factor correction (PFC) circuit, reducing harmonic pollution to the power grid. Subsequently, the high-frequency inverter circuit converts DC power into high-frequency AC power, performs voltage conversion through a high-frequency transformer, and finally converts it into a stable DC voltage through a rectification and filtering circuit, completing the entire process of "AC-DC" conversion.
