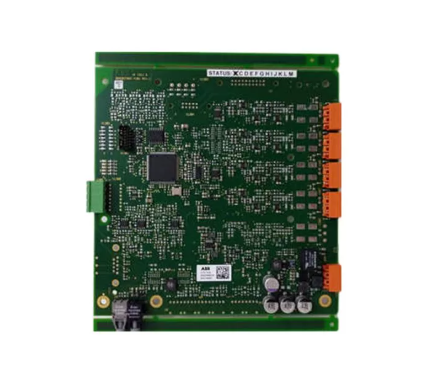

ABB UFC911B108 3BHE037864R0108 communication interface

ABB UFC911B108 3BHE037864R0108 communication interface

Product core positioning and application scenarios

As a "bridge" connecting ABB control systems (such as AC800M, Symphony Plus, etc.) with various intelligent devices and upper computer systems, the core value of UFC911B108 module lies in solving the communication protocol differences between different devices and building a unified and efficient industrial communication network. Its typical application scenarios include:

-Power industry: In the DCS system of thermal power units, real-time data transmission between controllers and field instruments (such as pressure transmitters, flow sensors), and actuators (such as regulating valves) is achieved to ensure accurate collection of unit operating parameters and reliable issuance of control instructions.

-Chemical process industry: In continuous production processes, connecting distributed control systems and safety instrumented systems (SIS) to achieve process parameter sharing and rapid transmission of emergency stop signals, improving production safety.

-Metallurgy and Manufacturing: Used for interconnecting production line control systems with PLCs, robots, and SCADA systems to achieve collaborative control and data traceability of production processes.

Core functional features

1. Multi protocol compatibility and flexible adaptation

The module supports multiple mainstream industrial communication protocols and can be configured according to actual application needs, breaking down communication barriers between different devices. Common compatible protocols include PROFINET, Modbus RTU/TCP, EtherNet/IP, Profibus DP, etc., which can seamlessly interface with smart devices from different manufacturers and reduce the difficulty of system integration.

2. High reliability and real-time performance

In response to the complexity of industrial environments, this module adopts industrial grade hardware design and has strong anti-interference ability, which can resist the influence of harsh environmental factors such as electromagnetic interference and voltage fluctuations. At the same time, its communication response time is short and data transmission delay is low, which can meet the strict requirements for real-time performance in industrial control, ensuring timely execution of control instructions and synchronous updates of data.

3. Redundant design to enhance system availability

Support communication redundancy function, which can achieve backup of communication links through dual port design or redundant network configuration. When the main communication link fails, the module can automatically switch to the backup link, avoiding production accidents caused by communication interruption and greatly improving the availability and stability of the entire control system.

4. Convenient configuration and diagnosis

With ABB's dedicated configuration software (such as Control Builder M), users can intuitively configure the communication parameters, protocol types, data mapping relationships, etc. of the module. At the same time, the module has a comprehensive self diagnostic function, which can monitor communication status, link quality and other information in real time, and provide feedback on fault information through indicator lights or software alarms, making it easy for operation and maintenance personnel to quickly locate and troubleshoot problems.

Key technical parameters

Model identification

UFC911B108 / 3BHE037864R0108

power supply voltage

Usually 24V DC (subject to product manual), supporting a wide voltage fluctuation range

communication interface

Ethernet port (RJ45), RS485/RS232 (supported in some versions)

Supported Protocols

PROFINET, Modbus RTU/TCP, EtherNet/IP, Profibus DP, etc

communication rate

Ethernet: 10/100Mbps (adaptive); Serial port: up to 115200bps

Working temperature range

-20 ℃~60 ℃ (industrial wide temperature design)

Installation method

Standard DIN rail installation, compatible with industrial control cabinet layout

Protection level

The module itself has an IP20 rating (requires coordination with the control cabinet to achieve higher protection)

Installation and usage precautions

1. Installation environment: It should be installed in a well ventilated, dust-free, and non corrosive gas control cabinet, avoiding direct sunlight and severe vibration, and ensuring that the ambient temperature and humidity are within the allowable range of the product.

2. Wiring specifications: Strictly follow the product manual to wire the power and communication lines, distinguish between positive and negative poles and signal pins, and avoid module damage caused by reverse connection; Communication lines should use shielded wires and be properly grounded to reduce electromagnetic interference.

3. Configuration: Use ABB officially certified configuration software for parameter configuration. After configuration, communication testing is required to verify the accuracy and stability of data transmission.

4. Maintenance: Regularly check the operation status of the module and clean the surface dust; Monitor the power supply voltage and communication link quality, promptly handle alarm information, and ensure long-term stable operation of the module.
