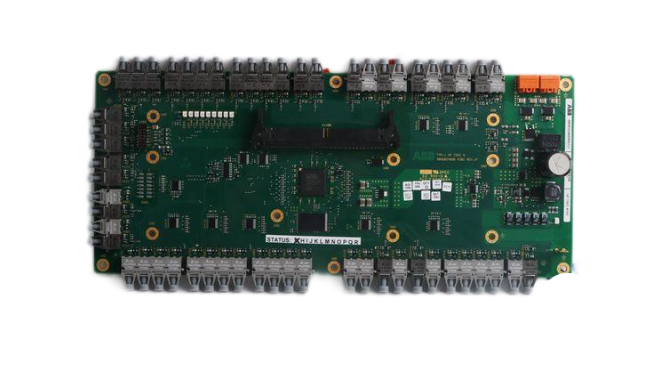

ABB UNS2882A 3BHE003855R0001 Interface Board

ABB UNS2882A 3BHE003855R0001 Interface Board

Product core positioning

ABB UNS2882A 3BHE003855R0001 is a high-performance signal conversion and equipment interconnection interface board in industrial automation systems. Its core function is to build a "signal bridge" between different types of equipment and systems, enabling signal adaptation, protocol conversion, and data exchange between heterogeneous devices. As a key interface unit of ABB Advant OCS system, it can connect controllers (such as UNS4881b, V4 controller), field instruments, third-party control systems and monitoring terminals, solving the problem of equipment interconnection caused by signal type differences (such as analog/digital, different voltage levels) and protocol incompatibility in industrial scenarios. It is particularly suitable for system integration and expansion scenarios in large-scale process industries (such as petrochemical, power, chemical), and is the core component to ensure smooth flow of industrial data and coordinated operation of the system.

Key technical parameters

Signal conversion capability

Support analog signal conversion (bidirectional conversion of 4-20mA current signal and 0-10V/1-5V voltage signal), digital signal level conversion (DC 24V and DC 12V/5V interconversion)

Interface type

8-channel analog input interface (compatible with 4-20mA/0-10V/1-5V), 8-channel analog output interface (configurable 4-20mA/0-10V/1-5V); 16 digital input interfaces (DC 5V/12V/24V adaptive), 16 digital output interfaces (DC 5V/12V/24V configurable)

Communication protocol support

Built in protocol conversion chip, supporting Modbus RTU/ASCII, Profinet, EtherNet/IP protocols; The protocol mode can be switched through software configuration to achieve data exchange between different protocol devices

Data transmission rate

Analog signal conversion response time ≤ 1ms; digital signal transmission delay ≤ 0.5ms; communication interface speed: Ethernet interface 10/100Mbps adaptive, RS485 interface 9600-115200bps adjustable

Isolation performance

Electrical isolation between analog channels (isolation voltage 250V AC), isolation between digital channels and power supply (isolation voltage 500V AC), communication interface isolation (isolation voltage 1kV AC), strong anti-interference ability

Power specifications

Working power supply: DC 24V (± 15%), power consumption of about 5W; equipped with overvoltage (≥ 36V DC), overcurrent (≥ 0.5A), and reverse connection protection functions

Environmental adaptability

Working temperature -20 ° C-70 ° C, storage temperature -40 ° C-85 ° C, relative humidity 5% -95% (no condensation), anti electromagnetic interference level IEC 61000-6-2, protection level IP20 (front panel)

Physical specifications

The dimensions (length x width x height) are approximately 160mm x 100mm x 40mm, installed on a standard 3U rack (compatible with 35mm DIN rails), and weigh approximately 0.4kg

Compatibility

Compatible with ABB Advant OCS series controllers (such as UNS4881b, V4) and I/O modules (such as DSAI133A, DSAO132); Support interconnection with third-party devices such as Siemens S7 series PLC and Rockwell ControlLogix system; Compatible with System 800xA V6.1 and above monitoring systems

Core functions and advantages

1. Multi type signal adaptation and conversion

Capable of full scene signal conversion, it can achieve bidirectional conversion of analog current/voltage signals (such as converting the 4-20mA current signal output by on-site sensors into a 0-10V voltage signal recognizable by the controller, or vice versa), as well as digital level conversion (such as converting the DC 5V digital signal output by third-party devices into a DC 24V signal compatible with ABB systems), without the need for additional signal converters, simplifying system wiring, and reducing hardware costs.

The analog conversion accuracy reaches ± 0.1% of the full range, and the digital signal level conversion is distortion free, ensuring the accuracy of the converted signal. For example, in the chemical pressure monitoring scenario, the 4-20mA signal output by the pressure transmitter can be accurately converted into a 0-10V signal and transmitted to the controller, with measurement error controlled within ± 0.05%, meeting the requirements of high-precision monitoring.

2. Multi protocol compatibility and flexible interconnection

Built in multifunctional protocol conversion module, supporting mainstream industrial protocols such as Modbus, Profinet, EtherNet/IP without the need to replace hardware, solving the interconnection problems of different brands and protocol devices. For example, third-party flow meter data using Modbus RTU protocol can be converted into Profinet protocol and transmitted to ABB UNS4881b, V4 controller, or EtherNet/IP instructions output by the controller can be converted into Modbus protocol and sent to the actuator to achieve seamless cross protocol data flow.

Supporting protocol parameter software configuration, ABB Control Builder software can be used to adjust communication baud rate, data bits, parity bits and other parameters online. Protocol switching can be completed without disassembling the equipment, adapting to communication needs in different scenarios. For example, during production line transformation, the interface board can be quickly switched from Modbus mode to Profinet mode to interface with newly connected intelligent devices.

3. High reliability isolation and anti-interference design

Adopting multi-level isolation technology, analog, digital, and communication interfaces are isolated from the power supply and each other, effectively blocking signal interference and potential difference damage between different channels, and avoiding signal distortion or module damage caused by strong electromagnetic environments on site (such as interference from frequency converters and high-voltage equipment). For example, in the scenario of substations in the power industry, it can resist electromagnetic radiation generated by high-voltage equipment and ensure stable signal transmission.

The module is equipped with an EMI filtering circuit that can filter high-frequency interference signals; Simultaneously equipped with surge protection function, capable of withstanding ± 2kV electrostatic discharge and ± 1kV electrical fast transient pulse group interference, meeting the reliability requirements in harsh industrial environments, with MTBF (mean time between failures) exceeding 150000 hours.

4. Convenient operation and status monitoring

Equipped with visual status indicators, the module is equipped with 32 LED indicator lights on the front (corresponding to analog/digital input/output status, communication status, power status). For example, "analog input light flashing" indicates normal signal, "communication light constantly off" indicates communication interruption. Maintenance personnel can intuitively judge the operating conditions of the module and quickly locate the fault point.

Support remote status monitoring and parameter configuration, allowing real-time viewing of module signal conversion status, communication rate, and channel fault information through the System 800xA monitoring system; At the same time, signal conversion parameters (such as analog output range) and communication protocol parameters can be remotely adjusted without on-site operation, especially suitable for the operation and maintenance of remote industrial sites (such as oil fields and mines), reducing labor costs.
