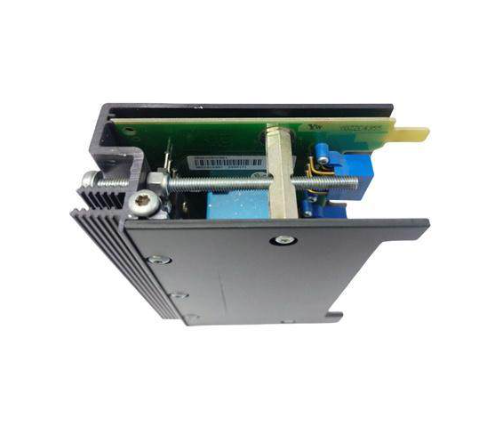

ABB VA-MC15-05 Industrial Control Module

ABB VA-MC15-05 Industrial Control Module

Product Core Overview

ABB VA-MC15-05 is a compact high-performance industrial control module designed for precise control and system linkage of small and medium power equipment. Its core functions include motor start stop logic management, analog signal processing, and multi protocol communication interaction. It is a key interface unit that connects sensors, actuators, and upper control systems. It is compatible with ABB frequency converters, PLCs and other automation equipment, as well as third-party industrial systems. It is widely used in scenarios such as fans, water pumps, material conveying, and small production lines. With integrated design and flexible adaptability, it can simplify the control architecture and improve equipment operation stability, especially for the installation needs of control cabinets with limited space.

Key specification parameters

Electrical performance

Working voltage: 24V DC (fluctuation range ± 15%) Power consumption: Static ≤ 3W, full load ≤ 8W Output drive: Supports maximum 2A/channel motor control signal output

I/O configuration

Digital input: 8 channels (dry/wet contacts optional, photoelectric isolation ≥ 250V AC) Digital output: 6 channels (relay/transistor hybrid output) Analog input: 4 channels (0-10V/4-20mA, 12 bit resolution)

Communication and Compatibility

Interface: RS485, Mini USB (trial version) Support protocols: Modbus RTU, ABB dedicated communication protocol Adaptation equipment: ABB ACS series frequency converter, low-voltage circuit breaker, sensor array

Physics and Environment

Protection level: IP20 (installed inside the control cabinet) Operating temperature and humidity: -10 ℃~55 ℃, 5%~95% RH (non condensing) Installation method: 35mm DIN rail compact installation (size approximately 80 × 60 × 30mm)

Core performance characteristics

Special optimization of motor control

For common loads such as fans and pumps, dedicated control logic and protection algorithms are built-in: supporting direct start stop control, speed signal acquisition, and overload protection. Feedback signals such as flow and pressure can be received through analog input channels, combined with PID regulation to achieve load closed-loop control. For example, in a constant pressure water supply system, a frequency converter can be linked to dynamically adjust the speed of the water pump, so that the deviation of the water supply pressure is controlled within ± 0.02MPa.

Multi device collaborative linkage capability

Build a linkage network with ABB frequency converters, low-voltage circuit breakers, and other devices through RS485 interface, supporting Modbus RTU protocol for data exchange and command issuance. It can manage the operation status of 6 small motors simultaneously. When the circuit breaker detects an overcurrent fault, the module can cut off the corresponding motor control signal within 50ms, forming a complete "monitoring protection response" link.

High reliability and anti-interference design

Adopting optoelectronic isolation and electromagnetic shielding technology, the digital I/O channel has 30V DC overvoltage protection and short circuit protection, which can resist high-frequency interference generated by industrial field frequency converters. Internally selected wide temperature components, with an average fault free time of over 80000 hours in environments ranging from -10 ℃ to 55 ℃, suitable for high and low temperature industrial scenarios.

Lightweight operation and configuration

Supports Mini USB local debugging and RS485 remote configuration, and can quickly set I/O logic, PID parameters, and communication addresses through dedicated software; The front of the module is equipped with LED indicators for power, communication, and channel status, which can intuitively locate the type of problem in case of a fault, reducing operation and maintenance response time by 60%.

Working principle

VA-MC15-05 achieves precise control through a closed-loop process of "signal perception logic operation execution control state feedback":

Signal perception stage: Analog input channels collect sensor signals such as pressure and flow (such as 4-20mA current signals), digital input receives switch signals such as limit and fault signals from equipment, and after isolation and filtering circuits remove interference, transmits them to the core processor;

Logic operation stage: The processor combines preset control rules (such as constant pressure water supply PID algorithm, motor interlock logic), compares the collected values with the set threshold, and generates control instructions such as motor start stop and speed adjustment;

Execution and feedback stage: Drive the contactor or frequency converter through digital output, simulate output signals to adjust load parameters; At the same time, the device's operating status and fault information are uploaded to the upper computer via RS485 to form a real-time monitoring loop.

Installation and usage precautions

Installation specifications

It needs to be operated by professional personnel. Before installation, disconnect the power supply and check the voltage level; The module needs to maintain a distance of ≥ 20cm from strong interference sources such as frequency converters to avoid signal interference; A heat dissipation space of ≥ 10mm should be reserved in the control cabinet, and ventilation should be strengthened when the ambient temperature exceeds 45 ℃.

Key points of wiring

The power terminal needs to strictly distinguish between positive and negative poles. Although it has reverse polarity protection, misconnection may burn out the internal fuse; The analog signal cable adopts twisted pair shielded wire, and the shielding layer is grounded at one end (grounding resistance ≤ 4 Ω); The motor control output circuit needs to be connected in series with fuses of matching capacity to prevent overload damage to the module.

Maintenance guidelines

Check the tightness of wiring terminals and the status of indicator lights every month, and calibrate the accuracy of analog input channels through software every quarter; During troubleshooting, priority should be given to detecting sensor signals and communication links, and it is strictly prohibited to plug and unplug USB debugging interfaces with power on; Official firmware is required for software updates to avoid compatibility issues that may cause control logic failure.
