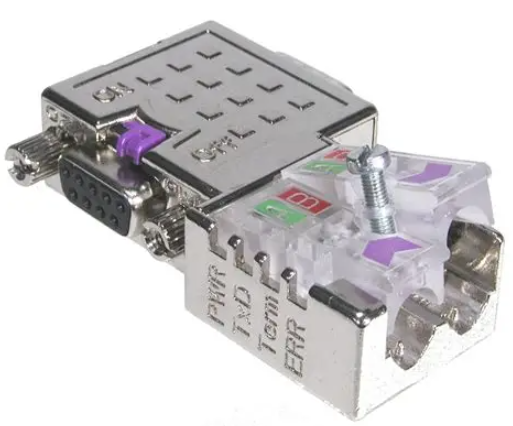

ABB VIPA972-0DP01 bus connector

ABB VIPA972-0DP01 bus connector

Product Overview

The ABB VIPA972-0DP01 bus connector is a core connecting component designed specifically for Profibus DP (Decentralized Peripheral) bus systems in the field of industrial automation. It is mainly used to achieve reliable physical connection between devices and buses in Profibus DP networks, ensuring high-speed and stable data transmission between controllers (such as PLCs) and distributed I/O, drives, sensors, and other peripheral devices. As an important component of the ABB VIPA series, this connector is widely used in various industrial control scenarios due to its high compatibility, anti-interference ability, and convenient installation characteristics, providing solid physical layer support for the stable operation of automation systems.

Core Features

1. High adaptability and universality

This bus connector strictly follows the Profibus DP standard and can perfectly adapt to ABB VIPA series PLCs and other industrial equipment that comply with the Profibus DP specification, achieving fast access without additional configuration. Its interface design is compatible with standard Profibus bus cables (such as RS485 bus cables), supporting flexible expansion and device replacement of bus networks, reducing system upgrade and maintenance costs.

2. Excellent anti-interference performance

In response to the complex electromagnetic environment of industrial sites, VIPA972-0DP01 adopts a reinforced electromagnetic shielding design, integrating high-quality shielding layers and grounding terminals internally, which can effectively suppress electromagnetic interference (EMI) and radio frequency interference (RFI), reduce attenuation and distortion during signal transmission, and ensure the accuracy and stability of data transmission in strong interference scenarios such as motor start stop and high-voltage equipment operation.

3. Convenient installation and maintenance

The product adopts a modular structure and buckle design, with a simple and efficient installation process. It can be directly connected to the Profibus interface of the device without the need for complex tools. At the same time, the connector is equipped with clear wiring labels and terminal resistance switches, which facilitates on-site engineers to quickly complete wiring, terminal resistance configuration, and troubleshooting, greatly improving debugging and maintenance efficiency.

4. Stable mechanical performance

The shell is made of high-strength engineering plastic, which has good impact resistance, wear resistance, and temperature resistance. It can adapt to a wide temperature working environment of -20 ℃ to 60 ℃ in industrial sites. At the same time, the waterproof and dustproof level meets industrial standards, which can effectively resist the erosion of harsh environmental factors such as dust and oil pollution, and extend the service life of the product.

Key technical parameters

Bus standard

Profibus DP（IEC 61158）

interface type

RS485 (9-pin D-Sub interface)

transmission rate

Supports adaptive transmission from 9.6kbps to 12Mbps

terminating resistor

Built in 150 Ω terminal resistor, supporting switch control

Working Voltage

No need for independent power supply (powered through bus)

Operating Temperature

-20℃ ~ 60℃

Protection level

IP20 (shell)

connection method

Screw crimping (compatible with AWG 22-16 wire)

Shielding design

Full metal shielding layer+grounding terminal

Applicable scenarios

The ABB VIPA972-0DP01 bus connector is widely used in the following industrial fields due to its stable and reliable performance:

-Manufacturing industry: automotive production lines, mechanical processing equipment, automated assembly lines, etc., used to connect PLC with distributed I/O modules, servo drives and other equipment to achieve precise control of the production process.

-Process industry: In process control systems for industries such as chemical, petroleum, and power, controllers are connected to on-site sensors and actuators to ensure real-time collection of process parameters and transmission of instructions.

-Logistics and Warehousing: Automated three-dimensional warehouses and logistics sorting systems are used to achieve collaborative operations and data exchange between equipment.

-Metallurgy and Mining: Metallurgical equipment and mining machinery in high temperature and high dust environments, with their ability to withstand harsh environments, ensure stable bus communication.

Precautions for use

1. Terminal resistor configuration: Terminal resistors must be enabled for devices at both ends of the Profibus DP bus network, and terminal resistors must be turned off for intermediate devices. Configuration can be easily completed through switches on the connector. Incorrect configuration can cause signal reflection and affect communication quality.

2. Shielding grounding: During installation, it is necessary to ensure that the shielding layer of the connector is reliably connected to the equipment grounding system to maximize the anti-interference effect. The grounding resistance should be controlled within 4 Ω.

3. Cable selection: Special bus cables that comply with the Profibus standard should be selected, avoiding the use of ordinary wires. The cable impedance should be matched with a 150 Ω terminal resistor to reduce signal attenuation.

4. Installation environment: Avoid installing the connector near strong magnetic fields, high-temperature heat sources, or locations that are susceptible to mechanical impact, while preventing liquid from seeping into the interface to ensure the normal operation of the equipment.

5. Wiring specifications: Strictly follow the wiring labels to ensure correct connection of positive and negative poles (A/B wires) and avoid communication faults caused by reverse connection. After wiring is completed, tighten the screws to prevent poor contact.
