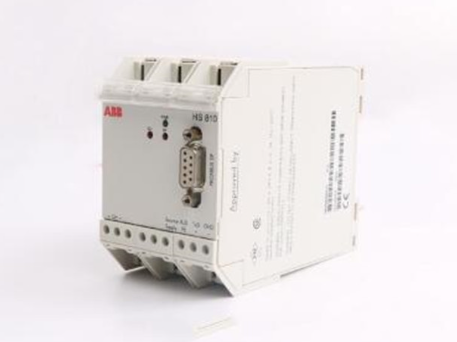

  • ABB HS810 3BDH000305R0101 Controller Module
    ❤ Add to collection
  • ABB HS810 3BDH000305R0101 Controller Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    -Product model: HS810 3BDH000305R0101

    -Manufacturer: ABB Group

    -Product category: Industrial grade programmable controller module

    -Applicable scenarios: intelligent manufacturing production line control, energy and chemical process regulation, metallurgical equipment logic control, intelligent building automation system, rail transit auxiliary control, etc


    • ¥26466.00
      ¥25633.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:2.633KG
    • Quantity:
    • (Inventory: 99999)
Description

-Product model: HS810 3BDH000305R0101

-Manufacturer: ABB Group

-Product category: Industrial grade programmable controller module

-Applicable scenarios: intelligent manufacturing production line control, energy and chemical process regulation, metallurgical equipment logic control, intelligent building automation system, rail transit auxiliary control, etc





ABB HS810 3BDH000305R0101 Controller Module

Basic Product Information

-Product model: HS810 3BDH000305R0101

-Manufacturer: ABB Group

-Product category: Industrial grade programmable controller module

-Applicable scenarios: intelligent manufacturing production line control, energy and chemical process regulation, metallurgical equipment logic control, intelligent building automation system, rail transit auxiliary control, etc

Core Features and Advantages

1. Powerful computational processing capability

Equipped with a high-performance 32-bit industrial grade processor with a clock speed of up to 800MHz, it has fast instruction execution capability and massive data processing capability, with a single cycle instruction execution time as short as nanoseconds. It can simultaneously process multi-channel input and output signals, support complex PID closed-loop control, logic interlocking control, and sequential control algorithms, easily meet the control requirements of multiple variables and high real-time in industrial scenarios, and ensure precise synchronization of the production process.

2. Excellent anti-interference performance

Adopting ABB's patented electromagnetic compatibility (EMC) design, it effectively resists electromagnetic radiation, high-frequency interference, and voltage fluctuations in industrial environments through multiple shielding, signal isolation, and power filtering technologies. The module complies with the IEC 61131-2 industrial anti-interference standard and can maintain stable operation in strong electromagnetic environments (such as motor start-up and frequency converter operation scenarios). The data transmission error rate is extremely low, ensuring reliable execution of control instructions.

3. Flexible scalability and compatibility capabilities

Supporting ABB's standardized modular expansion architecture, it can flexibly match digital I/O, analog I/O, communication modules, special function modules (such as temperature control, motion control modules), etc. according to actual needs. It can expand up to dozens of I/O channels and adapt to control systems of different scales. Simultaneously compatible with mainstream industrial communication protocols such as PROFINET, Modbus, EtherNet/IP, it can seamlessly integrate with upper computer monitoring systems, HMI human-machine interfaces, and other brands of automation equipment, achieving interconnectivity between systems.

4. High reliability and redundant design

Adopting industrial grade high stability components and strict production testing processes, the average time between failures (MTBF) exceeds 100000 hours, meeting the long-term operational requirements of continuous production scenarios. Support dual machine hot standby redundancy function. When the main controller fails, the backup controller can complete uninterrupted switching in milliseconds, ensuring uninterrupted control process and greatly improving the system's fault tolerance and production safety. It is particularly suitable for industries such as chemical and power that are sensitive to downtime losses.

5. Convenient programming and operation

Support programming environment based on IEC 61131-3 standard, compatible with various programming methods such as ladder diagram (LD), functional block diagram (FBD), structured text (ST), etc., making it convenient for engineers to choose programming tools according to their habits and reducing development difficulty. The module is equipped with Ethernet interfaces and debugging ports, supporting online programming, parameter modification, and fault diagnosis. Operation and maintenance personnel can monitor the running status, program execution, and I/O signal status of the controller in real time through ABB dedicated software, quickly locate and solve problems, and improve operation and maintenance efficiency.


Key technical parameters

Processor specifications

32-bit industrial grade processor with a main frequency of 800MHz

High performance computing core ensures real-time control requirements

Memory configuration

Program memory 16MB, data memory 8MB

Support large capacity control program storage and data processing

power input

DC 24V ±10%

Wide voltage input, compatible with industrial standard DC power supply

I/O expansion capability

Supports up to 32 expansion modules, with I/O points ≤ 1024

Meet the expansion needs of control systems of different scales

communication interface

2 Ethernet ports, 1 RS485 port, 1 debugging port

Supports multiple communication methods for easy networking and debugging

Working temperature range

-10℃~60℃

Adapt to harsh industrial environments, operate stably without pressure

Protection level

IP20 (panel)

Suitable for installation inside control cabinets to prevent foreign object contact

Overall dimensions

140mm x 110mm x 75mm (length x width x height)

Compact design, saving cabinet installation space


Installation and usage precautions

1. Installation environment: It should be installed in a well ventilated, dry, non condensing, non corrosive gas and dust control cabinet, avoiding direct sunlight, severe vibration and high temperature heat sources (such as high-power resistors and transformers), ensuring that the working environment temperature is within the rated range to ensure good heat dissipation of the module.

2. Wiring specifications: Strictly follow the wiring diagram in the product manual to connect the power supply, I/O signal, and communication lines, ensuring that the wiring is firm and the positive and negative poles are not misconnected. Communication lines should use shielded cables and be laid separately from power cables to avoid electromagnetic interference; Before wiring, all relevant power sources must be cut off to ensure safe operation.

3. Module expansion: When expanding modules, ABB compatible models should be selected and connected in the order of "main controller expansion module" to ensure reliable communication bus connections between modules. After expansion, I/O address allocation needs to be done through programming software to avoid address conflicts.

4. Program management: Control programs should be backed up regularly to avoid program loss due to module failures. When modifying the program, it is necessary to enable the "online editing" mode. After the modification is completed, logical verification is required to ensure that the program is error free before downloading it to the controller to prevent production accidents caused by incorrect programs.

5. Daily maintenance: Regularly check the status of module indicator lights to confirm that the power, operation, and communication status are normal; Regularly clean the dust on the surface of the module and inside the control cabinet, and check whether the wiring terminals are loose or oxidized; Before the thunderstorm season, it is necessary to check whether the grounding system is reliable and improve the module's lightning resistance.

6. Safety warning: When the module is live, it is forbidden to plug in or remove the expansion module or disassemble the shell; Non professional technicians are not allowed to modify controller parameters or disassemble modules at will; Fault repairs must be carried out by authorized personnel from ABB to ensure repair quality and operational safety.


Common faults and troubleshooting

The power light is not on and the module is unresponsive

Power input failure, loose wiring, damaged power module

1. Check if the input power supply voltage meets the requirements; 2. Check if the power supply wiring terminals are securely fastened; 3. Replace the backup power module for testing

The running light is flashing, and the program cannot be executed

Program error, memory failure, I/O address conflict

1. Use programming software to check program logic and troubleshoot syntax or logic errors; 2. Perform memory diagnostic function to detect whether the memory is abnormal; 3. Check the allocation of I/O addresses to avoid duplicate allocation

Communication failure, unable to connect to the upper computer

Communication parameter mismatch, communication line failure, interface damage

1. Confirm that the IP address, port number, and other parameters of the controller are consistent with those of the upper computer; 2. Check whether the communication cable is damaged and whether the shielding layer is grounded; 3. Replace the backup communication interface or module for testing

I/O signal unresponsive

I/O module malfunction, wiring error, signal interference

1. Check the status of the I/O module indicator lights to determine if the module is functioning properly; 2. Check if the I/O wiring is consistent with the drawing and if there is any looseness; 3. Adopt signal isolators to reduce external interference

Redundant switching failed

Redundancy configuration error, communication link interruption, backup module failure

1. Check the redundant configuration parameters to ensure that the settings of the primary and backup modules are consistent; 2. Check the communication lines between the primary and backup modules; 3. Conduct separate testing on the backup module to confirm its normal performance
